AI Dual-sensor 180° Panoramic
Network Camera
Wider Coverage, Sharper Vision, Zero Distortion
AI Dual-sensor Camera: Your Prime Choice for Panoramic Excellence

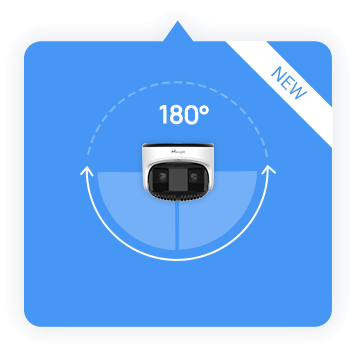

AI Dual-sensor 180° Panoramic
- Seamless Stitched 180° Panoramic View
- 8MP High Definition without Distortion
- AI ISP & 1/1.8″ Sensor for Super Night Vision
- Smart IR II with 30m IR Distance
- 9 AI VCA & Object Counting & Heat Map
- 1TB SD Storage & H.265+ Smart Stream
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Panoramic Series
- AI Dual-sensor 180° Panoramic Camera
Double the Coverage, Half the Cost!
One camera seamlessly replaces two, offering the same expansive monitoring area while drastically reducing costs. Say goodbye to the expenses of extra cameras, brackets, and VMS licenses. Moreover, fewer cameras mean a simplified installation process, slashing labor and time costs associated with wiring and setup.

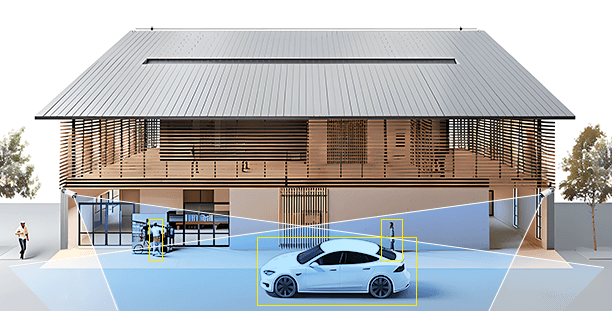

Before
2 X Cameras
![s1 1 camera1]( "s1 1 camera1")
![s1 1 camera1]( "s1 1 camera1")
2 X Brackets
![a62]( "a62")
![a62]( "a62")
2 X VMS Licenses
![license]( "license")
![license]( "license")
2 X Labors
![labor]( "labor")
![labor]( "labor")
...

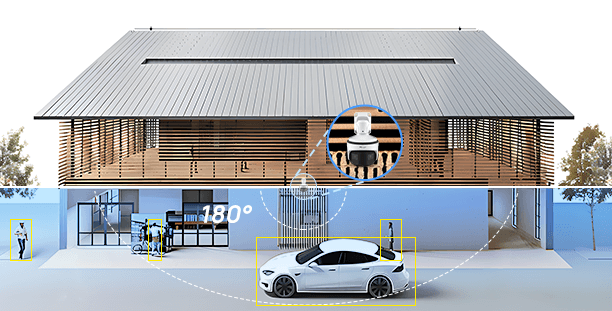

Now
1 X Camera
![s1 1 camera2]( "s1 1 camera2")
1 X Bracket
![a72]( "a72")
1 X VMS License
![license]( "license")
1 X Labor
![labor]( "labor")
...

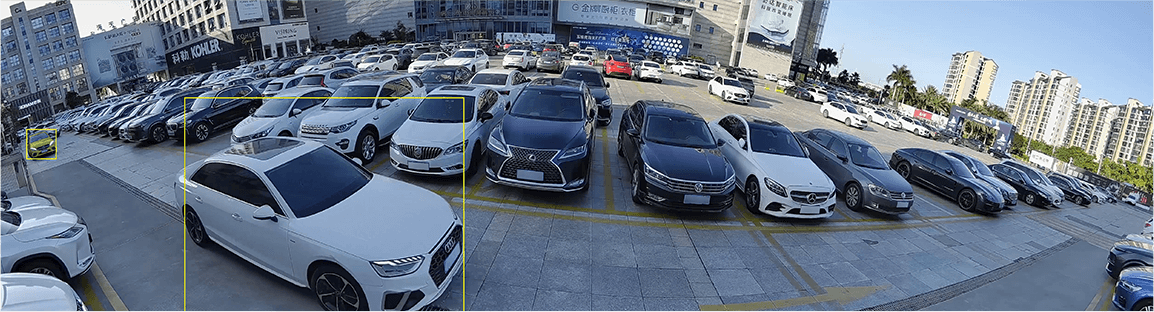

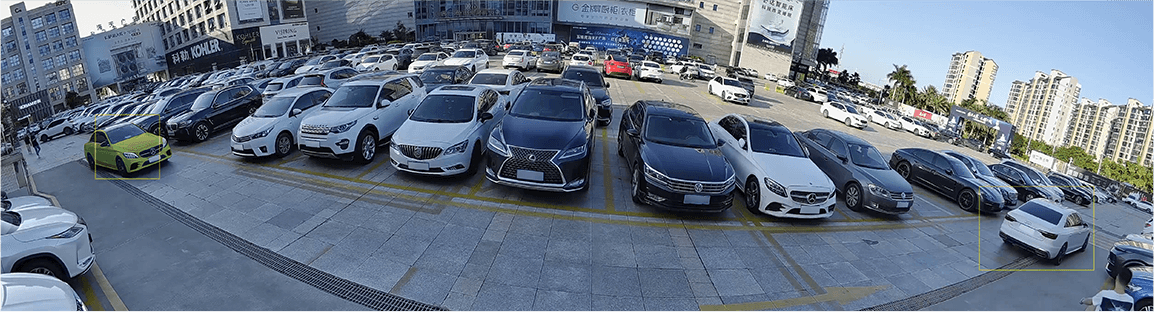

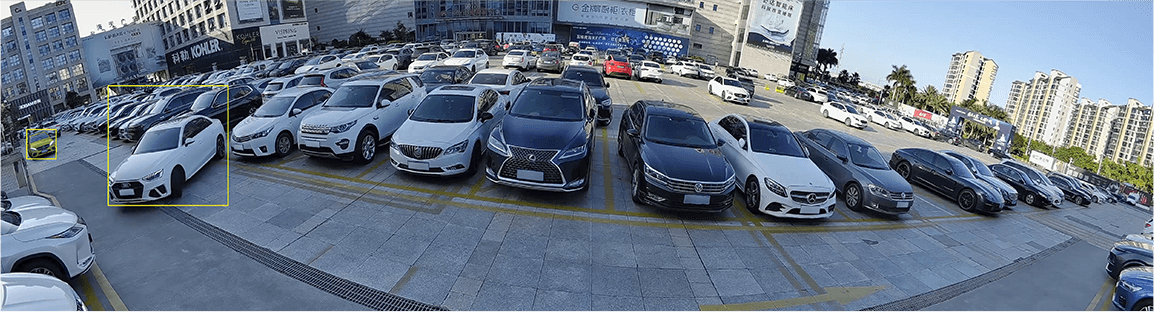

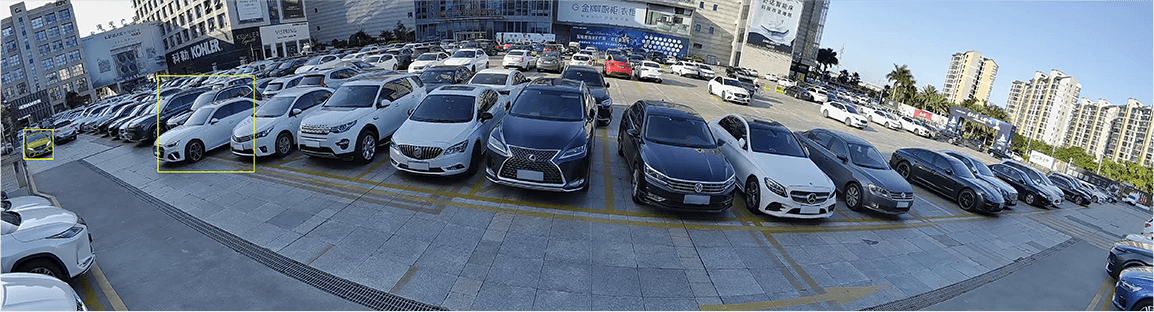

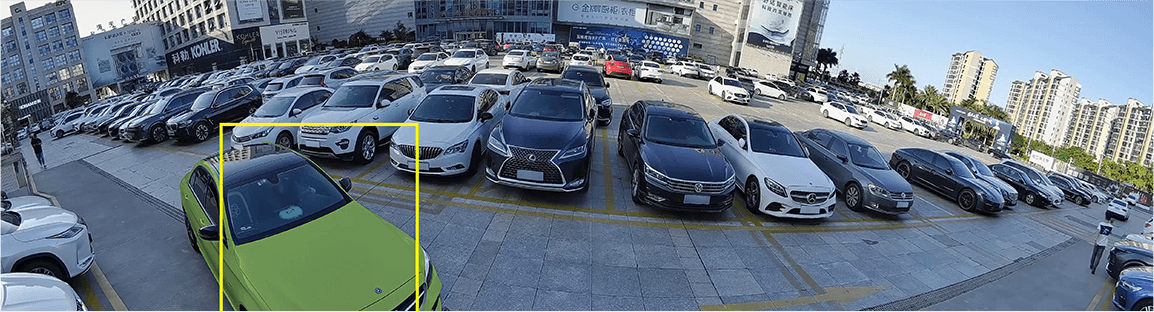

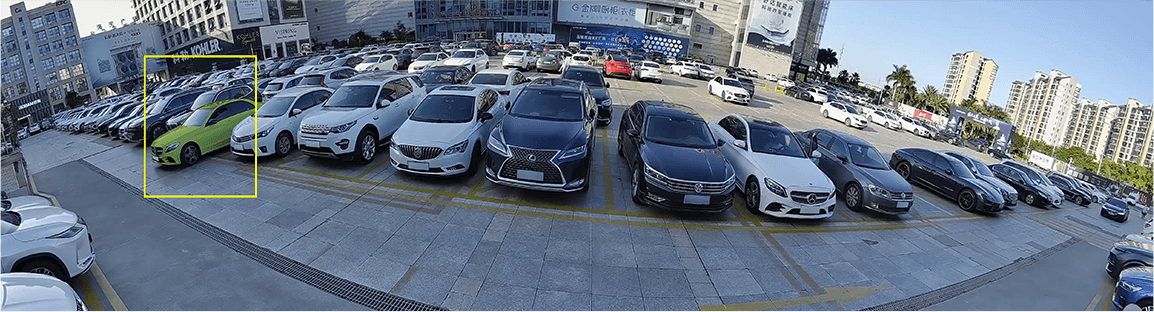

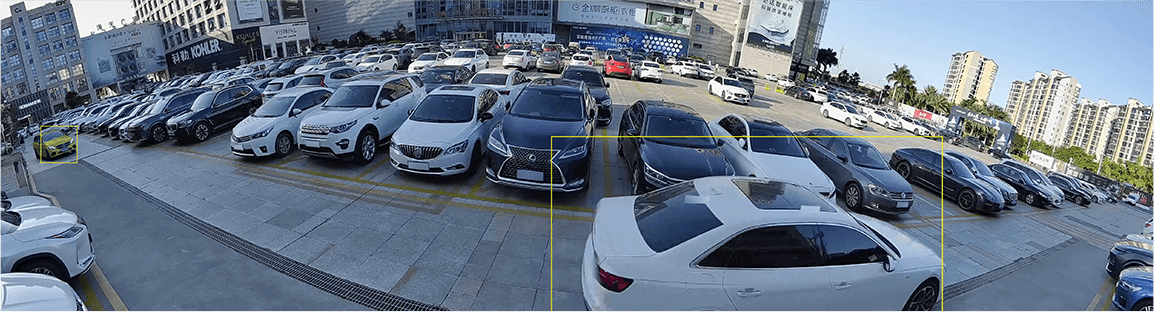

See Everything within a Big Picture
Get the WHOLE picture with Milesight Dual-sensor 180°panoramic camera! Offering a big 180° panoramic image, it provides a comprehensive monitoring experience, tracking events seamlessly and faithfully reconstructing scenes of AI-triggered suspicious activity for unparalleled surveillance precision.
FusionXpert: Seamlessly Stitched, Naturally 180°!
Embark on the future of surveillance with Milesight's pioneering FusionXpert technology. Seamlessly stitching images from two sensors, it delivers a true-to-life picture with no color or brightness discrepancies, and zero distortion. Experience a seamlessly stitched image that appears as if it was always one cohesive whole.
Lens 1
Lens 2
Stitching Area

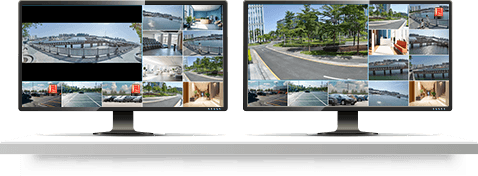

Human-centric &
Efficiency Matters!
Compared to monitoring with multiple cameras, using just one dual-sensor panoramic camera consolidates multiple event alerts into one, and also avoids the switching between video streams to view different live lives, greatly enhancing the user experience. Moreover, with its elongated 180° live view shape, customizable layouts are essential. We provide options for freely configurable layouts to accommodate various surveillance needs.

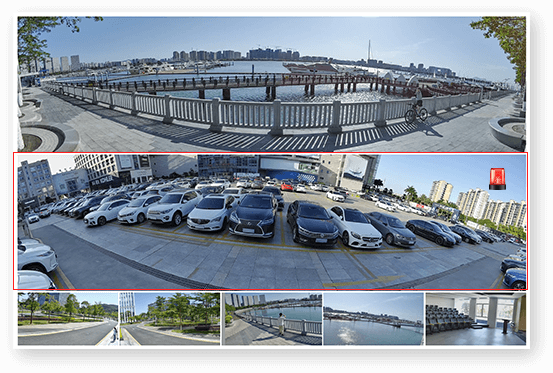

Customizable Layout
Dual AI Creates 180°
Panoramic Brilliance
Experience the power of Dual AI Technology with our camera. With AI ISP, AI automatically distinguishes image noise from details, subtracting noise and enhancing details to deliver high-definition, low-noise images, especially effective in low-light conditions, then AI further conducts VCA analysis, offering rich algorithms based on human and vehicle detection for comprehensive surveillance insights.

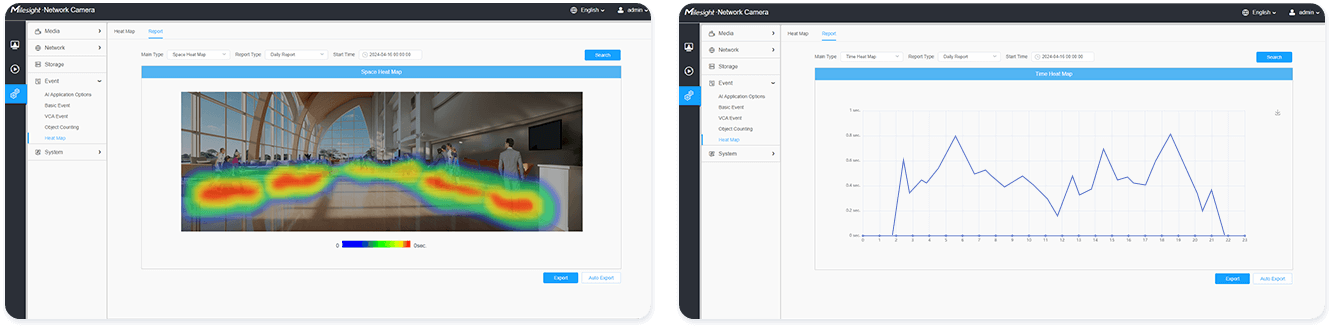

Heat Map for People Trends Analytics
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
Clarity Speaks Louder
Than Words
With 2x4MP dual-sensor and advanced video stitching technology, it delivers 8MP resolution. 140dB Super WDR, 0.002Lux Ultra Low-light capability and 25fps@8MP Frame Rate, ensuring excellent performance even in challenging lighting conditions.
No Worries about the Storage & Transfer
With H.265+ compression capability and a 1TB storage capacity, our dual-lens panoramic camera effortlessly archives extensive footage while reducing data transfer costs. By eliminating the need for frequent storage clearance, users save valuable time and resources.
Adaptable to Diverse Environments
This camera provides comprehensive monitoring of every detail within a single frame, making it ideal for a variety of environments, particularly expansive landscapes and busy areas.
Parking Lot
Wide view to track vehicles' entry and exit routes
Traffic Monitoring
Ideal for busy area, providing 24/7 surveillance with high-definition image quality.

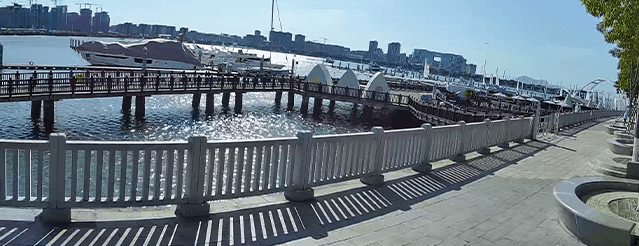

Park
Ideal for expansive outdoor environments, adaptable to changing outdoor conditions, including varying light and weather.
Building Entrance
Featuring a higher vertical and horizontal coverage, significantly reducing installation costs.

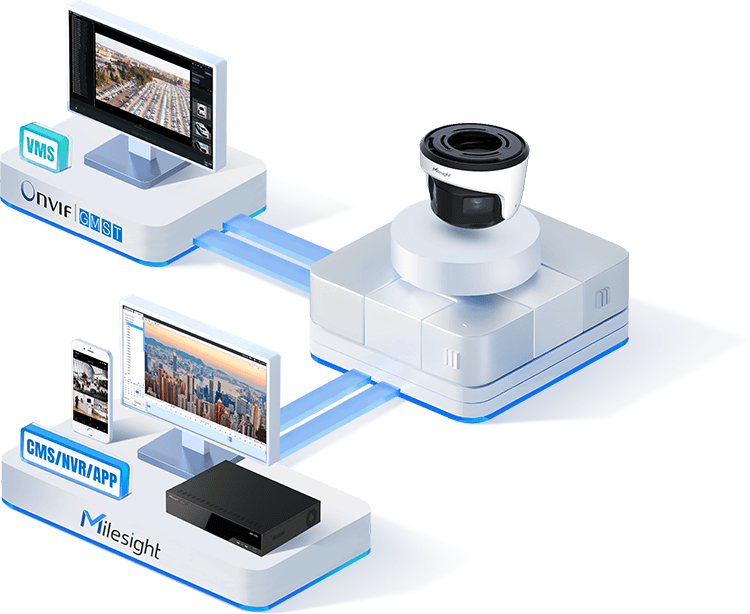

Easy & Seamless
Back-end Solution
Milesight AI Dual-sensor 180° Panoramic Camera offers seamless compatibility with Milesight CMS, NVR, APP, and Software. Additionally, it efficiently integrates with third-party platforms through ONVIF G/M/S/T protocols, ensuring flexible and hassle-free deployment
Maximized Installation Flexibility
Explore a multitude of installation options with Milesight AI Dual-sensor 180° Panoramic Camera, whether it's wall-mounted, ceiling-mounted, or pendant-mounted.

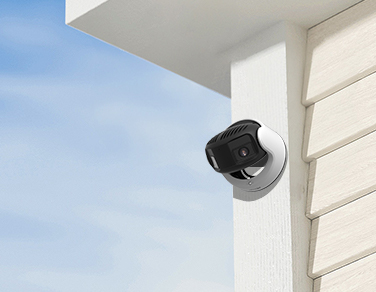

Wall Mount

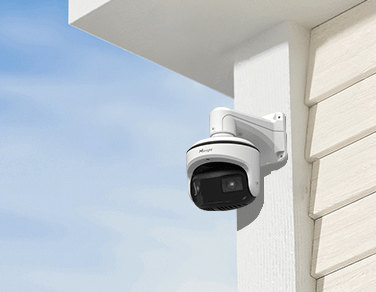

Bracket Wall Mount

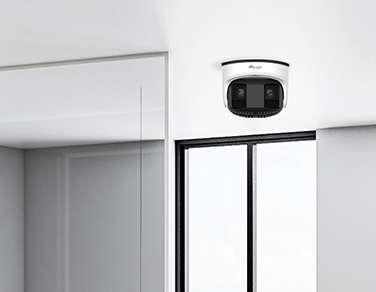

Ceiling Mount

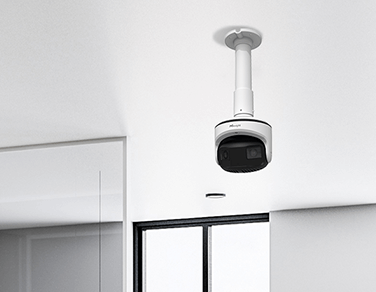

Pendant Mount
Robust Design, Various Interfaces
With versatile interfaces, alarm in/out and two-way audio support, and IP67 & IK10 ratings, this camera seamlessly adapts to outdoor surveillance environment.

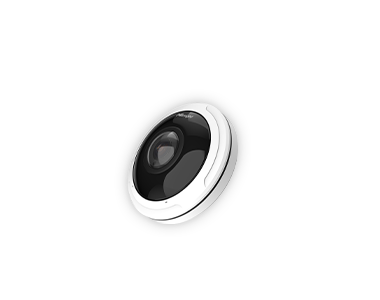

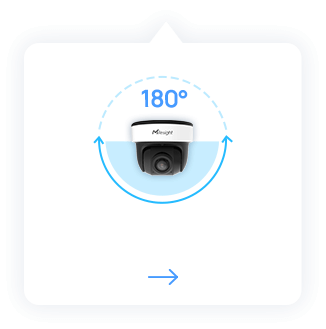

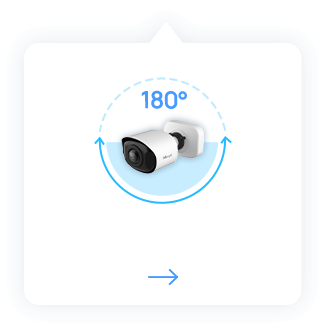

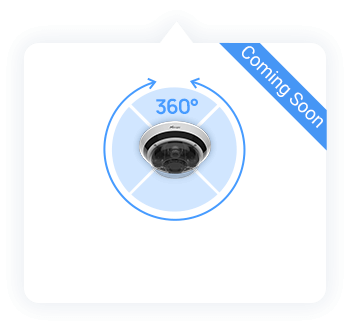

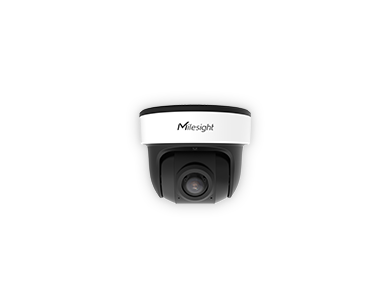

Brand New Panoramic Camera Series Coming

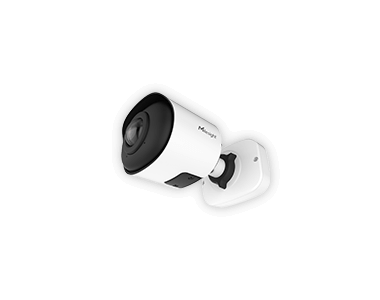

From Single to Multi-Sensor, we are now offering a variety of choices. Single-sensor provide lightweight panoramic views, while this time the Milesight AI Dual-sensor 180° Panoramic Camera delivers superior image quality, eliminating edge distortion for unparalleled clarity.
Register to gain the early-bird offer,
and have chance to win additional surprise!
In addition to the early-bird offer, you are invited to join our Insightful Review Challenge! Share feedback on our product demo/unboxing
videos for a chance to win exciting prizes!
REGISTRATION FORM
Specifications
- MS-C8477-PC
| Camera | |
|---|---|
| Image Sensor | Dual 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Lens | 4mm@F1.6 |
| Mount | M12 |

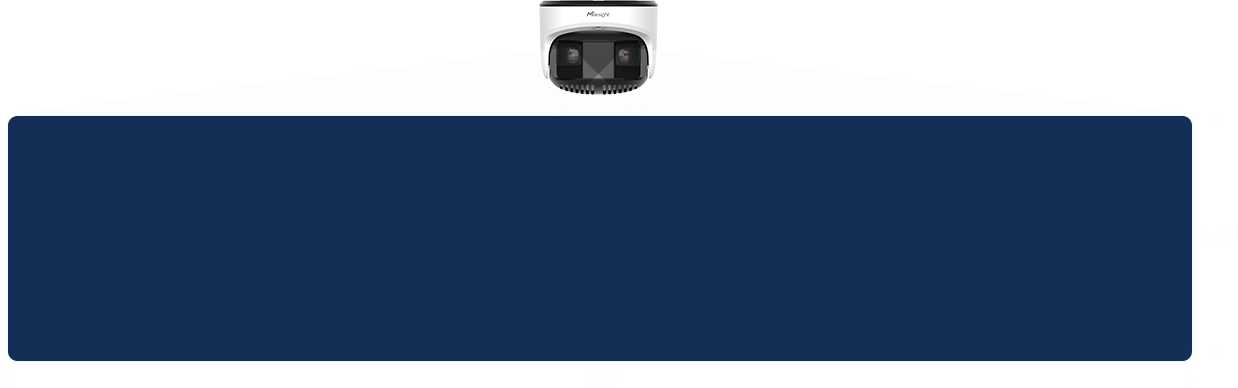

| Field of View | H180° / V50° |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 63m O: 24.5m R: 11.5m I: 5m |
| IR Distance | Up to 30m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max.Image Resolution | 5084x1520 |
| Primary Stream | 60Hz: 25fps@(5084x1520, 3618x1080, 2412x720) 50Hz: 25fps@(5084x1520, 3618x1080, 2412x720) |
| Secondary Stream | 60Hz: 25fps@(1160x344, 1008x296, 872x256, 576x168, 504x152) 50Hz: 25fps@(1160x344, 1008x296, 872x256, 576x168, 504x152) |
| Tertiary Stream | 60Hz: 25fps@(2636x788, 1752x520, 1160x344, 1008x296, 872x256, 576x168) 50Hz: 25fps@(2636x788, 1752x520, 1160x344, 1008x296, 872x256, 576x168) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Mask Areas |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Built-in Microphone | Support |
| Audio Interface | 1*Audio Out Interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Image Rotation, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V / 2A±10% |
| Power Consumption | 6W MAX 12W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1.5kg |
| Dimensions | Φ160mmX127.5mm |
| Warranty | 3/5 Years |
* Naming Convention
P - PoE Supported
C - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner

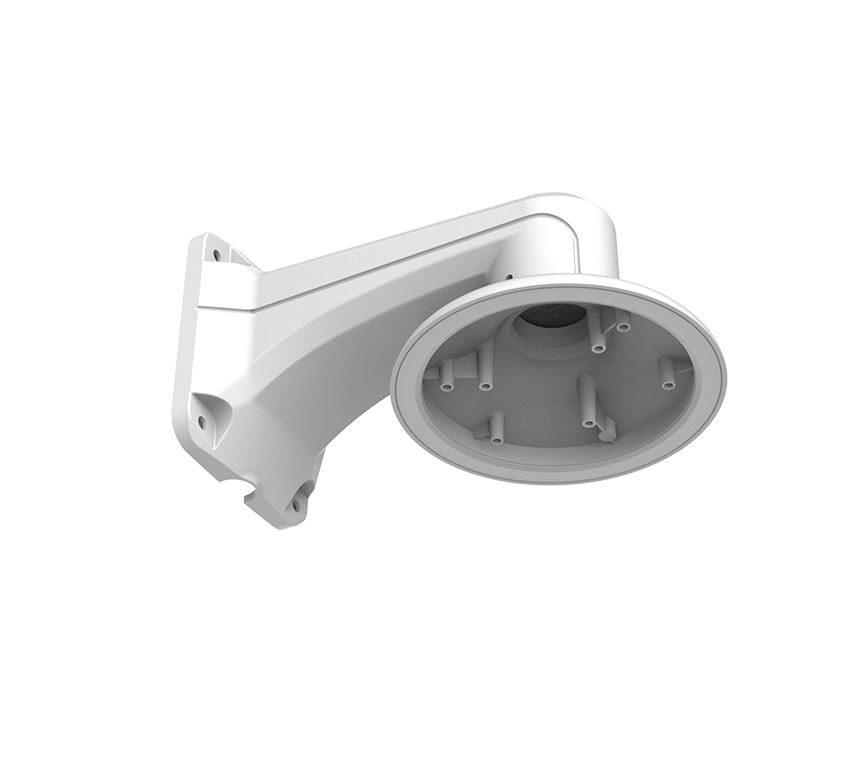

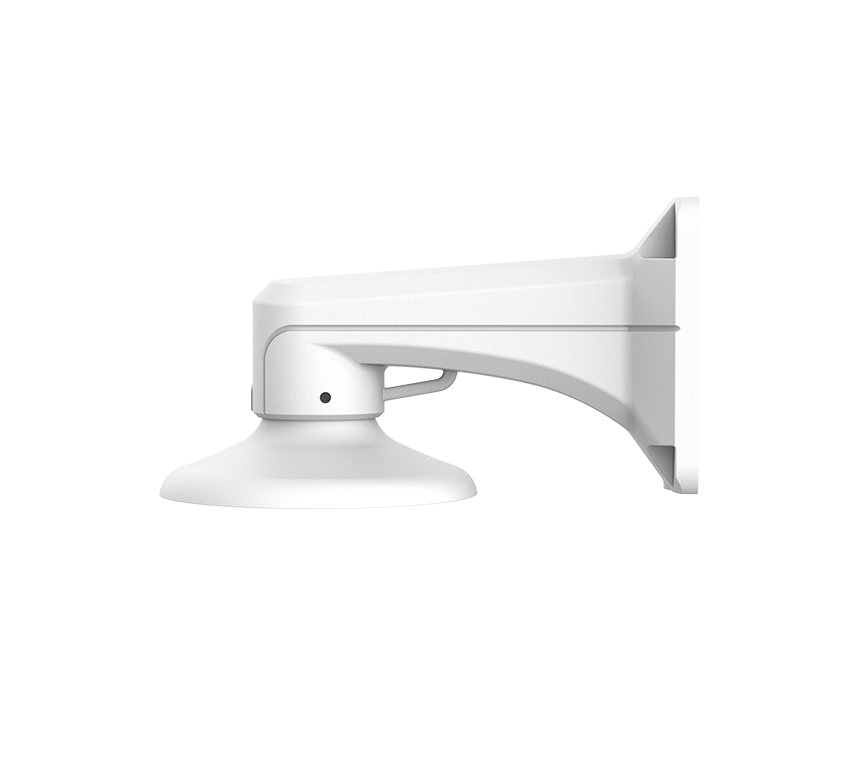

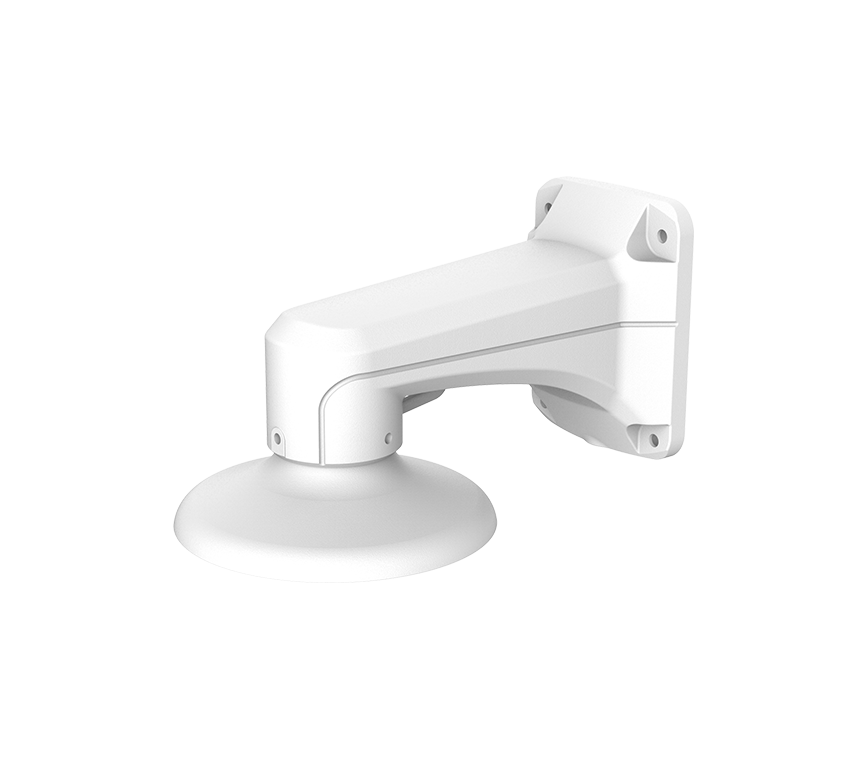

A72 V2 Wall Mount
- Weight: 575g
- Dimension: 145*133*242mm
- Installation Environment: For wall or parapet installations

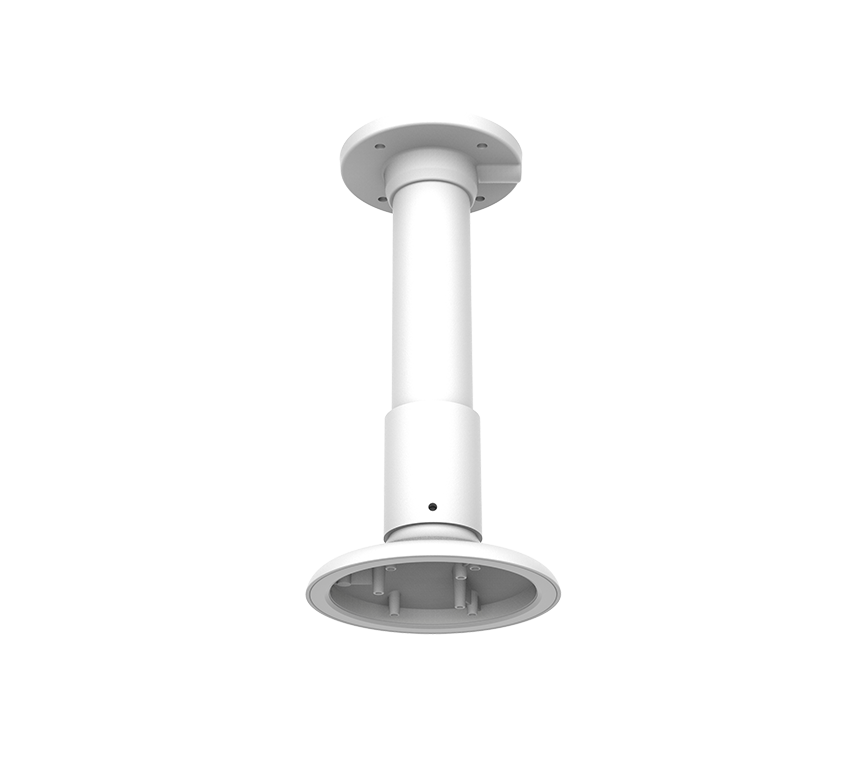

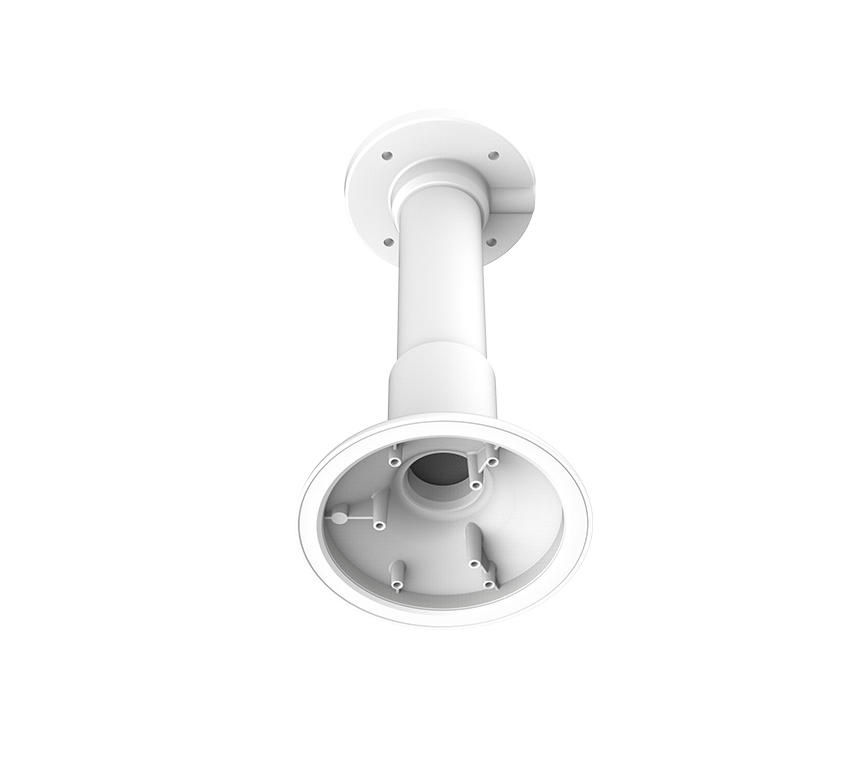

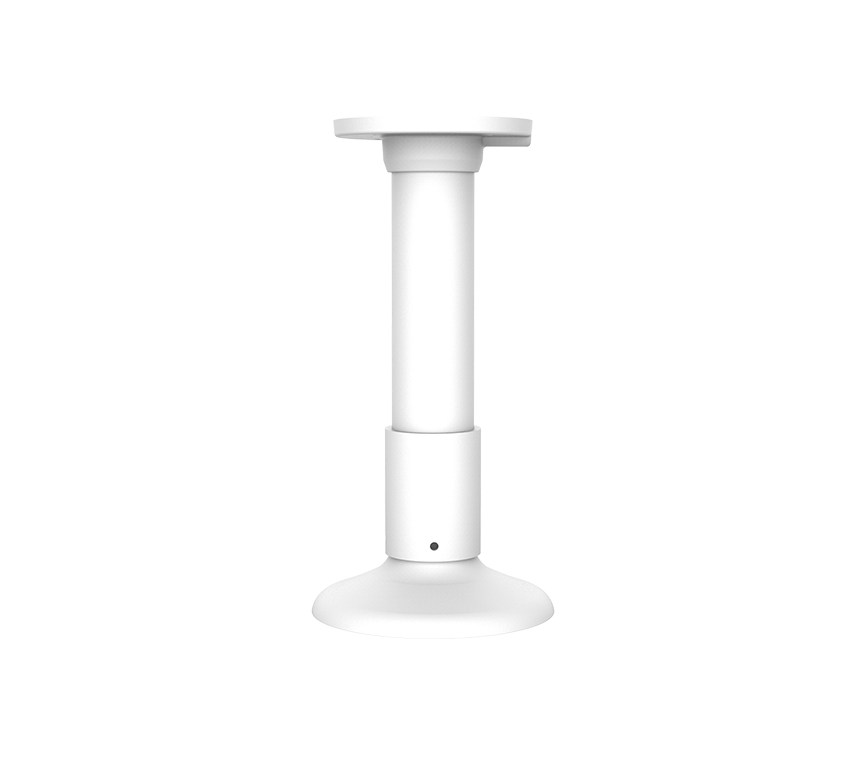

A76 V2 Pendant Mount
- Weight: 620g
- Dimension: Φ 145*L (L is default as 290mm, also can be extended with A42-L)
- Installation Environment: Used to install cameras on a ceiling or horizontal structure
