AI Motorized Dome
Network Camera
Intelligent and Robust for Mission-critical Applications
Compact Size, Stylish Design and Easy Installation
AI Motorized Dome
- 2/4/5/8MP
- AI Deep Learning
- 0.005Lux Ultra Low-light
- Smart IR II with 50m IR Distance
- Motorized Zoom Lens
- P-Iris Control
- IP67 & IK10
- Versatile Interfaces (Optional)
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Mini Series
- AI Motorized Dome Camera
AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

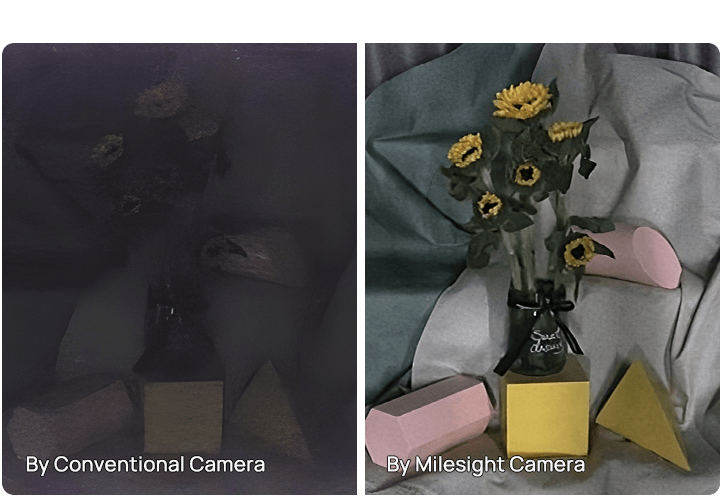

0.005Lux Ultra Low-light

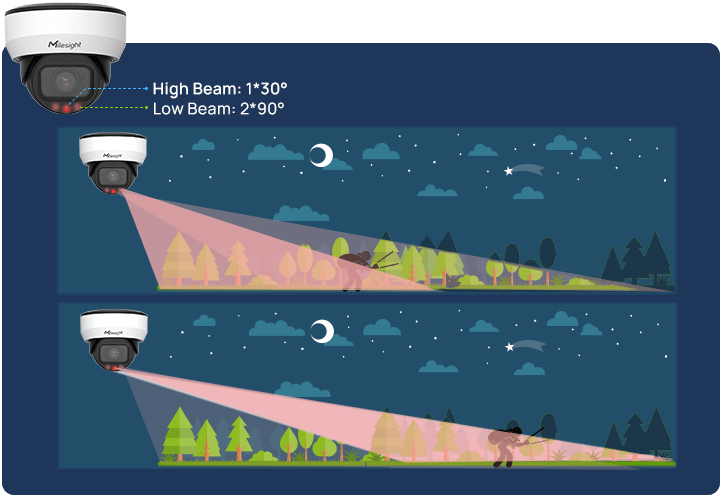

Smart IR II Technology

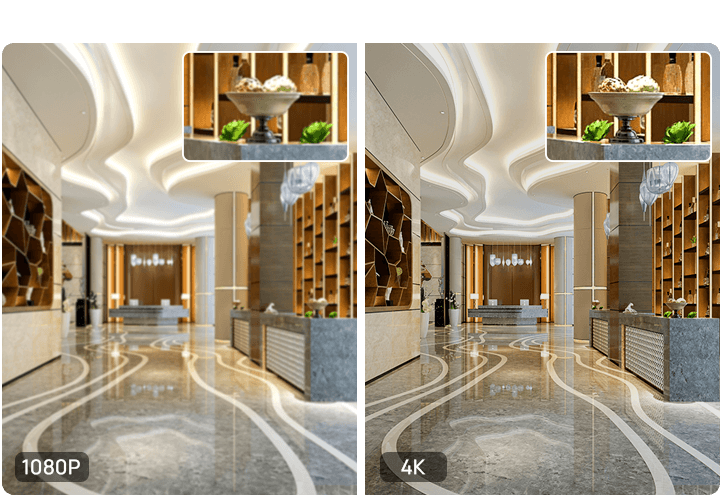

Up to 4K Viewing Experience
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, Smart IR II Technology, and up to 4K Video Viewing Experience features make it well-suited for various special circumstances.
Motorized Zoom Lens
Equipped with motorized zoom & focus lens, the camera allows remote control of focal length, iris and focus through a lens controller, which is perfect for long distance surveillance.

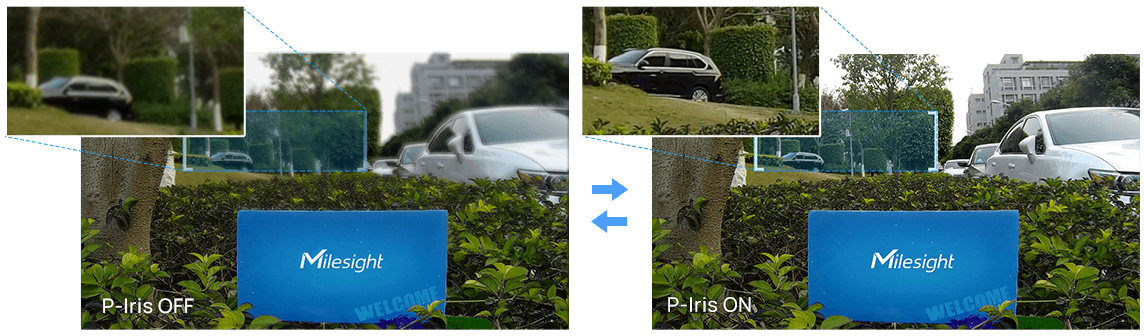

P-Iris Control
Adopting P-Iris control technology, the camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

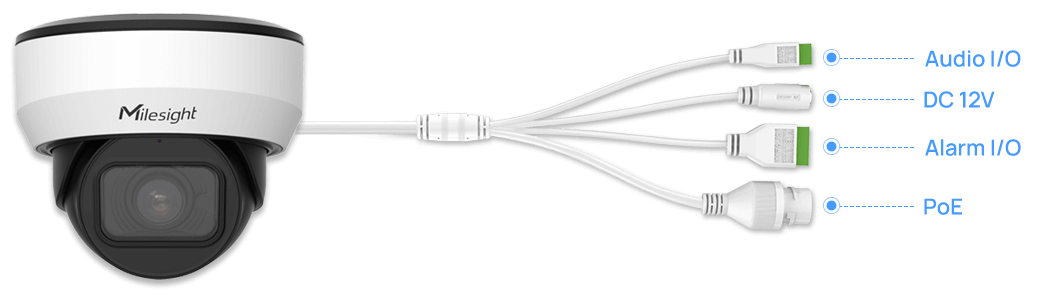

Versatile Interfaces (Optional)
Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

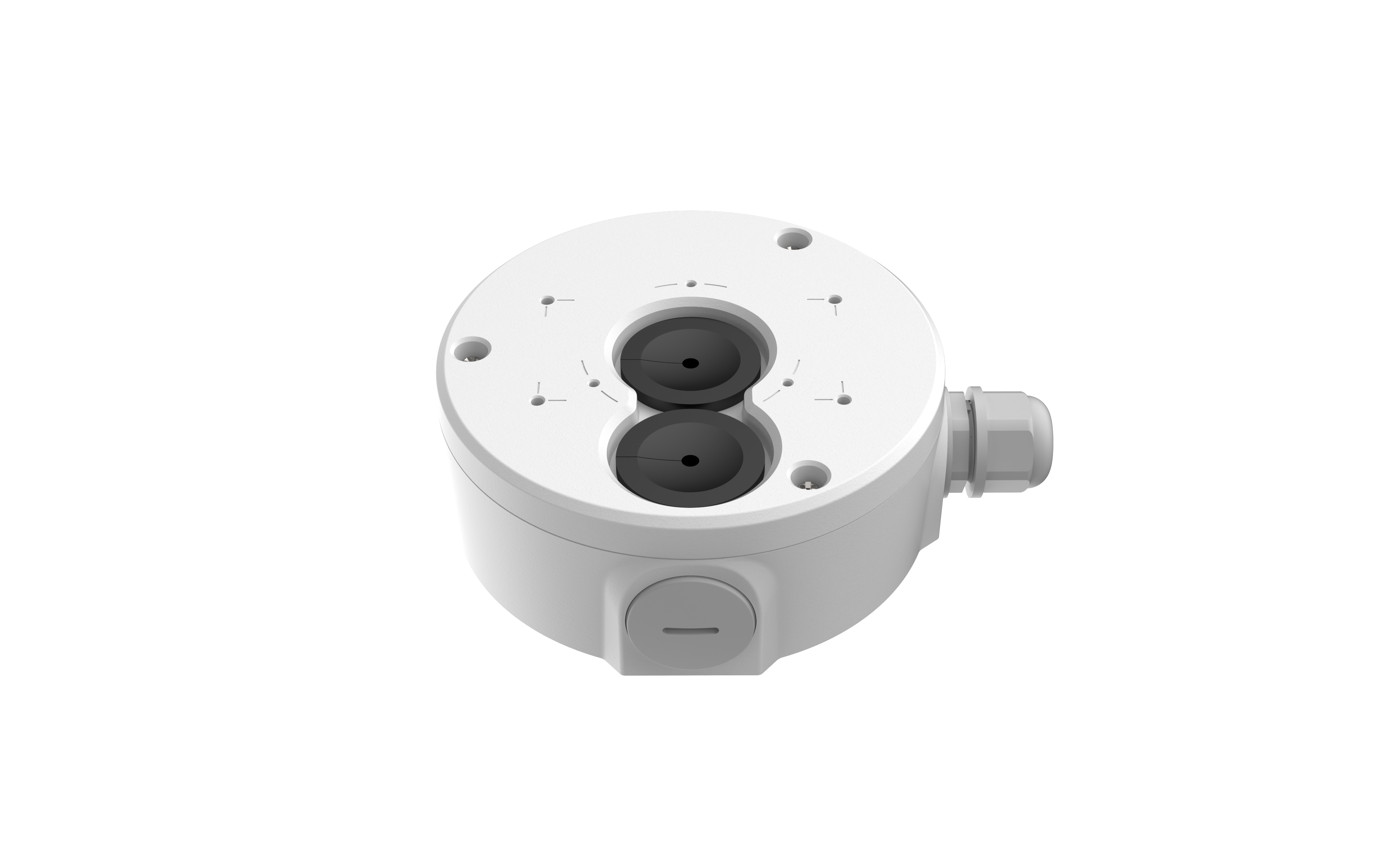

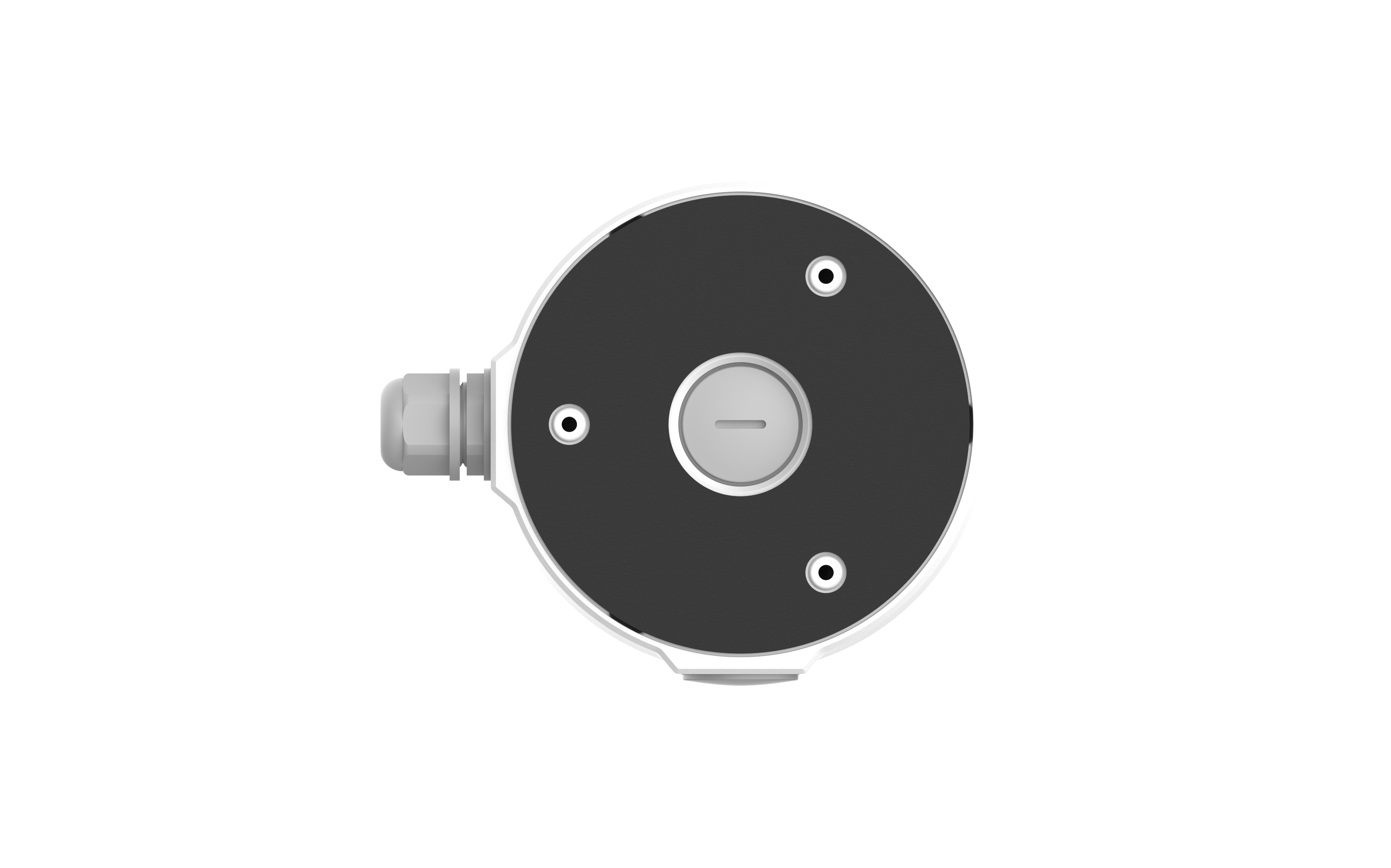

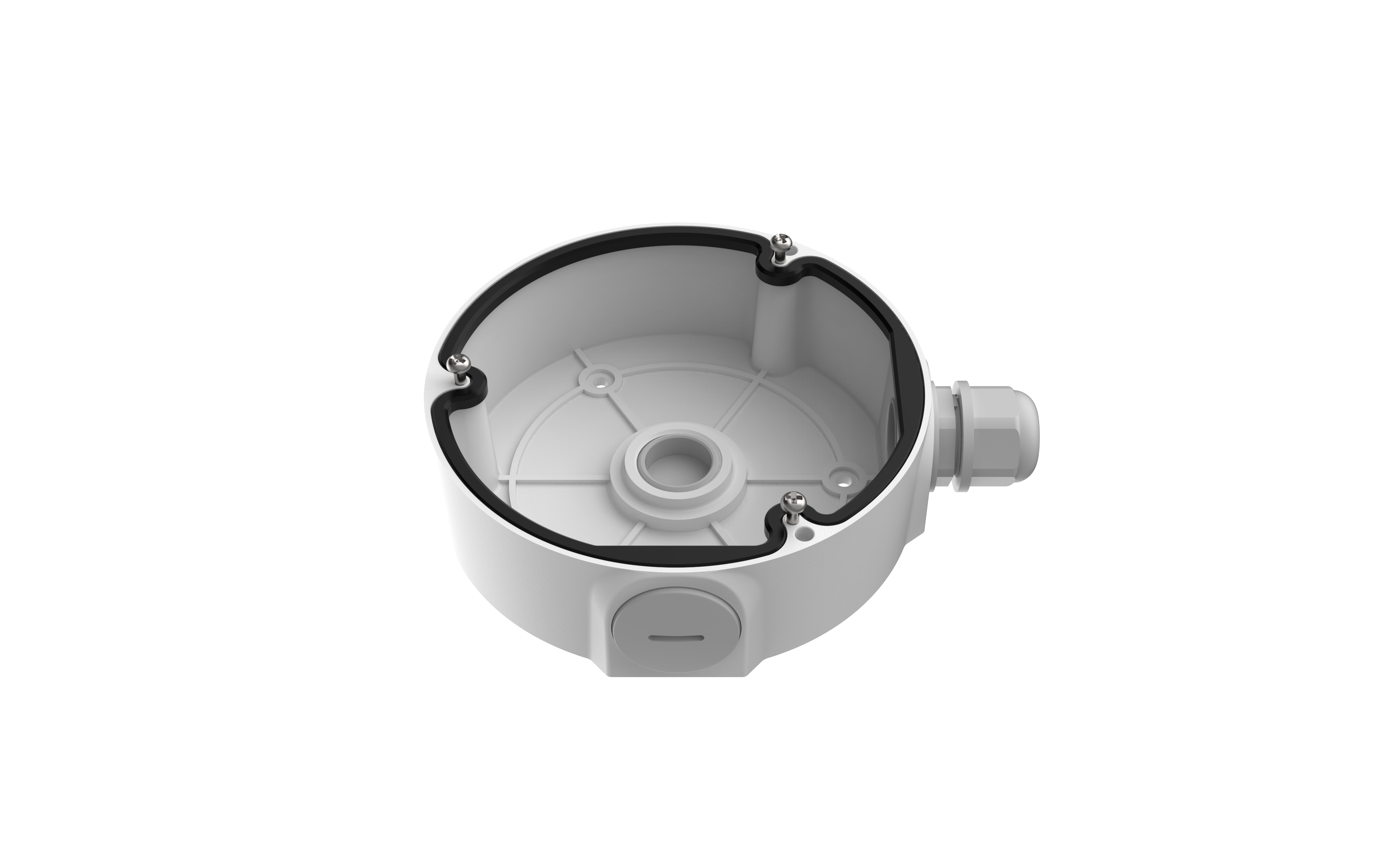

Integrated Junction Box
The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.

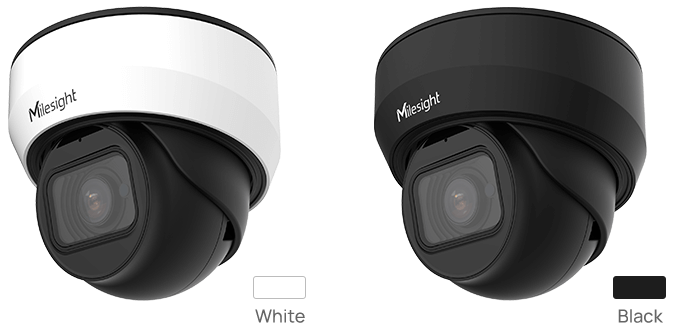

Two Colors Available
Available in White and Black, the camera provides more choices for your preference.
Success Story
Specifications
Non-NDAA
- MS-C2975-R(T)F(I)PC
- MS-C5375-F(I)PC
- MS-C8175-F(I)PC
NDAA
- MS-C2975-(R)FPD
- MS-C4575-FPD
- MS-C5375-FPD
- MS-C8175-(S)FPD
| Camera | |
|---|---|
| Name | 2MP AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) |
| Field of View | H111°~H34°/D130°~D39°/ V60°~V19°(2.7~13.5mm) H100°~H33°/D115°~D38°/ V54°~V18°(3.0~10.5mm) H42°~H17°/D48°~D19°/ V24°~V9°(7~22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | 8W MAX, 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3/5 Years |
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series
| Camera | |
|---|---|
| Name | 5MP AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) |
| Field of View | H99°~H31°/D124°~D38°/ V72°~V23°(2.7~13.5mm) H89°~H31°/D111°~D38°/ V66°~V23°(3.0~10.5mm) H37°~H15°/D46°~D19°/ V28°~V11°(7~22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | 7W MAX, 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3/5 Years |
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series
| Camera | |
|---|---|
| Name | 4K AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4, P-Iris(Optional) |
| Field of View | H107°~H33°/D125°~D37° /V58°~V18° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | 8W MAX, 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3/5 Years |
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series
| Camera | |
|---|---|
| Name | 2MP NDAA AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm/7∼22mm @F1.4 |
| Field of View | H97°~H31°/D113°~D36°/V53°~V18°(2.7~13.5mm) H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control | - |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | 5.2W MAX 6.4W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3/5 Years |
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series
| Camera | |
|---|---|
| Name | 4MP NDAA AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm/7∼22mm @F1.4 |
| Field of View | H97°~H28°/D110°~D32°/ V55°~V16°(2.7~13.5mm) H39°~H16°/D45°~D20°/ V22°~V9°(7~22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control | - |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 30fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 25fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | 5.5W MAX 6.5W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3/5 Years |
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series
| Camera | |
|---|---|
| Name | 5MP NDAA AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm/7∼22mm @F1.4 |
| Field of View | H94°~H31°/D120°~D38°/V68°~V23°(2.7∼13.5mm) H37°∼H15°/D46°∼D19°/V28°∼V11°(7∼22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control | - |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | 5.5W MAX 6.5W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3/5 Years |
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series
| Camera | |
|---|---|
| Name | 4K NDAA AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm @F1.4 |
| Field of View | H110°~H29°/D129°~D33°/V59°~V16° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control | - |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps(3840x2160)(Optional for S Series) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | 7.4W MAX 8.4W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3/5 Years |
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series
A01 V3 Pole Mount
- Weight: 625g
- Dimension: 140*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A42-L Extension Lever
- Weight: 330g
- Dimension: Φ 55*255mm
- Installation Environment: Used as extensions for pendant mount
A71 Wall Mount
- Weight: 530g
- Dimension: 162*124*78mm
- Installation Environment: Used to install cameras on an wall or vertical structure
A76 V2 Pendant Mount
- Weight: 620g
- Dimension: Φ 145*L (L is default as 290mm, also can be extended with A42-L)
- Installation Environment: Used to install cameras on a ceiling or horizontal structure
A84 Junction Box
- Weight: 360g
- Dimension: Φ137*47.6mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and delete tampering
