Realize Efficient IoT Bridging
Seamlessly connecting LoRaWAN®-enabled devices to the network server, the LoRaWAN® gateways empower the IoT ecosystem by effortlessly receiving and forwarding data transmissions for processing and analysis.
Find Your Gateway Match
| Model |  UG56 Industrial |  UG63 Mini |  UG65 Indoor |  UG67 Outdoor |  SG50 Ultra Low Power Solar |
| Application Scenarios |  Indoor Industrial |  Indoor Environment/ |  Indoor & Semi-Outdoor Environments/ |  Outdoor Environment |  Remote Area |
| End-Node Connection |  | | | | |
| Communication Range |  |  | |  | |
| Connectivity Options | Ethernet Wi-Fi Cellular | Ethernet Cellular | Ethernet Wi-Fi Cellular | Ethernet Wi-Fi Cellular | Cellular |
| GPS | - | - | - | GPS | GPS |
| Python SDK | Python SDK | - | Python SDK | Python SDK | - |
| Node-RED | Node-RED | - | Node-RED | Node-RED | - |
| Listen Before Talk | √ | - | - | √ | - |
| Embedded NS | Embedded NS | - | Embedded NS | Embedded NS | - |
| Cloud-Based NS | - | Cloud-Based NS | - | - | Cloud-Based NS |
| Power Supply | PoE Type-C | PoE Type-C 2-Pin Terminal Block | PoE Type-C Jack Connector | PoE M12 Connector | M12 Connector Battery Solar Panel Type-C |
| Ingress Protection | IP30 | IP30 | IP65 | IP67 | IP67 |
Satisfy All Gateway-Based Needs
![icon power]( "icon power")
Top-Performing
Capacity![icon compatibility]( "icon compatibility")
Strong
Connection![icon capacity]( "icon capacity")
Impressive
Performance![icon connection]( "icon connection")
High
Compatibility![icon management]( "icon management")
Easy and
User-Friendly
Deployment
Top-Performing Capacity
Highly Capable CPU
Up to 512MB DDR4 RAM storage and 8GB eMMC flash

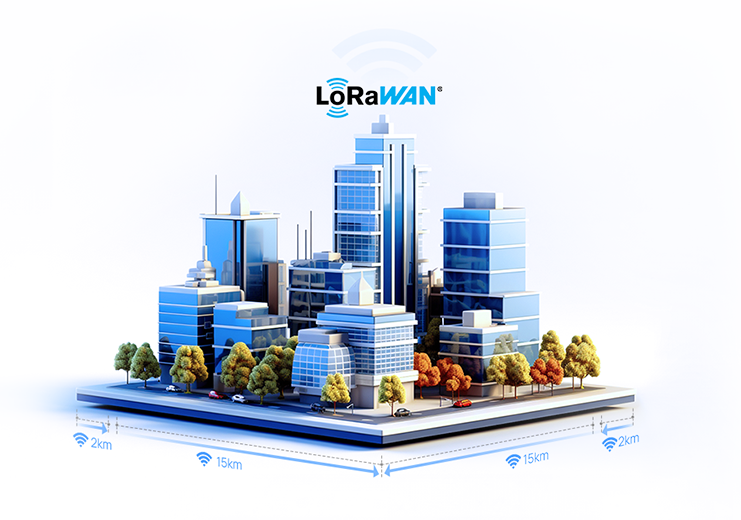

Long Range Communication
Data transmission range up to 2km in urban areas and 15km in rural area theoretically
Massive Connectivity
Capable of connecting with more than 2000 LoRaWAN® nodes with max 8 channels
Global Frequency Plans
Support RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
Impressive Performance

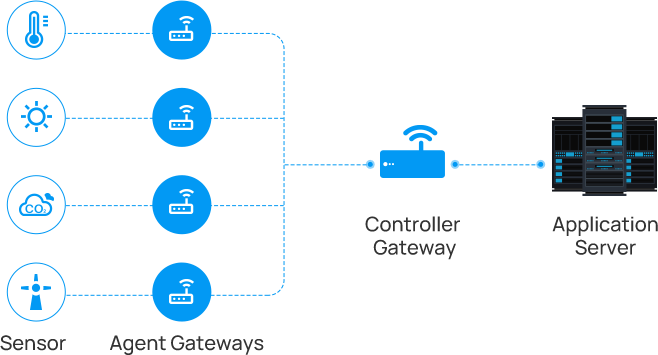

Gateway Fleet
Enable multiple agent gateways to transmit received data to one controller gateway to facilitates the deployment and central management of LoRaWAN® network

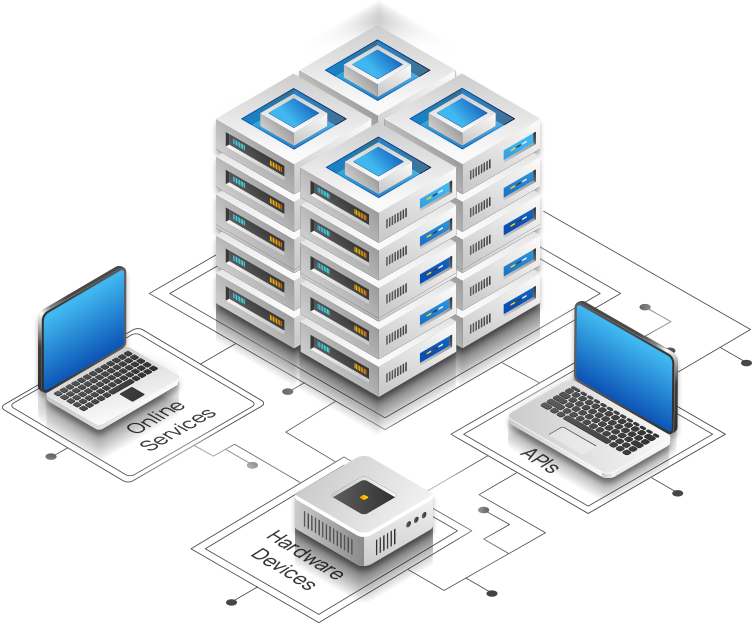

Node Red
With compatibility with Node-RED, users can easily integrate devices, APIs, and online services effortlessly
Python Secondary Development
Maximize the flexibility and adaptability of Python to tailor solutions for unique needs
Listen Before Talk
It makes it possible for multiple devices to share the same channel, reduce channel conflict and improve the overall transmission performance
High Compatibility
Embedded Network Server
LoRa Basics™ Station
AWS IoT Core for LoRaWAN®

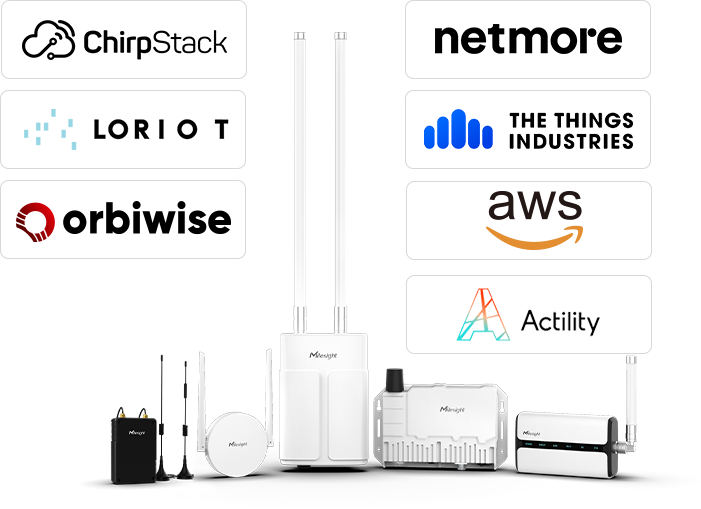

Compatible with Mainstream Network Servers
Integrating with BMS via BACnet
Easy and User-Friendly Deployment
Wire-Free Deployment with 4G
With 4G LTE, UG63 and SG50 bring a wireless communication, simplifying the network setup process.
Easy Configuration via Wi-Fi
It simplifies setup, particularly in challenging locations, saving time and enhancing accessibility. Note: Wi-Fi is solely utilized for configuration purposes. Note: SG50 and UG63 only
Central Management and Maintenance
Working with Milesight Development Platform and DeviceHub to realize easy setup and management.
Webinar Highlights Recap
Topic: Discover Milesight Standard & Ultra Low Power Solar LoRaWAN® Gateway
First, this Webinar showed the Milesight Connectivity, specifically exploring the UG Series Gateways, their shared values, and advanced features. Then, it moved on to the SG50 Introduction, discussing its amazing unique selling proposition and exploring Milesight Connectivity Suites, which includes software and platform solutions. Lastly, the webinar delve into typical applications of SG50 gateway, such as infrastructure management, smart precision irrigation, and boat monitoring.
