LoRaWAN® Radar Distance/Level Sensor

The Precisionist in Measurement

EM410-RDL
em410 udl external antenna front small
em410 udl front small
em410 udl bottom small
  • Accurate Detection with Millimeter Wave Radar
  • Impressive IP68 Rating
  • Application Scenario Mode
  • Long Battery Life of Up to 7 Years
  • Easy NFC & Bluetooth Configuration
  • LoRaWAN® Wireless Deployment
  • Scenario-based Automated Calibration
  • 8° Radar Emission Angle
  • FEATURES
  • MODELS
  • DOWNLOAD

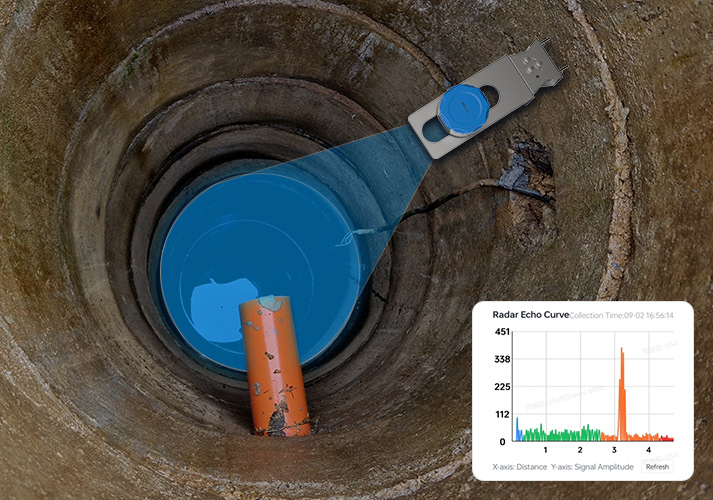

em410 udl reliable radar technology

Radar Technology for Tailored Applications

Aside from its extensive measurement distance, radar technology is also capable of measuring through objects, including plastics, plants, and are less sensitive to snow, dirt, dust, steam and more, making it suitable for a wider range of applications.

Key Features

Millimeter Wave Radar Technology

With enhanced transmission frequency and penetration

High Measuring Accuracy

Narrow 8o emission angle for precise targeted position measurement

IP68 Rating

Dust tight and waterproof

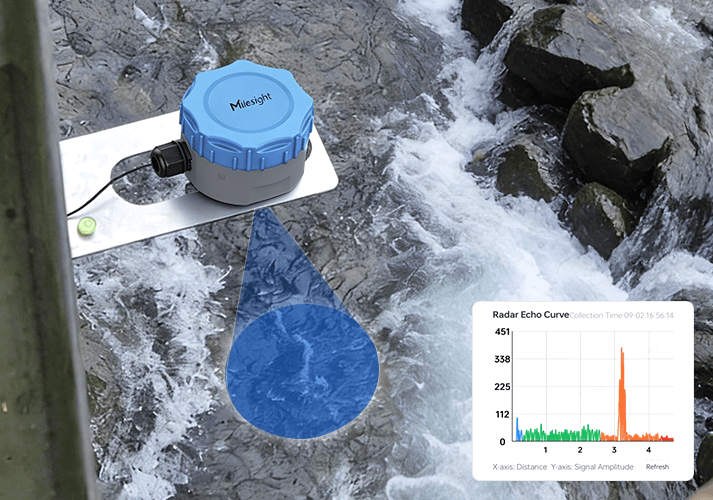

Real-Time Monitoring

Monitor radar echo curves in real time

Long Battery Life

Battery life of up to 7 years

NFC + Bluetooth Configuration

Allows remote configuration for hard-to-reach locations

Versions of Choice

LoRaWAN® version and Cat. 1 version available

Long Detection Distance

Up to 12m of detection distance for wide application scenarios

Easy Setup and Adjustments

Application Scenario Mode

A choice of standard, rainwater well and sewage well mode for easy scenario setup

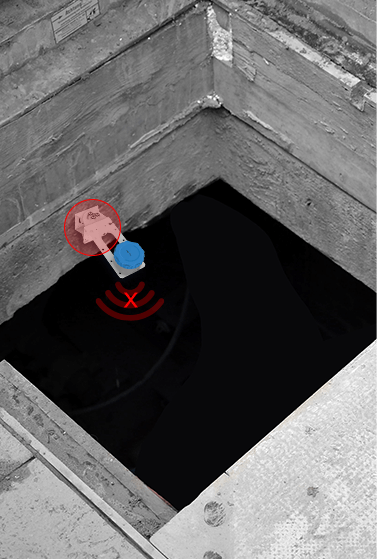

Built-in Tilt Sensor

Allows level measurement at a tilted angle and send timely alerts when the device has been accidentally dislocated.

em410 udl easy setup and adjustments tilt sensor
em410 udl setup and adjustments rainwater well mode background
em410 udl application scenario sewer
em410 udl easy setup and adjustments tilt sensor

RAINWATER WELL

em410 udl setup and adjustments rainwater well mode background

SEWAGE WELL

em410 udl application scenario sewer

STANDARD

Solve Common Issues

em410 udl common issues frozen surfaces

Frozen surfaces

em410 udl common issues foreign objects

Foreign objects obstructing the sensor

em410 udl common issues corrosion resistance

Poor corrosion resistance

em410 udl common issues turbulent water surface

Turbulent water surface

Join Milesight's Co-creation Innovative Program and get the new EM410-RDL sample at 50%. Be the first to experience the cutting-edge technology and shape the future of IoT with us!

maxresdefault

Application Scenarios

Sewer/Manhole

Canal

Factory

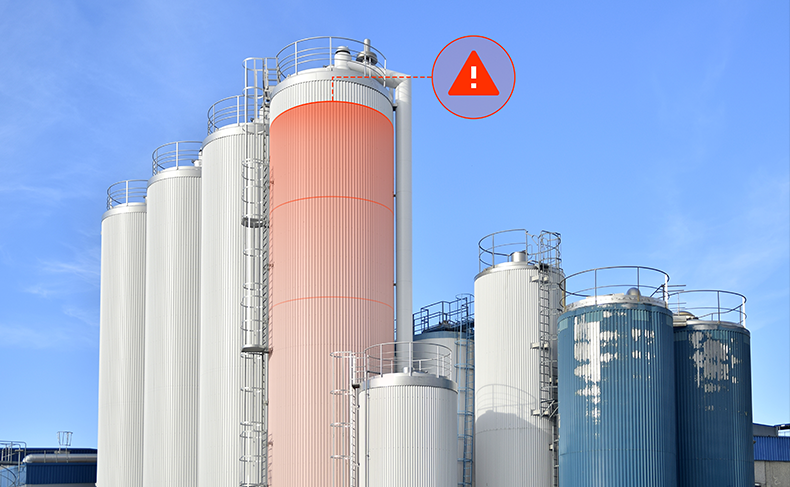

Liquid Tank

Co-create with Milesight

The Co-creation Innovative Program invites creative minds and industry experts to co-develop the next generation sensor. Through this program, you will:

  • Gain early access to the product features
  • Collaborate with our team and other like-minded individuals
  • See your contributions come to life and shape the future of IoT
  • Receive a 50% discount
gs601 vape detector openbeta button
Join Now

Join in Milesight's Co-Creation Program and Get Sample Discount NOW!

  • End User
  • Installer
  • Reseller
  • System Integrator
  • Distributor
  • Consultant
  • Managed Service Provider
  • Solution Provider
  • Yes
  • No
  • Education
  • Hotel
  • Government
  • Transportation
  • Smart Building
  • Smart Retail
  • Smart City
  • Other
Verify Code

Specifications

Measurement
Distance
TechnologyMillimeter Wave Radar
TargetLiquids or Smooth Surface Solid
Radar Frequency Band60GHz
Detection Angle
Detection Distance0.3m ~ 12m
AccuracyUp to ± 2mm1
Resolution1mm
Device Position
StatusNormal/Tilt
Wireless Transmission
LoRaWAN® Version
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16 dBm (868 MHz)/20 dBm (915MHz)/19 dBm (470MHz)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class A
AntennaInternal Antenna or External Antenna (Hardware Optional)
External Antenna (EA) Version: 1 × 50 Ω SMB Male Connector
Cellular Version
Frequency BandLTE (CAT 1): B1/B3/B5/B7/B8/B20/B28 for EMEA/Australia/New Zealand
SIM Slot1 x Nano SIM (4FF) Slot
Application ModeTCP/UDP/MQTT/AWS/Milesight Development Platform
AntennaInternal Antenna or External Antenna (Hardware Optional)
External Antenna (EA) Version: 1 × 50 Ω SMB Male Connector
Others
LED Indicator1 × LED indicator (Internal)
ConfigurationMobile App via NFC or Bluetooth
Advanced FeatureDistance Threshold Alarm, Distance Change Alarm, Blind Zone Alarm, Radar-echo Curve, Diagnostic, Data Storage, Data Retransmission, Data Retrievability
Physical Characteristics
Power Supply1 × 19000 mAh ER34615 Li-SOCL2 Battery
Battery Life2LoRaWAN® Version: Around 7 Years
Cellular Version: Around 5 Years
(15-min collection Interval+1440-report interval, 25°C)
Operating Temperature-40°C ~ 70°C
Relative Humidity0 ~ 100% (non-condensing)
Ingress ProtectionIP68 (1m underwater, 48 hours)
DimensionФ 100 × 92.2 mm (Ф 3.94 × 3.63 in)
Weight400g
Color & MaterialBlue + Grey, PVDF
Supported Tank ThreadG1 ½”, G2 ½”
InstallationWall Bracket Mounting, Pole Bracket Mounting, Tank Threaded Installation

1 Perfectly smooth flat-surfaced solid, or still liquid surface.
2 Tested under laboratory conditions and for guideline purposes only.
