AI Road Traffic Speed
Dome Camera
360° Pan & 95° Tilt for Traffic Solution
Introducing Milesight Intelligent Traffic
AI Road Traffic Speed
- Traffic Violation Detection
- Intelligent AI-powered LPR Algorithm
- Evidence Camera Linkage
- Plate Data Management
- Flexible Pan, Tilt and Zoom Tasks
- 36X(5.7~205.2mm) AF Lens
- 1/2'' Sensor & 0.002Lux Starlight
- 60fps High Frame Rate
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Road Traffic Management
- Speed Dome Camera

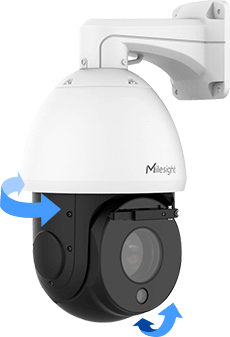

Flexible Pan, Tilt and Zoom Tasks
Milesight Speed Dome Camera offers the ability to fast and precisely rotate on a 360° pan and 95° tilt to survey a wide range of territory. The user can easily set up to 8 patrols with 48 presets for each and maximum 4 patterns for all-round monitoring. Moreover, the user is able to schedule specific PTZ tasks by date and time.
Pan Range: 0~360°
Tilt Range: -5°-90°
36X Optical Zoom
The 36X Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.

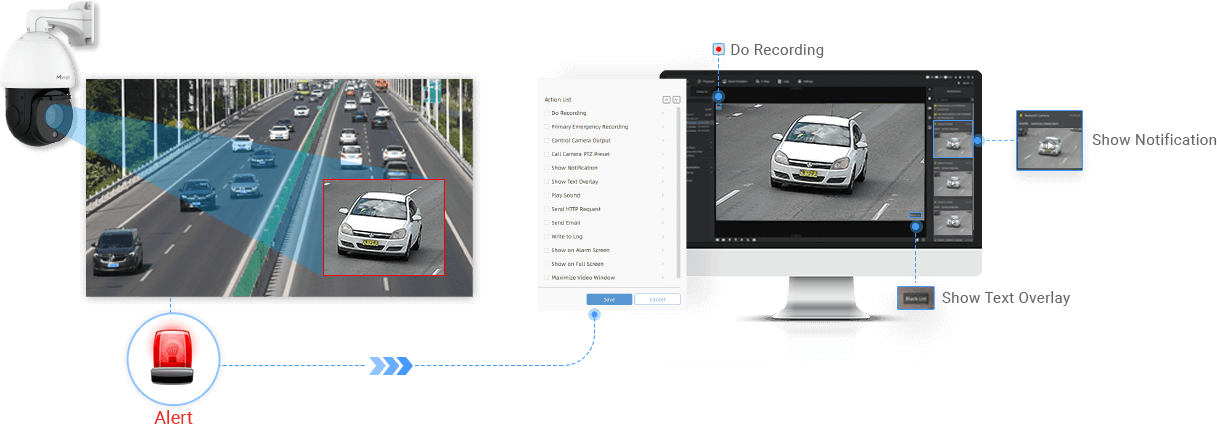

Traffic Violation Detection
Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

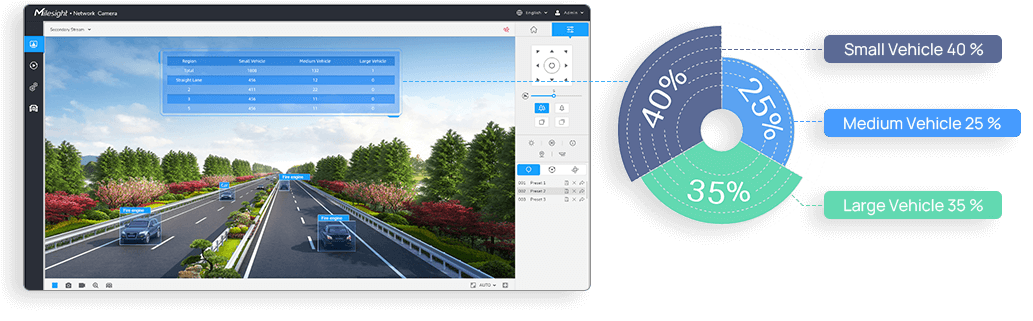

Traffic Flow Statistics
The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

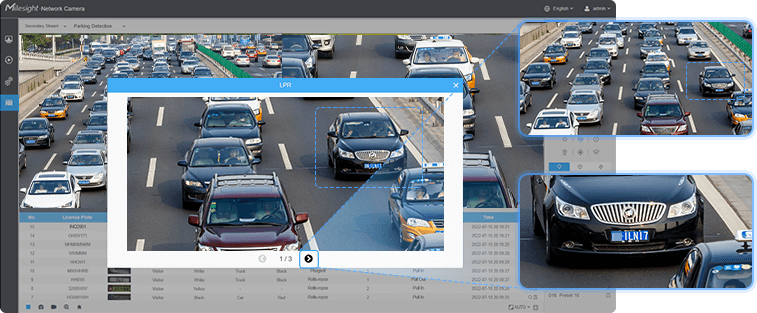

Evidence Camera Linkage
Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.

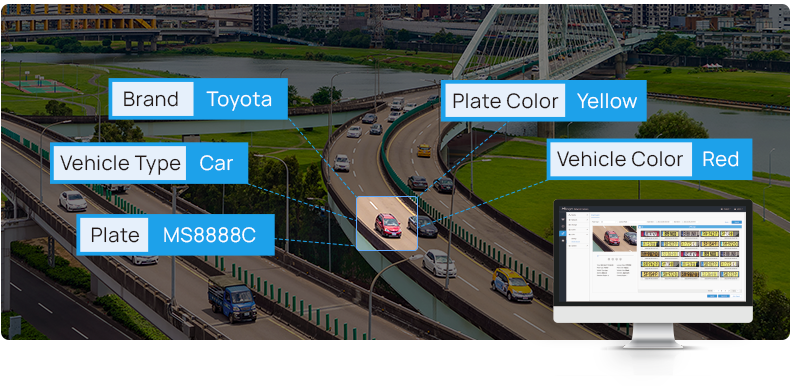

LPR Smart Search
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.

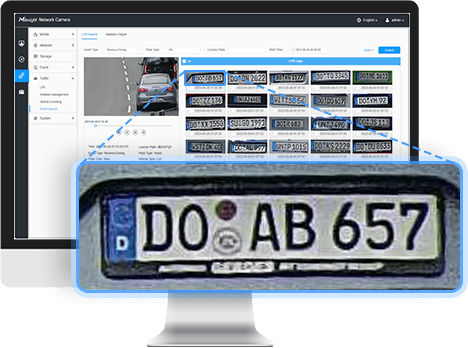

Plate Data Management
A number of options to ensure the powerful plate data management and flexible deployment of Milesight traffic systems.
On-edge Plate Management
Standalone black/white list management realizes the fast implementation for barrier control.
Milesight Back-ends Integration
Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.
Third-party VMS Integration
Various CGI/APIs and interfaces, protocols like TCP, HTTP make it easy to integrate with all data being pushed to third-party VMS or platforms.
Intelligent AI-powered
LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.
Smart Rain-Sensing Wiper
(Optional)
The rain sensor is used to detect the rain, realizing a smarter control of the wiper function. The speed and frequency of the wiper are intelligently adjusted according to the rain. With smart rain-sensing wiper, Milesight Speed Dome Camera can clear rainwater automatically, providing sharp images even in rainy days.

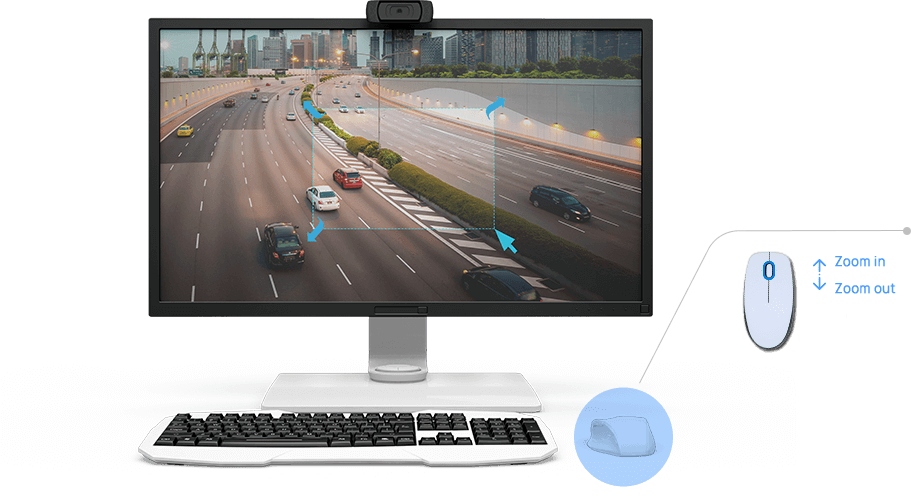

3D Positioning
With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.002Lux Ultra Low-light, 100fps High Frame Rate and 140dB Super WDR features make it well-suited for 24/7 traffic monitoring.
IP66 & IK10 (Optional for IK10)
Equipped with industry-leading IP66-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
*lK10 is optional for non-wiper versions.

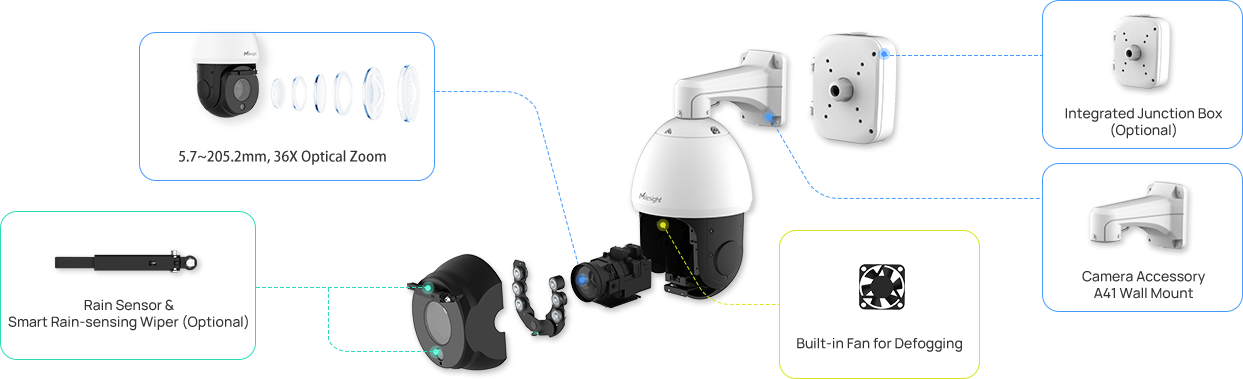

Easy Deployment and Compact Structure
AI Road Traffic Speed Dome Camera features a 36X autofocus lens, smart rain-sensing wiper and built-in fan to ensure the superior and robust performance for traffic application scenarios. In addition, the integrated junction box makes the camera easy to install even in complex environments.

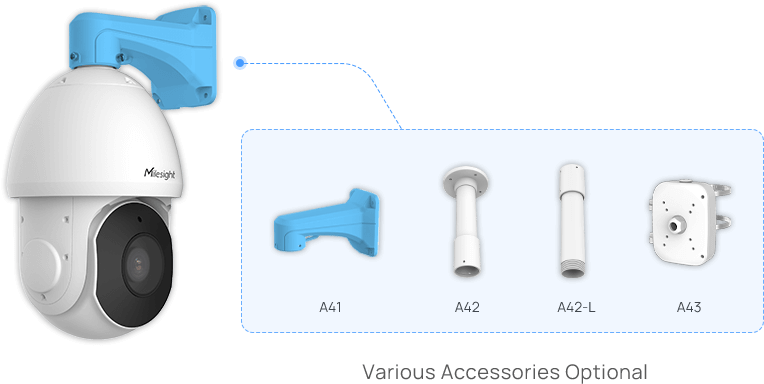

Various Accessories Optional
Various accessories are available to fulfill different installation needs, such as Pendant Mount or Wall Mount, achieving the hassle-free installation for traffic projects.
Specifications
NDAA
- TS4441-X36RPE
Non-NDAA
- TS2841-X36TPC
| Camera | |
|---|---|
| Name | AI Road Traffic Speed Dome Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.55, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR Pro |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Illumination Distance | Up to 300m |
| S/N | >55dB |
| Lens | |
| Focal Length | 5.7∼205.2mm, 36X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H63°∼H3°/D69°∼D3°/V38°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1500/1500mm (Wide/Tele) |
| Aperture | F1.55∼F4.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 390m during the day; Up to 180m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |
| Smart Traffic Function | Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 13W MAX/ 23W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper(Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | AI Road Traffic Speed Dome Camera |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.55, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR Pro |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.7∼205.2mm, 36X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H63°∼H3°/D69°∼D3°/V38°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1500/1500mm (Wide/Tele) |
| Aperture | F1.55∼F4.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| Illumination Distance | Up to 290m during the day; Up to 110m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |
| Smart Traffic Function | Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management |
| White/Black List | Up to 1,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 13W MAX/ 23W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper(Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A41 Wall Mount
- Weight: 400g
- Dimension: 200*129*100mm
- Installation Environment: For wall or parapet installations
A42 Pendant Mount
- Weight: 650g
- Dimension: Φ 116.5*255mm
- Installation Environment: Used to install cameras on a ceiling or vertical structure
A42-L Extension Lever
- Weight: 330g
- Dimension: Φ 55*255mm
- Installation Environment: Used as extensions for pendant mount
A43 Junction Box
- Weight: 1000g
- Dimension: 195*164*80mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
