5G Industrial Cellular Router

Rugged and Reliable

UR75

Ultra-fast Connectivity and Ultra-high Reliability
Rich Interfaces for Different Applications

Industrial Grade Design for Harsh Environment
Remote Management

FEATURES
MODELS
DOWNLOAD

Ultra Series to Deliver Ultra High Performance

Milesight UR75, a state-of-the-art 5G router designed for industrial-grade IoT applications. It is a powerful and reliable solution that allows for seamless data transmission and remote management in demanding environments.

What Is 5G?

5G's ultra high-speed, which is around 100 times faster than 4G, is designed to connect virtually everyone and everything together including machines, objects and devices.

How long will it take to download 12Gb file?

100
mb per second

10000
mb per second

Minutes

Seconds

Ultra-fast Connectivity

Superior 5G Network
5G Sub-6GHZ enables wider signal coverage with superb download speed up to 4.67 Gbps
Strong Wi-Fi Performance
Wi-Fi 6 allows 2.4G & 5G dual band concurrent connections up to 1.8 Gbps download speed

Advanced OpenCPU System

UR75 equips upgraded quad-core CPU ARM Cortex-A55, with bigger memory for faster data transmission.
Adopting OpenCPU system, UR75 has a more simplified yet efficient frame work with the benefits of:

Lower Power Consumption
Reduced Investment Cost
Increased Flexibility and Performance

Ultra-high Reliability

Quick Network Backup
Automated failover/failback backup among Ethernet, Cellular(dual SIM) and Wi-Fi
Embedded Watchdog
Embedded with hardware watchdog to automatically recover from various failures
Security Protection
Equipped with multiple security protection measures such as ACL, DMZ, SYN-Flood protection, and data filtering to ensure that network is secured

Rich Interfaces for
Multiple Applications

UR75 supports serial ports (RS232/RS485), I/O (input/output), and GPS, enabling you to scale up M2M applications. UR75 also supports USB 3.0 (Type-C) for power supply, network supply and debug.

Industrial Grade Design for Harsh Environment

With Wide operating temperature range from -40°C to 70°C and IP30 rated metal housing, UR75 stays performant under harsh environment.

MilesightVPN

UR75 supports connection and management with MilesightVPN

Easy Connection via Authentication Code
Connection Status Overview
Remote and Secure Access to Field Devices

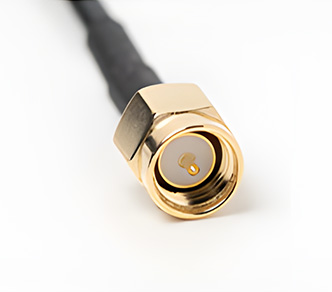

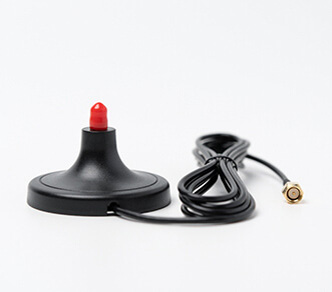

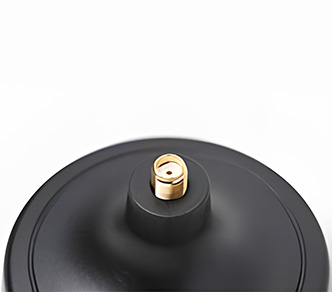

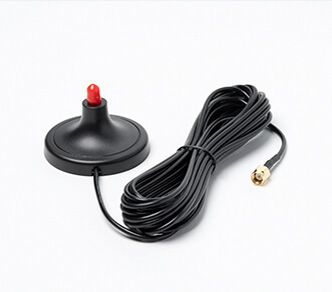

Magnetic Version

DeviceHub

Milesight DeviceHub offers a high-efficiency and low maintenance solution to easily deploy Milesight Industrial Cellular Routers across multiple locations, reducing complexity and increasing productivity.

Central Management
Device Status Monitoring
Remote & Bulk Configuration

Simplify Your Processes with Node-RED

With compatibility with Node-RED, users can easily integrate devices, APIs, and online services effortlessly.

Flexible Installation

Wall Mounting

Desktop Mounting

DIN Rail Mounting

Specifications

UR75

Hardware System
CPU	Quad-core ARM Cortex-A55,2 GHz
Memory	1 GB LDDR4x RAM and 1 GB NAND Flash
Extendable Storage	1 × M.2 NVMe SSD Interface
Cellular Interface
Network	5G NR SA & NSA/4G LTE/WCDMA
Frequency	5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43 WCDMA: B1/B5/B8

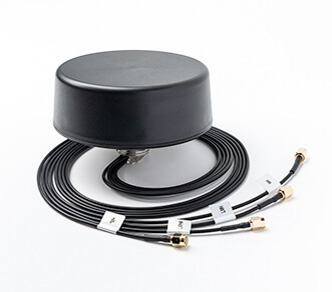

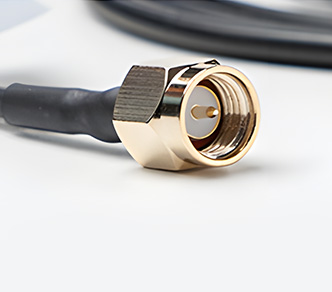

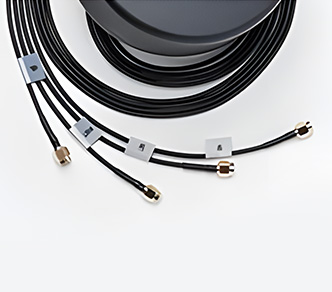

Antenna	4 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slot	2（Mini SIM-2FF）
Ethernet Interface
Numbers	5 × 10/100/1000 Mbps
Property	1 × WAN +4 × LAN
Mode	Full or Half Duplex (Auto-Sensing)
PoE	4 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Wi-Fi Interface
Antenna	4 × 50 Ω SMA Connectors (Center PIN: RP-SMA Female)
Standards	IEEE 802.11b/g/n/ax 2 x 2 MIMO, 2.4 GHz IEEE 802.11a/n/ac/ax 2 x 2 MIMO, 5 GHz
Max Bit Rate	2.4 GHz: 600 Mbps, 5 GHz: 1200 Mbps
Modes	AP or Client Mode
Security	WEP/WPA/WPA2/WPA3 authentication, WEP/TKIP/AES encryption
GNSS
Antenna	1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Technology	GPS/GLONASS/Beidou/Galileo/QZSS
Protocol	NMEA 0183
Serial Interface
Numbers	1 × RS232 + 1 × RS485
Connector	3.5 mm Terminal Block
Baud Rate	300bps to 230400bps
DI/DO
Numbers	1 × DI (Dry Contact) + 1 × DO (Wet Contact), Galvanic Isolation
Connector	3.5 mm Terminal Block
Maximum V/A	0.3A@30VDC (DO)
Others

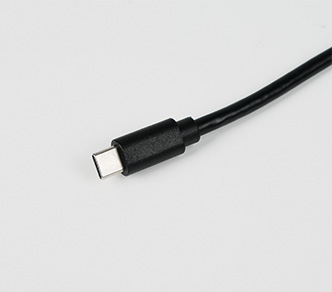

USB	1 × USB 3.0 (Type-C) for Power Supply, Network Supply and Debug
Reset Button	1 × RESET
LED Indicators	1 × SYSTEM,1 × SIM1,1 × SIM2
Built-in	Watchdog, Timer
Software
Network Protocols	IPv4/IPv6, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, DDNS, SNMP, MQTT, MQTTS, etc
VPN	IPsec, OpenVPN, LT2P, PPTP
Security	Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering (IP & MAC & Domain), IP Passthrough
Management	Web, SMS, DeviceHub, MilesightVPN
Reliability	WAN Failover, Dual SIM Backup
Serial Port	Transparent (TCP Client/Server, UDP), Modbus Client (Master), Modbus Gateway (Modbus RTU to Modbus TCP)
App	Node-RED
Power Supply and Consumption
Power Connector	2-pin 3.5 mm Terminal Block
Power Input	1. 9-48 VDC, with Surge-Protection and Reverse Polarity Protection 2. 5V, 3A by Type-C Port
Power Consumption	Without Wi-Fi: Typical 2.8 W, Max 5.5 W
(In Non-PoE mode)	With Wi-Fi: Typical 7 W, Max 13.7 W
Physical Characteristics
Ingress Protection	IP30
Housing	Metal
Dimension	135 x 115 x 36.4 mm (5.31 x 4.53 x 1.43 in)
Installation	Desktop, Wall or DIN Rail Mounting
Environmental
Operating Temperature	-40°C to +70°C (-40℉ to +158℉)
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (Non-condensing) at 25°C/77℉
Approvals
Regulatory	CE, RCM
Environmental	RoHS
