Entrance & Exit
AI LPR Bullet Camera
Smart & Ruggedized Camera for LPR Solution
Introducing Milesight Intelligent Traffic
Entrance & Exit
- Intelligent AI-powered LPR Algorithm
- Black & White List and No-plate Vehicle Detection
- Evidence Camera Linkage
- LPR Smart Search
- 140dB Super WDR
- Smart IR II Technology
- IP67 & IK10 Full Protection
- Versatile Interfaces
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Entrance & Exit Management
- AI LPR Bullet Camera

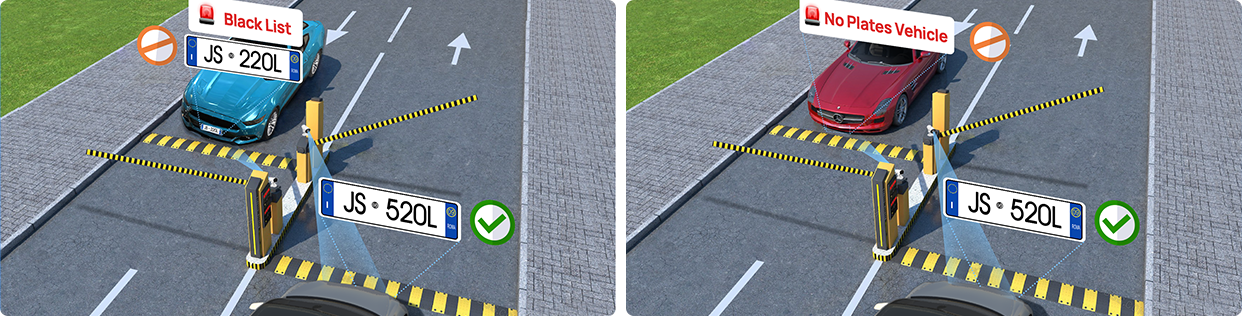

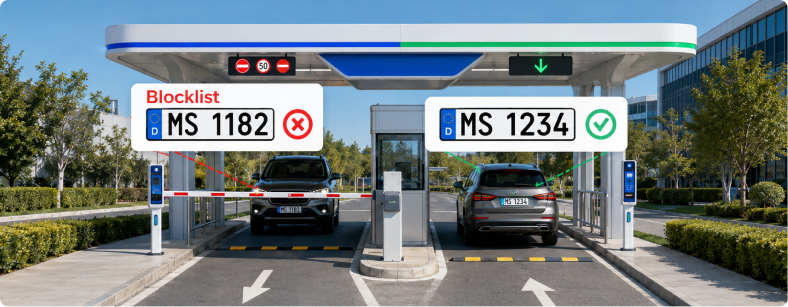

Black/White List and No-plate Vehicle Detection
With the built-in AI LPR algorithm and embedded black and white lists, Milesight Entrance & Exit AI LPR Cameras enable to achieve standalone solutions for license plate recognition as well as no-plate vehicle detection. Alarm is triggered as soon as the corresponding rule-compliant license plate is detected, enabling efficient and accurate access control at any gate, such as a campus or an apartment.
Intelligent AI-powered
LPR Algorithm
Based on built-in AI algorithm, Milesight Entrance & Exit AI LPR Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and efficiency for access control at both entrances and exits.
Easy and Flexible Deployment
Standalone Barrier Control
With built-in AI LPR algorithms and embedded black/white list, the camera enables a standalone and easy-to-deploy solution for gate or barrier control.
Milesight Back-ends Integration
Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.
Third-party VMS Integration
Various CGI/APIs, interfaces and protocols like TCP, HTTP make it easy to integrate with third-party VMS or platforms.

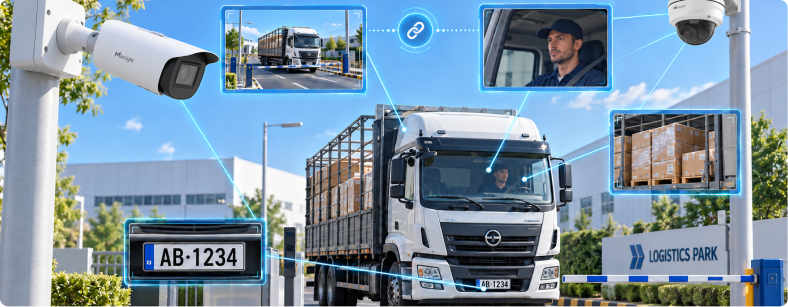

Evidence Camera Linkage
Milesight Entrance & Exit AI LPR Camera can link with any regular cameras to capture the evidence. With the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots and critical details, such as driver's face and loaded materials in trucks.

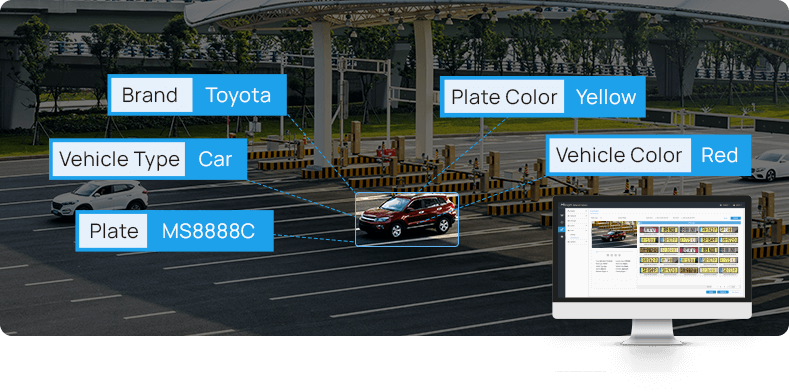

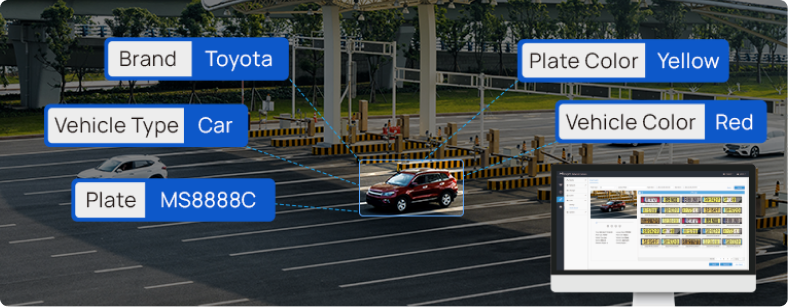

LPR Smart Search
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent entrance and exit management. It also supports manual export and auto export for easy management.
140dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under extreme back light and high contrast conditions, ensuring better capture of road traffic details.

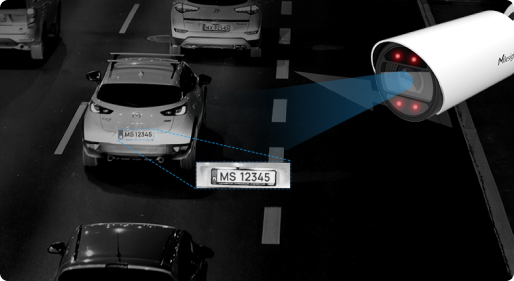

Smart IR II Technology
The IR LEDs technology upgraded to provide better image clarity and quality in the dark night. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.

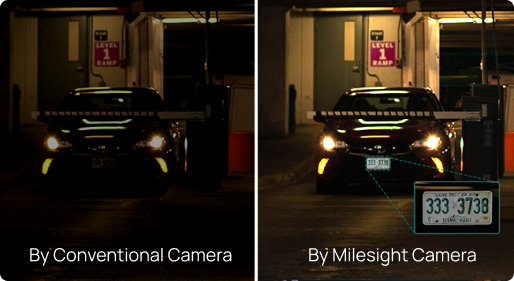

0.005Lux Ultra Low-light
Milesight Entrance & Exit AI LPR Bullet Camera is able to deliver detailed clear images in low and near-infrared light conditions down to 0.005Lux (Color) and 0Lux (B/W), ensuring superior performance for 24/7 traffic monitoring.
60fps High Frame Rate
With the industry leading frame rate reaching 60fps, Milesight Entrance & Exit AI LPR Camera can easily catch vehicle and plate images with no latency despite of the high-speed movement.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

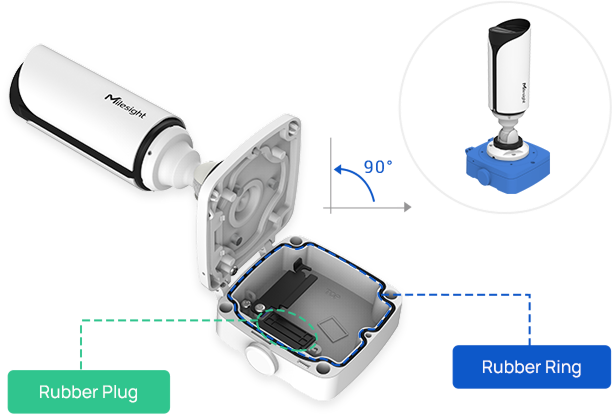

Integrated Junction Box (Optional)
The well-designed Integrated Junction Box especially the Clamshell structure, enlarges the space to make cable connection neat, ensuring efficient and simple installations. The rubber plugs and rubber ring guarantee IP67-rated weather-proof capability to offer stable operation in any tough conditions.
SIP/VoIP Support
Milesight Entrance & Exit AI LPR Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
NDAA
- MS-C2964-RFLPE
Non-NDAA
- MS-C2964-RFLPC
| Camera | |
|---|---|
| Name | Entrance & Exit AI LPR Bullet Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Illumination Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4 |
| Field of View | H111°~H34°/D130°~D39°/V60°~V19° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Entrance & Exit Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >98% |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 25m during the day; Up to 20m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection |
| Smart Traffic Function | Evidence Camera Linkage |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 6W MAX, 10W MAX(With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
L - LPR Supported
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | Entrance & Exit AI LPR Bullet Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4 |
| Field of View | H111°~H34°/D130°~D39°/V60°~V19° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Entrance & Exit Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >98% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| Illumination Distance | Up to 20m |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |
| Smart Traffic Function | Evidence Camera Linkage |
| White/Black List | Up to 1,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1(Multi-interface Version) |
| Alarm I/O | 1/1(Multi-interface Version) |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 7W MAX, 9W MAX(With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
L - LPR Supported
P - PoE Supported
C/E - AI Series
A01 Pole Mount
- Weight: 720g
- Dimension: 170*51.5*152.6mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A63 Junction Box
- Weight: 620g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
