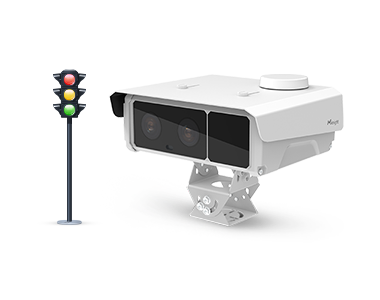

TrafficX Camera
For More Demanding Traffic Applications
TrafficX - Born to Be Pro
- High-performance AI Chip and AI ISP Embedded
- AI-based Onboard ANPR
- 250km/h High Recognizable Speed
- 99% Capture Rate & 98% Plate Recognition Rate
- 2*5MP Auto Focus Lenses
- Dual-lens for Overview and ANPR Image
- 50m ANPR Distance & 2-3 Lanes Covering
- Support 1TB SD Card for Edge Storage
- 4G LTE Network for Wireless Transmission (Optional)
- Built-in GPS for Precise Location
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- TrafficX Series
- TrafficX Camera
Capture Traffic Data Like Never Before
99 %
Capture Rate
98 %
Plate Recognition Rate
250 km/h
High Recognizable Speed
Don't miss a beat! Experience the cutting-edge with our TrafficX Camera - powered by a High-performance AI Chip and revolutionary Frame Parity Flashing alongside Global Shutter technologies. This innovative combination ensures you capture every critical moment on the road with absolute precision.

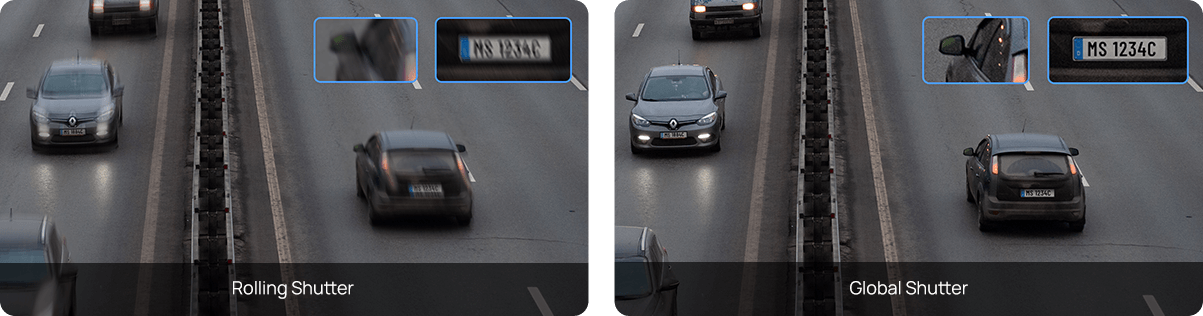

Crystal Clear Details from Global Shutter
Seize every moment in pristine clarity! With global shutter technology, all pixels are exposed simultaneously, allowing for the accurate capture of fast-moving vehicles, eliminating motion blur, distortions and providing crystal-clear images for accurate analysis.
Double Vision,
Double Power
Get a comprehensive view of traffic with the dual-lens setup. Simultaneously capture an overview of the scene and detailed ANPR image. It's like having two cameras in one, efficiently providing you with valuable evidential data for precise analysis.

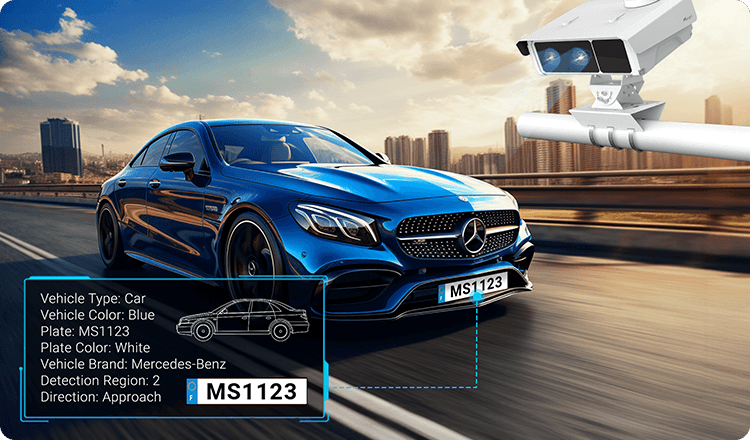

AI-based Onboard ANPR,
Beyond Plates
Say hello to hassle-free traffic monitoring! With AI-based ANPR on the edge, our TrafficX camera achieves unmatched accuracy in identifying vehicles. Identify license plates, plate colors, vehicle types, brands, colors - all effortlessly.
Tackle with All Kinds of Plates
Reflective & Non-reflective Plates

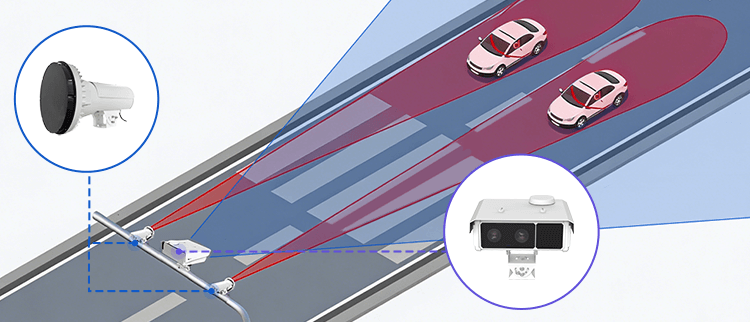

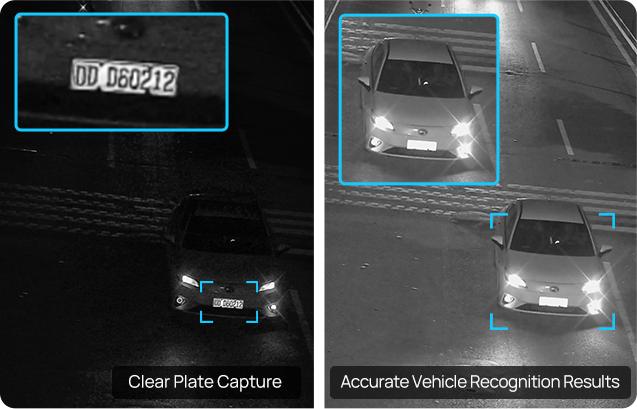

Elevate recognition with the Milesight TrafficX Camera – a true marvel! The camera expertly manages a wide range of plate types, guaranteeing flexibility in any situation. Frame Parity Flashing technology enables camera to take several images of the vehicle, ensure the clear capture of reflective & non-reflective plates and provide the most accurate results of vehicle and plate recognition.
High-contrast & Low-contrast Plates

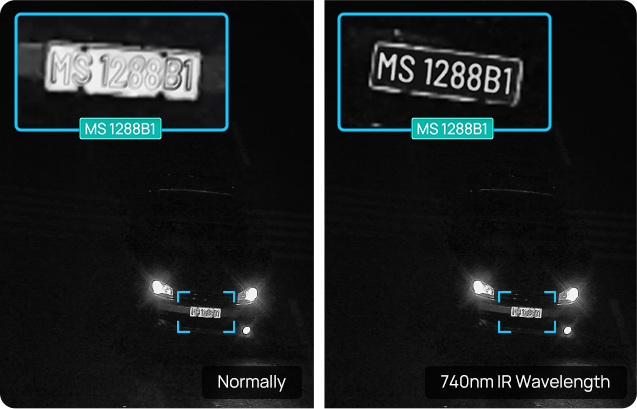

Recognizing high-contrast license plates has never been a problem, but recognizing low-contrast license plates can be very challenging, especially at night. And that's where we shine. Introducing our game-changing 740nm infrared wavelength technology (optional) – a brilliant innovation for effortlessly capturing those elusive, low-contrast license plates with unparalleled clarity.
What is Low-contrast Plate?
Light Background and Light Characters
4G LTE & GPS Empower Smart Mobility
4G LTE is optional for transmission over Internet wirelessly with a SIM card, eliminating the need of complicated network cable connections. Built-in GPS allows for recording the exact location where a plate is captured, helping authorities track vehicles, collect evidence and investigate crimes.
Milesight TrafficX Camera
4G Signal
Remote Management

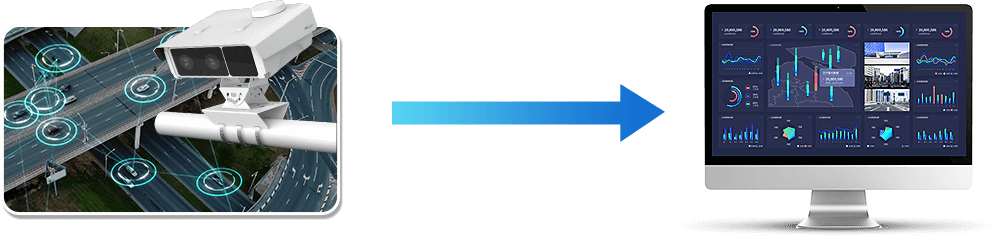

Easy & Seamless Integration
Effortless integration with your existing systems is guaranteed. Milesight TrafficX Camera supports CGI/APIs and TCP/HTTP/MQTT protocols for easy integration. Furthermore, it provides edge storage of up to 1TB on an SD card, ensuring powerful data storage and access.
Captured & Analyzed Traffic Data
CGI/APIs
TCP/HTTP/MQTT
Third-party Management Platform
Versatile ANPR Attributes
- Plate Number/Plate Type/Plate Color
- Vehicle Type/Brand/Color
- Country/Region
Rich Evidence Datasets
- GPS
- License Plate Coordinates
- Vehicle Coordinates
Event Detection Data Insights
- Event Type
- Time
- Device Information
- Event Data
Full Snapshot Types
- License Plate
- Vehicle Snapshot
- Full Snapshot
- Violation Evidence
What Data Can We Push?
Ideal for Low Emission
Zone Monitoring
Combat air pollution and promote cleaner cities! Milesight TrafficX Camera captures accurate and solid evidence with dual lens, which is perfect for monitoring Low Emission Zones, where access and circulation of the most polluting vehicles is limited.
*A Low Emission Zone (LEZ) is also known as ZBE (Zona de Bajas Emisiones) in Spain, ZBE in Belgium, ZTL in Italy (Zone a traffico limitato), ZFE in France (Zone à Faibles Emissions in force in Paris, Lyon, Montpellier).
Versatile Applications
Operators are often overloaded with the massive video and data, and the smart forensic evidence ensures that the operator is always on the right track when searching for the corresponding clips, greatly facilitating investigations and speeding up case resolution.
Urban Road
Freeway

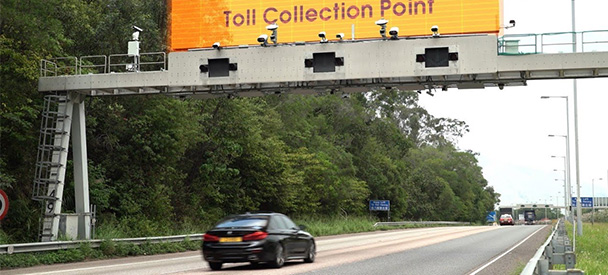

Free-flow Tolling
Traffic Monitoring
Maximized Installation Flexibility
Covering a 50m ANPR distance, Milesight TrafficX Camera monitors 2-3 lanes simultaneously, ensuring extensive coverage for streamlined traffic management. With multiple installation methods, including Pedestal Mount, Pedestal Pole Mount, Wall Mount and Wall Pole Mount as well as flexible angle adjustment, the camera is freely installed in the middle of the road or on the side of the road.

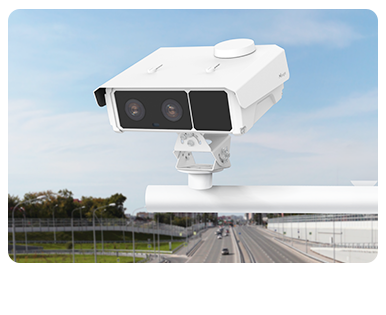

Pedestal Mount

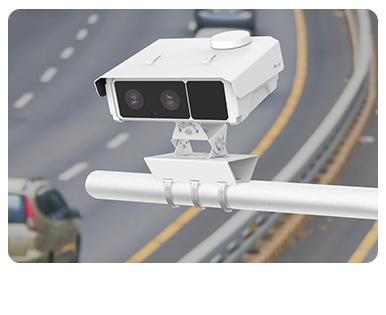

Pedestal Pole Mount

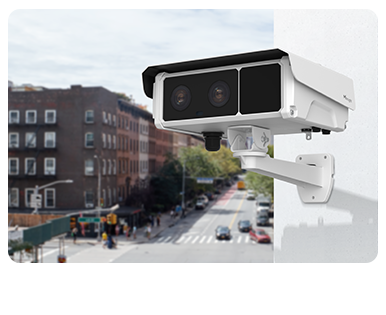

Wall Mount

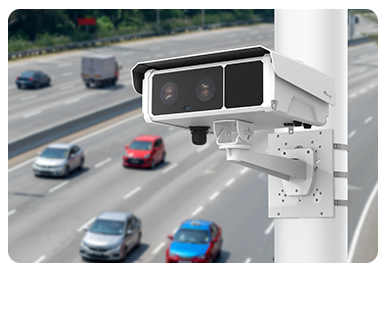

Wall Pole Mount
Available Mounting Brackets
Experience the Revolution - Order Now!
Order now and stay ahead of innovation!
REGISTRATION FORM
Specifications
- TS5510-GH
| Camera | |
|---|---|
| Image Sensor | Color, 2/3" Global Shutter |
| Min. Illumination | Color: 0.001 Lux@(F1.4, AGC ON) |
| Shutter Time | 30 us- 40000 us |
| Day/Night Mode | Day/Night/Auto |
| Supplement Light | IR: IR Strobe Light (16 light beads) IR Distance: 60m IR Wave Length: 850nm (Default), 740nm (Optional) |
| Road Traffic Management | |
| Max. ANPR Range | Up to 50m |
| Max. Vehicle Speed | 250 km/h |
| Coverage | Recommended for 2~3 lanes |
| Capture Rate | Up to 99% |
| Recognition Accuracy | Up to 98% |
| Country Region Supported | More than 74 countries and regions |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |

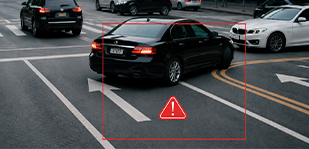

| Violation Management | Reverse Driving, Vehicle Attributes Event Detection |
| White/Black List | Up to 2000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M/1000M Ethernet Port |
| RS485 | Support |
| Input | 4 * Optoisolated Input |
| Output | 2 * Strobe Output 1 * Relay Output |
| Lens | |
| Lens | 15-50mm, Motorized zoom and focus |
| Mount | Custom mount |
| Field of View | horizontal FOV 41.4° to 10.3°, vertical FOV 26.8° to 8.42°, diagonal FOV 32° to 13.3° |
| Video | |
| Max. Resolution | 2464x2056 |
| Max. FPS | 30fps |
| Video Compression | H.265/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image Setting | Brightness/Contrast/Saturation |
| Privacy Masking | Up to 24 Areas (per Sensor) |
| Wireless Network (Optional) | |
| Cellular | 4G LTE NA: B2/B4/B5/B12/B13/B25/B26 EU: B1/B3/B7/B8/B20/B28 AU: B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| SIM Card | Nano SIM |
| System | |
| System Compatibility | API, HTTP, TCP, MQTT, ONVIF Profile G & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| General | |
| GPS | Built-in High-accuracy GPS Module |
| Working Temperature | -40°C ~ 70°C |
| Working Humidity | 0~95% (Non-condensing) |
| Power Consumption | 22W MAX 26W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Power Supply | 24 V DC/AC |
| Weight | 4.3Kg |
| Dimensions | 121mmx295mmx245mm (Without Mounting Bracket) |
| Warranty | 3 Years |
* Naming Convention
G - Global Shutter
H - AI Series

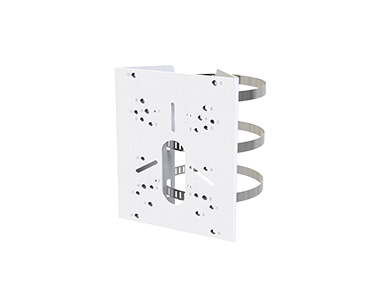

A01 Pole Mount
- Weight: 720g
- Dimension: 170*51.5*152.6mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A91 Pedestal Mount
- Weight: 490g
- Dimension: 95*95*110mm
- Installation Environment: For use with TrafficX Series cameras

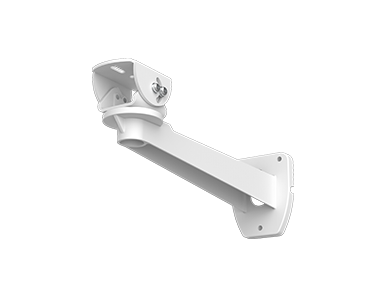

A92 Wall Mount
- Weight: 420g
- Dimension: 300*80*122mm
- Installation Environment: For use with TrafficX Series cameras
