5X/12X/20X/23X Optical Zoom
The 5X/12X/20X/23X Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.
Introducing Milesight Intelligent Traffic
AI Road Traffic PTZ Bullet
Plus Camera
Intelligent PTZ to See More for Traffic Solution
- Traffic Violation Detection
- Intelligent AI-powered LPR Algorithm
- Evidence Camera Linkage
- Plate Data Management
- Flexible Pan, Tilt and Zoom Tasks
- 5X/12X/20X/23X AF Lens
- 1/1.8'' Sensor & 0.002Lux Starlight

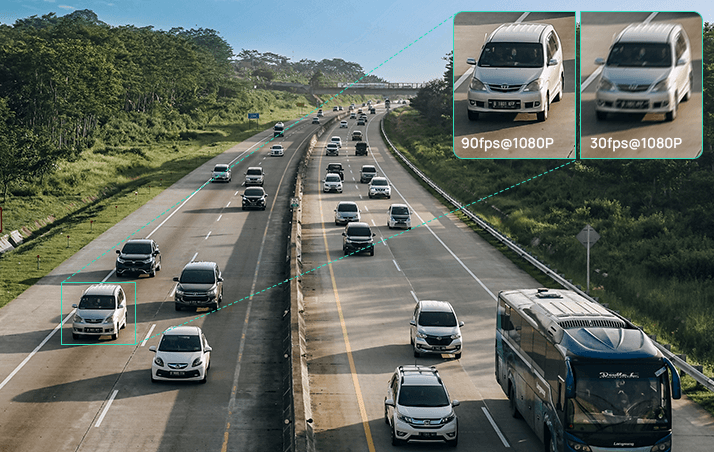

- 90fps High Frame Rate
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Road Traffic Management
- PTZ Bullet Plus Camera

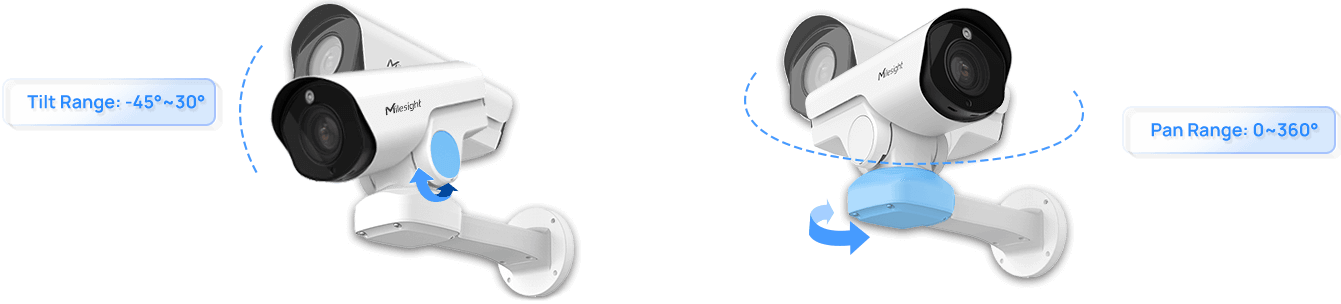

Flexible Pan, Tilt and Zoom Tasks
Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 8
patrols with 48 presets for each and maximum 4 patterns for all-round monitoring. Moreover, the user is able to schedule specific PTZ tasks by date and time.

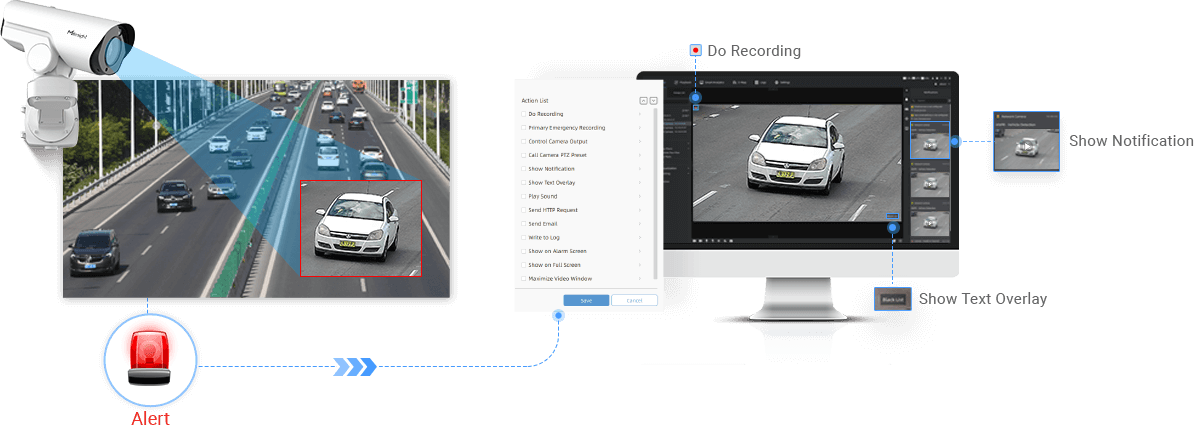

Traffic Violation Detection
Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

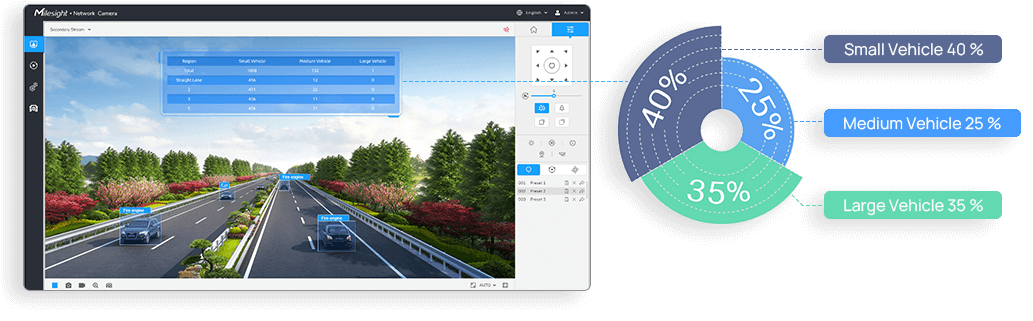

Traffic Flow Statistics
The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

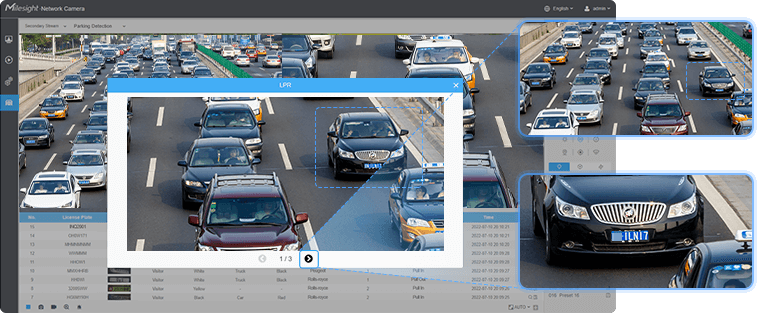

Evidence Camera Linkage
Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With
seamless triggering between Milesight traffic camera and regular camera, users
can easily provide solid and convincible evidence including LPR results as well
as overview snapshots.
LPR Smart Search
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports
manual export and auto export for easy management.

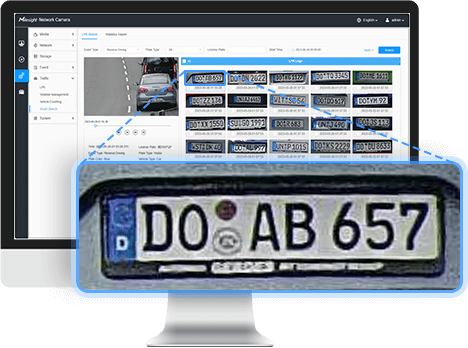

Plate Data Management
A number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems.
- On-edge Plate Management Standalone black/white list management realizes the fast implementation for barrier
control. - Milesight Back-ends Integration
Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions. - Third-party VMS Integration
Various CGI/APIs and interfaces, protocols like TCP, HTTP make it
easy to integrate with all data
being pushed to third-party
VMS or platforms.
Intelligent AI-powered
LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep
learning model and continuously training to algorithms automatically. Milesight AI Road
Traffic Camera can not only recognize vehicle plates in real time, but also identify various
vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to
improve safety and mobility.

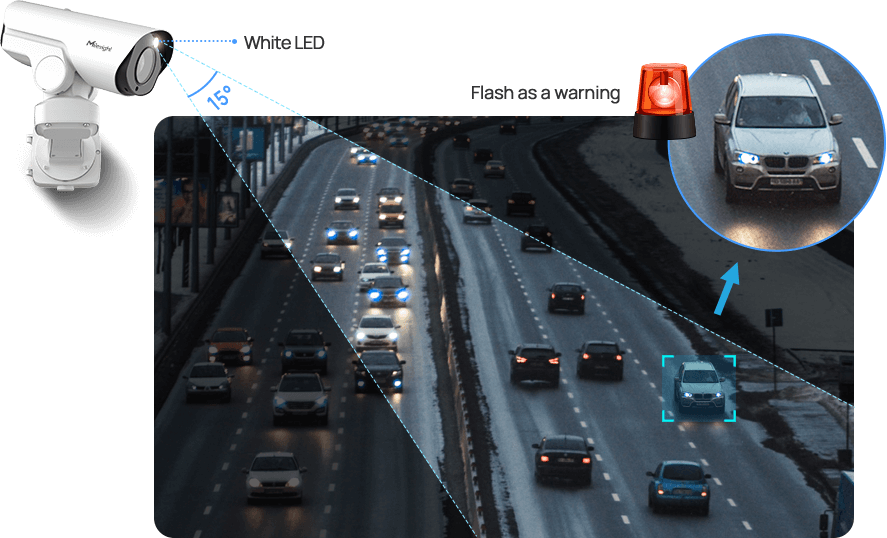

Intelligent White LED
With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

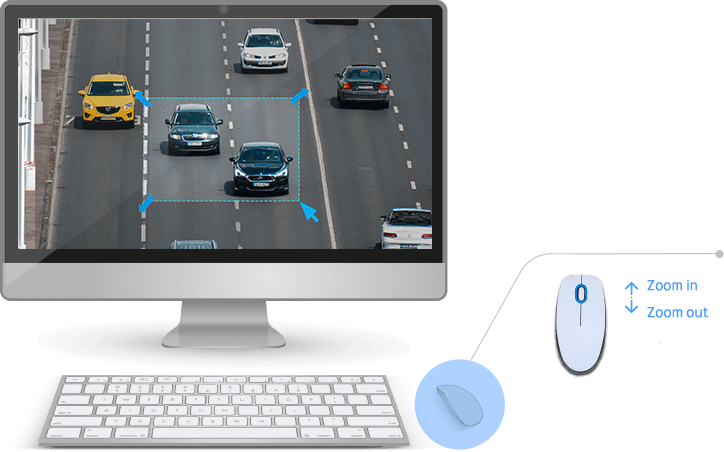

3D Positioning
With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

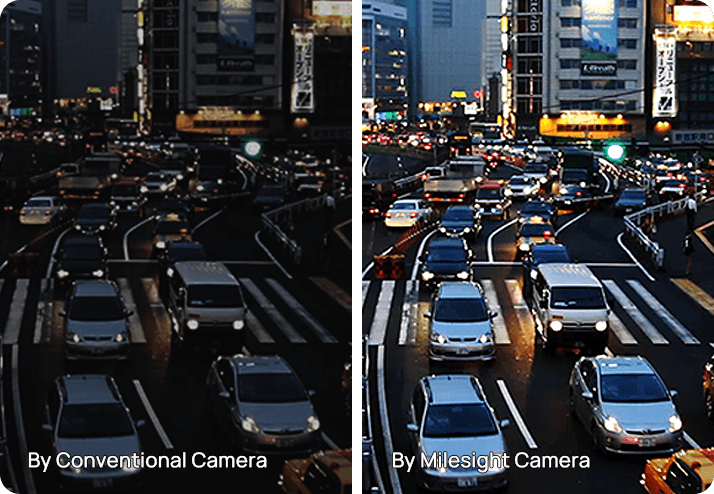

Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.002Lux Ultra Low-light, 90fps High Frame Rate and 140dB Super WDR features make it well-suited for 24/7 traffic monitoring.

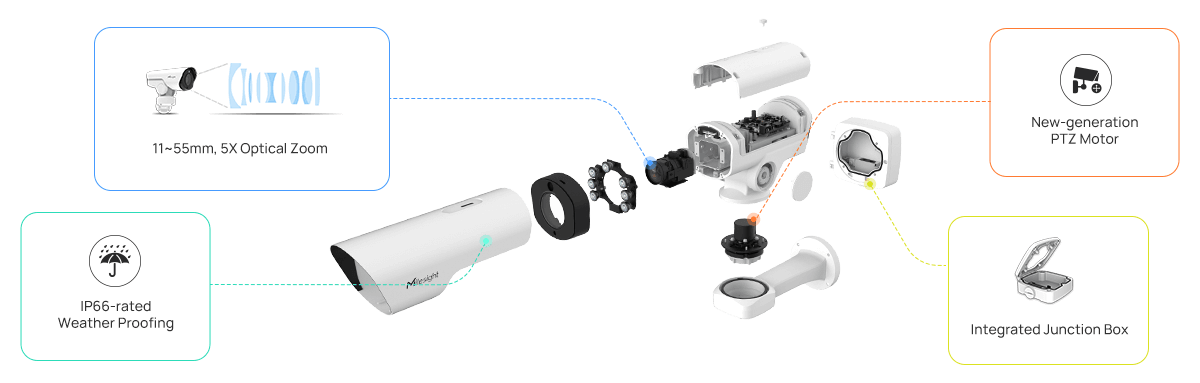

Easy Deployment and Compact Structure
Featuring the new-generation PTZ motor & IP66-rated weather proofing, Milesight AI Road Traffic PTZ Bullet Plus Camera can work steadily for traffic application
scenarios. Additionally, the camera's integrated junction box and multiple interfaces also facilitate easy installation, even in complex environments.

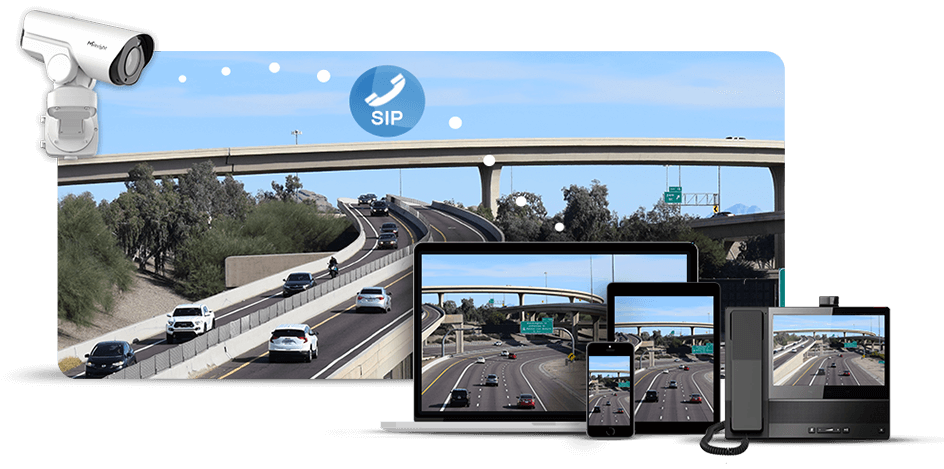

SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
NDAA
- TS2967-X12TPE
- TS2967-X23TPE
- TS4467-X20RPE
- TS5367-X12PE
Non-NDAA
- TS2867-X5TPC
| Camera | |
|---|---|
| Model | TS2967-X12TPE (2MP) |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Illumination Distance | Up to 140m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5.3~64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°~H5°/D69°~D5°/V36°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 110m during the day; Up to 55m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction |
| Smart Traffic Function | Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type,Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 |
| RS485 | Support |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series
| Camera | |
|---|---|
| Model | TS2967-X23TPE (2MP) |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.5 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Illumination Distance | Up to 140m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5~117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H60°~H3°/D69°~D4°/V35°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.5~F3.5 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 290m during the day; Up to 100m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction |
| Smart Traffic Function | Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type,Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 |
| RS485 | Support |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series
| Camera | |
|---|---|
| Model | TS4467-X20RPE (4MP) |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Illumination Distance | Up to 140m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3°/D67°~D4°/V37°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 240m during the day; Up to 90m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction |
| Smart Traffic Function | Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type,Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 |
| RS485 | Support |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series
| Camera | |
|---|---|
| Model | TS5367-X12PE (5MP) |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Illumination Distance | Up to 140m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5.3~64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H57°~H4°/D69°~D5°/V44°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 150m during the day; Up to 80m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction |
| Smart Traffic Function | Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type,Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 |
| RS485 | Support |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 30fps@(2048x1536), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz:25fps@(2592x1944),25fps@(2048x1536), 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series
| Camera | |
|---|---|
| Model | TS2867-X5TPC{Non-NDAA,EOL} |
| Image Sensor | 1/2″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.7 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 11~55mm, 5X Optical Zoom |
| Zoom Speed | Approx 3.5s (Wide-Tele) |
| Field of View | H34°~H8°/D39°~D9°/V20°~V4° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.7~F2.1 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| Illumination Distance | Up to 110m during the day; Up to 50m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |
| Smart Traffic Function | Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management |
| White/Black List | Up to 1,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Optional) |
| Alarm I/O | 1/1 (Optional) |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 12W MAX 28W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A62 Junction Box
- Weight: 510g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
