LoRaWAN® Smart Button

Control Made Simple, Convenience Redefined

CoWork Series

WS101

Effortlessly Execute Multiple Press Actions
Harness the Power of LoRaWAN® Technology

Configure with a Tap Using NFC Technology
Enjoy a Reliable Battery Life of 5 Years

FEATURES
MODELS
DOWNLOAD

Mini but Powerful

Enjoy the convenience of multiple press actions, allowing for versatile and customizable interactions with the product.

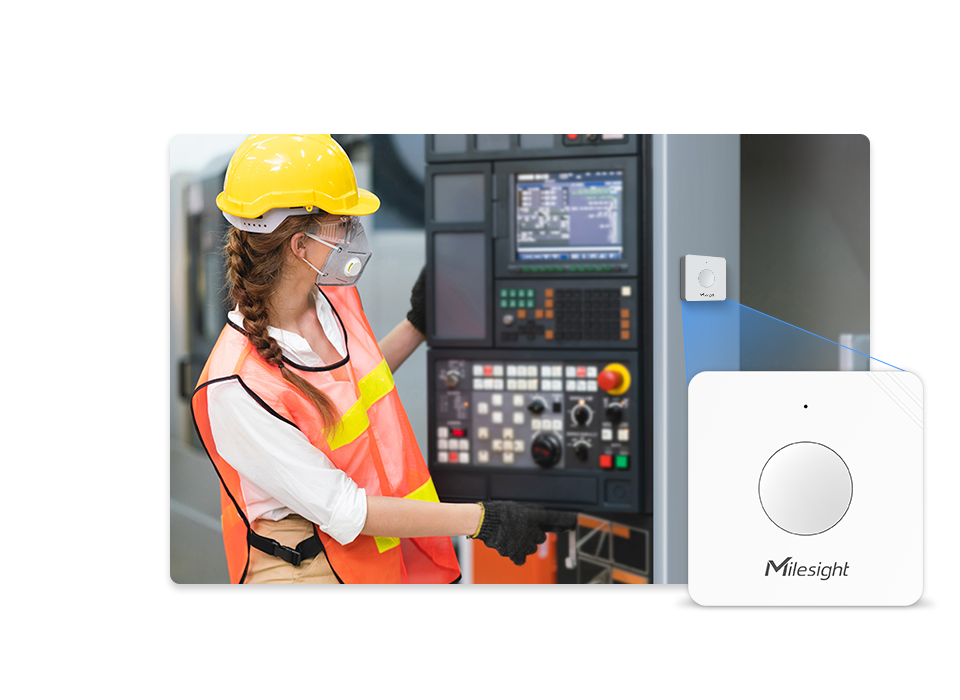

A Helper That Is Always Close

The WS101 can be easily installed in a nearby location and conveniently moved as required. With the Milesight IoT Cloud, you can access its functionality virtually anytime and anywhere to suit your specific needs.

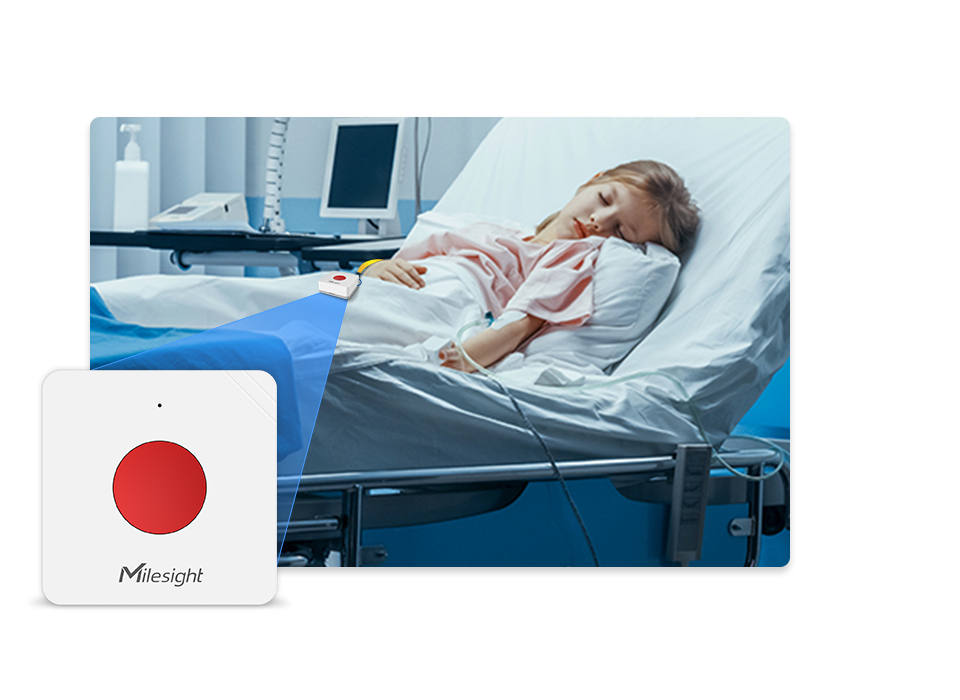

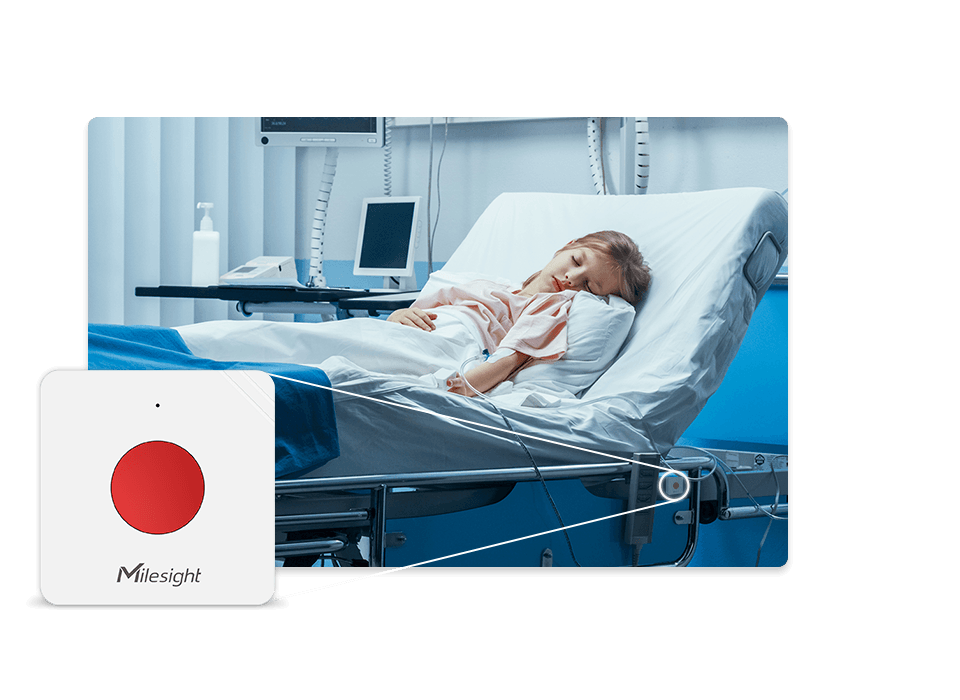

Guarantee of Security

The WS101 can function as a panic button, offering a valuable convenience for seniors, the sick, and youngsters by enabling them to easily contact caregivers when needed.

Ultra-Low Power Consumption

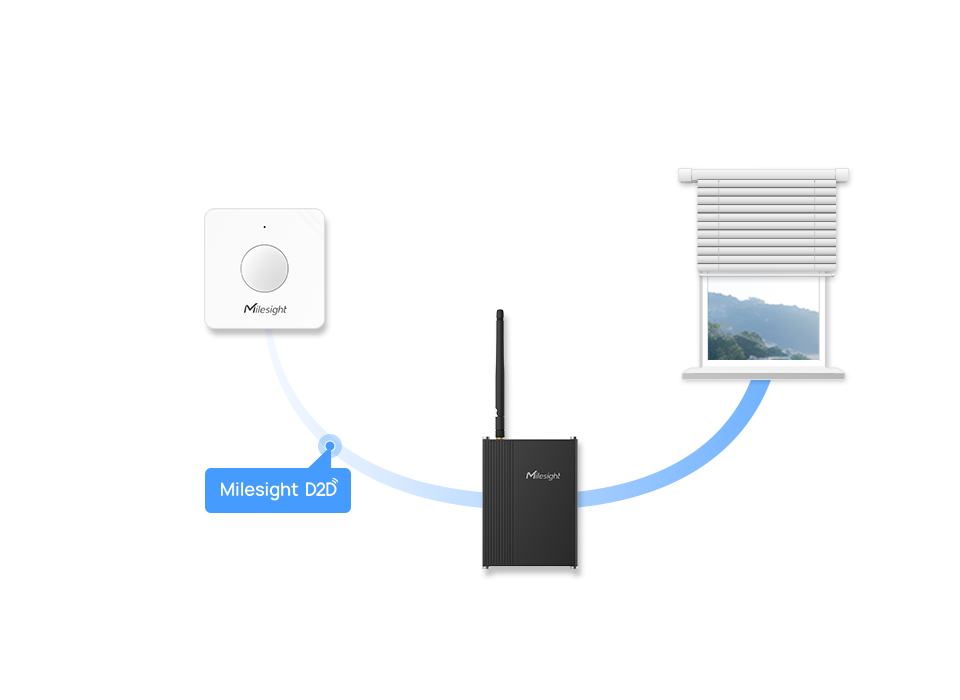

Milesight D2D Communication

Milesight D2D (Device to Device) communication protocol featuring LoRa® enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.

Lower Latency
Less than 1 Second Response Time
Secure Transmission
Reduce Investment Cost

Learn More

Smart Restroom Solution

To make it right and easy, Milesight Smart Restroom Solution provides IoT insights into the status of cleanliness and hygiene.

Get More Details

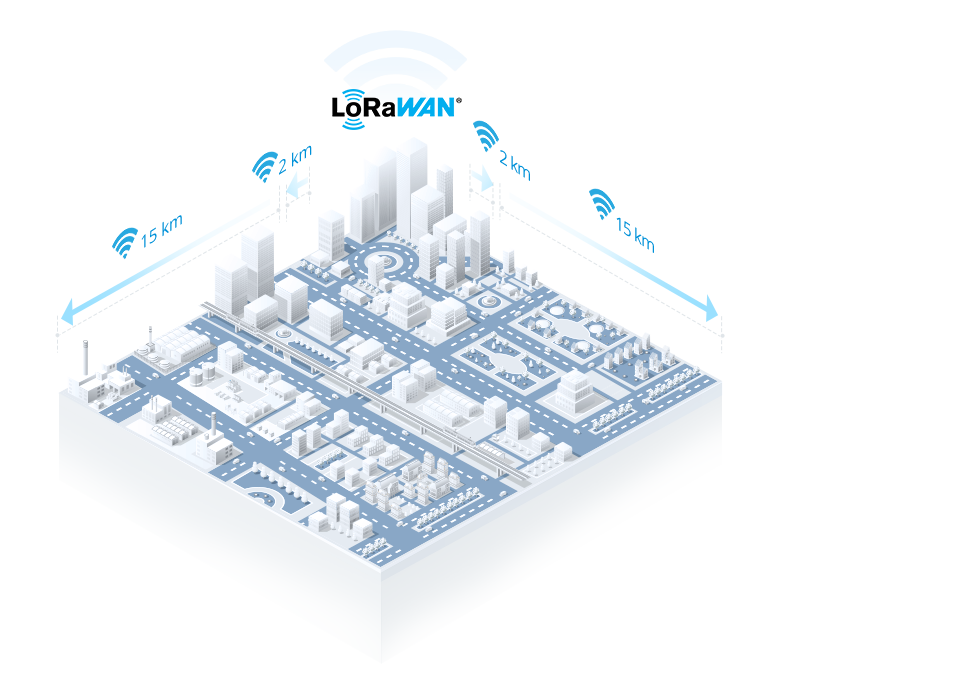

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
High Compatibility: compliant with standard LoRaWAN® gateways and network servers

Cloud Data Management
Milesight IoT Cloud

Data Visualization Dashboard:
All figures in a glance
Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation
Regular Reports & Real-Time Alerts:
Data-based insights
Android & iOS App:
Manage devices at your fingertips

NFC Configuration

Wireless switching on/off and configuring the device via NFC technology from mobile phone or PC

1^st Step

Install the
Milesight ToolBox

2^nd Step

Enable NFC and run ToolBox,
then attach your phone to the device

3^rd Step

Verify the password
and start configuring

Explore More About NFC Configuration >>

Flexible Installation

Carry Around by Strap

Double-Sided Tape Mounting

Screw Mounting

Specifications

WS101

Wireless Transmission
Technology	LoRaWAN®, Milesight D2D
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137 dBm @300bps
Mode	OTAA/ABP Class A
Interface
Button	1 × External Button + 1 × Reset Button (Internal)
LED Indicator	1
Buzzer	Support
Software
Configuration	NFC Configuration via Mobile App
Advanced Feature	Milesight D2D Controller
Physical Characteristics
Power Supply	1 × 1650 mAh ER14335 Li-SOCl₂ battery
Battery Life*	Over 5 years (1080 min interval + 10 presses per day)
Operating Temperature	-20°C to +60°C
Relative Humidity	≤90% (non-condensing)
Ingress Protection	IP30
Dimension	50 × 50 × 18 mm (1.97 × 1.97 × 0.71 in) Button: Φ20 mm (Φ0.79 in)
Material	Anti-flaming Polycarbonate
Color	White (Button: White/Red Optional)
Installation	On the flat surfaces with screws or 3M tapes, Lanyard
Approvals
Regulatory	CE, FCC, RoHS
