Smart Scene Panel

Discover the Art of Scene Magic

CoWork Series

WS156 & WS136

Adapt to Multiple Scenarios
Customize Display for Specific Needs

Efficient One-to-Many Control
Milesight D2D Communication

FEATURES
MODELS
DOWNLOAD

Smart Scene, Seamless Connectivity

Efficiency meets customization as the WS156/WS136 brings unparalleled control to your environment. Whether it's fostering a focused work setting or enhancing collaboration spaces, this solution ensures seamless and rapid scene adjustments.

One Panel, Multiple Scenes

The Milesight WS156/WS136 allows occupants to predefine 6 scenes with different surrounding ambiances which can be fast changed by pressing the button.

Customizable Display

Milesight provides rich icon sources to match a variety of life scenes. It is easy to change the display content by just uploading an image.

WS156

E-Ink Screen

WS136

PVC Sticker

* PVC stickers can be customized (only WS136)

Milesight D2D
Communication

Milesight D2D (Device to Device) communication protocol featuring LoRa® enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.

Lower Latency
Less than 1 Second Response Time
Secure Transmission
Reduce Investment Cost

Learn More

One-to-Many Control

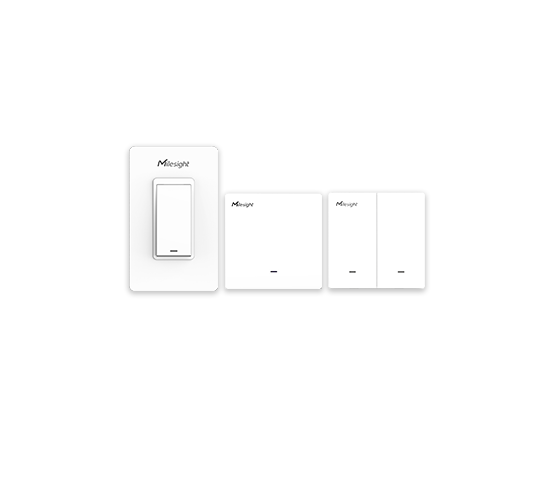

As a Milesight D2D Controller device, one command message sent from WS156/WS136 can be received by multiple Milesight D2D Agent devices.

Dual Protocol Operation

Each button of WS156/WS136 can work in LoRaWAN® or Milesight D2D protocol separately.

Low Power Consumption

2 × CR2450 Coin Cell Batteries
3 Years Battery Life(Press 20 times per day)

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas

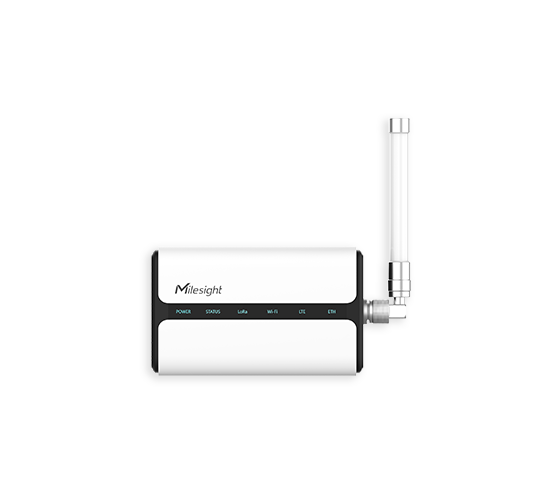

High Compatibility: compliant with standard LoRaWAN® gateways and network servers

Cloud Data Management
Milesight IoT Cloud

Data Visualization Dashboard:
All figures in a glance
Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation
Regular Reports & Real-Time Alerts:
Data-based insights
Android & iOS App:
Manage devices at your fingertips

NFC Configuration

Switching On/Off & Configuring the Devices Wirelessly

1^st Step

Install the
Milesight ToolBox

ws1x6 smart scene panel nfc configuration 2

2^nd Step

Enable NFC and run ToolBox,
then attach your phone to the device

ws1x6 smart scene panel nfc configuration 3

3^rd Step

Verify the password
and start configuring

Explore More About NFC Configuration >>

Installation in Better Ways

Double-Sided Tape Mounting

86-Type Junction Box

Desktop Mounting

Specifications

WS156&WS136

Wireless Transmission
Technology	LoRaWAN®, Milesight D2D
Frequency	CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137dBm
Mode	OTAA/ABP Class A
Interface
Display	WS156: 2.9-Inch Black & White E-Ink Screen, 128 × 296 Pixels WS136: Not Support
Scene Button	6 Buttons
Button Light	Blue
Others	1 × Reset Button (Internal) + 1 × LED Indicator
Software
Configuration	NFC
Advanced Features	Milesight D2D Controller, Screen Display Customization
Physical Characteristics
Power Supply	2 × 590 mAh CR2450 Lithium Coin Cell Batteries
Battery Life*	Over 3 years (1080 min interval + 20 presses per day)
Ingress Protection	IP30
Color & Material	White, PC + ABS (Flame-retardant)
Operating Temperature	-10°C to +50°C (E-Ink Screen: 0°C - 50°C)
Relative Humidity	≤ 90% (Non-condensing)
Dimensions	86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in)
Installation	Desktop, 3M Tape Mounting, 86 Box Mounting

Documents

WS136 & WS156 Datasheet WS136 & WS156 User Guide Payload Decoder
