PIR & Light Sensor
Uniting Human Presence and Brightness Detection for Smart Control
CoWork Series
WS202
- Experience Precise PIR Presence Detection
- Accurate Brightness Measurement
- Seamless LoRaWAN® Wireless Transmission
- Effortless NFC Configuration for Easy Setup
- FEATURES
- MODELS
- DOWNLOAD

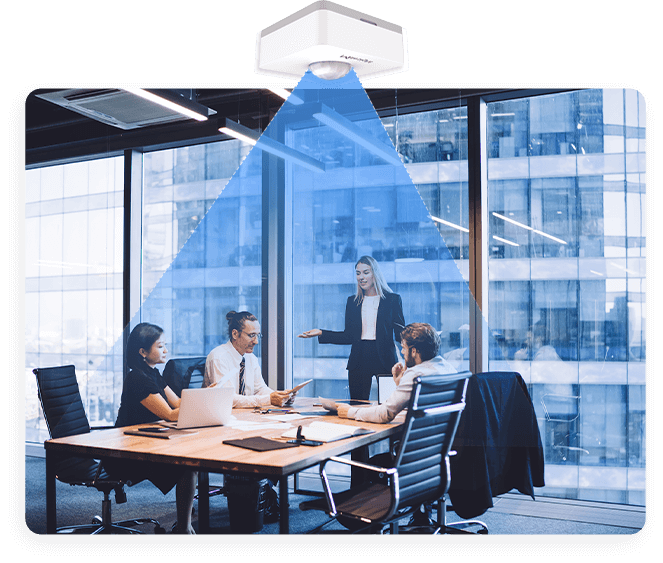

Reliably Detecting Human
Presence with High Accuracy
WS202 utilizes a powerful combination of PIR detection and brightness measurement, allowing it to determine an indoor area's occupancy or vacancy status effortlessly.

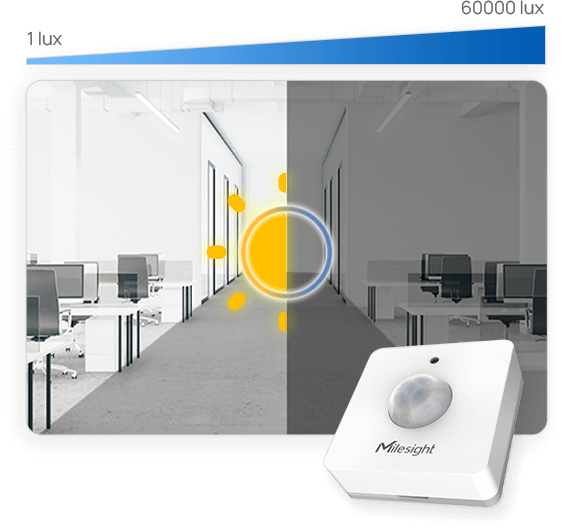

Smart Brightness Measurement
WS202 allows users to define a custom threshold, enabling it to determine whether a space should be classified as bright or dark.
- Resolution: 1 lux
- Range: 1 to 60000 lux

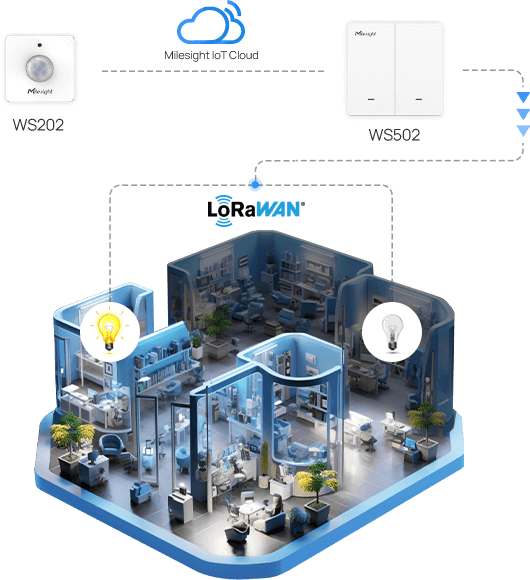

Assist Automatic &
Intelligent Lighting Control

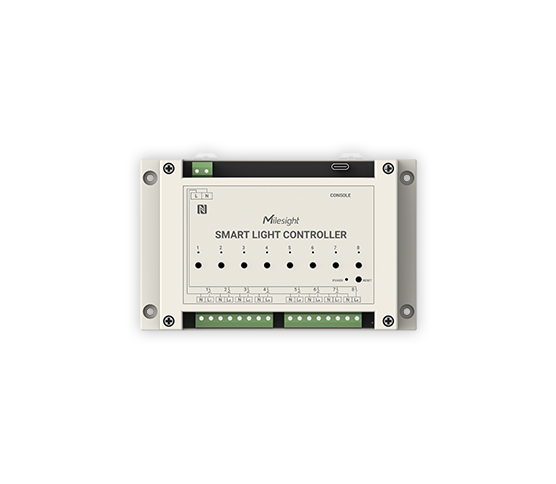

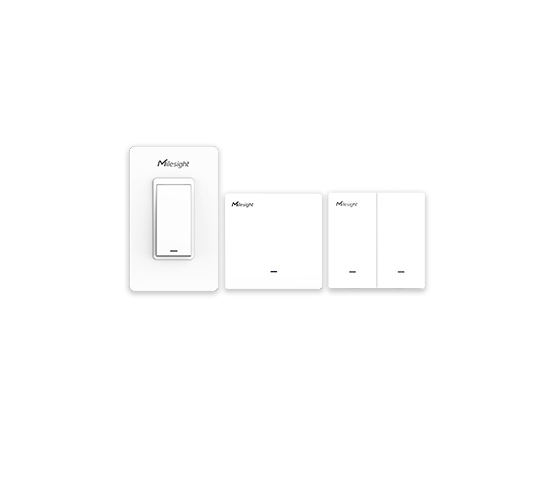

By working with Milesight WS50x Wall Switch or WS558 Smart Light Controller, WS202 enables automatic lighting control based on occupancy detection when people enter or leave the space.
Milesight D2D Communication
Milesight D2D (Device to Device) communication protocol featuring LoRa® enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.
- Lower Latency
- Less than 1 Second Response Time
- Secure Transmission
- Reduce Investment Cost
Expand Boundaries with
Ultrawide Range Detection
- 120° Horizontal
- 100° Vertical
- Up to 8 m Distance
Stay Powered Up for Longer
- 1 × 1650 mAh ER14335 Li-SOCL2 Battery
- 4 Years Battery Life(30 Triggers per Day)

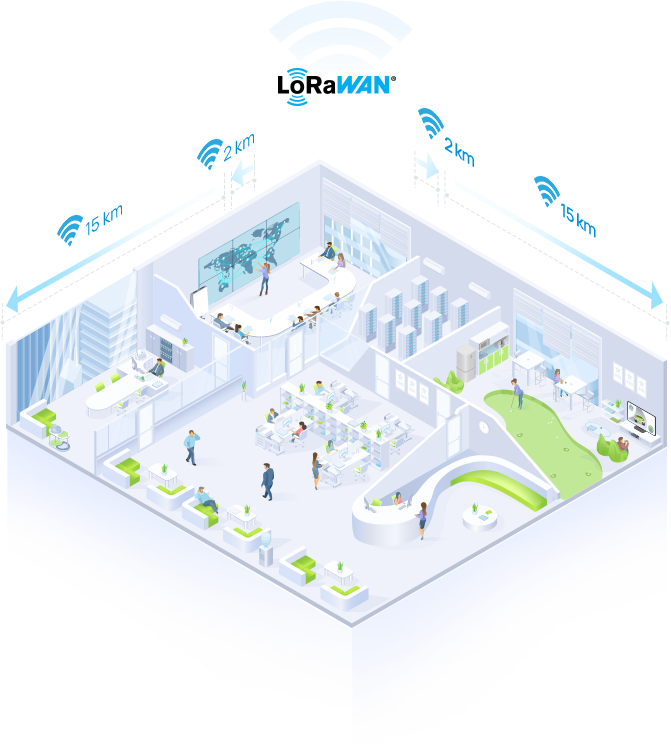

LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers

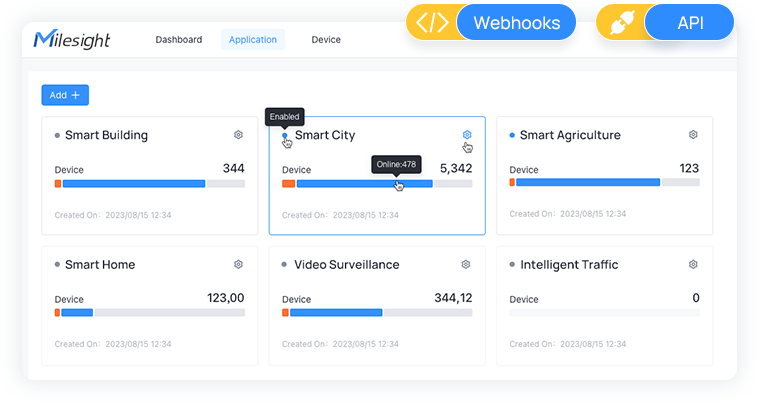

Milesight Development Platform
Application Integration and Development
Milesight Development Platform simplifies device deployment and management and offers RESTful APIs for data interchange, webhooks to trigger external actions, centralized management of applications, and comprehensive documentation for crafting custom IoT solutions, helping system integrators and solution providers jump-start IoT projects.
Learn More
Cloud Data Management
Milesight IoT Cloud
- Data Visualization Dashboard:
All figures in a glance - Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation - Regular Reports & Real-Time Alerts:
Data-based insights - Android & iOS App:
Manage devices at your fingertips
NFC Configuration
Switching on/off and configuring the device via NFC technology from mobile phone or PC
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Flexible Installation
Double-Sided Tape Mounting
Screw Mounting
Specifications
- WS202
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| PIR | |
| Detection Area | 120 ° Horizontal, 100 ° Vertical |
| Detection Distance | Maximum 8 m |
| Light | |
| Status | Bright/Dark (Determine 1-60000 lux as Bright or Dark according to custom threshold) |
| Software | |
| Configuration | NFC |
| Advanced Feature | Milesight D2D Controller |
| Physical Characteristics | |
| Power Supply | 1 × 1650 mAh ER14335 Li-SOCl2 Battery |
| Battery Life* | Around 4 years (30 min interval + 30 triggers per day) |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | ≤90% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 50 × 50 × 23.8 mm (1.97 × 1.97 × 0.94 in) |
| Material | Anti-flaming Polycarbonate |
| Color | White |
| Installation | On the flat surfaces with screws or 3M tapes |
| Approvals | |
| Regulatory | CE, FCC, RoHS |
