AI 12X/20X/23X PTZ Bullet
Plus Camera

Intelligent PTZ to Move Your World

AI Deep Learning
Flexible Pan, Tilt and Zoom Tasks
PTZ Auto Tracking
12X/20X/23X Optical Zoom

1/1.8" STARVIS Sensor
4K Viewing Experience
Smart IR II with 180m IR Distance
90fps High Frame Rate

FEATURES
MODELS
ACCESSORIES
DOWNLOAD

Home
PTZ Series
AI 12X/20X/23X PTZ Bullet Plus Camera

PTZ Cameras to Expand Your Vision and Control

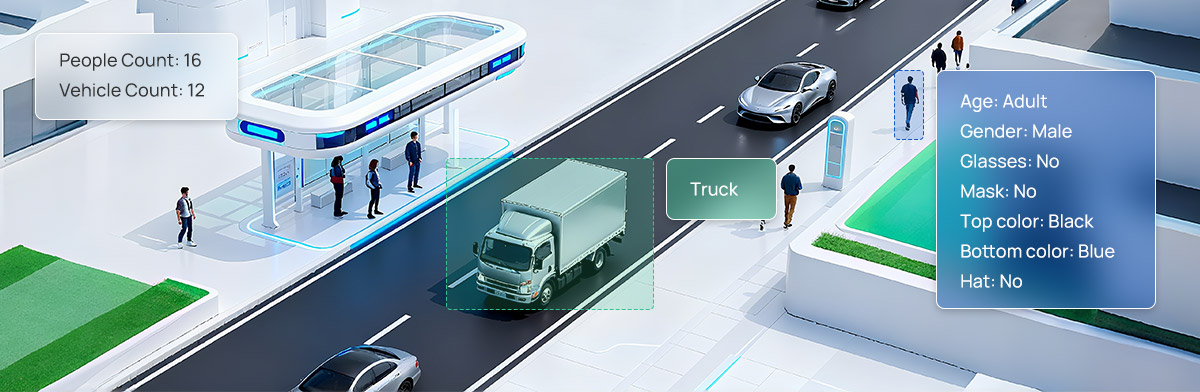

AI Empowers Security

Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

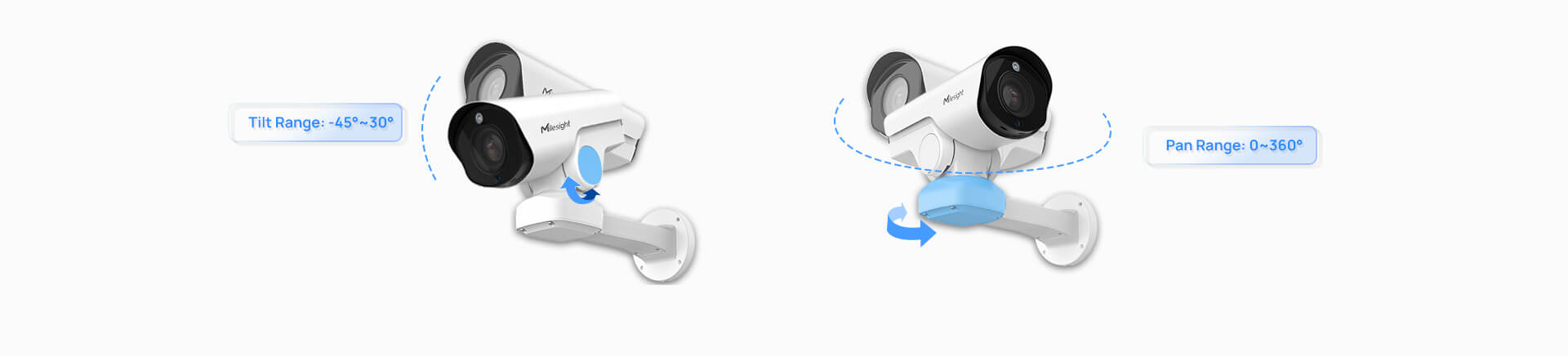

Flexible Pan, Tilt and Zoom Tasks

Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.

12X/20X/23X Optical Zoom

The 12X/20X/23X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.

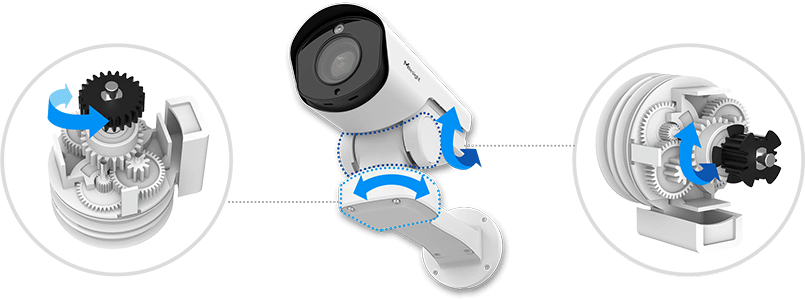

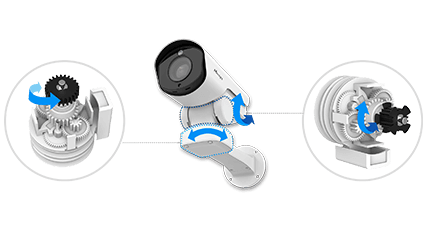

New-generation PTZ Motor

New generation motor with sophisticate planetary gear drive design is adopted to ensure a steady turn, which guarantees its robust performance, providing a reliable pan & tilt operation.

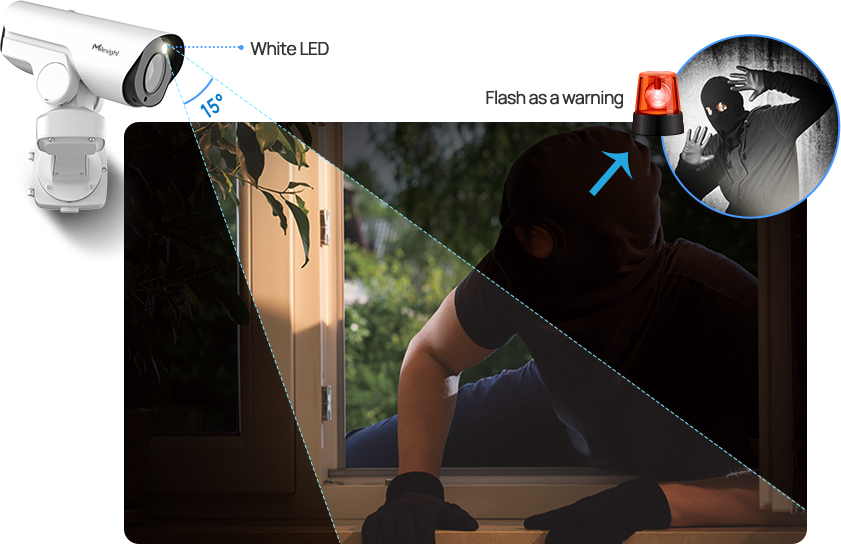

Intelligent White LED

With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

PTZ Auto Tracking

Creating a 3D model within the monitoring range, Milesight PTZ cameras mark and track the object after target detection and selection to ensure that the object maintains a fixed proportion for superb tracking views by automatically controlling the direction and zoom-level.

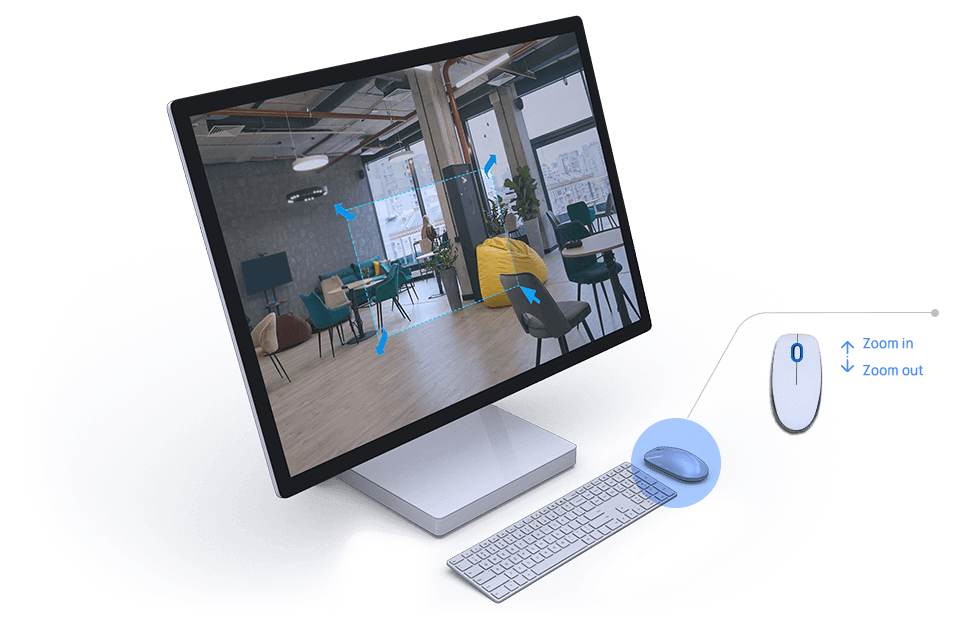

3D Positioning

With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

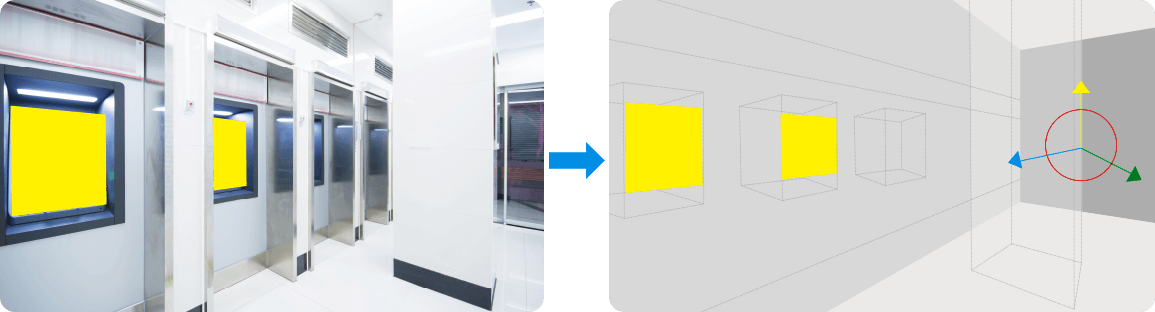

PTZ Privacy Mask

Adopting anonymization and limitation functionality for further privacy protection, Milesight supports 3D Privacy Mask in all Al PTZ cameras with their coordinate system, which keeps the specified area masked from monitoring through manual operations no matter how cameras pan/tilt/zoom.

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.002Lux Ultra Low-light, 4K Viewing Experience, and 90fps High Frame Rate features make it well-suited for various special circumstances.

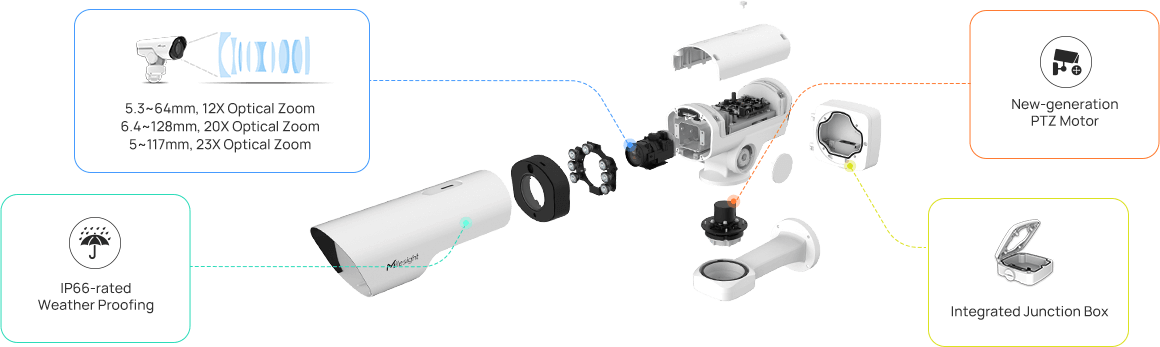

Easy Deployment and Compact Structure

To meet different needs of customers, AI 12X/20X/23X PTZ Bullet Plus Camera provides a wide selection of auto-focus lenses. Furthermore, the new generation PTZ motor & IP66-rated weather proofing ensure its rugged performance, and the integrated junction box makes it easy to install, even in complex environments.

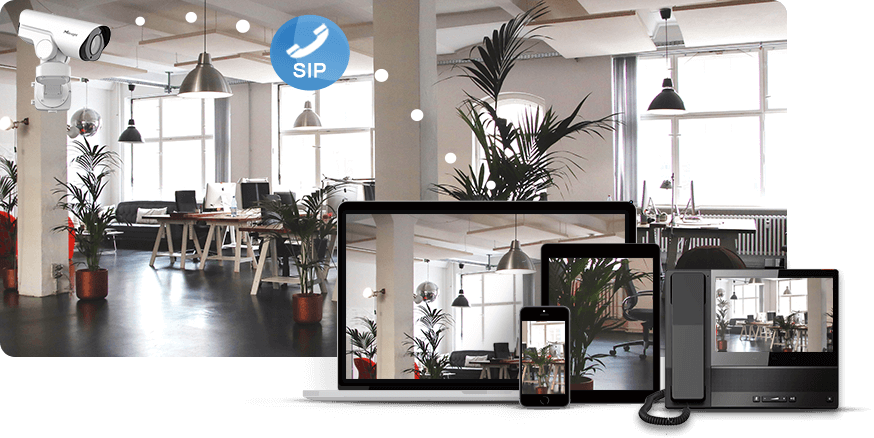

SIP/VoIP Support

Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Specifications

NDAA

MS-C2967-X12R(T)PE
MS-C2967-X23R(T)PE
MS-C4467-X20RPE
MS-C5367-X12PE
MS-C5367-X23PE
MS-C8267-X20PE
MS-C2867-X20TPA
MS-C2967-X23TPA
MS-C8267-X5PA
MS-C8267-X20PA

Non-NDAA

MS-C2867-X20TPC
MS-C2967-X23R(T)PC
MS-C5367-X23PC
MS-C8267-X5PC
MS-C8267-X20PC

Camera
Model	MS-C2967-X12R(T)PE
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.6 B/W: 0Lux with IR on
WDR	140dB Super WDR (Super WDR Pro is optional for T Series)
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	5.3~64mm, 12X Optical Zoom
Zoom Speed	Approx 4s (Wide-Tele)
Field of View	H61°~H5°/D69°~D5°/V36°~V2°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/1500mm (Wide/Tele)
Aperture	F1.6~F2.8
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 90fps@(1920x1080)(Optional for T Series),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition	Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering,AGC, Anti-flicker, Corridor Mode, Deblur,Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & M & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	13W MAX / 23W MAX (With IR on)

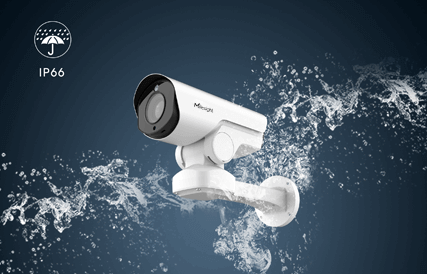

Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Model	MS-C2967-X23R(T)PE
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.5 B/W: 0Lux with IR on
WDR	140dB Super WDR (Super WDR Pro is optional for T Series)
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	5~117mm, 23X Optical Zoom
Zoom Speed	Approx 6s (Wide-Tele)
Field of View	H60°~H3°/D69°~D4°/V35°~V2°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/1500mm (Wide/Tele)
Aperture	F1.5~F3.5
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 90fps@(1920x1080)(Optional for T Series),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition	Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering,AGC, Anti-flicker, Corridor Mode, Deblur,Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & M & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	13W MAX / 23W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Model	MS-C4467-X20RPE
Image Sensor	1/1.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.002Lux@F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	6.4~128mm, 20X Optical Zoom
Zoom Speed	Approx 5s (Wide-Tele)
Field of View	H60°~H3°/D67°~D4°/V37°~V1°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/2000mm (Wide/Tele)
Aperture	F1.6~F4.0
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Max. Image Resolution	2688x1520
Primary Stream	60Hz: 60fps@(2688x1520,2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition	Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & M & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	14W MAX / 24W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Model	MS-C5367-X12PE
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.008Lux@F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	5.3~64mm, 12X Optical Zoom
Zoom Speed	Approx 4s (Wide-Tele)
Field of View	H61°~H5°/D69°~D5°/V36°~V2°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/1500mm (Wide/Tele)
Aperture	F1.6~F2.8
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Max. Image Resolution	2592x1944
Primary Stream	60Hz: 30fps@(2592x1944), 30fps@(2048x1536), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 25fps@(2048x1536), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition	Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR,Defog, AWB,IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & M & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	13W MAX / 23W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Model	MS-C5367-X23PE
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.008Lux@F1.5 B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	5~117mm, 23X Optical Zoom
Zoom Speed	Approx 6s (Wide-Tele)
Field of View	H55°~H3°/D68°~D4°/V42°~V2°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/1500mm (Wide/Tele)
Aperture	F1.5~F3.5
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Max. Image Resolution	2592x1944
Primary Stream	60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition	Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR,Defog, AWB,IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & M & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	13W MAX / 23W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Model	MS-C8267-X20PE
Image Sensor	1/1.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.009Lux@F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	6.4~128mm, 20X Optical Zoom
Zoom Speed	Approx 5s (Wide-Tele)
Field of View	H60°~H3°/D67°~D4°/V37°~V1°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/2000mm (Wide/Tele)
Aperture	F1.6~F4.0
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 30fps@(3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576) 50Hz: 25fps@(3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition	Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & M & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	14W MAX / 24W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Image Sensor	1/2″ Progressive Scan CMOS
Min. Illumination	Color: 0.002Lux@F1.6 B/W: 0Lux with IR on
WDR	140dB Super WDR Pro
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	6.4~128mm, 20X Optical Zoom
Zoom Speed	Approx 5s (Wide-Tele)
Field of View	H60°~H3°/D67°~D4°/ V37°~V1°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/2000mm (Wide/Tele)
Aperture	F1.6~F4.0
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection	Detect and capture faces, get real-time snapshots
People Counting&Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	12W MAX / 23W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.5 B/W: 0Lux with IR on
WDR	140dB Super WDR (Super WDR Pro is optional for T Series)
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	5~117mm, 23X Optical Zoom
Zoom Speed	Approx 6s (Wide-Tele)
Field of View	H60°~H3°/D69°~D4°/ V35°~V2°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/1500mm (Wide/Tele)
Aperture	F1.5~F3.5
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection	Detect and capture faces, get real-time snapshots
People Counting&Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	12W MAX / 23W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.008Lux@F1.5 B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	5~117mm, 23X Optical Zoom
Zoom Speed	Approx 6s (Wide-Tele)
Field of View	H55°~H3°/D68°~D4°/ V42°~V2°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/1500mm (Wide/Tele)
Aperture	F1.5~F3.5
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	2592x1944
Primary Stream	60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection	Detect and capture faces, get real-time snapshots
People Counting&Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	12W MAX / 23W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Min. Illumination	B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	11~55mm, 5X Optical Zoom
Zoom Speed	Approx 3.5s (Wide-Tele)
Field of View	H36°~H8°/D41°~D9°/ V21°~V5°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/1500mm (Wide/Tele)
Aperture	F1.7~F2.1
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Min. Illumination	B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	6.4~128mm, 20X Optical Zoom
Zoom Speed	Approx 5s (Wide-Tele)
Field of View	H60°~H3°/D67°~D4°/ V37°~V1°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/2000mm (Wide/Tele)
Aperture	F1.6~F4.0
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Auto Tracking	Support
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Primary Stream	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Image Sensor	1/2″ Progressive Scan CMOS
Min. Illumination	Color: 0.002Lux@F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	6.4~128mm, 20X Optical Zoom
Zoom Speed	Approx 5s (Wide-Tele)
Field of View	H60°~H3°/D67°~D4°/ V37°~V1°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/2000mm (Wide/Tele)
Aperture	F1.6~F4.0
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 24 areas
ROI	Up to 8 areas
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	12W MAX / 23W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.5 B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	5~117mm, 23X Optical Zoom
Zoom Speed	Approx 6s (Wide-Tele)
Field of View	H60°~H3°/D69°~D4°/ V35°~V2°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/1500mm (Wide/Tele)
Aperture	F1.5~F3.5
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 24 areas
ROI	Up to 8 areas
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	12W MAX / 23W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Min. Illumination	B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	11~55mm, 5X Optical Zoom
Zoom Speed	Approx 3.5s (Wide-Tele)
Field of View	H36°~H8°/D41°~D9°/ V21°~V5°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/1500mm (Wide/Tele)
Aperture	F1.7~F2.1
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 24 areas
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	13W MAX / 24W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Min. Illumination	B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s~1s
IR Distance	Up to 180m
Digital Zoom	16X
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Lens
Focal Length	6.4~128mm, 20X Optical Zoom
Zoom Speed	Approx 5s (Wide-Tele)
Field of View	H60°~H3°/D67°~D4°/ V37°~V1°
Focus Control	Auto/Semi-Auto/Manual
Minimum Working Distance	1000/2000mm (Wide/Tele)
Aperture	F1.6~F4.0
Iris Control	Auto
PTZ
Pan Range/Pan Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	Support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Power Off Memory	Support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 24 areas
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	13W MAX / 24W MAX (With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Weight	2.9Kg
Dimensions	110mmX337mmX220mm
Warranty	2 Years / 3 Years (Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series

A02 V2 Pole Mount

Weight: 1kg
Dimension: 180*136*46mm
Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter

A03 External Corner Bracket

Weight: 900g
Dimension: 170*152.5*76mm
Installation Environment: For mounting cameras on an external corner

A62 Junction Box

Weight: 510g
Dimension: 134*126*40mm
Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering

AI 12X/20X/23X PTZ BulletPlus Camera

PTZ Cameras to Expand Your Vision and Control

AI Empowers Security

Flexible Pan, Tilt and Zoom Tasks

12X/20X/23X Optical Zoom

New-generation PTZ Motor

Intelligent White LED

PTZ Auto Tracking

3D Positioning

PTZ Privacy Mask

Superior Image Quality

Easy Deployment and Compact Structure

SIP/VoIP Support

Related Products

Specifications

A02 V2 Pole Mount

A03 External Corner Bracket

A62 Junction Box

Documents

AI 12X/20X/23X PTZ Bullet
Plus Camera
