Tilt Sensor
Precise Angle Measurement and Failure Prevention
EM310-TILT
- Built-in MEMS Accelerometer Sensor
- Flexible Threshold Condition Settings
- Compact Size and IP67 Waterproof
- Easy Configuration (via NFC)
- Built-in Zero Adjustments
- FEATURES
- MODELS
- DOWNLOAD
- Home
- IoT LoRaWAN® Series
- EM310-TILT

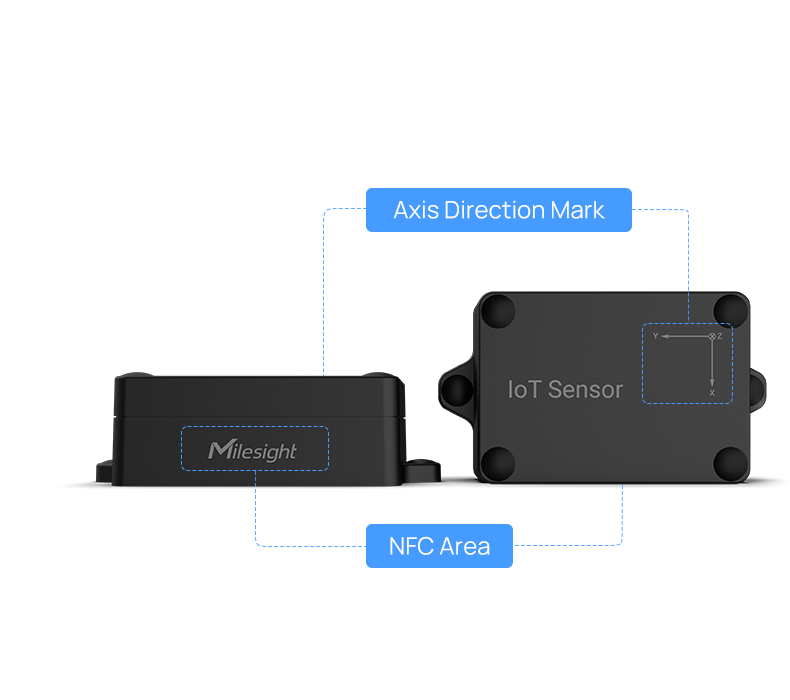

Ease of Use and Compact Size
Milesight EM310 LoRaWAN® Tilt Sensor makes only the settings of a relative initial surface and angle threshold are needed, and the X, Y, Z tilt angles can be leveraged to know object status accurately in real time, straightforward and effortless.
Built-in 3-Axis Accelerometer
EM310-TILT can be installed to the objects easily. With X, Y, Z coordinates, the alarm will be triggered right away when the device tilt angle reaches the threshold.
IP67 Waterproof and Dustproof
It is qualified to work in harsh or outdoor environments with an IP67 rating, and it is easy to clean.
Flexible Threshold Condition Settings
Up to 36 customized trigger rules

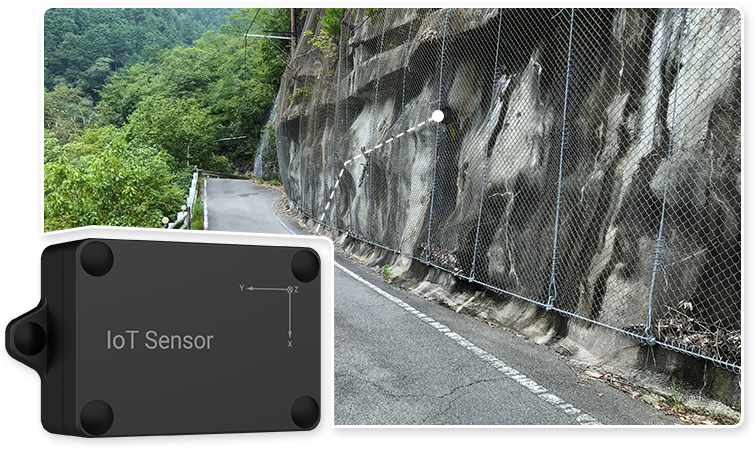

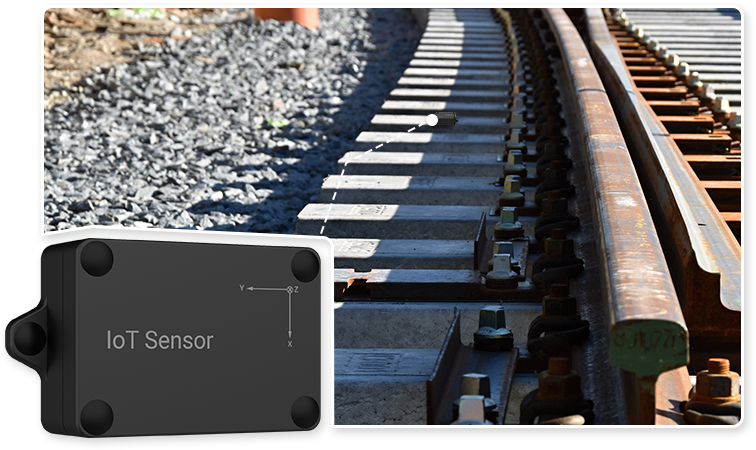

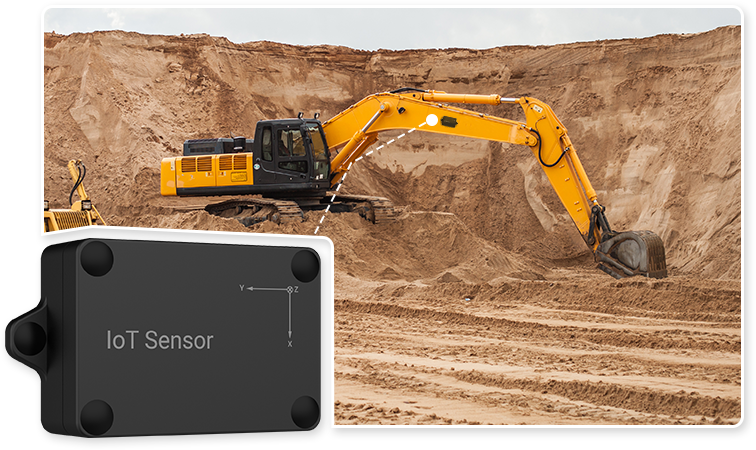

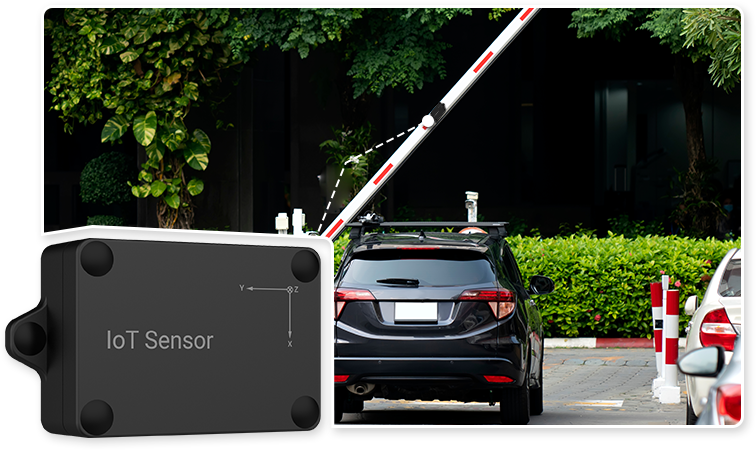

Suitable for different application scenarios:
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Cloud Data Management
Milesight IoT Cloud
- Data Visualization Dashboard:
All figures in a glance - Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation - Regular Reports & Real-Time Alerts:
Data-based insights - Android & iOS App:
Manage devices at your fingertips
NFC Configuration
Switching On/Off & Configuring the Devices Wirelessly
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Installation in Better Ways
Mounting Method
Installation Requirement
Specifications
- EM300-TILT
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Work Mode | OTAA/ABP Class A |
| Measurement | |
| Axis | X, Y, Z |
| Range | -90° ~ +90° |
| Accuracy | ± 1° |
| Resolution | 0.1°C |
| Others | |
| Configuration | NFC Configuration via Mobile App |
| Button | 1 × Reset Button (Internal) |
| Physical Characteristics | |
| Power Supply | 2 × 3500 mAh ER17505 Li-SOCl2 Batteries |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | ≤95% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension | 111 × 62 × 33 mm (4.37 × 2.44 × 1.30 in) |
| Material & Color | ABS, Black |
| Installation | On the flat surfaces with screws |
