Bringing Comfort in an Energy-Saving Way
Meet WS203, the wireless sensor that detects motion, temperature, and humidity. Paired with your HVAC system, it ensures your indoor environment stays comfortable, saving energy and maximizing comfort.
WS203 is a wireless environmental monitoring sensor detecting the motion of humans or animals, surrounding temp and humidity. It ensures the indoor environment at a preset comfort level via pairing with HVAC system if motions are being detected, which is a huge energy saver and brings much comfort.
WS203 can detect motions of humans or animals Sensitively at wide coverage up to 120° horizontal and 100° vertical within 6 meters based on passive infrared (PIR).
The detection range of the PIR sensor in WS203 could be adjusted via different standard PIR covers to adapt to various detection environments.
Test Values in Optimal Detection Range

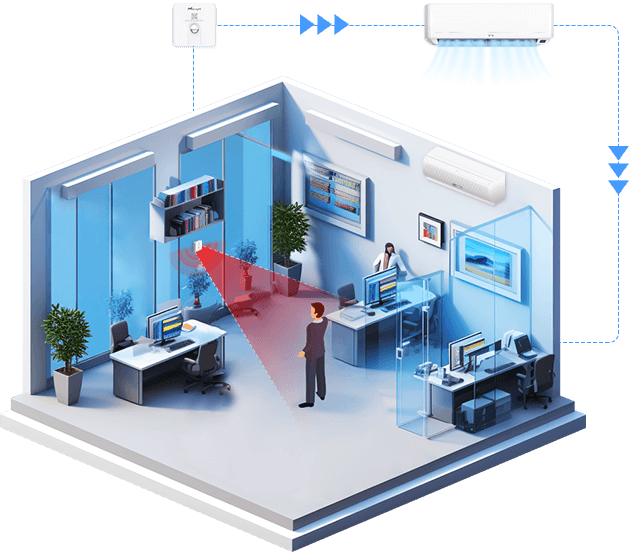

Built-in high-precision TH sensor ensures accurate monitoring of temperature and humidity in the air, detecting changes in real-time.
WS203 can store up to 1000 sets of historical data records with time stamps. When the connection fails, WS203 will continue to collect and store environment data. Once reconnected, the data collected during that period will be retransmitted to the gateway, thus avoiding data loss.
Milesight D2D (Device to Device) communication protocol featuring LoRa® enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.

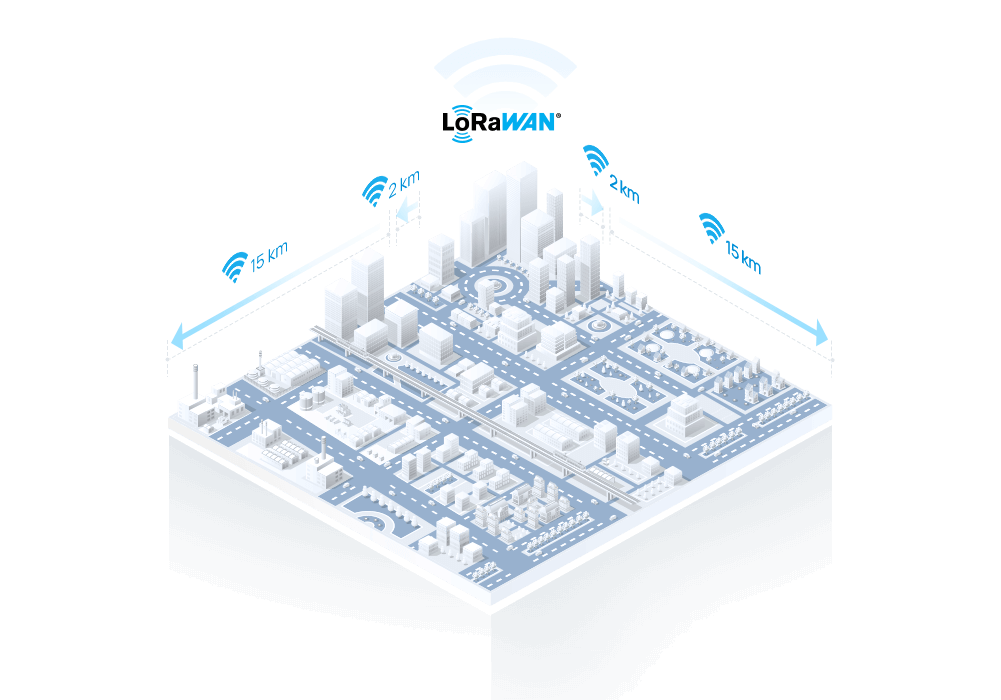

Based on the low power consumption LoRaWAN®, WS203 can maintain a long battery life of 5 years with a built-in 4000 mAh ER18505 Li-SOCL2 battery and report at a certain rate.

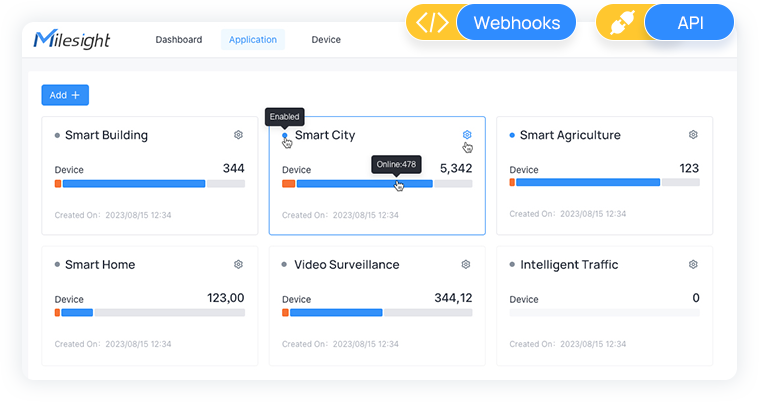

Milesight Development Platform
Milesight Development Platform simplifies device deployment and management and offers RESTful APIs for data interchange, webhooks to trigger external actions, centralized management of applications, and comprehensive documentation for crafting custom IoT solutions, helping system integrators and solution providers jump-start IoT projects.
Learn MoreWS203 guarantees the health of patients by helping indoors temp and humidity control
WS203 ensures humans' wellness via coordinating with HVAC system when motions are detected.Smart Office
WS203 makes sure animals can live comfortably and get sick less through temp and humidity control
Switching On/Off & Configuring the Devices Wirelessly
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
3M Tape Mounting
Wall Screw Mounting
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm |
| Mode | OTAA/ABP Class A |
| Measurement | |
| PIR | |
| Detection Area | 120 ° Horizontal, 100 ° Vertical |
| Detection Distance | Maximum 6 m |
| Temperature | |
| Range | -20°C ~ 60°C |
| Accuracy | ± 0.2°C |
| Resolution | 0.1°C |
| Humidity | |
| Range | 0% ~ 100% RH |
| Accuracy | ± 2% RH |
| Resolution | 0.5% RH |
| Others | |
| Button | 1 x Power/Reset Button (Internal) |
| LED Indicator | 1 × Status Indicator |
| Configuration | NFC Configuration via Mobile App |
| Advanced Feature | Milesight D2D Controller, Data Storage, Data Retransmission |
| Physical Characteristics | |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCl2 Battery |
| Battery Life* | Up to 5 years (30 min Interval + 64 Triggers per Day, 25°C) |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | 0 to 95% (Non-condensing) |
| Dimension | 73 x 73 x 26 mm ( 2.87 x 2.87 x 1.02in) (Without PIR Cover) |
| Ingress Protection | IP30 |
| Color & Material | White + Grey, PC + ABS (Flame Retardant) |
| Installation | 3M Tape Mounting, Wall Screw Mounting |
* Tested under laboratory conditions and for guideline purposes only.
