Enable Pictures to Inspire Unlimited Sensing Insights
The wireless deployment sensing camera, with its exceptional sensing capabilities, opens up a universe of opportunities across numerous industries, setting the stage for transformative applications and a connected future.
The X5 is a cutting-edge sensing camera that combines multiple sensors and interfaces to provide active and comprehensive environmental awareness. By leveraging radar and PIR for detecting especially moving objects, the camera also brings unparalleled situational awareness via noise, temperature, scheduling and infinity alarm in.
Radar
PIR
Temperature
Sound
Alarm In
Timing

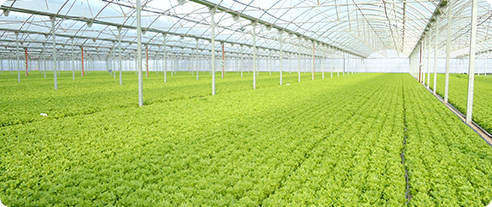

Green House

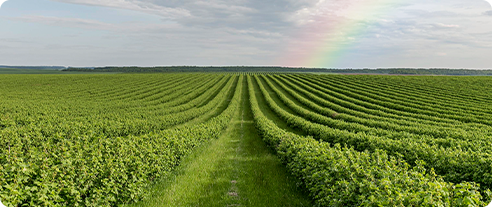

Crop Growth Monitoring

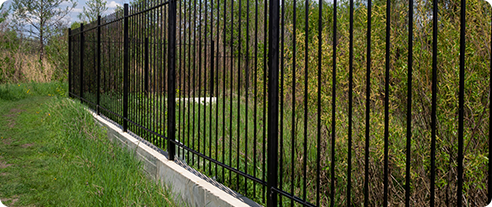

Security Monitoring
Livestock
Unlock More by Co-creation
The camera offers a choice of full HD resolution of 1920 x 1080 or 4K, ensuring high-quality and detailed visuals for monitoring purposes. Additionally, its effective IR capability reaching 10m and starlight sensor enable it to capture clear footage even in low-light or nighttime conditions in various environments, enhancing overall situational awareness.
High Resolution Images
10m IR Performance
Starlight Performance
The camera utilizes 4G cellular connectivity to transmit data wirelessly, eliminating the need for physical cables. It is also equipped with an optional solar panel to produce renewable resources to ensure continuous functionality without the need for electrical outlets and frequent battery replacements. The performances enable it to be deployed even in remote areas or locations with limited infrastructure, providing broader coverage and flexibility.

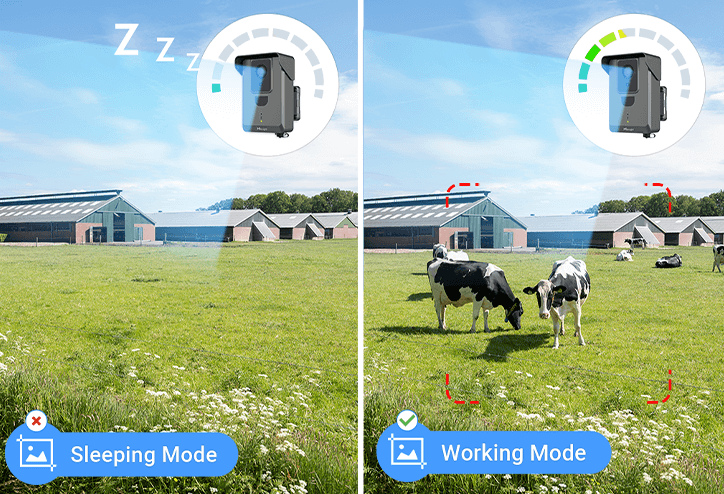

The camera with a high-capacity battery and a flexible operation mechanism brings low power consumption performance, ensuring efficient operation without requiring frequent battery replacements or recharging. To further optimize battery performance, the camera incorporates a heating film to help regulate temperatures in colder environments, preventing battery performance degradation due to extreme cold conditions.
The customizable capturing features encompass resolution adjusting, image parameter setting, different capturing mode settings, real-time uploading, scheduled uploading, etc. provide users with tailored camera operations and data management based on their unique requirements.
Milesight Development Platform

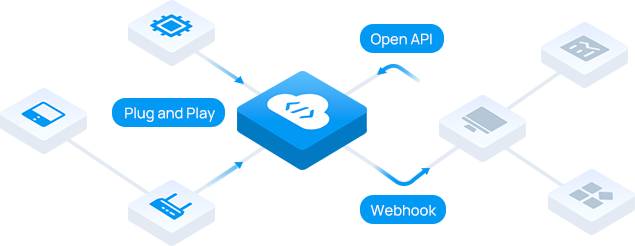

Milesight Development Platform simplifies IoT deployments and management with plug-and-play device configurations, batch operations for multi-device handling, and API & webhooks for custom integration and application development. (2MP version only)
Milesight AIoT Sensing Platform
Forming a mighty management insight on the Milesight AIoT Sensing Platform by integrating captured information. The X5 Sensing Camera can be extended to be applied in more scenarios and brings more valuable performance. The camera also has great compatibility when collaborating with third party platforms via MQTT(s), HTTP, open APIs, and CGI.
Customize your camera's AI algorithm by co-creating with Milesight! You supply application scenario requirements and data, and Milesight will train our AI models accordingly.
Road damange recognition
Retail shelf product recognition
Airplane recognition
Hazardous gas cylinder recognition
Email your needs and ideas to our Product Service Expert Evie at evie@milesight.com
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Day/Night Mode | Day/Night/Auto |
| Lens | |
| Lens | 2.8mm |
| Field of View | 100° |
| Image | |
| Max. Resolution | 1920 × 1080 Pixels |
| Image Settings | Brightness/Contrast/Saturation/Sharpness |
| Picture Format | JPEG |
| Capture Performance | |
| Capture Mode | Radar & PIR Trigger Capture, Sound Trigger Capture, Temperature Trigger Capture, Alarm-in Capture, Interval Capture, Timed Capture, Debug Capture |
| Capture Rate | ≥ 95% |
| Capture Distance | 6m (Optimal) |
| Capture Distance | ≤10m |
| Nighttime Illumination Distance | Up to 10m |
| Triggering Source | |
| Radar & PIR | |
| Radar Frequency Range | 5.725GHz-5.875GHz |
| Radar Tx Power | -4dBm |
| PIR Detection Area | 105°Horizontal, 105 ° Vertical |
| Sound Sensor | |
| Range | 30dBA ~ 120dBA |
| Accuracy | ± 3dB (0°C to +45°C) |
| Resolution | 1dB |
| Temperature Sensor | |
| Range | -20°C ~ 60°C |
| Accuracy | ± 0.3°C (0°C to + 60°C), ± 0.6°C(-20°C to 0°C) |
| Resolution | 0.1°C |
| Wireless Transmission | |
| Cellular | 4G LTE NA: B2/B4/B5/B12/B13/B25/B26 EU: B1/B3/B7/B8/B20/B28 AU: B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| SIM Slot | 1 x Nano- 4FF SIM Slot |
| Protocol | HTTP/MQTT(s) |
| Other Interfaces | |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz (AP Mode for Configuration) |
| Bluetooth | Bluetooth® 5.3 ( Device Wake-up) |
| GPS | Built-in High-accuracy GPS Module |
| Alarm I/O | 44927 |
| Serial Port | 1 x RS485 |
| USB | 1 × Type-C (USB 2.0) for Power Supply and Debug |
| Button | 1 x Power Button, 1 x Reset Button, 1 x Wi-Fi Button |
| LED Indicator | 1 × Status Indicator |
| Storage | 1 × microSD/SDHC/SDXC Card Slot, support local storage up to 256G |
| Solar Power Input | 1 x MC4 Connector |
| Physical Characteristics | |
| Power Supply | 1. Solar Power via MC4 Connector Solar Power Requirement: Power ≥ 35W, OCV < 22V 2. 7.2V, 6500mAh Cold-weather Performance Rechargeable Lithium-ion Batteries 3. 5V / 1A by Type-C Port |
| Battery Life1 | |
| Full Function Capture Mode2 | Triggering Upload: Up to 2.4 Days Timing Upload: Up to 6.5 Days |
| Low Power Timed Capture Mode3 | Triggering Upload: Up to 372.2 Days Timing Upload: Up to 738.3 Days |
| Battery Health | The Battery's Capacity will reduce to 70% after 500 Times of Accumulative Charging and Discharging |
| Power Consumption | |
| Full Function Capture Mode2 | Standby Status: 62mW Capture Status: 1.1W (Daytime), 2.7W (Nighttime with IR On) |
| Low Power Timed Capture Mode3 | Standby Status: 1.7mW Capture Status: 1.6W (Daytime), 3.9W (Nighttime with IR On) |
| Operating Temperature | -20°C ~ +60°C |
| Color & Material | Charcoal Grey, ABS + PC (Flame Retardant) |
| Ingress Protection | IP66 |
| Rain Cover Movement Distance | 10mm |
| Dimension | 175 x 111 x 63.2mm (Without Rain Cover) |
| Warranty4 | 2 Years |
1 Tested under laboratory conditions and for guideline purposes only.
2 Powered solely by internal batteries, 500 daytime captures and 500 nighttime captures per day.
3 Powered solely by internal batteries, all sensors turned off, 4 daytime captures per day.
4 For detailed information, visit our website https://www.milesight.com.
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Day/Night Mode | Day/Night/Auto |
| Lens | |
| Lens | 2.8mm |
| Field of View | 100° |
| Image | |
| Max. Resolution | 3840 × 2160 Pixels (4K) |
| Image Settings | Brightness/Contrast/Saturation/Sharpness |
| Picture Format | JPEG |
| Capture Performance | |
| Capture Mode | Radar & PIR Trigger Capture, Sound Trigger Capture, Temperature Trigger Capture, Alarm-in Capture, Interval Capture, Timed Capture, Debug Capture |
| Capture Rate | ≥ 95% |
| Capture Distance | 6m (Optimal) |
| Capture Distance | ≤10m |
| Nighttime Illumination Distance | Up to 10m |
| Triggering Source | |
| Radar & PIR | |
| Radar Frequency Range | 5.725GHz-5.875GHz |
| Radar Tx Power | -4dBm |
| PIR Detection Area | 105°Horizontal, 105 ° Vertical |
| Sound Sensor | |
| Range | 30dBA ~ 120dBA |
| Accuracy | ± 3dB (0°C to +45°C) |
| Resolution | 1dB |
| Temperature Sensor | |
| Range | -20°C ~ 60°C |
| Accuracy | ± 0.3°C (0°C to + 60°C), ± 0.6°C(-20°C to 0°C) |
| Resolution | 0.1°C |
| Wireless Transmission | |
| Cellular | 4G LTE NA: B2/B4/B5/B12/B13/B25/B26 EU: B1/B3/B7/B8/B20/B28 AU: B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| SIM Slot | 1 x Nano- 4FF SIM Slot |
| Protocol | HTTP/MQTT(s) |
| Other Interfaces | |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz (AP Mode for Configuration) |
| Bluetooth | Bluetooth® 5.3 ( Device Wake-up) |
| GPS | Built-in High-accuracy GPS Module |
| Alarm I/O | 44927 |
| Serial Port | 1 x RS485 |
| USB | 1 × Type-C (USB 2.0) for Power Supply and Debug |
| Button | 1 x Power Button, 1 x Reset Button, 1 x Wi-Fi Button |
| LED Indicator | 1 × Status Indicator |
| Storage | 1 × microSD/SDHC/SDXC Card Slot, support local storage up to 256G |
| Solar Power Input | 1 x MC4 Connector |
| Physical Characteristics | |
| Power Supply | 1. Solar Power via MC4 Connector Solar Power Requirement: Power ≥ 35W, OCV < 22V 2. 7.2V, 6500mAh Cold-weather Performance Rechargeable Lithium-ion Batteries 3. 5V / 1A by Type-C Port |
| Battery Life1 | |
| Full Function Capture Mode2 | Triggering Upload: Up to 1.9 Days Timing Upload: Up to 5.2 Days |
| Low Power Timed Capture Mode3 | Triggering Upload: Up to 299.7 Days Timing Upload: Up to 655.73 Days |
| Battery Health | The Battery's Capacity will reduce to 70% after 500 Times of Accumulative Charging and Discharging |
| Power Consumption | |
| Full Function Capture Mode2 | Standby Status: 61.1mW Capture Status: 1.6W (Daytime), 3.1W (Nighttime with IR On) |
| Low Power Timed Capture Mode3 | Standby Status: 1.8mW Capture Status: 2.3W (Daytime), 4.6W (Nighttime with IR On) |
| Operating Temperature | -20°C ~ +60°C |
| Color & Material | Charcoal Grey, ABS + PC (Flame Retardant) |
| Ingress Protection | IP66 |
| Rain Cover Movement Distance | 10mm |
| Dimension | 175 x 111 x 63.2mm (Without Rain Cover) |
| Warranty4 | 2 Years |
1 Tested under laboratory conditions and for guideline purposes only.
2 Powered solely by internal batteries, 500 daytime captures and 500 nighttime captures per day.
3 Powered solely by internal batteries, all sensors turned off, 4 daytime captures per day.
4 For detailed information, visit our website https://www.milesight.com.
