Outdoor Asset Tracker

Protect and Manage Critical Assets Anytime Anywhere

AT101

Highly-Accurate GNSS Positioning
Cooperate with Wi-Fi Positioning
Support Geofencing for Asset Protection
Provide Motion/Periodic/Timing Modes

IP67 Rated for Harsh Environment
IK09 Rated Transceiver for Impact Resistance
Easy Configuration via NFC or Bluetooth
Over 15 Years Battery Life

FEATURES
MODELS
DOWNLOAD

HOME
IoT LoRaWAN® Series
AT101

Simplified Asset Tracking on the Go

Milesight AT101 is an exceptional outdoor tracker that combines GNSS and Wi-Fi AP MAC Address Scanning technologies to deliver highly accurate positioning data. It is equipped with tilt and temperature sensors, enabling extensive data collection and versatile application in various scenarios.

Made for High Accuracy Positioning

AT101 allows asset/property owners to ensure awareness for critical assets comes first by utilizing GNSS and cooperating with Wi-Fi location.

GPS, GLONASS, Galileo and Beidou Positioning Systems Are Used Simultaneously
Support Wi-Fi AP MAC Address Scanning
Wi-Fi Scanning Provides Assistance for Positioning in Places with Poor GNSS Signals

Three Work Modes Tailored to Your Needs

Enable efficient and smooth monitoring through motion, periodic and even timing tracking.

Motion Mode

Timing Mode

Periodic Mode

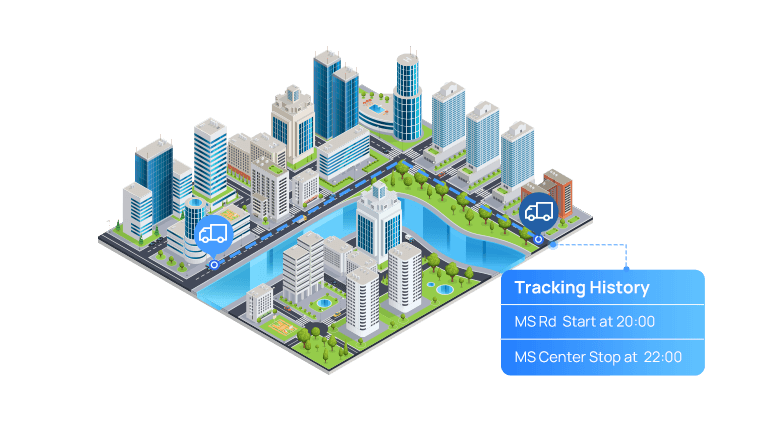

Motion Mode

Keep up-to-date with useful notifications in stop/move tracking

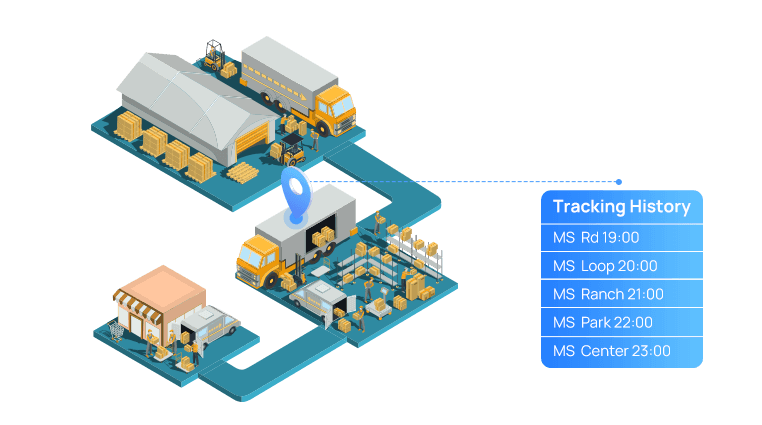

Timing Mode

Secure asset status for fixed time periods with up to 5 timer points

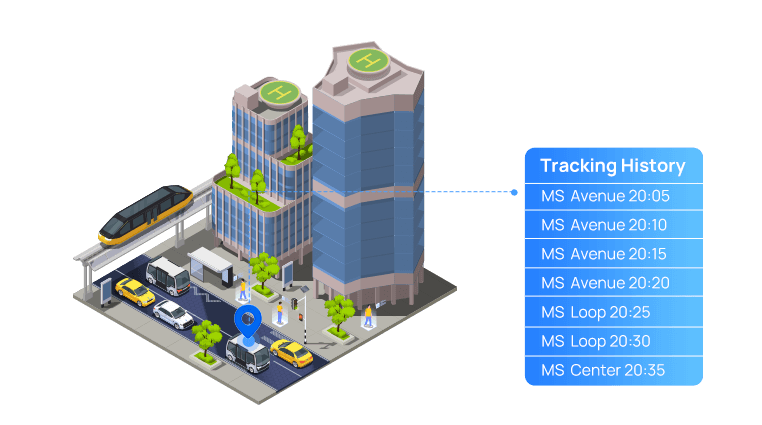

Periodic Mode

Get informed with customized reporting intervals from 1 to 1440 minutes.

Access to the Trajectory of Vehicles

Under motion mode, users can turn on “Reporting Interval during Motion” to obtain trajectory of vehicles for anti-theft positioning or progress management.

High Protection of Asset with Geofencing

Geofencing is focused on the virtual perimeter you build around a specific geographic location.Users can receive alerts when assets leave/return defined zones.

Ultra-Rugged Enclosure for Harsh Environment

IP67 Rated for Harsh Environment
IK09 Rated Transceiver for Impact Resistance

Industrial & Anti-theft Design

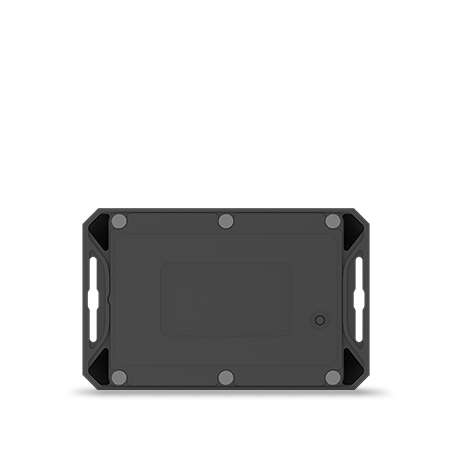

Equipped with a tamper button on the back to monitor the installation status of the device. When the button pops up, it will alarm to prevent malicious disassembly.

Easy Configuration via Bluetooth

Not only does the AT101 support NFC configuration like all other Milesight sensors, but it also supports Bluetooth configuration.

Protection against Malicious Attacks with Bluetooth

Keep logs on unauthorized usage and alerts users about miscommunication
Waiting interval is increased if users enter incorrect password 5 times
Re-entry of the password is required if it takes more than 1 minute to complete

The Perfect Choice for Various Applications

Livestock Farming

Patrol Cars in Community

Construction Site

Warehouses

Constructional Bin

Golf Cart

Avoid Potential Risks by Knowing More

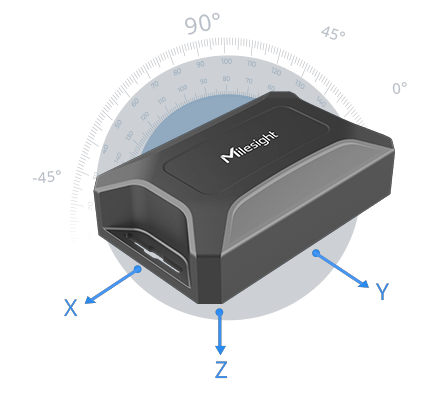

Tilt Situation Alarming

Support setting relative initial surface to trigger report for tilt situation

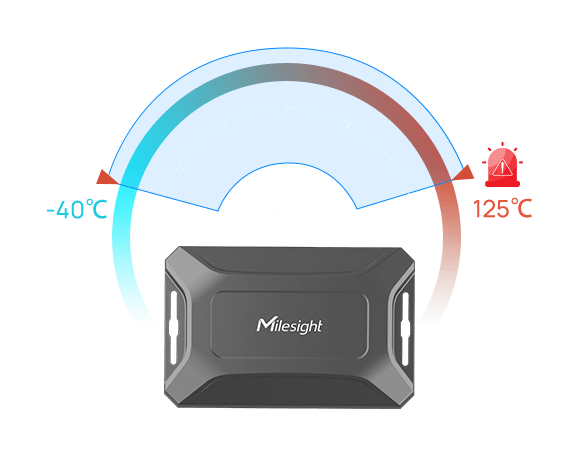

Alarming for High Temperature Variations

Report abnormal change of temperature to avoid some spontaneous combustion situation

Multi-Year Battery Operation

AT101 has a battery life of over 15 years (position updated twice a day).

* If the location is updated ten times a day, the battery life will be eight years.
** If the position is updated every hour of the day, the battery life will be four years.

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
High Compatibility: compliant with standard LoRaWAN® gateways and network servers

Store Capacity with 1,000 Sets of Historical Data Records

Data can be stored in the device and cannot be manually deleted, further securing the traceability of the reported information.

Support Retransmission
for Reliable Communication

With support for data retransmission, the device guarantees that the web server gets all the data even if the network is down occasionally.

Cloud Data Management
Milesight IoT Cloud

Data Visualization Dashboard:
All figures in a glance
Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation
Regular Reports & Real-Time Alerts:
Data-based insights
Android & iOS App:
Manage devices at your fingertips

Easy Configuration

NFC Configuration

Bluetooth Configuration

Switching On/Off & Configuring the Devices Wirelessly

1^st Step

Install the
Milesight ToolBox

2^nd Step

Enable NFC and run ToolBox,
then attach your phone to the device

3^rd Step

Verify the password
and start configuring

Explore More About NFC Configuration >>

Configuring the device via Bluetooth from mobile phone

1^st Step

Turn On Bluetooth on Your Phone.

2^nd Step

Enable Bluetooth and
connect your phone to the device.

3^rd Step

Verify the password
and start configuring.

Versatile Installation

3M Tape Mounting

Specifications

AT101

Wireless Transmission
Protocol	LoRaWAN®
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137 dBm @300bps
Mode	OTAA/ABP Class A
Measurement
GNSS Positioning
Position Accuracy (CEP)	5.0m (Direct Line of Sight)
Resolution	Longitude/Latitude: 0.000001
Time To First Fix	Cold Start: 37s Average Hot Start: 1s Average
Sensitivity	Tracking: -167dBm Reacquisition: -160 dBm Cold Start: -148dBm Hot Start: -159 dBm
Wi-Fi Positioning
Wi-Fi Positioning	Indoor asset location using Wi-Fi access point scanning (device does not connect to Wi-Fi)
Wi-Fi Parameters	BSSID, RSSI
Wi-Fi Standard	802.11b/g/n 2.4GHz
Device Motion
Status	Normal/Tilt
Temperature
Range	-40 ~ 125°C
Resolution	0.1°C
Operation
Power On & Off	NFC, Power Button (Internal)
Configuration	NFC, Bluetooth® 5.3
Physical Characteristics
Power Supply	4 × 2700 mAh ER14505 Li-SOCl₂ Replaceable Batteries
Battery Life*	Twice Daily Location Updates - 15+ Years
(25°C)	Tenth Daily Location Updates - 8+ Years Hourly location updates – 4+ Years
Operating Temperature	-30°C ~ +70°C
Relative Humidity	0 ~ 95% (Non-condensing)
Material & Color	PC, Black
Ingress Protection	IP67
Impact Protection	IK09
Dimension	110 × 70 × 30 mm (4.33 × 2.76 × 1.18 in)
Weight	202g (Batteries are Included)
Installation	Wall Screw Mounting, 3M Tape Mounting, Cable-tie Mounting

¹ Tested under laboratory conditions and for guideline purposes only.
² For detailed information, visit our website at https://www.milesight.com.
