Designed for Off-grid & Remote Security
Win Early-bird Offer
Scale Up, Risk Down, Ready for Any Project
Experience seamless security with Milesight Enterprise NVR, meticulously designed to integrate server, workstation, and storage functionalities into a single, robust solution. With effortless plug-and-play installation, this NVR simplifies your security from setup to scale-up, eliminating the need for additional PC during initial use and configuration.
The Milesight Enterprise NVR boasts unparalleled decoding capabilities, powered by an advanced processor that ensures high performance and efficiency for your security needs. With the ability to decode up to 64 channels@D1, 39 channels@1080P, and 6 channels@ 12MP, this powerful device guarantees crystal-clear video quality and seamless monitoring across multiple channels.
The Milesight Enterprise NVR offers an impressive storage capacity, designed to meet the demands of extensive video recording and long-term data retention. Supporting up to 16 hard drives with a total capacity of 320TB (16*20TB), this NVR ensures that you have ample space to store high-definition video footage from multiple channels.
Designed for robust performance and flexibility, the Milesight Enterprise NVR ensures secure data protection and uninterrupted surveillance recording across various projects.
These configurations provide flexible data redundancy options, safeguarding against data loss in the event of a disk failure.
Equipped two hot swappable redundant power supplies, the NVR ensures continuous operation during power outages. An audible alarm alerts users, and the system seamlessly switches to the backup power supply, protecting valuable video data.
In case of a server failure, other servers with N+M Failover function will take over the cameras and ensure continuous recording and boost risk resistance. Moreover, licenses can be shared within the system in case of a failed server, providing extra assurance and guarantee of successful failover.
The Milesight Enterprise NVR facilitates scalable expansion to accommodate increased storage and device management needs as projects grow. Easily add NVR units as required and manage them centrally, ensuring seamless integration and efficient administration across your expanding surveillance infrastructure.
Experience enhanced flexibility and convenience with the Milesight Enterprise NVR's hot-swap hard drive support. This feature allows for seamless replacement and maintenance of hard drives without interrupting surveillance operations.
Milesight Enterprise NVR, designed as a 3U rack-mounted device, provides versatile deployment options on standard rack rails. Connecting to three monitors, this setup optimizes cost efficiency and reduces noise pollution, making it ideal for comprehensive video management systems in various environments.

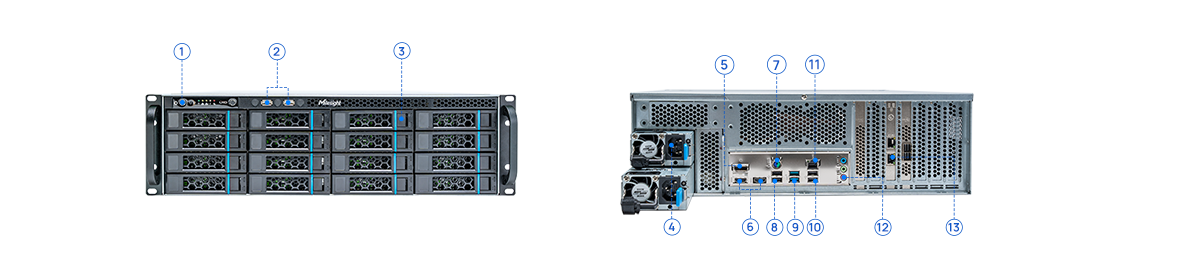

A whole array of ports provides all necessary features of effective surveillance.
Power Button
Disk Slots
2*USB 3.0
2*Power Port
Display Port
2*HDMI Port
PS/2 Port
2*USB 2.0
2*USB 3.2 Gen2
2*USB 2.0
LAN Port 2.5Gbps
Audio
2*LAN Port 1000Mbps
| Devices | |
|---|---|
| Included Camera Access License | 64 |
| Recording | |
| Recording Schedule | 64 |
| Bandwidth | |
| Incoming Bandwidth | 1920Mbps |
| Outgoing Bandwidth | 1920Mbps |
| Decoding | |
| Video Format | MJPEG, H.264, H.265 |
| Decoding Resolution | Up to 12 MP |
| Decoding Capability | 12MP(4000*3000)@20fps=6CH 8MP(3840*2160)@30fps=6CH 2MP(1920*1080)@30fps=39CH 720P(1280*720)@30fps=52CH D1(704*576)@30fps=64ch |
| Event & Alarm | |
| Event and Alarm Rules | 1000 |
| Users & Roles | |
| Concurrent Accesses via Clients, App Clients | 300 |
| Users | 1000 |
| Roles | 100 |
| Local Viewing | |
| Local Viewing | Support |
| System | |
| Main Processor | Intel Core 12th i5 |
| Memory | 2*8GB DDR4 |
| Network Interface | 2*1000Mbps RJ-45 ports 1*2.5Gbps RJ-45 ports |
| Operating System | Microsoft Windows 10 IoT Enterprise 64bit |
| GPU Options | Integrated GPU |
| Auto Power On | Support |
| Auxiliary Interface | |
| HDD Drives (Video Data) | 16*SATA (3.5" or 2.5") Support hot-plug |
| SSD Drive (Operating System) | 2*M.2 SSD(1*250GB Pre-installed) |
| RAM | 4* DDR4 Slot(2*8GB Pre-installed) Support Dual-Channel Mode |
| Capacity | Up to 20TB capacity for each disk |
| RAID | Support RAID 0, 1, 5, 6, 10, 50, 60 |
| LAN | 1*2.5Gbps, 2*1000Mbps |
| Display | 2*HDMI Port, 1*DP Port Support independent and synchronous display |
| Audio | 1* BNC In, 1*BNC Out |
| USB Interface | Front panel: 2*USB 3.0; Rear panel: 4*USB 2.0, 2*USB 3.2 Gen2 |
| Power Supply | AC 100-240V, 50-60Hz, redundant power supply |
| General | |
| Chassis | 3U |
| Consumption | ≦75W(without HDD) |
| Working Temperature | 0°C to +50°C (32°F to 122°F) |
| Working Humidity | 10% to 90% RH (no freezing and no condensation) |
| Weight | 17kg(without rail)/19kg(with rail ) |
| Dimensions | 480X675X133.5mm |
| Warranty | 3 Years |
| Devices | |
|---|---|
| Included Camera Access License | 128 |
| Recording | |
| Recording Schedule | 128 |
| Bandwidth | |
| Incoming Bandwidth | 1920Mbps |
| Outgoing Bandwidth | 1920Mbps |
| Decoding | |
| Video Format | MJPEG, H.264, H.265 |
| Decoding Resolution | Up to 12 MP |
| Decoding Capability | 12MP(4000*3000)@20fps=6CH 8MP(3840*2160)@30fps=6CH 2MP(1920*1080)@30fps=39CH 720P(1280*720)@30fps=52CH D1(704*576)@30fps=64ch |
| Event & Alarm | |
| Event and Alarm Rules | 1000 |
| Users & Roles | |
| Concurrent Accesses via Clients, App Clients | 300 |
| Users | 1000 |
| Roles | 100 |
| Local Viewing | |
| Local Viewing | Support |
| System | |
| Main Processor | Intel Core 12th i7 |
| Memory | 2*8GB DDR4 |
| Network Interface | 2*1000Mbps RJ-45 ports 1*2.5Gbps RJ-45 ports |
| Operating System | Microsoft Windows 10 IoT Enterprise 64bit |
| GPU Options | Integrated GPU |
| Auto Power On | Support |
| Auxiliary Interface | |
| HDD Drives (Video Data) | 16*SATA (3.5" or 2.5") Support hot-plug |
| SSD Drive (Operating System) | 2*M.2 SSD(1*250GB Pre-installed) |
| RAM | 4* DDR4 Slot(2*8GB Pre-installed) Support Dual-Channel Mode |
| Capacity | Up to 20TB capacity for each disk |
| RAID | Support RAID 0, 1, 5, 6, 10, 50, 60 |
| LAN | 1*2.5Gbps, 2*1000Mbps |
| Display | 2*HDMI Port, 1*DP Port Support independent and synchronous display |
| Audio | 1* BNC In, 1*BNC Out |
| USB Interface | Front panel: 2*USB 3.0; Rear panel: 4*USB 2.0, 2*USB 3.2 Gen2 |
| Power Supply | AC 100-240V, 50-60Hz, redundant power supply |
| General | |
| Chassis | 3U |
| Consumption | ≦75W(without HDD) |
| Working Temperature | 0°C to +50°C (32°F to 122°F) |
| Working Humidity | 10% to 90% RH (no freezing and no condensation) |
| Weight | 17kg(without rail)/19kg(with rail ) |
| Dimensions | 480X675X133.5mm |
| Warranty | 3 Years |
