Bathroom Odor Detector
Less Nasty Air. More Attentive Care.
GS301
Cleaner Bathroom Start with Odor Sensing
GS301 can be applied to measure the concentration of harmful gases such as ammonia and hydrogen sulfide in real-time.
- Detect NH₃ & H₂S with Higher Accuracy
- Built-in Buzzer & Traffic Light Status Indicator for Alarming
- Up to 3 Years Battery Life
- Support LoRaWAN® & Milesight D2D Simultaneously
- Milesight D2D with Communication Latency to < 1 Sec
- FEATURES
- MODELS
- DOWNLOAD
Minimalist &Practical Design
GS301 LoRaWAN® Bathroom Odor Detector is compact in size and easy to install and maintain. With damp proof coating, the detector can work on various conditions of bathrooms.

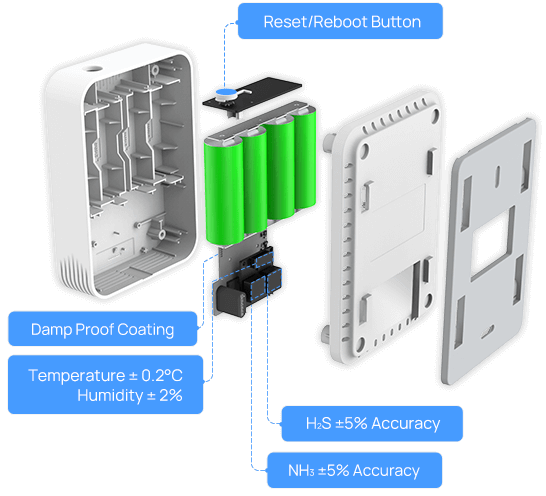

4-in-1 Sensors with
High-Sensitivity
Integrated with ammonia (NH₃), hydrogen sulfide (H₂S), temperature and humidity sensors.
Detect ammonia (NH₃) and hydrogen sulfide (H₂S) gas according to electrochemical principle.
- NH₃: ±5% Accuracy
- H₂S: ±5% Accuracy
* It is highly recommended that sensors operate below 35°C.
Stay Informed of Foul Air
When ammonia or hydrogen sulfide concentration reaches thresholds, the alarm will be activated, including traffic lights indicator, built-in buzzer and uplink data packets. *Thresholds can be customized
Assistant to Ventilator
for Clearer Air
HVAC system is empowered to automatically adjust based on the detected concentrations of ammonia and hydrogen sulfide produced from the urinal and sewer pipe.

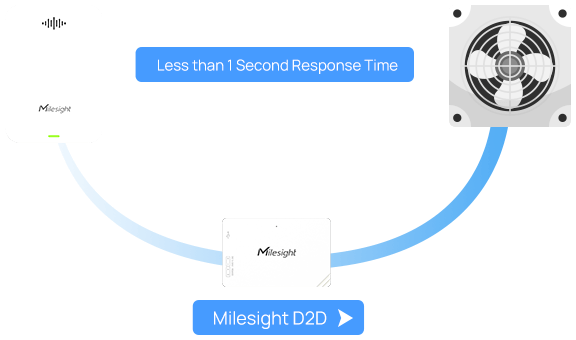

Milesight D2D Featuring LoRa®
Support Milesight D2D protocol to enable ultra-low latency and direct ventilation control without gateways
- Lower Latency
- Less than 1 Second Response Time
- Secure Transmission
- Reduce Investment Cost
*When Milesight D2D is enabled, LoRaWAN® protocol can operate as usual.

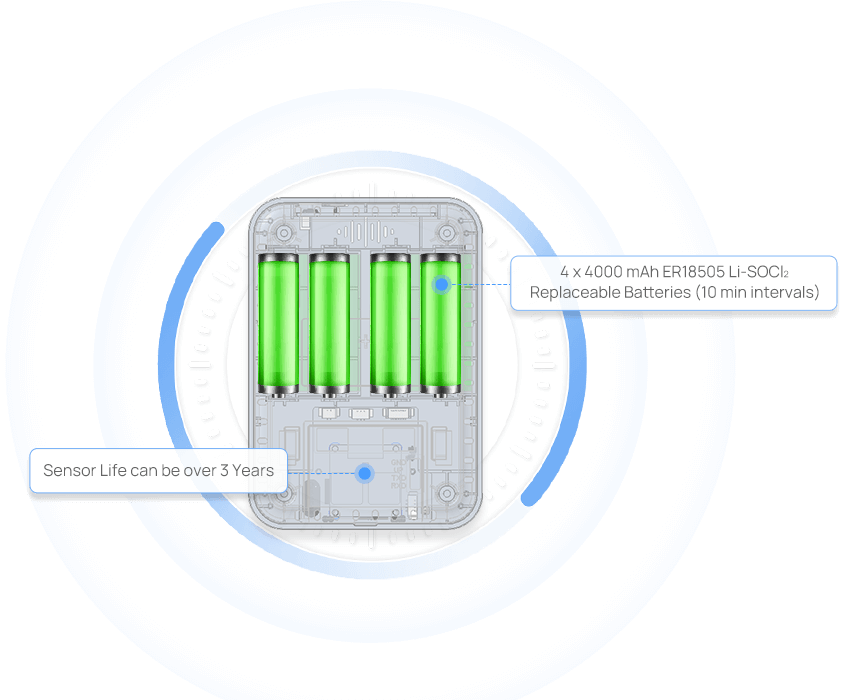

Multi-Year Battery
Operation
Built-in 4 x 4000 mAh ER18505 Li-SOCL2 batteries ensure up to 3 years' service life.
* Sensor Life can be over 3 Years
**4 x 4000 mAh ER18505 Li-SOCL2 Replaceable Batteries (10 min intervals)
Smart Restroom Solution
To make it right and easy, Milesight Smart Restroom Solution provides IoT insights into the status of cleanliness and hygiene.
Get More Details
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and
15 km in rural areas - High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Cloud Data Management
Milesight IoT Cloud
- Data Visualization Dashboard:
All figures in a glance - Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation - Regular Reports & Real-Time Alerts:
Data-based insights - Android & iOS App:
Manage devices at your fingertips
NFC Configuration
Switching On/Off & Configuring the Devices Wirelessly
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Installation
Installation Steps

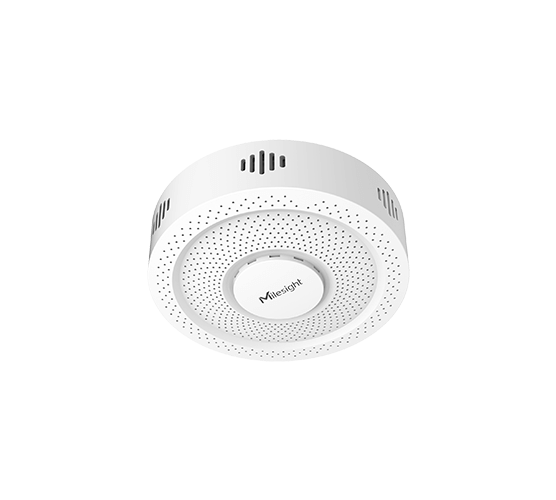

Related Products
Specifications
- GS301
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® , Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Sensors | |
| Ammonia (NH3) | |
| Detection Principle | Solid Polymer Electrochemical |
| Range | 0 ~ 10 ppm |
| Accuracy | ± 5% (-40 - 35°C) |
| Long-term Stability | < 1 % accuracy drift per month |
| Resolution | 0.01 ppm |
| Hydrogen Sulfide (H2S) | |
| Detection Principle | Solid Polymer Electrochemical |
| Range | 0 ~ 5 ppm |
| Accuracy | ± 5% (-40 - 35°C) |
| Long-term Stability | < 1 % accuracy drift per month |
| Resolution | 0.01 ppm |
| Temperature | |
| Range | -40 - 85°C |
| Accuracy | ± 0.2°C |
| Resolution | 0.1°C |
| Humidity | |
| Range | 0 - 100%RH |
| Accuracy | ± 2% |
| Resolution | 0.5%RH |
| Others | |
| LED& Buzzer | 1 × Status/Alarm Indicator + 1 × Buzzer |
| Button | 1 × Reset/Reboot Button |
| Configuration | Mobile App via NFC |
| Advanced Feature | Milesight D2D Controller |
| Physical Characteristics | |
| Power Supply | 4 x 4000 mAh ER18505 Li-SOCl2 Replaceable Batteries |
| Sensor Life | > 3 Years |
| Battery Life | Around 3 Years (10 min interval) |
| Operating Temperature | -40°C - 55°C |
| Relative Humidity | 0% - 95% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 120 × 85 × 32.5 mm (4.72 × 3.35 × 1.28 in) |
| Material & Color | PC+ABS (Flame Retardant), White |
| Installation | Wall Mounting |
