Smart Portable Socket
Stay Connected and in Control
CoWork Series
WS523
- Remote Control for Easy ON/OFF
- Track and Analyze Electricity Usage
- Customize ON/OFF Settings Based on Time
- Safeguard Devices with Overload Protection
- FEATURES
- MODELS
- DOWNLOAD
Automate Traditional Electrical Appliances with Ease
Type G
GBR, IRL, MLT,
MAS, SIN
MAS, SIN
Type I
AUS, AGR,
CHN, NZL
CHN, NZL
Type B
USA, MEX,
CAN, JPN
CAN, JPN
Type C
Europe, South
America,Asia
America,Asia
Type A + Type I
Remote Control at
Your Fingertips
Remotely turn on/off the electrical appliance from your mobile phone
Stay on Schedule with
Time-Based ON/OFF
Create schedules to turn the remote appliances on/off automatically
Power Consumption
Measurement & Statistics
Utilizing power consumption measurements and implementing flexible scheduling settings can reduce energy usage and lower electricity bills.
Overload Protection
The overload protection prevents connected appliances, safety fuse and the smart socket itself from damage of overcurrent.

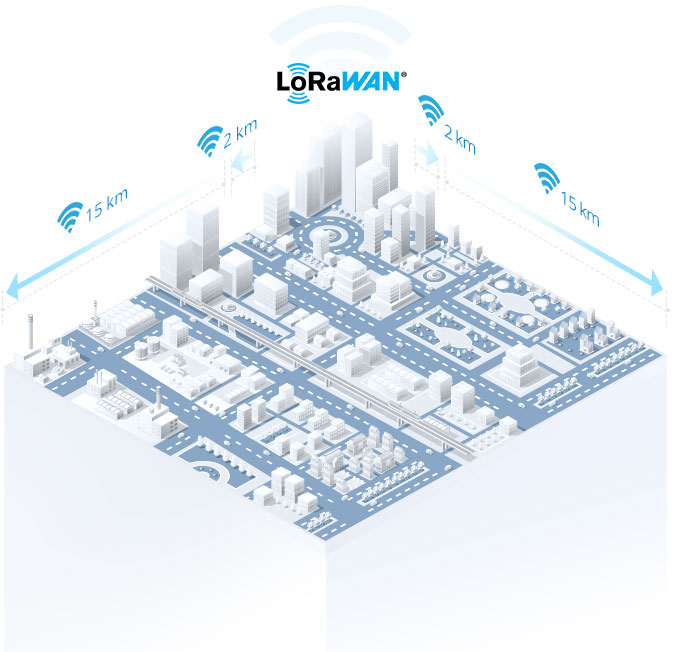

LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Cloud Data Management
Milesight IoT Cloud
- Data Visualization Dashboard:
All figures in a glance - Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation - Regular Reports & Real-Time Alerts:
Data-based insights - Android & iOS App:
Manage devices at your fingertips
NFC Configuration
Switching on/off and configuring the device via NFC technology from mobile phone or PC
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Specifications
- WS52x
| Electrical | |
|---|---|
| Socket Type & Rated Current | US-15A/EU-16A/AU-10A/UK-13A/CN-10A/CN-16A, etc. |
| Operating Voltage | 100~250 VAC, 50~60 Hz |
| Measurement | Voltage (VAC), Current (mA), Power Factor (%), Active Power (W), Power Consumption (kWh) |
| Measurement Accuracy | Typical ±3%, Maximum ±5 % (±1% Customizable) |
| Wireless Transmission | |
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class C |
| Software | |
| Configuration | Mobile App via NFC or Downlink |
| Power Control | Local Press Button or Remote Control |
| Advanced Features | Delay Switch, Button Lock, Overcurrent Protection/Alarm, Multicast, Power Outage Alert, Milesight D2D Agent |
| Others | |
| LED Indicator | 1 × Network/Power Status LED Indicator |
| Button | 1 × Button for Power Supply On/Off or Reset |
| Physical Characteristics | |
| Material & Color | Polycarbonate (UL94 V0), White |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Weight | 117.5 g |
| Dimensions | 110 × 62.3 × 34.6 mm (4.33 × 2.45 × 1.36 in) (Plug is not included) |
| Approvals | |
| Regulatory | CE, FCC, RCM, SAA, UKCA |
| Environmental | RoHS |
