LoRaWAN® Light Sensor
Shining a Light on Intensity Measurement
EM500-LGT
Meet the Robust EM500 Series Outdoor LoRaWAN® Sensor
The EM500-LGT can accurately monitor changes in the surrounding light intensity.
- Measuring Ranges from 0 lux to 100,000 lux
- Fast 1-Sec Response for Accurate Monitoring
- IP67 Rated for Harsh Environment
- LoRaWAN® Wireless Deployment with Low Power Consumption
- Data Integrity and Easy Management
- Long-Lasting Battery Life of up to 10 Years
- Easy Configuration via NFC
- FEATURES
- MODELS
- DOWNLOAD
- Home
- IoT LoRaWAN® Series
- EM500-LGT
Wide Range High
Accuracy Light Sensor
EM500-LGT is designed for ambient light intensity detection in harsh environments. It is useful in many applications, such as brightness control, security, horticulture, floriculture and so on.
Ultra-Rugged Enclosure
for Harsh Environment
This device is designed to withstand even the most demanding environments. EM500-LGT can function properly even in outdoor and harsh environment.
Typical Applications

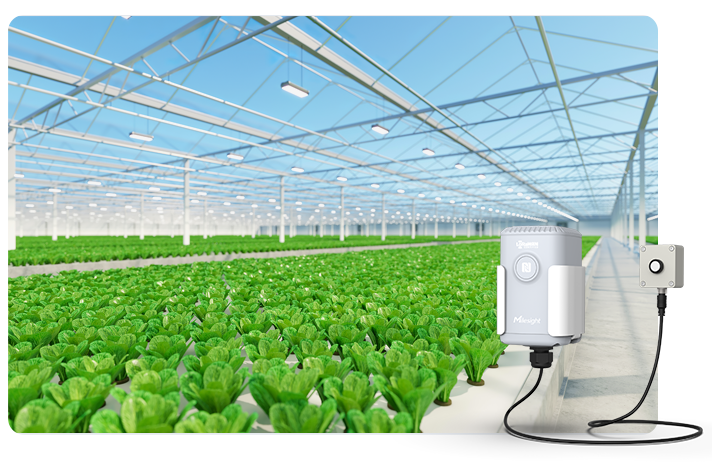

Lighting the Way to Crop Health
Today, farming is barely sustainable without implementing modern farm technologies. When it comes to growing crops, it's a balancing act. You need just the right amount of sun, water, and soil composition to keep plants happy and blooming.
Long Battery Life
The EM500-LGT is equipped with high-capacity and easily-replaceable batteries. This facilitates the installation and
maintenance process and reduces wiring costs.

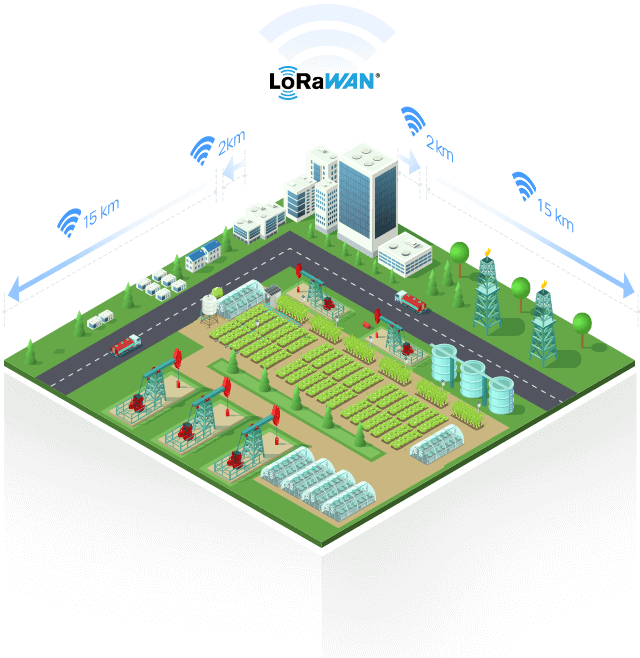

LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and
15 km in rural areas - High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Cloud Data Management
Milesight IoT Cloud
- Data Visualization Dashboard:
All figures in a glance - Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation - Regular Reports & Real-Time Alerts:
Data-based insights - Android & iOS App:
Manage devices at your fingertips
NFC Configuration
Switching on/off and configuring the device via NFC technology from mobile phone or PC
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Installation in Better Ways
Wall Mounting
Pole Mounting
DIN Rail Mounting
Specifications
- EM500-LGT
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Range | 0 - 100000 lux |
| Accuracy | ±3% |
| Resolution | 1 lux |
| Operation | |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | Mobile APP(via NFC) or PC software(via USB Type-C) |
| Physical Characteristics | |
| Cable Length | 3 m |
| Power Supply | 19000 mAh Li-SOCL2 battery (ER34615) |
| Battery Life* | 10 years (10 min interval) |
| Operating Temperature | -30°C to +60°C |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | IP67(Transceiver)/IP65(Light Sensor) |
| Dimension | Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) Light Sensor: 64 × 58 × 34 mm (2.5 × 2.3 × 1.3 in) |
| Installation | Pole, wall or DIN Rail Mounting |
| Approvals | |
| Regulatory | CE, FCC, RoHS |
