IR Breakbeam People Counter
This Pairing Makes Wonders
VS360
- Bi-Directional People Counting
- Leveraging Infrared Beams
- Strong Environmental Adaptability
- Cost-Effective Accurate Performance
- 100% Privacy Protection (GDPR Compliant)
- Long Battery Life up to 3 Years
- Wireless Deployment
- FEATURES
- MODELS
- DOWNLOAD
Bi-Directional People Counting
Working as a pair, the VS360 can smartly identify and calculate the inbound and outbound at the entryway as one passes by.

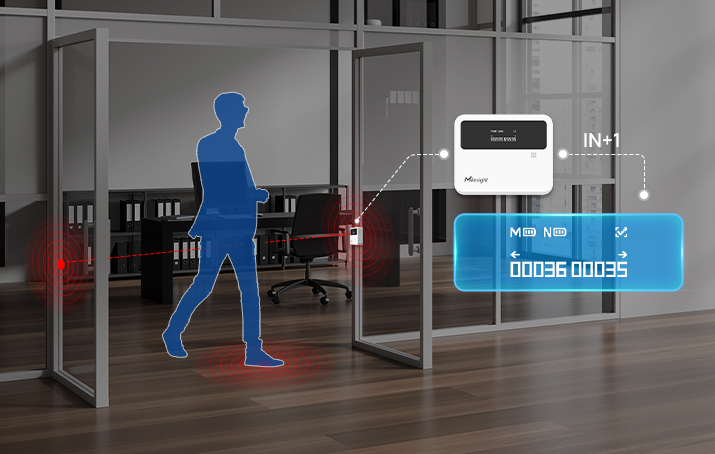

Infrared Break Beam Technology
The infrared break beam technology involves the principle of crossing the invisible line between the transmitter and receiver, accurately counting foot counts.

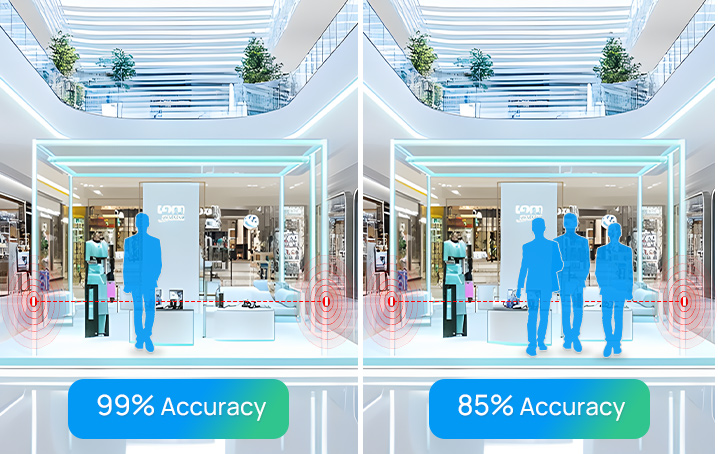

High Measuring Accuracy
VS360 offers pinpoint precision in foot traffic counting with an accuracy of up to 99% for single person detection, and up to 85% accuracy when there is more than one person.
*Accuracy may be affected when walking side by side.
100% Anonymous Detection
Throughout the people counting process, the sensor relies on “breaking” the infrared beams, where neither personal or
sensitive information of any kind will be collected. Its GDPR compliant!

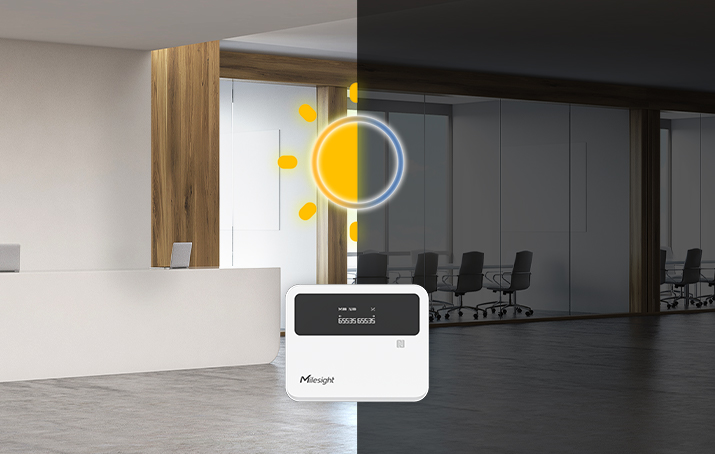

Strong Environmental Adaptability
VS360 operates with high precision even with slight rise in temperature or in complete darkness, offering consistent performance during day and night.
* It is advisable to place the device away from direct sunlight and items that may cause reflections to ensure accurate results.
Wireless Deployment
The exclusive Milesight LoRa®-based protocol allows the people counter to easily communicate with other Milesight LoRaWAN® devices within 1 second. The facilities like lights can be intelligently switched through the linkage to realize accurate, timely, and automatic responses, bringing easier and smarter extended performance.
Long Battery Life
Supported by LoRaWAN® technology that guarantees low power consumption while fulfilling long distance transmission,
the device can last up to 3 years.
3 Years Battery Life
2 x ER14505 Batteries
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Application Scenarios
The VS360 is specially designed for areas that may or are exposed to temperature fluctuations and scenarios where ceiling mount is unavailable.
Meeting Room Entrances
Corridors
Escalators
Pop-up Stores
NFC Configuration
Switching On/Off & Configuring the Devices Wirelessly
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Easy Installation
3M Stickers
Wall Mounting
Specifications
- VS360
| People Counting | |
|---|---|
| Technology | IR Breakbeam |
| Installation Height | 0.7m ~ 1.2m |
| Detection Range | 1.2m ~ 3 m |
| Detection Rate1 | High Traffic Period Mode: Up to 90% (Single Person: Up to 99%) Low Traffic Period Mode: Up to 85% (Single Person: Up to 99%) |
| Bi-directional Counting | Support |
| Wireless Transmission | |
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Others | |
| Screen | 1 × OLED Screen for Master Device |
| LED | 1 × LED Indicator for Node Device |
| Button | 1 × Power Button for Both devices 1 × Reset Button (Internal for Master Device) |
| Configuration | NFC Configuration via Mobile App (Master Device) |
| Advanced Feature | Hibernate Mode, Data Storage, Data Retransmission, Data Retrievability, Milesight D2D Controller |
| Physical Characteristics | |
| Power Supply | 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries for per device |
| Battery Life2 | Master device: Around 3 Years (10-min Report Interval, 12 Working Hour per Day, 25°C) Node device: High Traffic Period Mode: Around 3 Years Low Traffic Period Mode: Around 4 Years (12 Working Hour per Day, 25°C) |
| Operating Temperature | -10°C ~ 60°C |
| Relative Humidity | 0% - 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 76 x 62 x 20 mm ( 2.99 x 2.44 x 0.79 in) |
| Material & Color | PC (Flame Retardant), Black/White |
| Installation | Wall Mount |
