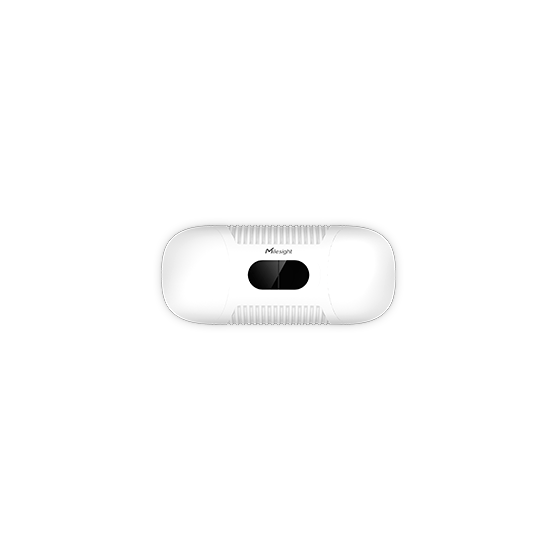

Meet People Counter, and Let Sustainability Meet Efficiency
This innovative people counter combines cost-effectiveness, high accuracy, and low power consumption. Utilizing thermopile and radar technologies, it precisely counts people passing through designated areas in and out.
The advanced people counter excels in bi-directional tracking, offering real-time and reliable data with an extensive detection range. It maintains high accuracy through its sophisticated AI algorithm, which effectively filters out side-by-side and U-turn walkers.
Battery Version
For wire-free installation, choose the battery version, which leverages both thermopile and radar technologies. Enjoy a completely wireless setup, eliminating extensive wiring or infrastructure modifications.
Type-C Version
For extended use, the Type-C version is ideal. Using thermopile technology, it connects directly to a power source, ensuring continuous operation without battery concerns.
It ensures reliable and precise data collection with an accuracy of 95%. When counting single-person passages exclusively, the wireless people counter achieves an exceptional accuracy rate of up to 99%. This level of precision allows you to rely on the collected data for critical decision-making confidently.
* Tested under conditions of being installed at a height of 2.7m and in an ambient temperature of approximately 25°C.
* Tested with targets averaging 1.7m in height. In real customer situations, accuracy can be affected by device installation height and the average height of the targets.
* It is recommended that the device be installed 70-120 cm from the target, with the target's average height being considered.
Experience cutting-edge precision with multi-sensor fusion. Utilizing radar to activate, the people counter delivers unparalleled accuracy with an advanced thermopile sensor. Simultaneously, a dedicated temperature sensor ensures the device performs flawlessly within ideal environmental conditions.
To reduce power consumption during unoccupied nights, users can set sleep periods where the device enters hibernate mode. When the active period begins, the device resumes full operation. The synchronized operation of the radar and thermopile ensures energy efficiency and low power consumption, making it a ESG compliant people counter.
It is compliant with GDPR. The thermopile and radar technology will not collect any personally identifiable information while the LoRaWAN® narrow bandwidth only transmits data, which 100% guarantees privacy protection at source.
The exclusive Milesight LoRa®-based protocol allows the people counter to easily communicate with other Milesight LoRaWAN® devices without network infrastructures within 1 second. The facilities like lights can be intelligently switched through the linkage to realize accurate, timely, and automatic responses, saving energy for management staff.

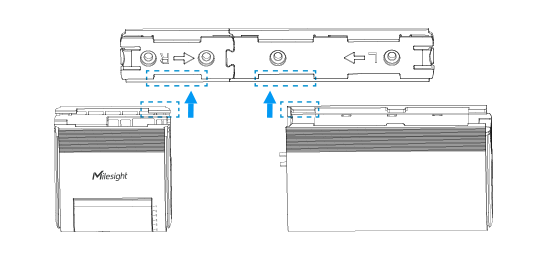

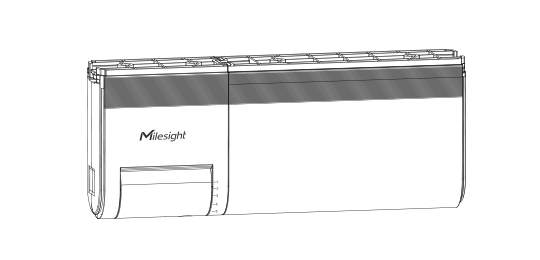

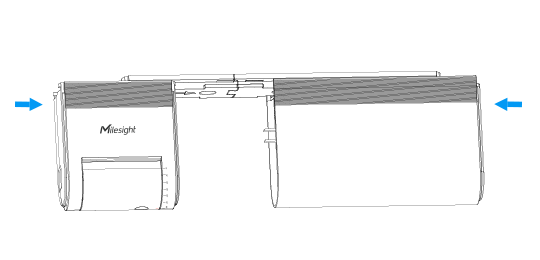

Enjoy a user-friendly snap-together installation experience reminiscent of a jigsaw puzzle. This intuitive assembly process ensures a straightforward and hassle-free setup, making it accessible for everyone.

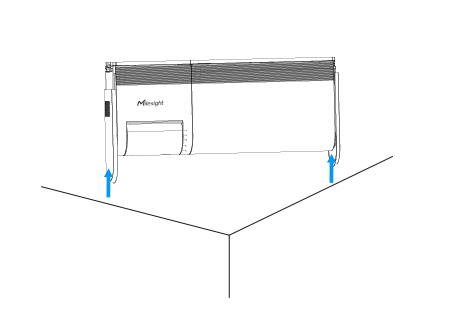

Ceiling Mounting

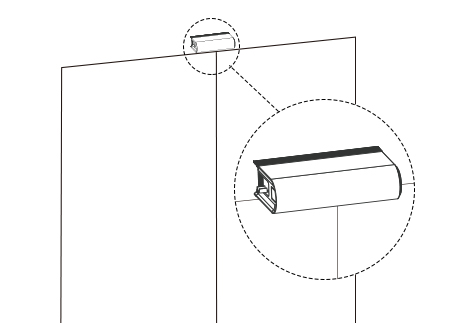

Lintel Mounting
| Measurement | |
|---|---|
| People Counting | |
| Technology | Radar (Battery Version Only) & Thermopile |
| Installation Height | 2.5 m ~ 3.0 m |
| Detection Range | 5.55 m x 2.30 m @ 3 m Installation Height |
| Sensor Adjustable Angle | 0°~90° |
| Detection Rate1 | Up to 95% (Single Person2: Up to 99%) |
| Best Operating Temperature | 15 °C ~ 30 °C |
| Advanced Features | U-Turn Filtering, Bi-directional People Counting, Side by Side Differentiation |
| Temperature | |
| Range | -30°C ~ 70°C |
| Accuracy | ± 2°C |
| Wireless Transmission | |
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz) / 19 dBm (470 MHz) / 22 dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Others | |
| Button | 1 × Reset Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Advanced Feature | Data Storage, Data Retransmission, Data Retrievability, Milesight D2D Controller |
| Physical Characteristics | |
| Power Supply | 1. 5V/1A by Type-C Port (Both Versions) 2. 4 x 9000 mAh ER26500 Li-SOCl2 Replaceable Batteries (Battery Version Only) |
| Battery Life3 | Around 1.6 Years (30-min Interval, 25°C, 1000 People per Day ) |
| Operating Temperature | -20°C ~ 60°C |
| Relative Humidity | 0% ~ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Dimension | Type-C Version: 70 x 68 x 32 mm ( 2.76 x 2.68 x 1.26 in) Battery Version: 188 x 68 x 32 mm ( 7.40 x 2.68 x 1.26 in) |
| Material & Color | PC (Flame Retardant), White |
| Installation | Ceiling Mounting, Lintel Mounting |
1 Tested under an installation height of 2.7m, with an average height of target of 1.7m and a temperature of 25°C.
2 30 ~ 40 cm should be kept between two people while passing the detection area.
3 Tested under laboratory conditions and for guideline purposes only.
