AI 180° Panoramic
Mini Bullet Network Camera
The Ultra Mini Bullet for 180° Panoramic View
Redefine the Viewing Experience of a Mini Bullet Camera
AI 180° Panoramic
- 180° Panoramic View
- 4K Ultra High Definition
- AI Empowered VCA
- Intelligent People Counting
- Advanced Heat Map
- Smart IR II Technology for Whole IR Coverage
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Panoramic Series
- 180° Panoramic Mini Bullet Camera

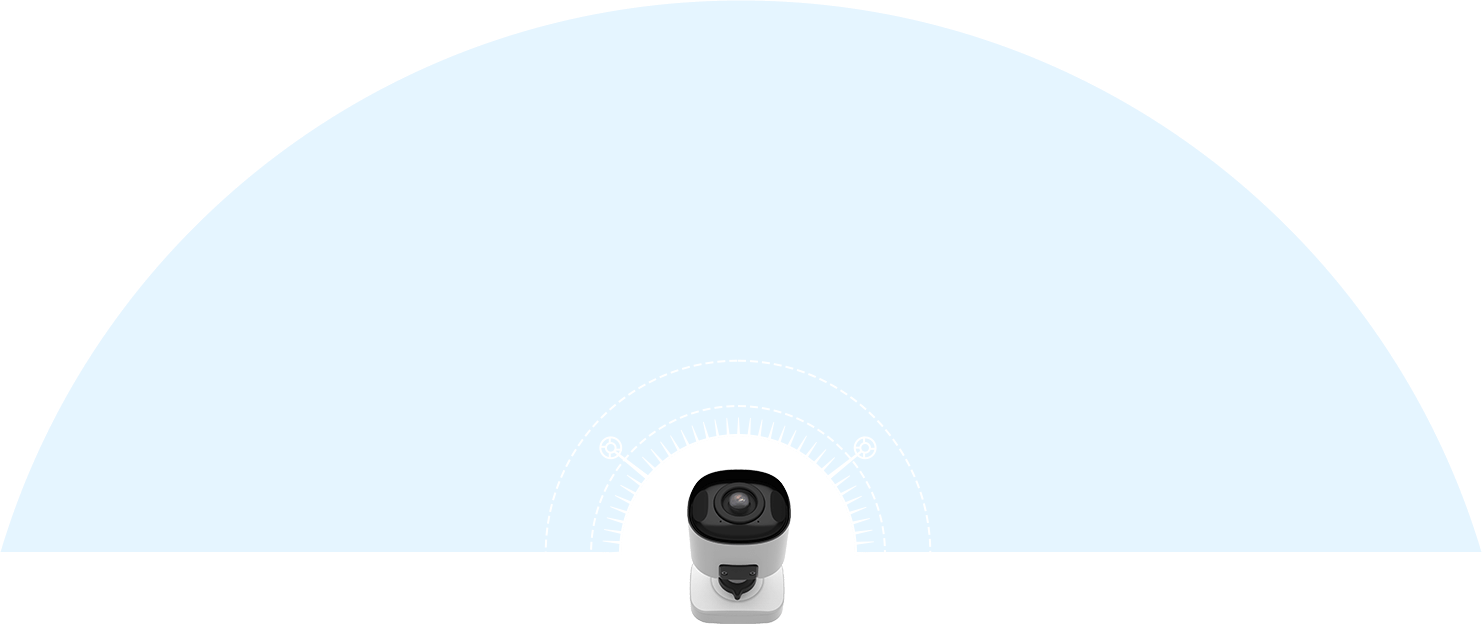

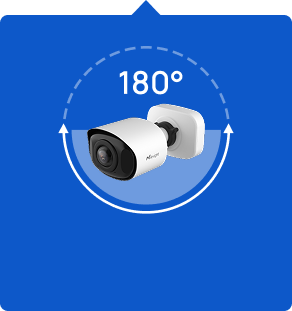

180° Panoramic View
Milesight AI 180° Panoramic Mini Bullet Network Camera catches 180° horizontal
coverage and 95° vertical coverage, achieving 180° panoramic viewing with only
single sensor, which is a revolutionary creation in the bullet model.
4K Ultra High Definition
It features with 4K ultra high definition which better restores the images to guarantee superb image quality. Introducing 180° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.

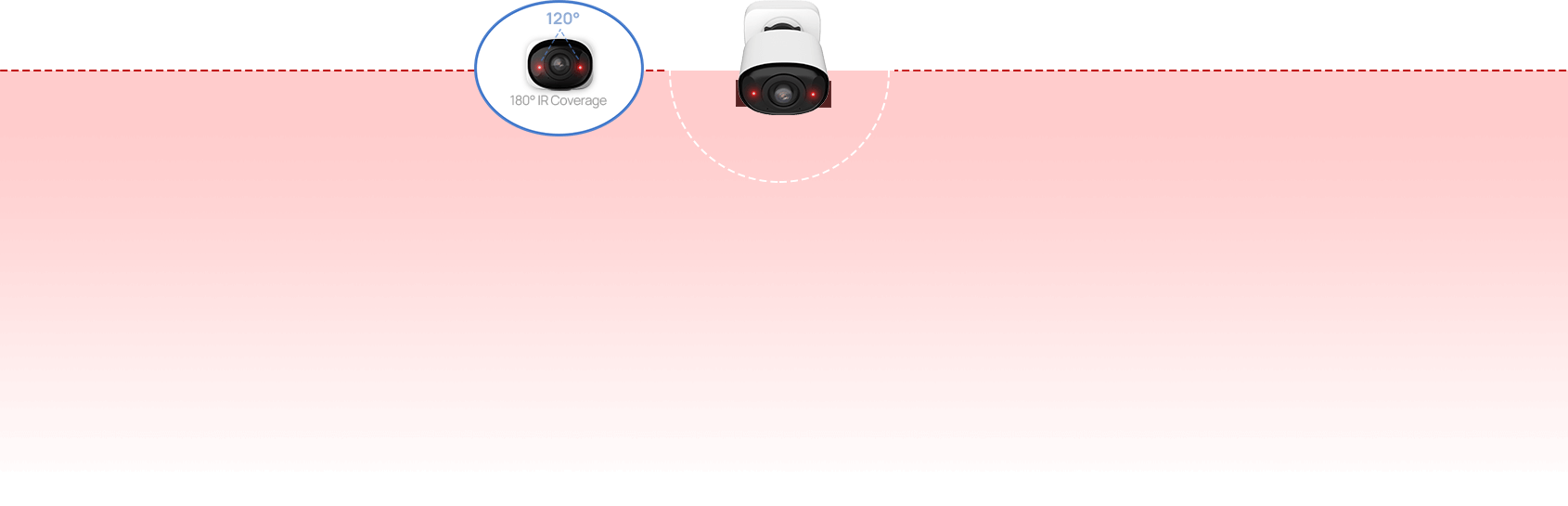

Revolutionary IR Performance
With two IR LEDs which have angles to truly realize the 180° IR coverage, the IR design also features adjustable illumination intensity IR LEDs to guarantee IR performance. And the IR reflection is ably avoided by the separated IR LEDs and Lens, achieving the best effect.

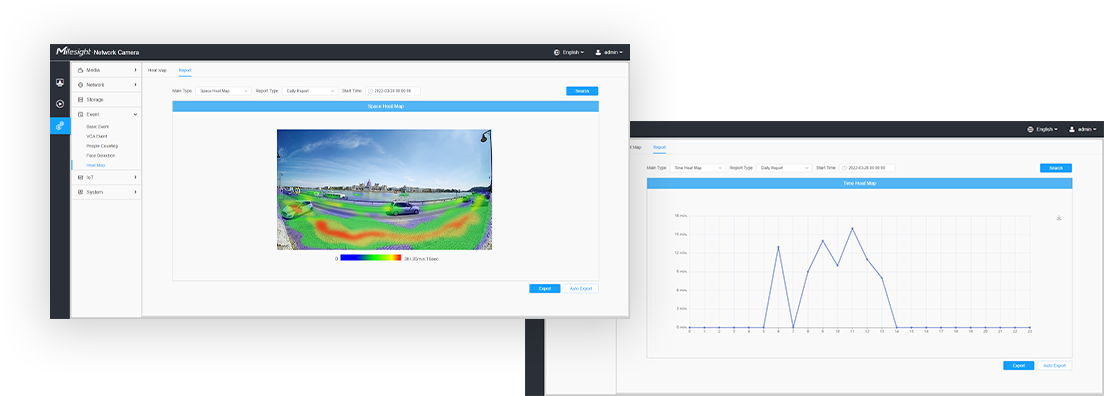

Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like AI Video Analytics, People Counting and Heat Map, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.

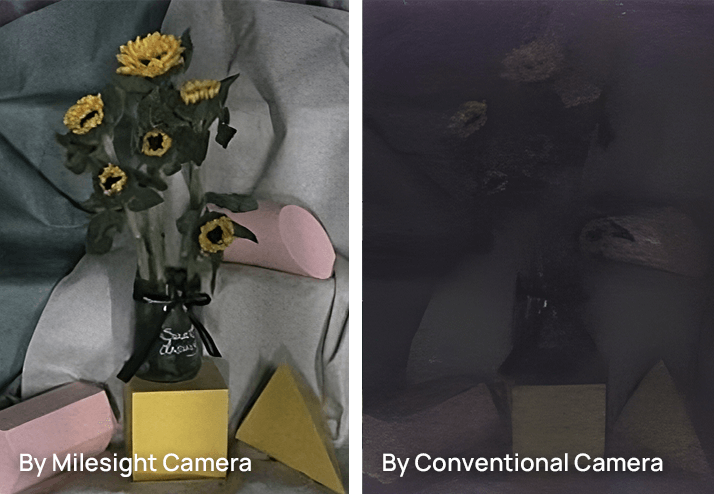

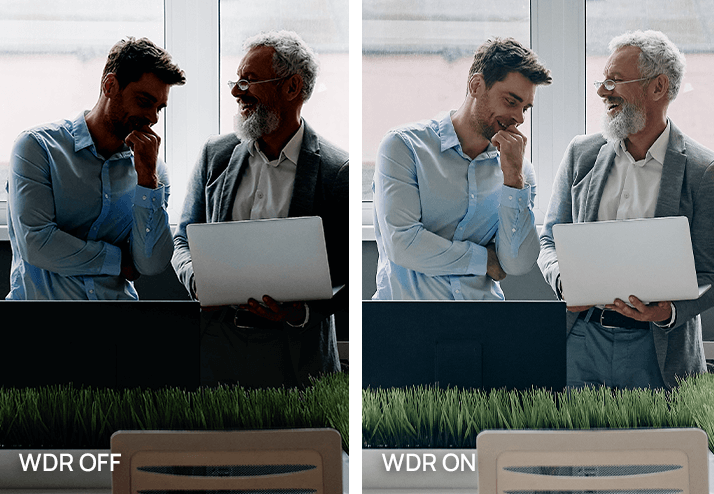

Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005 Lux Ultra Low-light and 120dB Super WDR features make it well-suited for various special circumstances.

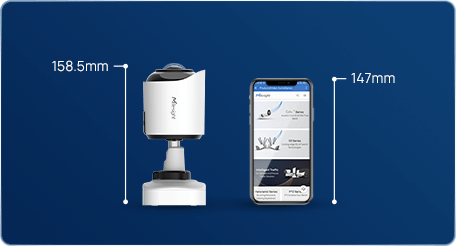

Delicate & Exquisite Design
With ultra mini size of 95.8mmX74mmX158.5mm, it is a truly mini bullet with no compromise on the functionality. Also with the built-in microphone which adopts the advanced codec, it is able to provide clearer voice.

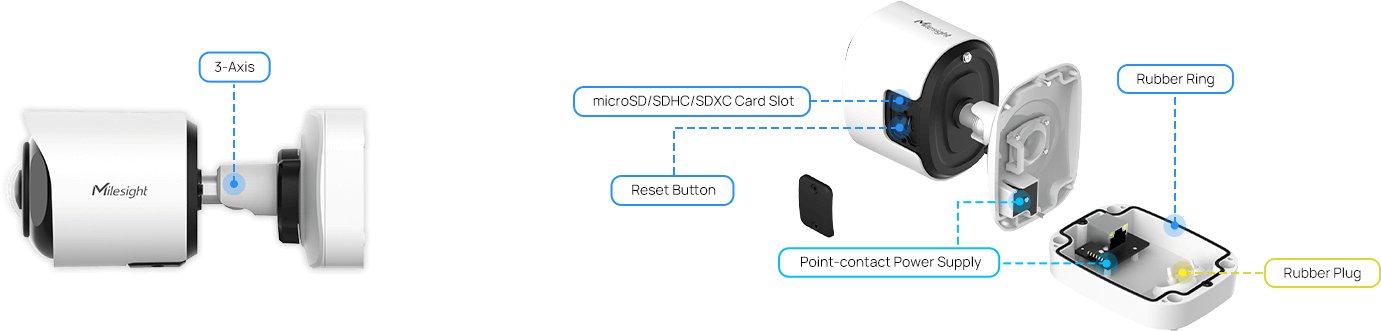

Efficient & Simple Installation
The 3-axis mechanical design, SD card slot and the well-designed Integrated Junction Box
make sure the camera's best ease of use, ensuring an efficient and simple installation.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing,
the camera is well protected against adverse impacts to ensure the robust performance.
Specifications
NDAA
- MS-C5365-PE
- MS-C8165-PE
- MS-C5365-PA
- MS-C8165-PA
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.68mm@F2.0 |
| Mount | M12 |
| Field of View | H180°/V95° |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 15m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max.Image Resolution | 2592x1944 (Original) |
| Primary Stream | 60HZ:30fps@(2560x1440, 1920x1080, 1280x720) 50HZ:25fps@(2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting& | Count the number of objects crossing the line, optionally human and vehicle, |
| Report | Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 7W MAX 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 700g |
| Dimensions | 95.8mmX74mmX158.5mm |
| Warranty | 3/5 Years |
* Naming Convention
P - PoE Supported
A/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.68mm@F2.0 |
| Mount | M12 |
| Field of View | H180°/V86° |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 15m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max.Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 25fps@(3840x2160,3440x1936,3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz/50Hz:25fps@(704x576, 640x480, 640x360） |
| Tertiary Stream | 60Hz/50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting& | Count the number of objects crossing the line, optionally human and vehicle, |
| Report | Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 7W MAX 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 700g |
| Dimensions | 95.8mmX74mmX158.5mm |
| Warranty | 3/5 Years |
* Naming Convention
P - PoE Supported
A/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.68mm@F2.0 |
| Mount | M12 |
| Field of View | H180°/V95° |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 15m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max.Image Resolution | 2592x1944 (Original) |
| Primary Stream | 60Hz: 30fps@(2592x1944)(Original), 30fps@(2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(2592x1944)(Original), 25fps@(2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 areas |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& | Count the number of people entering or exiting, |
| Report | up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 5W MAX 8W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 700g |
| Dimensions | 95.8mmX74mmX158.5mm |
| Warranty | 3/5 Years |
* Naming Convention
P - PoE Supported
A/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.68mm@F2.0 |
| Mount | M12 |
| Field of View | H180°/V86° |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 15m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max.Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 25fps@(3840x2160), 30fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(3840x2160, 3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 areas |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& | Count the number of people entering or exiting, |
| Report | up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 6W MAX 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 700g |
| Dimensions | 95.8mmX74mmX158.5mm |
| Warranty | 3/5 Years |
* Naming Convention
P - PoE Supported
A/E - AI Series
A01 V3 Pole Mount
- Weight: 625g
- Dimension: 140*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
