Designed for Off-grid & Remote Security
Win Early-bird Offer
Compact Design, High Efficiency, Built for Expanding Possibilities

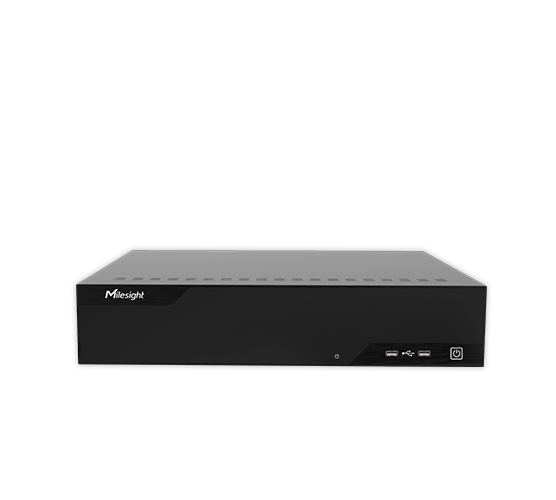

Experience seamless security with Milesight Enterprise NVR, meticulously designed to integrate server, workstation, and storage functionalities into a single, robust solution. With effortless plug-and-play installation, this NVR simplifies your security from setup to scale-up, eliminating the need for additional PC during initial use and configuration.
Milesight Enterprise NVR shines with its robust decoding capabilities, offering a wide range of channel options from 8 to 16. With the ability to decode up to 16 channels@2MP, 6 channels@12MP, and 6 channels@8MP, it ensures suitability for projects of all sizes, spanning from small to large-scale, and covering a vast array of applications.
The Milesight Enterprise NVR offers an flexible storage capacity, ready to handle anything from compact setups to more intensive storage demands. Supporting up to 2 SATA hard drives with a total capacity of 40TB (2*20TB), this NVR ensures that you have ample space to store high-definition video footage from multiple channels.

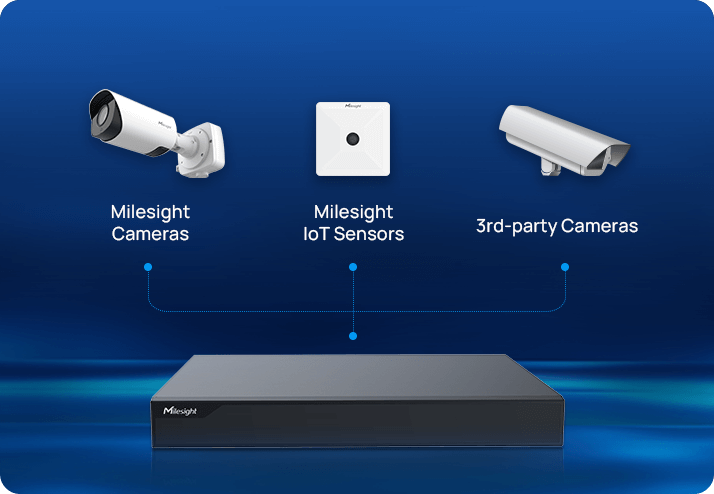

A true team player. The Milesight Enterprise NVR integrates seamlessly with Milesight cameras, Milesight IoT Sensors and rich third-party network cameras, creating a versatile ecosystem that adapts to your needs. It's compatibility, amplified.
Designed for robust performance and flexibility, the Milesight Enterprise NVR ensures reliable data security and seamless surveillance recording.
With N+M Failover, other servers automatically take over in case of failure, maintaining continuous recording and minimizing risks. Licenses can also be shared within the system, adding an extra layer of assurance for uninterrupted operation.

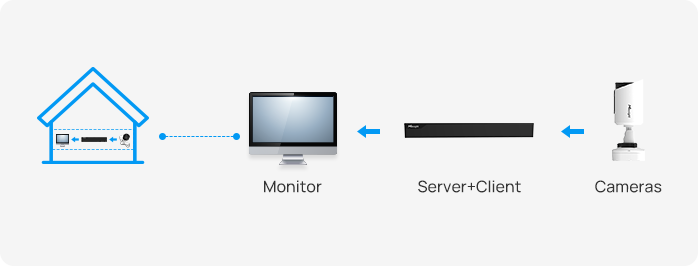

Milesight Enterprise NVR can be used standalone for projects starting from small installations with the flexibility to grow.

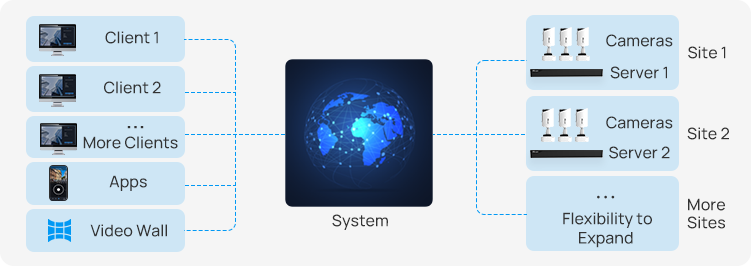

Moreover, it could serve as a local server from multiple units that can be connected freely on a single system.

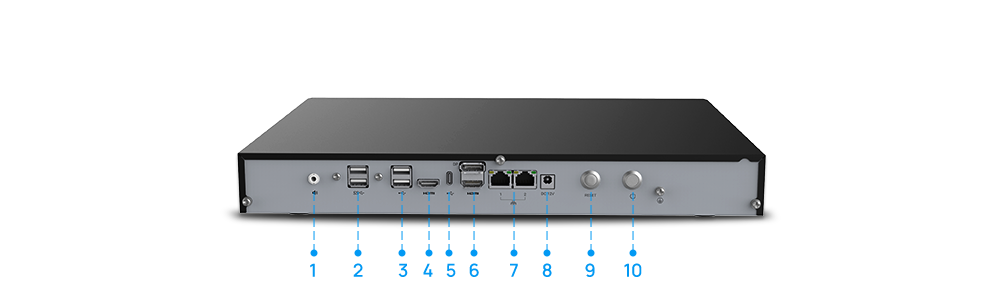

A whole array of ports provides all necessary features of effective surveillance.
Audio
2*USB 3.0
2*USB 2.0
HDMI Port
USB-C
DP Port and HDMI Port
2*LAN Port
Power Port
Restart Button
Power Button
| Devices | |
|---|---|
| Included Camera Access License | 8 |
| Recording | |
| Recording Schedule | 8 |
| Bandwidth | |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 640Mbps |
| Decoding | |
| Video Format | MJPEG, H.264, H.265 |
| Decoding Resolution | Up to 12 MP |
| Decoding Capability* | Display with 1080P Monitor 12MP(4000*3000)@20fps=6ch 8MP(3840*2160)@30fps=6ch 2MP(1920*1080)@30fps=8ch |
| Event & Alarm | |
| Event and Alarm Rules | 1000 |
| Users & Roles | |
| Concurrent Accesses via Clients, App Clients | 300 |
| Users | 1000 |
| Roles | 100 |
| Local Viewing | |
| Local Viewing | Support |
| System | |
| Main Processor | Intel 2.0 GHz Celeron Series |
| Memory | 2*4GB DDR4 |
| Network Interface | 2*1000Mbps RJ-45 Ports |
| Operating System | Microsoft Windows 10 IoT Enterprise 64bit |
| GPU Options | Integrated GPU |
| Auto Power On | Support |
| Auxiliary Interface | |
| HDD Drives (Video Data) | 1*SATA (3.5" or 2.5") |
| SSD Drive (Operating System) | M.2 SSD(1*256 GB Pre-installed) |
| RAM | 2* DDR4 2666 Slot (2*4GB Pre-installed) Support Up to 16GB Support Dual-Channel Mode |
| Capacity | Up to 20TB capacity for each disk |
| Recording Storage Capacity | Up to 1*20TB raw |
| LAN | 2*1000Mbps LAN |
| Display | 2*HDMI Port, 1*DP Port Support independent and synchronous display |
| Audio | 1*BNC In, 1*BNC Out |
| USB Interface | Rear panel: 2*USB 2.0, 2*USB 3.0, 1*USB-C Port |
| Power Supply | AC 100-240V, 50-60Hz, DC 12V |
| General | |
| Consumption | ≤30W(without HDD) |
| Working Temperature | 0°C to 35°C (32°F to 95°F) |
| Working Humidity | 10% to 90% RH (no freezing and no condensation) |
| Dimension | 380mm(W)X317.6mm(D)X51.8mm(H) |
| Weight | 2.2Kg |
| Warranty | 3 Years |
| Devices | |
|---|---|
| Included Camera Access License | 16 |
| Recording | |
| Recording Schedule | 16 |
| Bandwidth | |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 640Mbps |
| Decoding | |
| Video Format | MJPEG, H.264, H.265 |
| Decoding Resolution | Up to 12 MP |
| Decoding Capability* | Display with 1080P Monitor 12MP(4000*3000)@20fps=6ch 8MP(3840*2160)@30fps=6ch 2MP(1920*1080)@30fps=16ch |
| Event & Alarm | |
| Event and Alarm Rules | 1000 |
| Users & Roles | |
| Concurrent Accesses via Clients, App Clients | 300 |
| Users | 1000 |
| Roles | 100 |
| Local Viewing | |
| Local Viewing | Support |
| System | |
| Main Processor | Intel 2.0 GHz Celeron Series |
| Memory | 2*4GB DDR4 |
| Network Interface | 2*1000Mbps RJ-45 Ports |
| Operating System | Microsoft Windows 10 IoT Enterprise 64bit |
| GPU Options | Integrated GPU |
| Auto Power On | Support |
| Auxiliary Interface | |
| HDD Drives (Video Data) | 2*SATA (3.5" or 2.5") |
| SSD Drive (Operating System) | M.2 SSD(1*256 GB Pre-installed) |
| RAM | 2* DDR4 2666 Slot (2*4GB Pre-installed) Support Up to 16GB Support Dual-Channel Mode |
| Capacity | Up to 20TB capacity for each disk |
| Recording Storage Capacity | Up to 2*20TB raw |
| LAN | 2*1000Mbps LAN |
| Display | 2*HDMI Port, 1*DP Port Support independent and synchronous display |
| Audio | 1*BNC In, 1*BNC Out |
| USB Interface | Rear panel: 2*USB 2.0, 2*USB 3.0, 1*USB-C Port |
| Power Supply | AC 100-240V, 50-60Hz, DC 12V |
| General | |
| Consumption | ≤30W(without HDD) |
| Working Temperature | 0°C to 35°C (32°F to 95°F) |
| Working Humidity | 10% to 90% RH (no freezing and no condensation) |
| Dimension | 380mm(W)X317.6mm(D)X51.8mm(H) |
| Weight | 2.2Kg |
| Warranty | 3 Years |
