Monitoring CO2 Levels and More in Outdoor or Harsh Environment
The EM500-CO2 is designed for monitoring CO2 concentration, temperature, humidity and barometric pressure in outdoor scenarios.
EM500-CO2 is designed for measuring gaseous carbon dioxide (CO2) concentration in harsh environments. It is useful in the application where knowing CO2 level is important like greenhouse, building ventilation, fruit and vegetable storage. Besides, it also supports temperature, humidity and barometric pressure measurement.
This device is designed to withstand even the most demanding environments. EM500-CO2 can function properly even in outdoor and harsh environment.

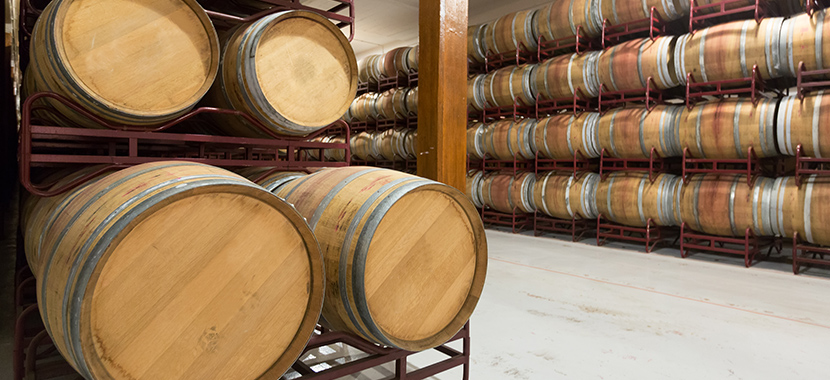

Smart Wine Cellar
Carbon dioxide is a by-product produced during the fermentation of wine. Because the density of carbon dioxide is heavier than air, it is easy to overflow from the fermentation tank. When it falls on the ground of the winery, it will form fatal and undetectable potholes, which will bring great hidden danger to the safety of the operators.
Forest Fire Detection
Nowadays, forest fires often cause serious threats to the environment and produce real emergency situations and natural disasters. Most of the times, when someone notices about the fire, it is too late because the fire has spread already. Thus, the enhancement of forest fire detection system by CO2 (carbon dioxide) monitoring can be evaluated.
The EM500-CO2 is equipped with high-capacity and easily-replaceable batteries. This facilitates the installation and maintenance process and reduces wiring costs.
Switching on/off and configuring the device via NFC technology from mobile phone or PC
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
Wall Mounting

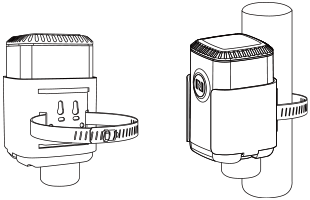

Pole Mounting

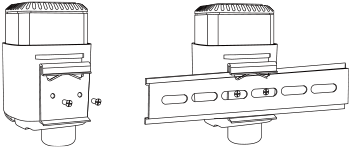

DIN Rail Mounting
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Sensors | |
| Carbon Dioxide (CO2) | |
| Sensor Type | NDIR |
| Range | 400 - 5000 ppm |
| Accuracy | ± (30 ppm + 3 % of reading) (0°C - 50°C, 0 - 85%RH) |
| Resolution | 1 ppm |
| Temperature | |
| Sensor Type | MEMS |
| Range | -30°C to + 70°C |
| Accuracy | 0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C) |
| Resolution | 0.1°C |
| Humidity | |
| Sensor Type | MEMS |
| Range | 0% to 100% RH |
| Accuracy | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) |
| Resolution | 0.5% RH |
| Barometric Pressure | |
| Sensor Type | MEMS |
| Range | 300 - 1100 hPa (-40°C - 85°C) |
| Accuracy | ±1 hPa |
| Resolution | 0.1 hPa |
| Operation | |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | Mobile App(via NFC) or PC software(via USB Type-C) |
| Advanced Features | Data Storage (1000 pieces), Data Retransmission, Threshold Alarm |
| Physical Characteristics | |
| Power Supply | 19000 mAh Li-SOCL2 Battery (ER34615) |
| Battery Life* | 10 years (10 min interval) |
| Operating Temperature | -30°C to +70°C |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | IP65 |
| Dimension | 147.9 × 71 × 69.5 mm (5.8 × 2.8 × 2.7 in) |
| Installation | Pole, Wall or DIN Rail Mounting |
| Approvals | |
| Regulatory | CE, FCC, RoHS, LoRaWAN® Certified, ISED, ICASA |
| EMC | EN 55032, EN 55035 |
| EMS | IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-8 Level 4 |
| Radio Frequency | FCC Part 15B, FCC Part 15.247, EN 300 330, EN 301 489-1/3, EN 300 220-1/2 |
| Safety | EN62368-1 |
* Tested under laboratory conditions and for guideline purposes only.
