AI 12X/20X/23X PTZ Bullet
Plus Camera
Intelligent PTZ to Move Your World
PTZ Cameras to Expand Your Vision and Control
AI 12X/20X/23X PTZ Bullet
- AI Deep Learning
- Flexible Pan, Tilt and Zoom Tasks
- PTZ Auto Tracking
- 12X/20X/23X Optical Zoom
- 1/1.8" STARVIS Sensor
- 4K Viewing Experience
- Smart IR II with 180m IR Distance

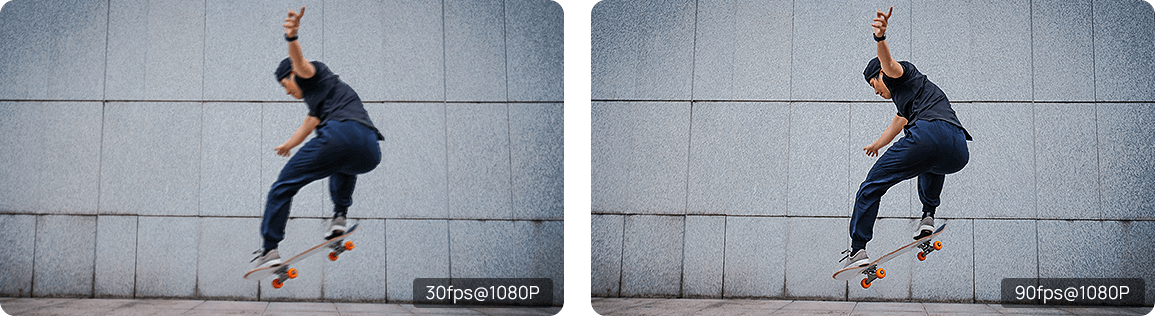

- 90fps High Frame Rate
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- PTZ Series
- AI 12X/20X/23X PTZ Bullet Plus Camera
AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

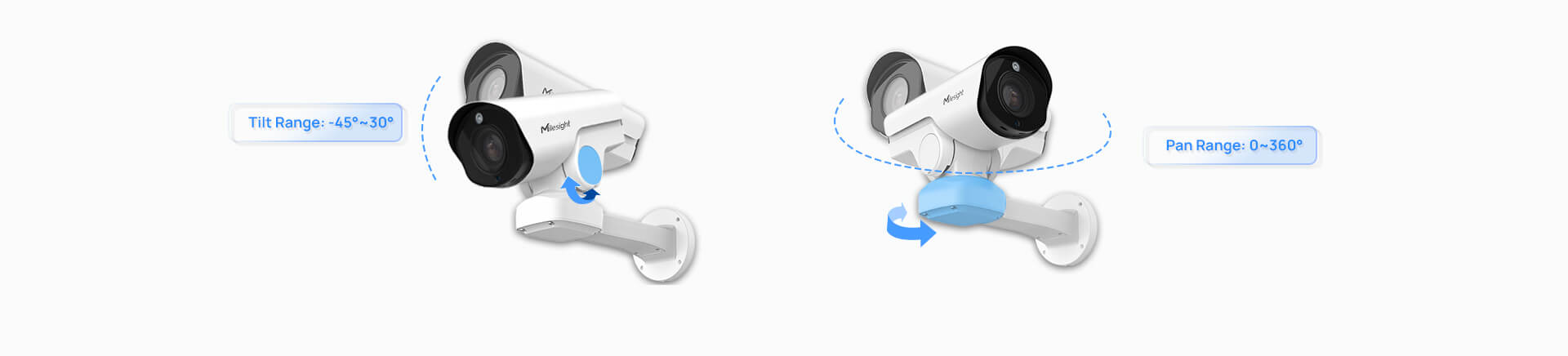

Flexible Pan, Tilt and Zoom Tasks
Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.
12X/20X/23X Optical Zoom
The 12X/20X/23X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.

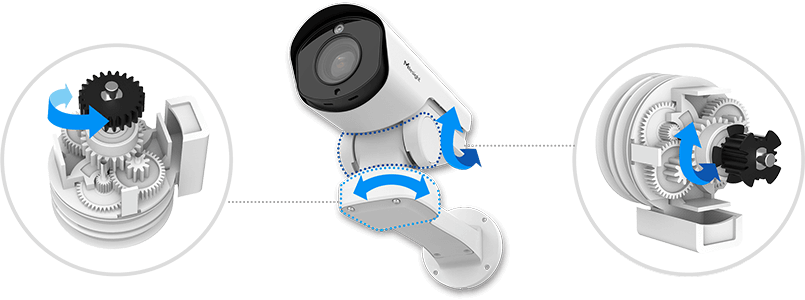

New-generation PTZ Motor
New generation motor with sophisticate planetary gear drive design is adopted to ensure a steady turn, which guarantees its robust performance, providing a reliable pan & tilt operation.

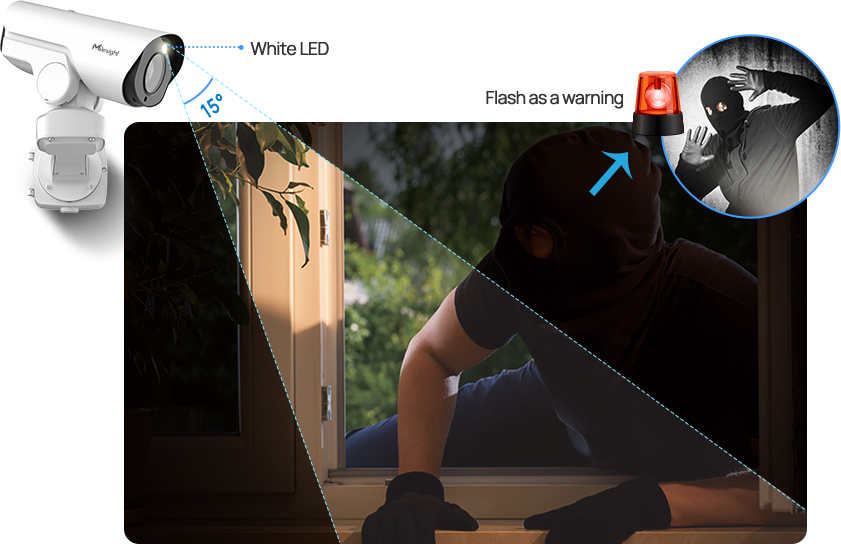

Intelligent White LED
With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

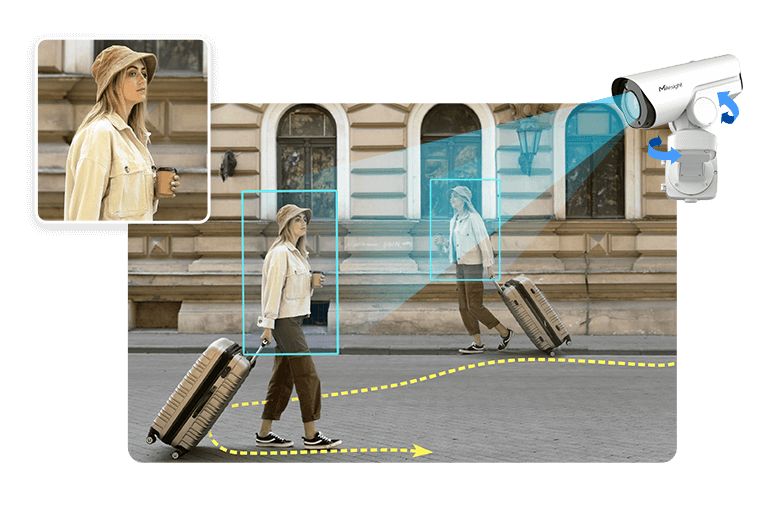

PTZ Auto Tracking
Creating a 3D model within the monitoring range, Milesight PTZ cameras mark and track the object after target detection and selection to ensure that the object maintains a fixed proportion for superb tracking views by automatically controlling the direction and zoom-level.

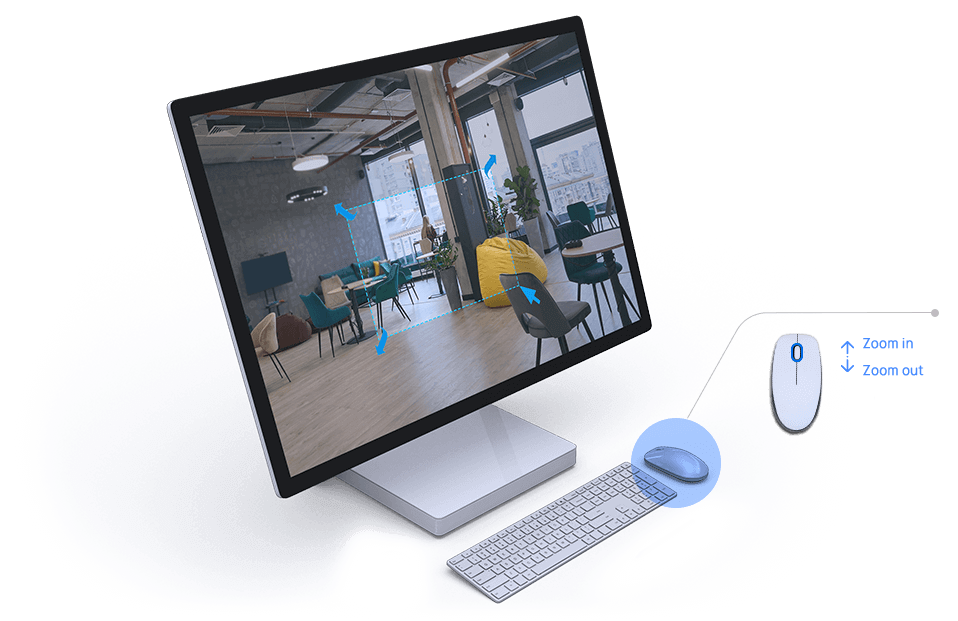

3D Positioning
With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

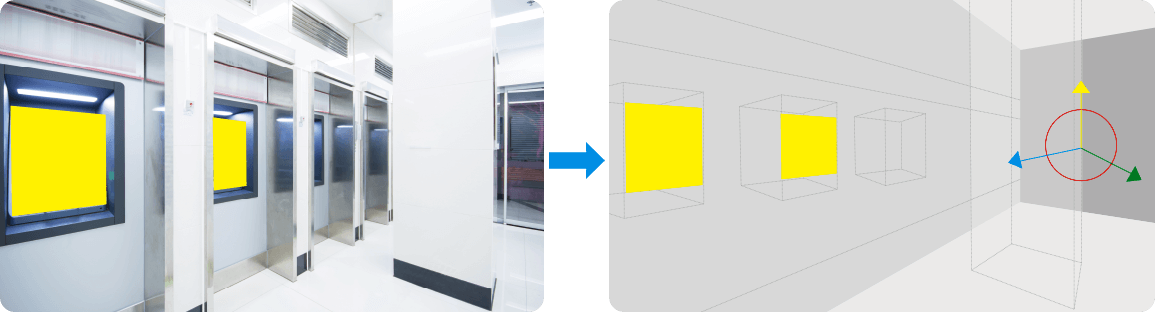

PTZ Privacy Mask
Adopting anonymization and limitation functionality for further privacy protection, Milesight supports 3D Privacy Mask in all Al PTZ cameras with their coordinate system, which keeps the specified area masked from monitoring through manual operations no matter how cameras pan/tilt/zoom.

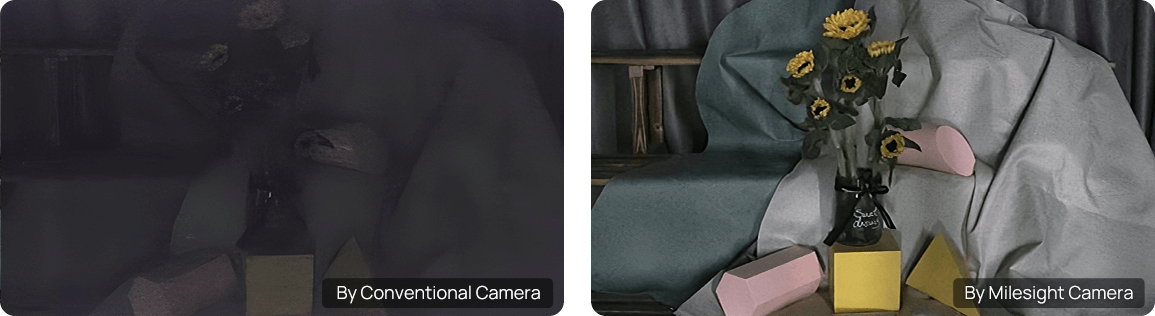

Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.002Lux Ultra Low-light, 4K Viewing Experience, and 90fps High Frame Rate features make it well-suited for various special circumstances.

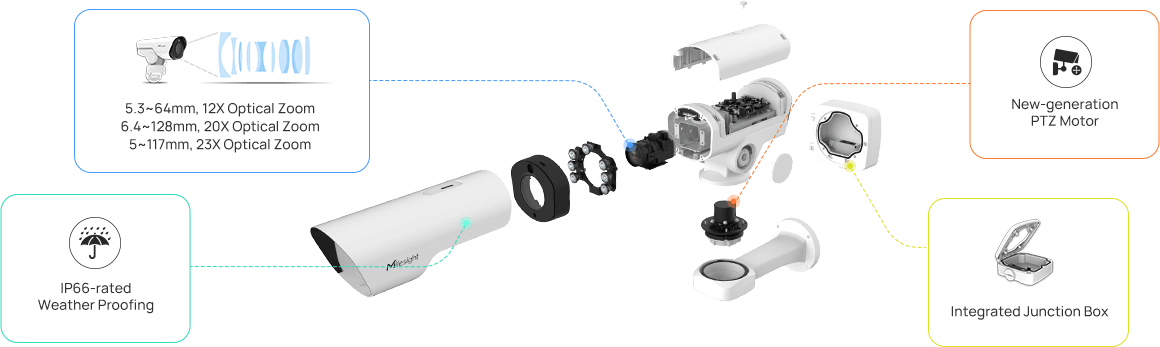

Easy Deployment and Compact Structure
To meet different needs of customers, AI 12X/20X/23X PTZ Bullet Plus Camera provides a wide selection of auto-focus lenses. Furthermore, the new generation PTZ motor & IP66-rated weather proofing ensure its rugged performance, and the integrated junction box makes it easy to install, even in complex environments.

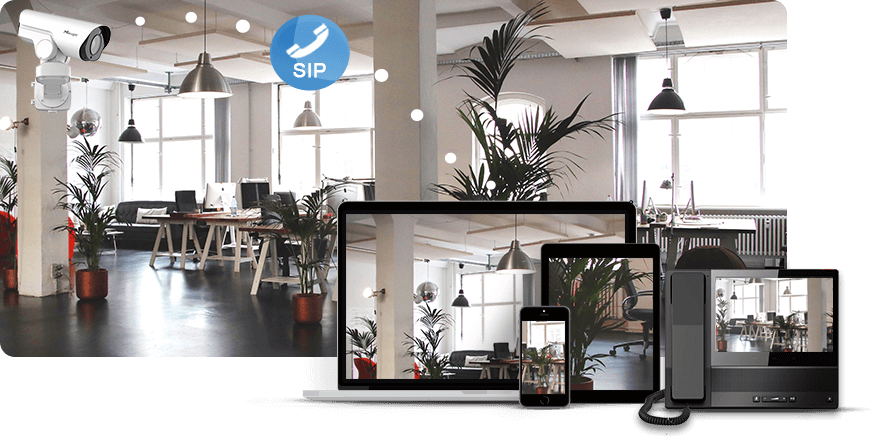

SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
NDAA
- MS-C2967-X12R(T)PE
- MS-C2967-X23R(T)PE
- MS-C4467-X20RPE
- MS-C5367-X12PE
- MS-C5367-X23PE
- MS-C8267-X20PE
- MS-C2867-X20TPA
- MS-C2967-X23TPA
- MS-C8267-X5PA
- MS-C8267-X20PA
Non-NDAA
- MS-C2867-X20TPC
- MS-C2967-X23R(T)PC
- MS-C5367-X23PC
- MS-C8267-X5PC
- MS-C8267-X20PC
| Camera | |
|---|---|
| Model | MS-C2967-X12R(T)PE |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5.3~64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°~H5°/D69°~D5°/V36°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering,AGC, Anti-flicker, Corridor Mode, Deblur,Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX / 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Model | MS-C2967-X23R(T)PE |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.5 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5~117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H60°~H3°/D69°~D4°/V35°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.5~F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering,AGC, Anti-flicker, Corridor Mode, Deblur,Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX / 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Model | MS-C4467-X20RPE |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3°/D67°~D4°/V37°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520,2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 14W MAX / 24W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Model | MS-C5367-X12PE |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5.3~64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°~H5°/D69°~D5°/V36°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 30fps@(2048x1536), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 25fps@(2048x1536), 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB,IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX / 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Model | MS-C5367-X23PE |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.5 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5~117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H55°~H3°/D68°~D4°/V42°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.5~F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB,IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX / 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Model | MS-C8267-X20PE |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3°/D67°~D4°/V37°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576) 50Hz: 25fps@(3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 14W MAX / 24W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR Pro |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3°/D67°~D4°/ V37°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 12W MAX / 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.5 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5~117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H60°~H3°/D69°~D4°/ V35°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.5~F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 12W MAX / 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.5 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5~117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H55°~H3°/D68°~D4°/ V42°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.5~F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 12W MAX / 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 11~55mm, 5X Optical Zoom |
| Zoom Speed | Approx 3.5s (Wide-Tele) |
| Field of View | H36°~H8°/D41°~D9°/ V21°~V5° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.7~F2.1 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3°/D67°~D4°/ V37°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3°/D67°~D4°/ V37°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 12W MAX / 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.5 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5~117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H60°~H3°/D69°~D4°/ V35°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.5~F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 12W MAX / 23W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 11~55mm, 5X Optical Zoom |
| Zoom Speed | Approx 3.5s (Wide-Tele) |
| Field of View | H36°~H8°/D41°~D9°/ V21°~V5° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.7~F2.1 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX / 24W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3°/D67°~D4°/ V37°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | 13W MAX / 24W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C - AI Series
A01 Pole Mount
- Weight: 720g
- Dimension: 170*51.5*152.6mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A62 Junction Box
- Weight: 510g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
Documents
- Milesight AI 12X/20X/23X PTZ Bullet Plus Network Camera Datasheet-en
- Milesight AI 5X/20X/23X PTZ Bullet Plus Network Camera Datasheet-en
- Milesight AI 5X/20X/23X PTZ Bullet Plus Network Camera Datasheet-en-NDAA
- Milesight Network Camera User Manual AI Series
- Milesight Network Camera Quick Start Guide
- Milesight Technology Moment_Smart IR II Technology
- Milesight Technology Moment_White LED
- Milesight Technology Moment_Junction Box
