Beyond the Socket, Into Intelligent Energy Management

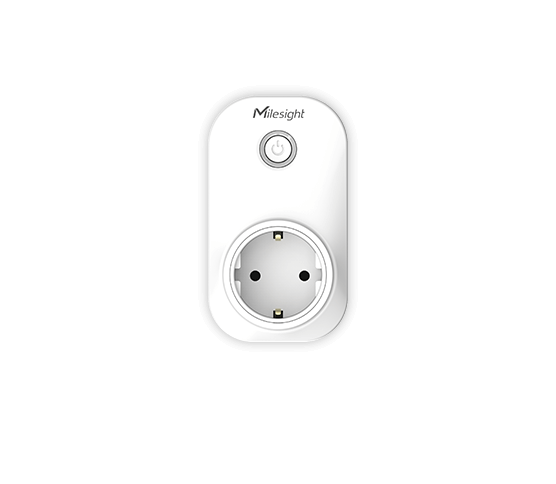

Integrate intelligent control into your building's infrastructure with the advanced control of the WS51x Smart Wall Socket. Experience a new level of efficiency and convenience.
Remote
ON/OFF
Time-Based
ON/OFF
Delay
Switch
Scened-based
Control
Local Button
Control

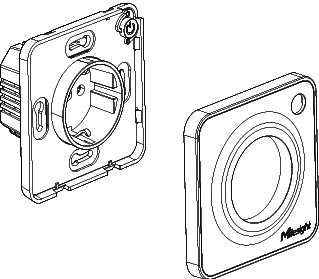

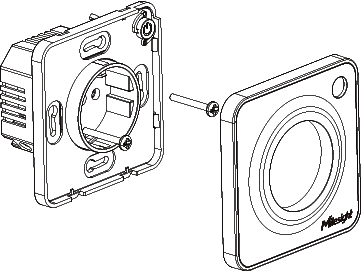

The WS51x Smart Wall Socket offers hassle-free integration through in-wall installation, allowing direct replacement of traditional sockets.
Socket Box
Type-E / Type-F
For other socket types, kindly get in touch with Milesight.
The multicast feature empowers WS51x to support the grouping of up to 4 devices, allowing users to control them collectively. Activating or deactivating corresponding devices in bulk has never been easier.
Achieve Lower Power Consumption
Stay informed about energy consumption. Monitor, analyze, and optimize energy usage to make smarter decisions and reduce your carbon footprint.
The WS51x is equipped with overload protection, which triggers an alert when the connected devices draw excessive current. Besides, if the current exceeds 130% of the rated value for a prolonged period, the WS51x will automatically switch off.
Experience enhanced safety and durability through comprehensive hardware protection features.
With the Button Lock feature, the user can prevent malicious or accidental actions by remotely locking the physical button on the WS51x Smart Wall Socket.
The WS51x is equipped with power failure memory, ensuring that previous settings are retained even after a power outage.
Milesight D2D (Device to Device) communication protocol featuring LoRa® enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.
Lower Latency
Less than 1 Second
Response Time
Secure
Transmission
Reduce
Investment Cost
Controller
Milesight D2D
Agent
Node Device
Switching On/Off & Configuring the Devices Wirelessly
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
| Wireless Communication | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz) |
| Sensitivity | -137 dBm |
| Working Mode | OTAA/ABP Class C |
| Electrical | |
| Socket Type | EU: Type F, with Safety Door FR: Type E, with Safety Door |
| Input Voltage | 100~250 VAC, 50~60 Hz |
| Rated Current | 16A (Max) |
| Measurement | Voltage (VAC), Current (mA), Power Factor (%), Power (W), Power Consumption (kWh) |
| Measurement Accuracy | ±1 % |
| Software | |
| Configuration | NFC or Downlink |
| Power Control | Local Press Button or Remote Control |
| Advanced Features | Delay Switch, Button Lock, Overcurrent Protection/Alarm, Multicast, Milesight D2D Agent |
| Others | |
| LED Indicator | 1 |
| Button | ON/OFF, Reset |
| Physical Characteristics | |
| Ingress Protection | IP20 |
| Material & Color | Antiflaming Polycarbonate, White |
| Dimensions | Type F: 86.3 × 86.3 × 45.8 mm (3.4 × 3.4 × 1.8 in) Type E: 86.3 × 86.3 × 43.3 mm (3.4 × 3.4 × 1.7 in) |
| Operating Temperature | -20°C to +60°C (-4℉ to +140℉) |
| Relative Humidity | 0% to 95% (Non-condensing) |
