4K H.265 Pro NVR 8000 Series
32/64-CH NVR with 4K UHD Performance
Seamless Surveillance, Unbeatable Reliability
- 32/64-CH Network Video lnput
- 8*10TB Storage & NAS
- 4K Decoding Capabilities
- Enterprise ANPR Management
- Al VCA & POS Integration
- Multi-video Output
- N+1 Hot Spare
- RAID 0/1/5/6/10
- FEATURES
- MODELS
- DOWNLOAD
- Home
- Network Video Recorder
- Pro NVR 8000 Series
AI VCA Management
Defined as the central management site to manage intelligent VCA, People Counting and Face Detection, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.
Enterprise ANPR Management
Seamlessly integrated with ANPR camera, the NVR manages massive traffic data and excels in diverse traffic management scenarios. It serves as a centralized site, providing real-time license plate previews, intelligent analysis, and comprehensive settings for enhanced functionality and control.
POS Integration
The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.
UHD Video Display
Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 Pro NVR 8000 Series can synchronously decode up to 6-CH 4K UHD and 24-CH 1080P with the finest details to guarantee real-time video monitoring.
HTML5 H.265 Streaming
The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized when Video Codec is set to H.265, making it easy for users to access the NVRs.

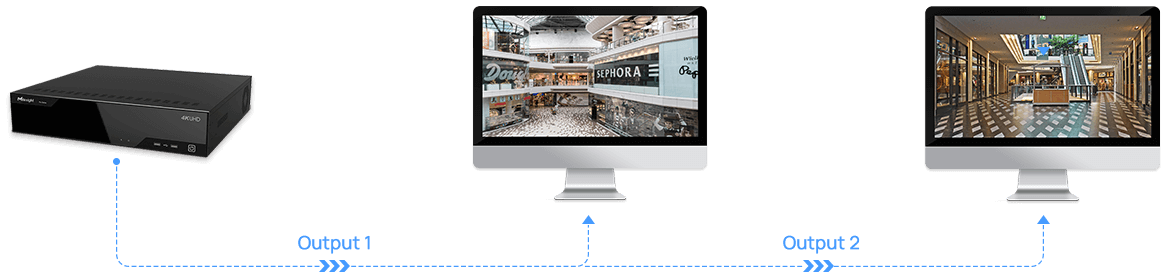

Multi-video Output
Multi-video output can be achieved in two ways: Independent Outputs allow multiple displays to show different channels independently, while Synchronous Outputs synchronize the display of the same channel across different locations.
Flexible Storage Options
Flexible storage options including 8*10TB HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.
ANR
ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.
RAID 0/1/5/6/10
RAID, or Redundant Array of Independent Disks, ensures that your data remains intact. When hardware malfunctions, the NVR automatically switches to a redundant drive, eliminating downtime and ensuring continuous recording without disruption.

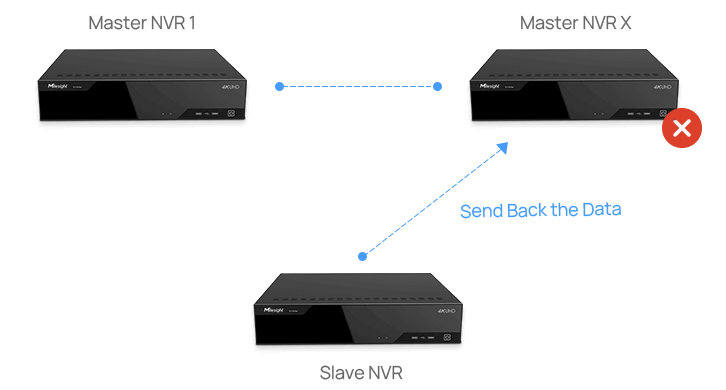

N+1 Hot Spare
N+1 Hot Spare offers a proactive approach to data security by providing an extra layer of redundancy, ensuring uninterrupted recording and eliminating any downtime.
Easy-to-use Design
Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight's NVR is made to lower the learning costs no matter for a newcomer or trained expert.

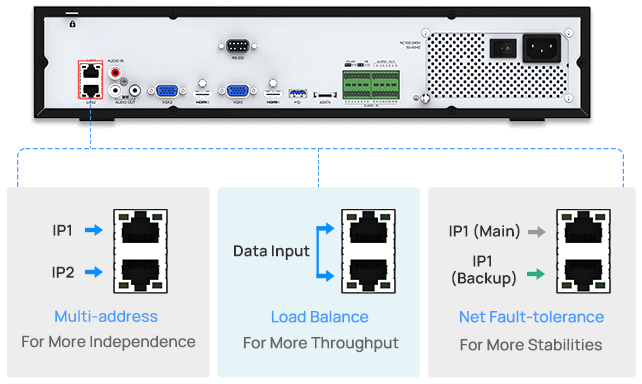

Dual Lan Giga
Network Ports
Dual network ports provide three network working modes for more independence, more throughput or more stabilities according to the particular application and needs.

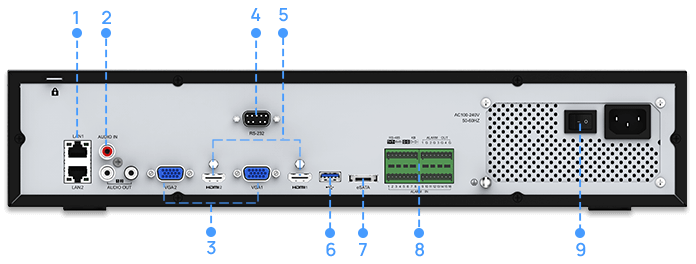

Versatile Interfaces
Milesight 4K H.265 Pro NVR 8000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 3 USB ports, Alarm I/O, Audio I/O and 2 LAN ports. The full set of interfaces provides all necessary features for effective surveillance.
- 1.Ethernet Port
- 2. Audio I/O
- 3. VGA
- 4. Console
- 5. HDMI
- 6. USB
- 7. eSATA
- 8. Alamr I/O
- 9. Power
Specifications
- MS-N8032-UH
- MS-N8064-UH
- MS-N8032-G
- MS-N8064-G
| Input | |
|---|---|
| Network Video Input | 32-CH |
| Bandwidth Requirement | 256Mbps or 200Mbps(When RAID is enabled) coming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing) |
| Output | |
| HDMI Output | 2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. |
| Dual Stream | Support |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| Storage | |
| SATA | 8*SATA HDD (3.5”) |
| eSATA | 1*eSATA |
| Capacity | Up to 10TB capacity for each HDD |
| Disk Array | |
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 2*RJ45 10/100/1000Mbps |
| USB Interface | 1*USB 3.0; 2*USB 2.0 |
| Serial Interface | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard |
| Audio Input/Output | 1*RCA/2*RCA |
| Alarm Input | 16-CH |
| Alarm Output | 4-CH |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR, N+1 Hot Spare |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V∼240V 50Hz∼60Hz |
| Consumption | ≤35W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard) |
| Weight | 6.0Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
H/G - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 64-CH |
| Bandwidth Requirement | 320Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing) |
| Output | |
| HDMI Output | 2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. |
| Dual Stream | Support |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P),64*(30fps @D1) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| Storage | |
| SATA | 8*SATA HDD (3.5”) |
| eSATA | 1*eSATA |
| Capacity | Up to 10TB capacity for each HDD |
| Disk Array | |
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 2*RJ45 10/100/1000Mbps |
| USB Interface | 1*USB 3.0; 2*USB 2.0 |
| Serial Interface | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard |
| Audio Input/Output | 1*RCA/2*RCA |
| Alarm Input | 16-CH |
| Alarm Output | 4-CH |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR, N+1 Hot Spare |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V∼240V 50Hz∼60Hz |
| Consumption | ≤35W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard) |
| Weight | 6.0Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
H/G - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 32-CH |
| Bandwidth Requirement | 320Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing) |
| Output | |
| HDMI Output | 2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | 2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | Support |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps@3MP), 24*(30fps@1080P), 32*(30fps@720P),32*(30fps@D1) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| Storage | |
| SATA | 8*SATA HDD (3.5”) |
| eSATA | 1*eSATA |
| Capacity | Up to 10TB capacity for each HDD |
| Disk Array | |
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 2*RJ45 10/100/1000Mbps |
| USB Interface | 1*USB 3.0; 2*USB 2.0 |
| Serial Interface | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard |
| Audio Input/Output | 1*RCA/2*RCA |
| Alarm Input | 16-CH |
| Alarm Output | 4-CH |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR, N+1 Hot Spare |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V∼240V 50Hz∼60Hz |
| Consumption | ≤35W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard) |
| Weight | 6.0Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
H/G - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 64-CH |
| Bandwidth Requirement | 320Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing) |
| Output | |
| HDMI Output | 2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | 2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | Support |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps@3MP), 24*(30fps@1080P), 48*(30fps@720P), 64*(30fps @D1) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| Storage | |
| SATA | 8*SATA HDD (3.5”) |
| eSATA | 1*eSATA |
| Capacity | Up to 10TB capacity for each HDD |
| Disk Array | |
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 2*RJ45 10/100/1000Mbps |
| USB Interface | 1*USB 3.0; 2*USB 2.0 |
| Serial Interface | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard |
| Audio Input/Output | 1*RCA/2*RCA |
| Alarm Input | 16-CH |
| Alarm Output | 4-CH |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR, N+1 Hot Spare |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V∼240V 50Hz∼60Hz |
| Consumption | ≤35W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard) |
| Weight | 6.0Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
H/G - H.265 Compression
