4/8/16/24-Port PoE Switch
Simplify Network Deployment with PoE
- IEEE 802.3af/at Protocol
- 4KV Surge protection
- Gigabit Uplink Ports
- SFP Uplink Ports
- 250m Extend Mode
- Up to 400W Power Budget
- FEATURES
- MODELS
- DOWNLOAD
- Home
- 5G & Cellular Products
- PoE Switch

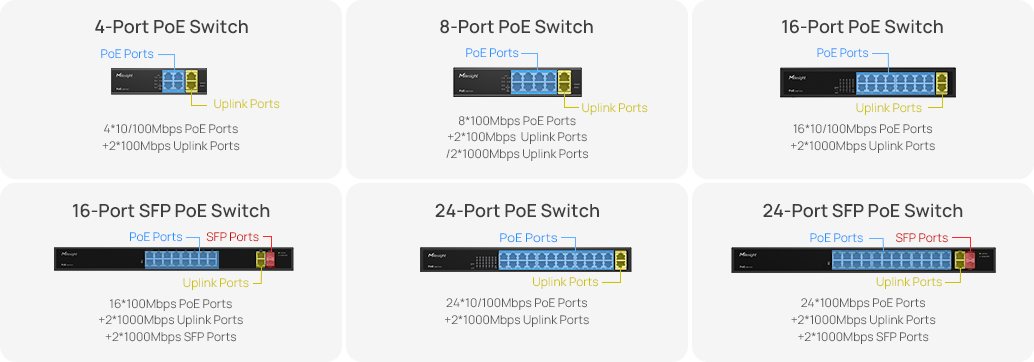

Versatile Ports
Milesight PoE Switch Series offers flexible options for various applications with 4 to 24 PoE ports and 2 SFP ports. It recognizes power-receiving devices, provides power and transmits data over one Ethernet cable to simplify network deployment in remote areas without power outlets.
Smart PoE Power Supply
Featuring multiple 10/100Mbps PoE ports which support IEEE 802.3af/at protocol and 2 uplink ports, the Milesight PoE Switch Series provides maximum power budget of 400W for all PoE ports and 30W for every single PoE port respectively, allowing users to have several different camera variations configured.
Superb Transmission
With up to 14.8Gbps switching capacity, non-blocking design and full link-speed forwarding, Milesight PoE Switch Series is able to provide fluent transmission. At the same time, its reliability of data transmission is well guaranteed by the self-adaption ports which support both IEEE 802.3x Full Duplex Communication and Backpressure Half Duplex Communication.
Flexible Extend Mode
With the extend mode, the PoE Switch Series is able to offer more flexible choices for long range transmission, extending the distance up to 250m, which is greatly helpful to bring better user experience.
SFP Uplink Port
With SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network's backbone, providing more than enough bandwidth and stability for ultra high speed data transferring.
Surge Protection
Reaching 4KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
Reliable & Safe Performance
Abide by safety requirements of industrial standard, the Milesight PoE Switch Series is definitely reliable to bring safe performance. The exquisite metal housing, fanless design, low power consumption and continuous PoE power supply guarantee the efficient and stable running.
Easy to Use
The plug and play with no configuration makes the maintaining as easy as ABC. With the indicator lights of PWR and Link/Act, users can easily get the working status of the connected devices. All those will have no doubt to simply the use.
Specifications
- MS-S0204-EL
- MS-S0208-EL
- MS-S0208-GL
- MS-S0424-GF
- MS-S0216-GL
- MS-S0416-GF
- MS-S0224-GL
| Ports | 4 × 10/100 Mbps PoE ports (RJ45) 2 × 1000 Mbps uplink ports |
| Standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3x |
| Switching Capacity | 1.6Gbps (non-blocking) |
| Packet Forwarding Rate @64byte | 0.89Mpps |
| Packet Forwarding Cache | 768K |
| MAC | 1K |
| Power Supply | Built-in switching power supply AC 100~240V, 50-60Hz, 1A |
| PoE Standard | IEEE802.3af/at |
| Max. PoE Power | Max capacity: 65 W Max capacity for single port: 30 W |
| Functional Switch | Standard Mode:Port 1~6: 10/100Mbps auto-sensing @100 meters Extend Mode:Port 1~4: 10Mbps @250 meters & Port 5~6: 100Mbps @ 100 meters Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect. |
| Indicator | Power Indicator: PWR (green) Network Indicator: Link (yellow) PoE Working Indicator: PoE (green) Functional Switch Indicator: EXTEND (green) |
| Cooling Fan | / |
| Operating Temperature | -20° ∼ 55°C |
| Storage Temperature | -40° ∼ 75°C |
| Operating/Storage Humidity | 10%-90%RH(non-condensing) |
| Lightning Protection/ Protection Level | Port lightning protection: 4 KV 8/20 us Protection level: IP30 |
| Dimensions | 142.5 × 115 × 40 mm |
| Weight | 0.5kg |
| Installation Method | Desktop, wall |
| Warranty | 2 years |
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
F - Optical Fiber Port(SFP)
L - Extend Mode
| Ports | 8 × 10/100 Mbps PoE ports (RJ45) 2 × 1000 Mbps uplink ports |
| Standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3x |
| Switching Capacity | 2 Gbps (non-blocking) |
| Packet Forwarding Rate @64byte | 1.488 Mpps |
| Packet Forwarding Cache | 1.25 M |
| MAC | 2K |
| Power Supply | Built-in switching power supply AC 100~240 V, 50-60 Hz, 2.2 A |
| PoE Standard | IEEE802.3af/at |
| Max. PoE Power | Max capacity: 120 W Max capacity for single port: 30 W |
| Functional Switch | Standard Mode: Port 1~10: 10/100 Mbps auto-sensing@100 meters Extend Mode: Port 1~8: 10 Mbps auto-sensing@100 meters Port 9~10: 100 Mbps@100 meters Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect. |
| Indicator | Power indicator: PWR (green) Network indicator: Link (yellow) PoE Working indicator: PoE (green) Functional Switch Indicator: EXTEND (green) |
| Cooling Fan | / |
| Operating Temperature | -20° ∼ 55°C |
| Storage Temperature | -40° ∼ 75°C |
| Operating/Storage Humidity | 10%-90%RH(non-condensing) |
| Lightning Protection/ Protection Level | Port lightning protection: 4 KV 8/20 us Protection level: IP30 |
| Dimensions | 142.5 × 115 × 40 mm |
| Weight | 0.5kg |
| Installation Method | Desktop, wall |
| Warranty | 2 years |
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
F - Optical Fiber Port(SFP)
L - Extend Mode
| Ports | 8 × 10/100 Mbps PoE ports (RJ45) 2 × 1000 Mbps uplink ports |
| Standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3x |
| Switching Capacity | 11.8 Gbps (non-blocking) |
| Packet Forwarding Rate @64byte | 4.17 Mppss |
| Packet Forwarding Cache | 2 M |
| MAC | 2 K |
| Power Supply | Built-in switching power supply AC 100~240 V, 50-60 Hz, 2.2 A |
| PoE Standard | IEEE 802.3af/at |
| Max. PoE Power | Max capacity: 120 W Max capacity for single port: 30 W |
| Functional Switch | Standard Mode: Port 1~10: 10/100 Mbps auto-sensing@100 meters Extend Mode: Port 1~8: 10/100 Mbps auto-sensing@100 meters Port 9~10: 1000 Mbps@100 meters Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect. |
| Indicator | Power indicator: PWR (green) Network indicator: Link (yellow) PoE Working indicator: PoE (green) Functional Switch Indicator: EXTEND (green) |
| Cooling Fan | / |
| Operating Temperature | -20° ∼ 55°C |
| Storage Temperature | -40° ∼ 75°C |
| Operating/Storage Humidity | 10%-90%RH(non-condensing) |
| Lightning Protection/ Protection Level | Port lightning protection: 4 KV 8/20 us Protection level: IP30 |
| Dimensions | 195 × 130 × 40 mm |
| Weight | 0.7 kg |
| Installation Method | Desktop, wall |
| Warranty | 2 years |
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
F - Optical Fiber Port(SFP)
L - Extend Mode
| Ports | 24 × 10/100 Mbps PoE ports (RJ45) 2 × 1000 Mbps uplink ports 2 × 1000 Mbps SFP ports |
| Standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-T IEEE802.3x |
| Switching Capacity | 14.8 Gbps (non-blocking) |
| Packet Forwarding Rate @64byte | 6.55 Mpps |
| Packet Forwarding Cache | 4 M |
| MAC | 16 K |
| Power Supply | Built-in switching power supply AC 100~240 V, 50-60 Hz, 5 A |
| PoE Standard | IEEE 802.3af/at |
| Max. PoE Power | Max capacity: 400 W Max capacity for single port: 30 W |
| Functional Switch | Port 1~24: 10/100 Mbps auto-sensing@100 meters Port 25~26: 1000 Mbps@100 meters Port 27~28: 1000 Mbps |
| Indicator | Power indicator: PWR (green) Network indicator: Link (yellow) PoE Working indicator: PoE (green) Functional Switch Indicator: EXTEND (green) |
| Cooling Fan | / |
| Operating Temperature | -20° ∼ 55°C |
| Storage Temperature | -40° ∼ 75°C |
| Operating/Storage Humidity | 5% ∼ 90% RH (non-condensing) |
| Lightning Protection/ Protection Level | Port lightning protection: 4 KV 8/20 us Protection level: IP30 |
| Dimensions | 440 × 225 × 44 mm |
| Weight | 4.5 kg |
| Installation Method | Desktop, wall |
| Warranty | 2 years |
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
F - Optical Fiber Port(SFP)
L - Extend Mode
| Ports | 16 × 10/100 Mbps PoE ports (RJ45) 2 × 1000 Mbps uplink portsc |
| Standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3x |
| Switching Capacity | 14.8 Gbps (non-blocking) |
| Packet Forwarding Rate @64byte | 5.36 Mpps |
| Packet Forwarding Cache | 4 M |
| MAC | 16 K |
| Power Supply | Built-in switching power supply AC 100~240 V, 50-60 Hz, 2.5 A |
| PoE Standard | IEEE802.3af/at |
| Max. PoE Power | Max capacity: 200 W Max capacity for single port: 30 W |
| Functional Switch | Standard Mode: Port 1~16: 10/100 Mbps auto-sensing@100 meters Port 17~18: 1000 Mbps@100 meters Extend Mode: Port 1~8: 10/100 Mbps auto-sensing@100 meters Port 9~16: 10 Mbps@250 meters Port 17~18: 1000 Mbps@100 meters Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect. |
| Indicator | Power indicator: PWR (green) Network indicator: Link (yellow) PoE Working indicator: PoE (green) Functional Switch Indicator: EXTEND (green) |
| Cooling Fan | / |
| Operating Temperature | -20° ∼ 55°C |
| Storage Temperature | -40° ∼ 75°C |
| Operating/Storage Humidity | 10%-90%RH(non-condensing) |
| Lightning Protection/ Protection Level | Port lightning protection: 4 KV 8/20 us Protection level: IP30 |
| Dimensions | 270.4 × 181 × 44 mm |
| Weight | 1.5 kg |
| Installation Method | Desktop, wall |
| Warranty | 2 years |
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
F - Optical Fiber Port(SFP)
L - Extend Mode
| Ports | 16 × 10/100 Mbps PoE ports (RJ45) 2 × 1000 Mbps uplink ports 2 × 1000 Mbps SFP ports |
| Standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-T IEEE802.3x |
| Switching Capacity | 14.8 Gbps (non-blocking) |
| Packet Forwarding Rate @64byte | 5.36 Mpps |
| Packet Forwarding Cache | 4 M |
| MAC | 16 K |
| Power Supply | Built-in switching power supply AC 100~240 V, 50-60 Hz, 2.5 A |
| PoE Standard | IEEE 802.3af/at |
| Max. PoE Power | Max capacity: 250 W Max capacity for single port: 30 W |
| Functional Switch | Port 1~16: 10/100 Mbps auto-sensing@100 meters Port 17~18: 1000 Mbps@100 meters Port 19~20: 1000 Mbps |
| Indicator | Power indicator: PWR (green) Network indicator: Link (yellow) PoE Working indicator: PoE (green) |
| Cooling Fan | / |
| Operating Temperature | -20° ∼ 55°C |
| Storage Temperature | -40° ∼ 75°C |
| Operating/Storage Humidity | 5% ∼ 90% RH (non-condensing) |
| Lightning Protection/ Protection Level | Port lightning protection: 4 KV 8/20 us Protection level: IP30 |
| Dimensions | 440 × 225 × 44 mm |
| Weight | 4.4 kg |
| Installation Method | Desktop, wall |
| Warranty | 2 years |
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
F - Optical Fiber Port(SFP)
L - Extend Mode
| Ports | 24 × 10/100 Mbps PoE ports (RJ45) 2 × 1000 Mbps uplink ports |
| Standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3x |
| Switching Capacity | 14.8 Gbps (non-blocking) |
| Packet Forwarding Rate @64byte | 6.55 Mpps |
| Packet Forwarding Cache | 4 M |
| MAC | 16 K |
| Power Supply | Built-in switching power supply AC 100~240 V, 50-60 Hz, 5 A |
| PoE Standard | IEEE 802.3af/at |
| Max. PoE Power | Max capacity: 400 W Max capacity for single port: 30 W |
| Functional Switch | Standard Mode: Port 1~24: 10/100 Mbps auto-sensing@100 meters Port 25~26: 1000 Mbps@100 meters Extend Mode: Port 1~16: 10/100 Mbps auto-sensing @100 meters Port 17~24: 10 Mbps@250 meters Port 25~26: 1000 Mbps@100 meters Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect. |
| Indicator | Power indicator: PWR (green) Network indicator: Link (yellow) PoE Working indicator: PoE (green) |
| Cooling Fan | 1 |
| Operating Temperature | -20° ∼ 55°C |
| Storage Temperature | -40° ∼ 75°C |
| Operating/Storage Humidity | 5% ∼ 90% RH (non-condensing) |
| Lightning Protection/ Protection Level | Port lightning protection: 4 KV 8/20 us Protection level: IP30 |
| Dimensions | 329.8 × 204 × 44 mm |
| Weight | 2.2 kg |
| Installation Method | Desktop, wall |
| Warranty | 2 years |
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
F - Optical Fiber Port(SFP)
L - Extend Mode
