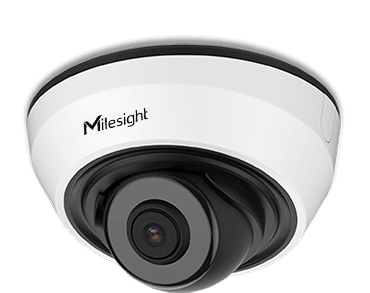

NDAA AI IR Mini Dome Network Camera

Features
Models
Download

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

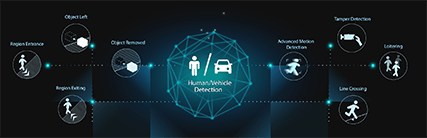

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

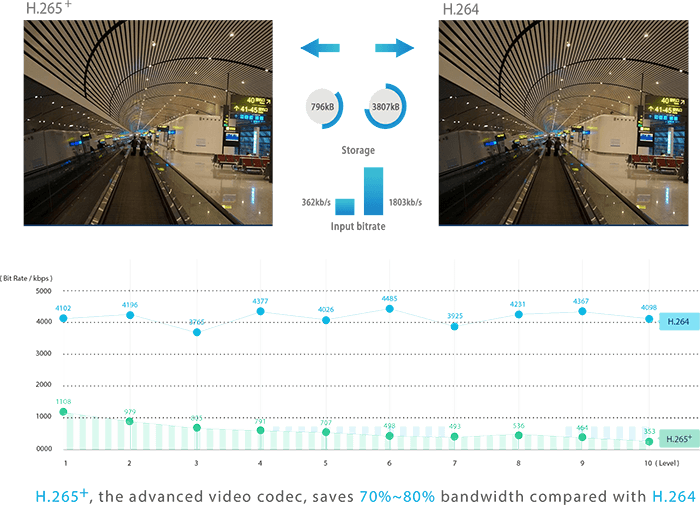

Leading-edge H.265⁺ Compression

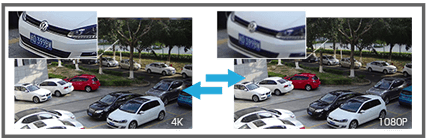

4K Video Viewing Experience

Milesight NDAA AI IR Mini Dome Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD), providing users with ultra-high-definition video viewing experience.

4K security camera, 4K ip camera, 4K cctv camera

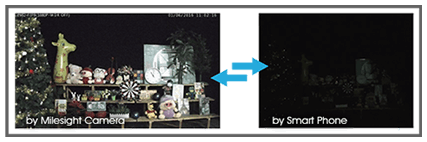

0.002Lux Ultra Low-light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

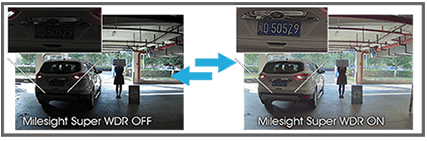

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

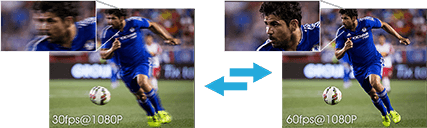

60fps High Frame Rate

Milesight NDAA AI Network Camera offers high frame rate including 2MP@60fps, 5MP@30fps and 4K@30fps, which enables the camera to easily catch images with no latency despite the high-speed movement.

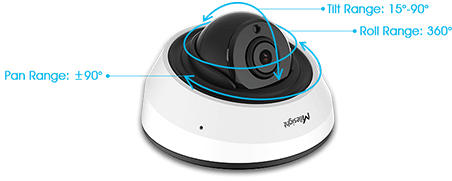

3-Axis Mechanical Design

3-axis mechanical design with 180° pan, 15-90° tilt and 360° roll for fast and easy adjustment of the camera's viewing angle.

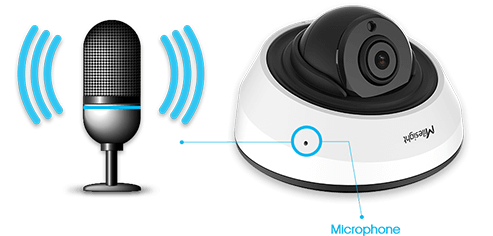

New Microphone

Upgraded with new codec, the microphone voice is clearer, which is much better than the previous one.

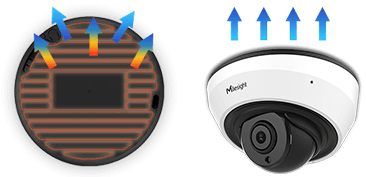

Better Thermal Design

The base of the New NDAA AI IR Mini Dome Network Camera with bulged strips which enlarge the heat dissipating area has been upgraded to better dissipate heat.

Thermal Design, NDAA IR Mini Dome Camera

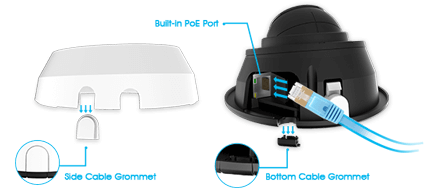

Easy Installation & Adjustment

Milesight specially designs a press button, a unique panel on the side of cover and built-in PoE port, making the installation a piece of cake.

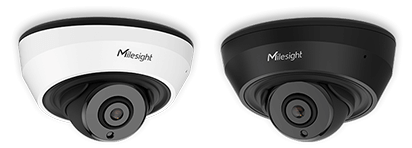

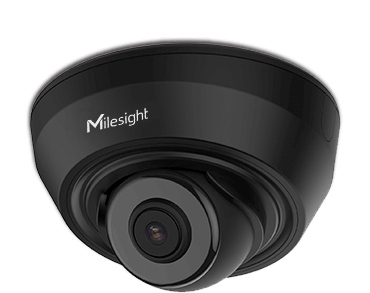

Two Colors Available

Available in White and Black, the brand-new NDAA AI IR Mini Dome Network Camera provides more choices for your preference.

SIP/VoIP Support

Milesight NDAA AI IR Mini Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

MS-C2983-(R)PD
MS-C5383-PD
MS-C8183-(S)PD

Camera	Name	2MP NDAA AI IR Mini Dome Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Lens	2.8mm/ 4mm/ 6mm @F1.6
	Mount	M12
	Field of View	H111°/D128°/V61°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	IR Distance	Up to 20m
	S/N	>55dB
	Video	Max. Image Resolution	1920x1080
Frame Rate		60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 4 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
	Audio Interface	Built-in Microphone
	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	N/A
	Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System	Intelligent Analytics	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & Q & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼90%(Non-condensing)
Power Supply		PoE(802.3af)
Power Consumption		2.6W MAX, 4.6W MAX (With IR on)
Weight		200g
Dimensions		Φ97.8mmX57.9mm
Warranty		3/5 Years

Camera	Name	5MP NDAA AI IR Mini Dome Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Lens	2.8mm/ 4mm/ 6mm @F1.6
	Mount	M12
	Field of View	H105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	IR Distance	Up to 20m
	S/N	>55dB
	Video	Max. Image Resolution	2592x1944
Frame Rate		60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 4 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
	Audio Interface	Built-in Microphone
	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	N/A
	Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System	Intelligent Analytics	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & Q & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼90%(Non-condensing)
Power Supply		PoE(802.3af)
Power Consumption		3.3W MAX, 5W MAX (With IR on)
Weight		200g
Dimensions		Φ97.8mmX57.9mm
Warranty		3/5 Years

Camera	Name	4K NDAA AI IR Mini Dome Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.01Lux @F1.2, Color: 0.012Lux @F1.6, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Lens	2.8mm / 4mm/ 6mm @F1.6
	Mount	M12
	Field of View	H110°/D126°/V60°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	IR Distance	Up to 20m
	S/N	>55dB
	Video	Max. Image Resolution	3840x2160
Frame Rate		60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 4 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
	Audio Interface	Built-in Microphone
	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	N/A
	Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System	Intelligent Analytics	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & Q & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼90%(Non-condensing)
Power Supply		PoE(802.3af)
Power Consumption		3.7W MAX, 5.4W MAX (With IR on)
Weight		200g
Dimensions		Φ97.8mmX57.9mm
Warranty		3/5 Years
