Background

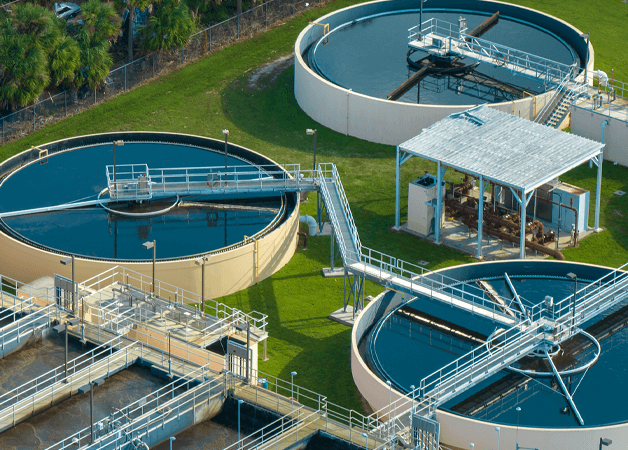

Parkes Shire Council is the local government body of the Parkes region, an area in central west New South Wales with a population of approximately 15,000 people. Previously famous for landmarks such as the 'dish' (a giant radio telescope) and the iconic Elvis festival. Parkes region is also now known for the pioneering Recycled Water Scheme (RWS). The Parkes Shire Council Recycled Water Scheme (RSW) was built in 2020 to provide high-quality recycled water to irrigate open spaces around the Parkes region. The goal of the system was to develop a drought-proof source of municipal irrigation, ensuring that parks and green spaces remained green during times of water scarcity, without drawing on the treated drinking water supply.

Challenges

Growing populations and urbanization are
placing unprecedented pressure on water
resources, leading to increased demand and
depletion of freshwater reserves.

Conventional irrigation practices often rely
heavily on freshwater sources, contributing to
water scarcity, soil degradation, and
ecosystem disruption.

Treated wastewater, also known as recycled or
reclaimed water, presents a sustainable
alternative for irrigation, provided it meets
regulatory standards and is managed effectively.

Solutions

Recycled water irrigation systems offer a sustainable solution for addressing water scarcity and promoting environmental resilience in open spaces. By leveraging LoRaWAN® technology, these systems can be enhanced with real-time monitoring, remote control, and data-driven optimization capabilities, maximizing efficiency and conservation. As communities and industries strive to achieve sustainability goals, recycled water irrigation using LoRaWAN® technology emerges as a promising pathway towards a more water-resilient future.

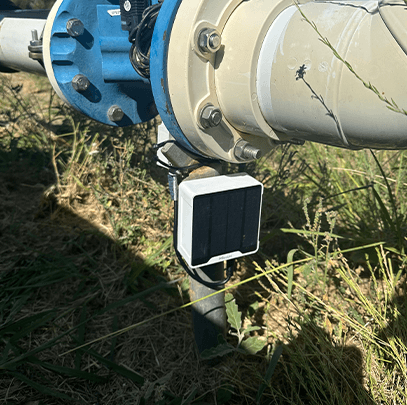

The Milesight UC501 Multi-Interface Controller is connected via RS485 with a ARAD Octave water meter. The Milesight EM300-UDL Ultrasonic Distance/Level Sensor is installed in a dam, with the level probe placed at the lowest operating level and the node installed on a post on the bank of the dam.

The Milesight device then communicate over The Things Network and then into the INDICIUM DataBus where the data is integrated into the water pipelines Digital Twin. From here, the Digitial Twin is periodically evalulated to determine if any control events are required to turn on or off valves around the pipeline.

The data is also archived in Azure Table Storage and in an Azure Data Lake (GEN2) where it can be accessed for reporting. Visualisation of data is handled by INDICIUM Cloud.

EM500-SWL
Submersible Water Level Sensor

Not Affected by Foam, Wind, or Rain
Customizable Measuring Range
Customizable for Oil and Other Non-corrosive Media
Impressive IP67 Rated Waterproof Performance
10 Years Long Battery Life
LoRaWAN® Wireless Deployment
Milesight IoT Cloud
Easy Configuration via NFC

EM310-UDL
Ultrasonic Distance/Level Sensor

Rich Industrial Interfaces
Temperature Transmitter
Intelligent Trigger System
Autonomous Operation
Flexible Cloud Integration
LoRaWAN® or 4G LTE Communication

UC501
Multi-Interface Controller

Rich Industrial Interfaces: GPIO, AI,
RS232/485 & SDI-12
SDI-12 Interface for Environmental Data
Acquisition
Internal and External Antenna Versions
Optional
IP67 Rated Enclosure for Harsh Environments
Flexible Power Supply Options

Results

IoT-enabled Control System

The End User Control System uses the IoT technology for efficient water distribution management, allowing for real-time adjustments based on various data inputs.

Automated Water Quality Management

The system automatically diverts and recirculates reclaimed water that does not meet specifications, ensuring safety and compliance with health standards.

Remote Monitoring and Leak Detection

The EUCS enables tracking of system performance and rapid notification of leaks, improving response times and conserving water.

Data Analytics for Water Allocation

The web-based platform analyzes data to manage water allocations effectively, ensuring optimal use of water resources without waste.

Operational Flexibility

The design allows integration with bore water systems to manage supply-demand balance and is adaptable to different end-user needs and environmental conditions.

User Engagement and Accessibility

The system empowers end-users with intuitive interfaces for managing water usage, promoting conservation and responsible use of resources.

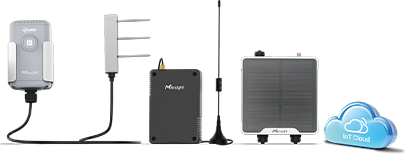

Discover More about Milesight Product

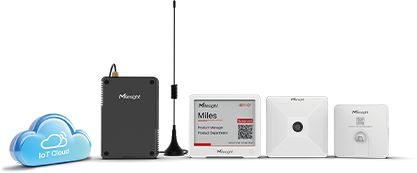

CoWork-A

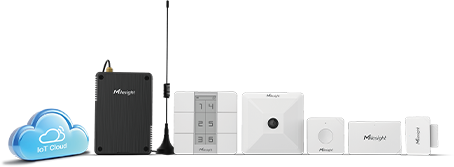

CoWork-B

Smart Agriculture

Why Choose Milesight

“

Indicium Dynamics selected the UC501 and EM300 UDL as we have had successful experience using these devices in similar projects before.

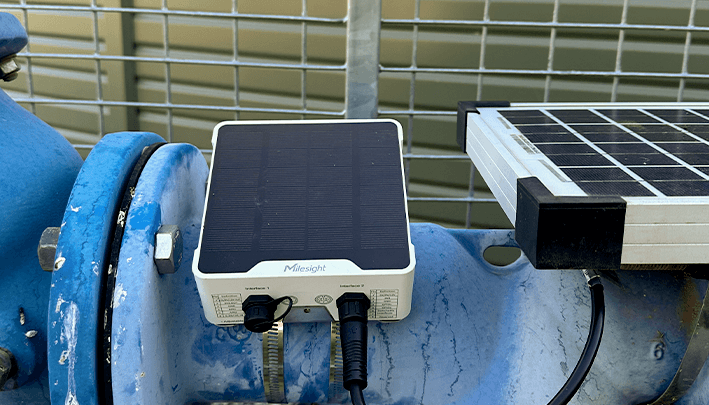

The Milesight devices were deployed to replace perviously installed equipment that has since failed. The upgraded of devices have also offered a number of improvements of the previously installed equipment. The UC501 features an integrated solar panel that removes the need for a much larger secondary solar panel, reducing the footprint of the installation.

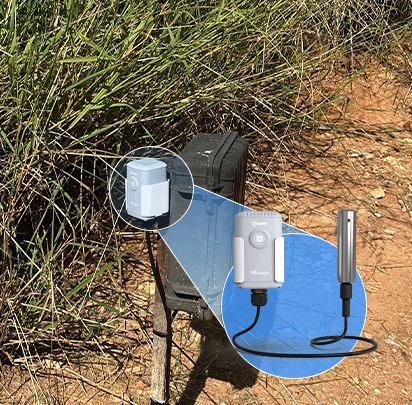

The EM300 has been installed on a dam monitoring the water level, the previously installed device monitored the water level every 4 hours, but the new EM300 has allowed us to increase monitoring to 15 minutes while still offering a much longer battey life on the equipment.

”
