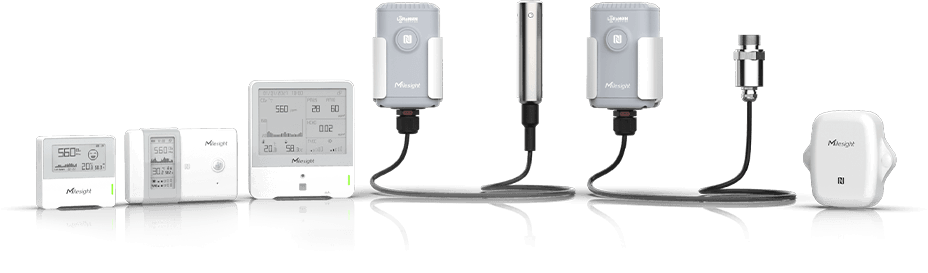

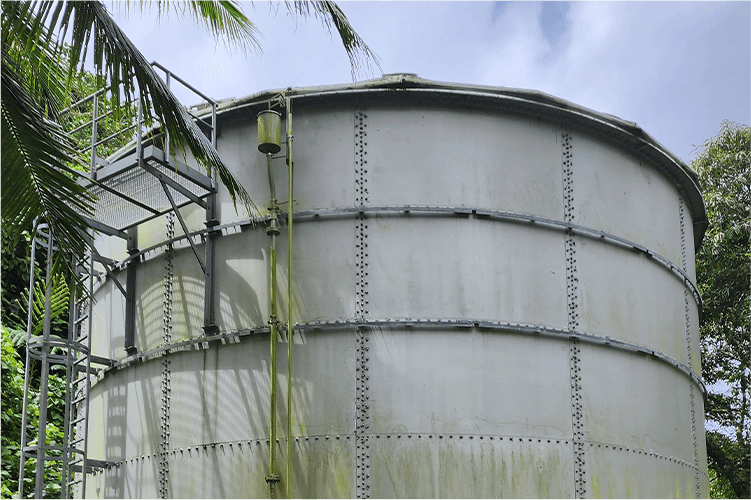

At each intake point, LoRaWAN® Pipe Pressure Sensors and Submisison Water Level Sensors from Milesight are employed to monitor different parameters, including buffer tank levels, pressure, and water volume produced.

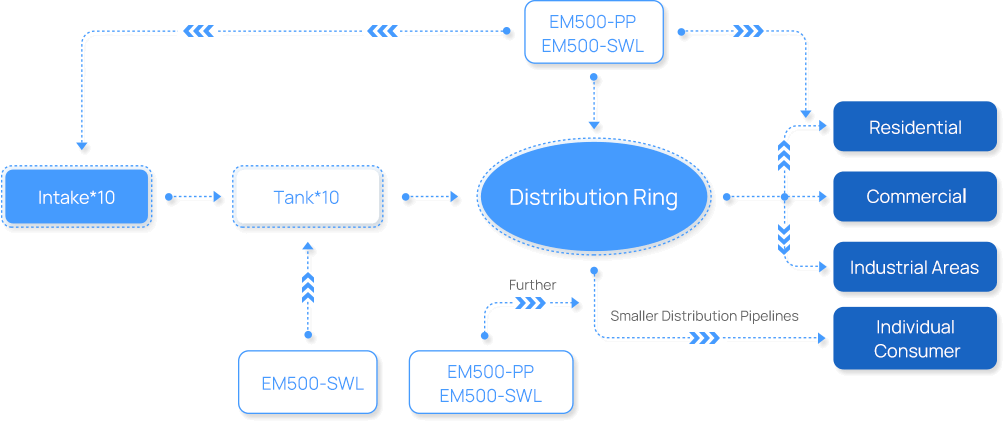

After treatment, the water from the ten main intake points is transported to the main distribution ring. Each intake point is connected to the main ring through pipelines equipped with connection points. These connection points are installed with water meters and Milesight EM500-PP Pipe Pressure sensors. The EM500-PP sensors are specifically designed to measure pressures of liquids and gases, facilitating pressure monitoring of tank levels and pipe pressure and leakages. The data collected by these sensors and the LoRaWAN® ModBus transceivers, which are connected to the water meters, are transmitted using LoRaWAN® technology.
The primary distribution ring serves as the core of the system, connecting various distribution pipelines that supply water to residential, commercial, and industrial areas. This network ensures fair access to water and maintains adequate pressure at each connection point. To regulate water flow and pressure, Milesight EM500-PP LoRaWAN® Pipe Pressure sensors are strategically placed along the main loop.

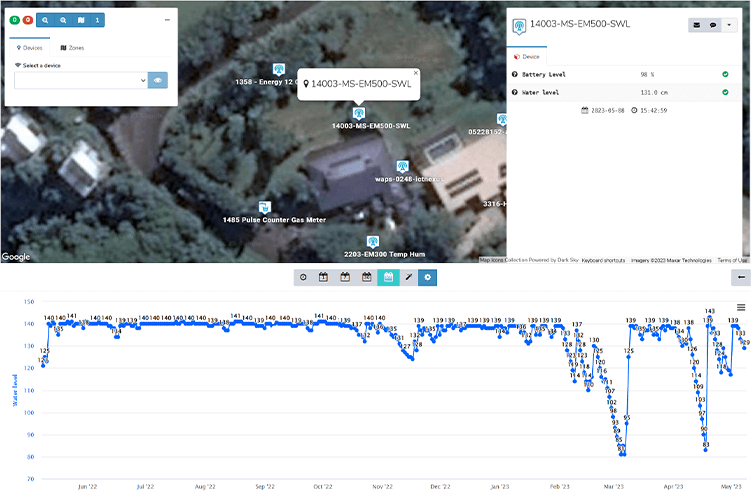

From the central ring, smaller distribution pipelines extend to individual consumers, delivering water to their respective locations. As part of future plans for the intakes and distribution, EM500-PP Pipe pressure sensors and EM500-SWL Submersible Water Level Sensors will be installed to accurately monitor water pressure and consumption, further enhancing the efficiency of the system.
