Enjoy Reliable Cellular Connectivity with Milesight
Milesight routers deliver powerful 4G to 5G solutions, ensuring reliable communication for essential applications. Choose Milesight to meet your critical connectivity needs confidently.
Milesight Industrial Cellular Routers
Guarantee Worry-Free Connections Anytime, Anywhere
- Highlights
- Applications
- Success Stories
- Products
Highlights of Milesight Industrial Routers
Stability
Milesight Router provides continuous and reliable connectivity with advanced stability features that minimize downtime and ensure timely recovery during disruptions.

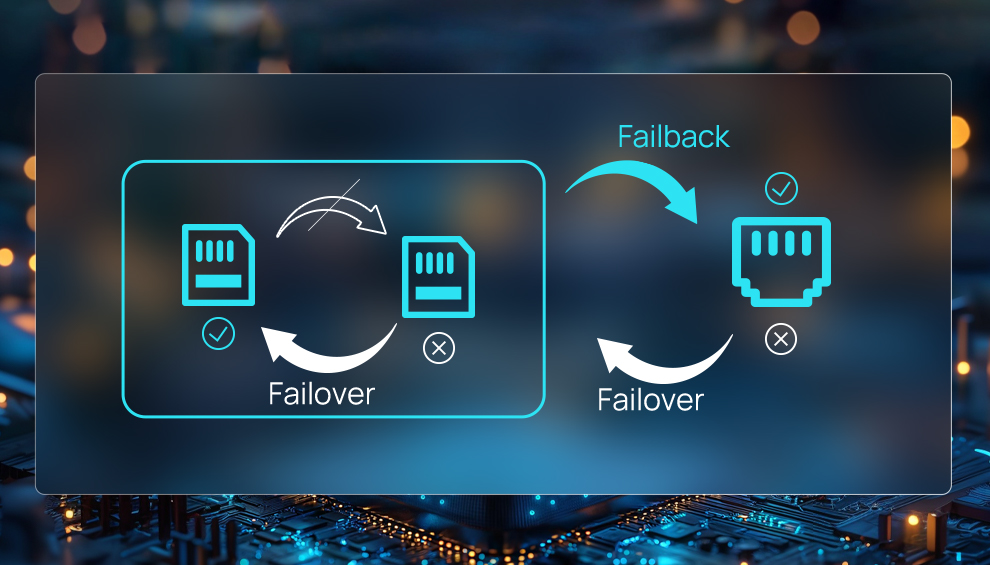

- Automated Failover/Failback Backup
- Embedded Watchdog
- Timely Alerts via SMS/Email
- Industrial Grade Design
Security
Milesight Router combines firewall and VPN capabilities, securing remote access tunnels and protecting critical asset connections with a robust firewall.
- Extensive VPN Protocol Support (OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE)
- Built-in Firewall Management
- RADIUS, TACACS+, LDAP, and Local Authentication
Adaptability
Milesight Routers boast exceptional adaptability, ensuring stable and reliable operation in diverse industrial environments, while supporting custom application development to simplify automation processes.
- Rich Interfaces (RS232, RS485,DI,DO,GNSS)
- Embedded Python SDK
- Node-Red Supported
- MQTT, TCP, HTTP, API Supported
Remotely

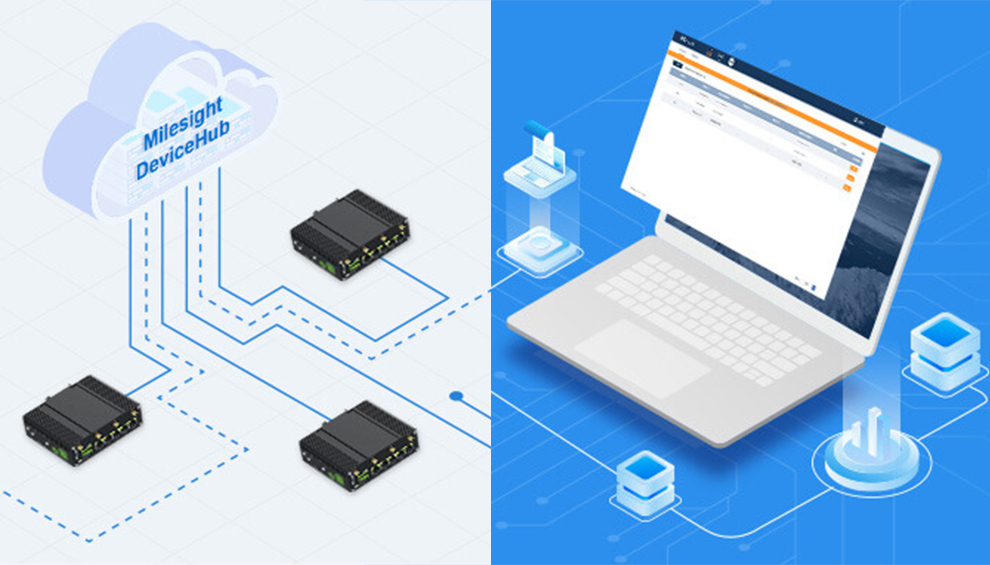

Free remote management via MilesightVPN and DeviceHub allows large-scale deployments, simplifying maintenance processes, and reducing field maintenance costs.
- Easy Connection via Authentication Code
- Connection Status Overview
- Remote and Secure Access to Field Devices
MilesightVPN
- Central Management
- Device Status Monitoring
- Remote & Bulk Configuration & OTA Upgrade
Milesight DeviceHub
Security
Adaptability
Remotely
Stability
01
04
Milesight Router Benefits Across Multiple Scenarios

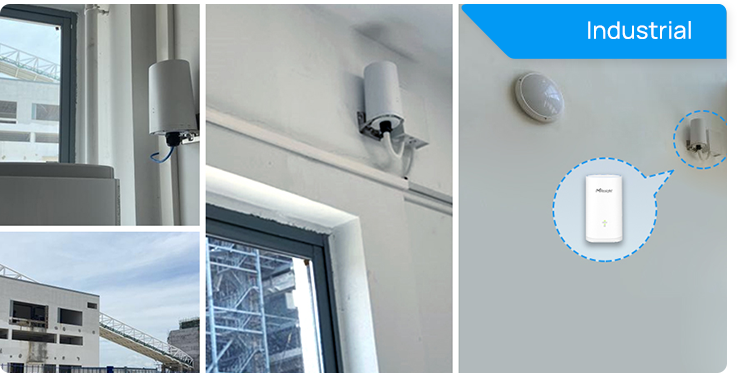

Industrial
Milesight Modem Routers provide reliable and secure connectivity for industrial automation, maximizing uptime and reducing costs.

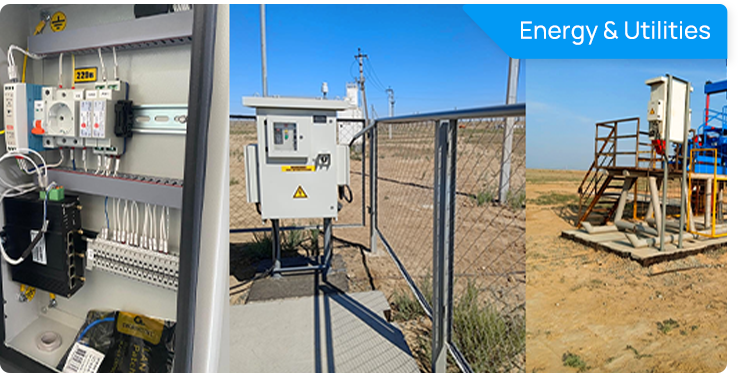

Energy & Utilities
Milesight Routers provide reliable communication for monitoring and managing energy and utility infrastructures, ensuring the 24/7 operation of power grids, gas lines, and water systems.

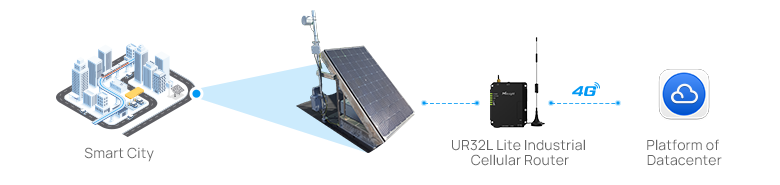

Smart Cities
Milesight Internet Routers are vital in smart cities, empowering smart parking, public safety, and building automation, thus improving city management and residents' quality of life.
Retail
Milesight Industrial Routers provide reliable communication for retail, allowing inventory monitoring, data transmission, and payment processing, thereby enhancing operational efficiency and customer satisfaction.
Transport
Milesight 4G/5G routers provide stable network connectivity with GNSS, ensuring real-time monitoring and data transmission in transportation, thereby enhancing overall system efficiency and safety.
Financial
Milesight Routers provide secure and reliable network solutions for financial institutions to protect sensitive data and ensure efficient operations.
Worldwide Success Stories
COUNTRIES
100
PARTNER
700
DEVICES CONNECTED
120,000

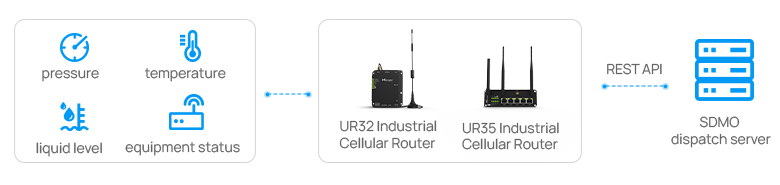

Milesight Smart IoT Solution Powered by Routers for Oil & Gas Production
Locations: Kazakhstan
Devices Deployed： 250pcs*UR32, 250pcs*UR35
Partner：Oil and Gas Service Alliance LLP
Milesight UR32/UR35 IoT Routers collect telemetry data from wells and control pump equipment without the need to send ModBus commands directly. They accept commands via REST API, simplifying integration with existing control systems and achieving high operational flexibility.
Case Download

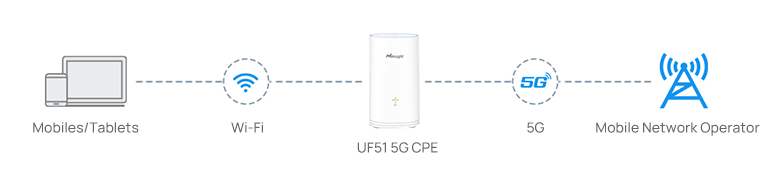

Milesight 5G CPE Ensures Seamless Connectivity in Power Plants
Locations: China
Devices Deployed： 80+pcs * UF51
Partner：The Beihai Power Plant Phase II
Milesight 5G CPE, integrated with Wi-Fi technology, ensures reliable, continuous, and high-speed data communication in extreme power plant environments. The wireless deployment helps to save costs, realize uninterrupted device connectivity, and enhance security and efficiency through secure data exchange on private networks.
Case Download

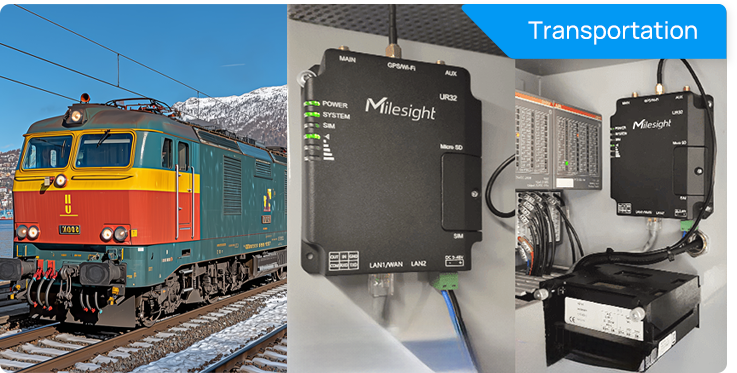

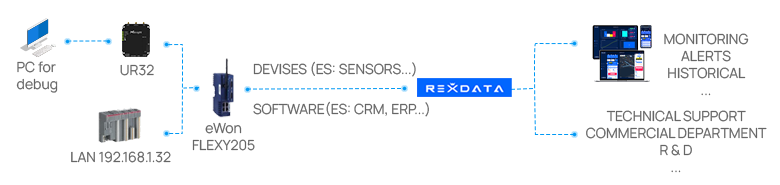

Milesight Facilitates in Remote Monitoring of Italy Rail Freight Transport
Locations: Italy
Devices Deployed： UR32
Partner：Railoc
The Italian rail freight company achieved real-time train monitoring and remote management by deploying Milesight UR32 industrial routers. UR32 offers efficient data transmission and reliable performance, reducing operational costs, improving service quality, and enhancing train operation safety.
Case Download

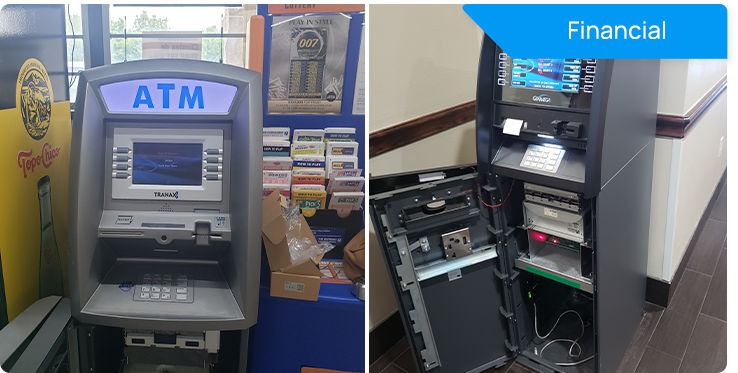

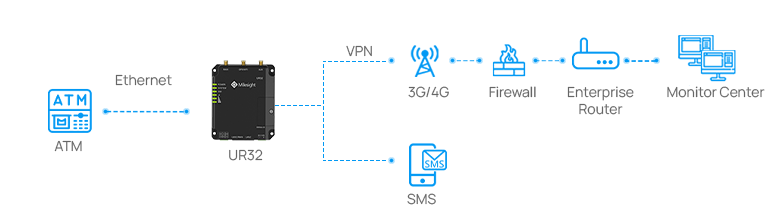

Milesight Cellular Connectivity Solution for ATM Machines
Locations: America
Devices Deployed： UR32
Partner：ATM's America
Milesight Mini Openvpn Router is tough and compact, fitting easily into ATMs. The UR32 router supports secure VPN and firewall to ensure data security, with automatic recovery and redundancy to keep the network "always online." No Ethernet connection is needed, making installation simple.
Case Download
Milesight Smooth 4G Connectivity for Data Center
Locations: Paris, France
Devices Deployed： UR32L
Partner：AIRICOM
Milesight UR32L Industrial LTE Router provides a reliable 4G network and 2 Ethernet ports for uninterrupted internet access in data centers. Its compact design allows easy installation in cabinets or machines, making it ideal for space-constrained data center environments, offering cost-effective performance.
Contact Us
Energy & Utilities
Industrial
Transportation
Financial
Smart City

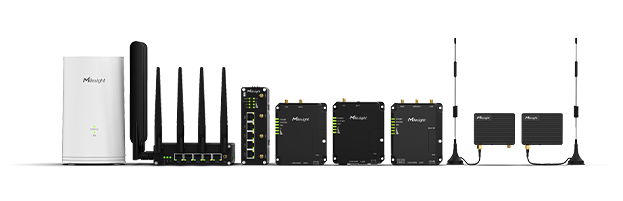

Industry-Leading Routers for All Needs
Milesight 4G Routers
Milesight 5G Routers
Mini
Rugged Metal Casing
-40°C to +70°C Operating Temp
Rich Industrial Interfaces(Except UR32L)
Python 3.7 (Except UR32L & UR41)
DeviceHub Remote Management
MilesightVPN Remote Access
UR41 Mini Size, Minimal Power Demand
- Industrial Grade Design for Harsh Environment
- Rugged and Lightweight
- Secure 4G Connectivity in a Compact Design
- Low Power Consumption with Smart Operating Modes
- Support GPS & Multiple Interfaces for Various Applications
Contact Us for More
Video
UR32L Perfectly Aligned withBudget and Needs
- Industrial Grade Design
- Rugged And Pocket-Sized Design
- Global 4G LTE Network
- Open VPN Tunnel and Various Protocols
- Ultra-High Protection System
- Stable Cellular and Ethernet Internet Access
Contact Us for More
UR32S Tailored for CCTV Surveillance
- Wi-Fi Client and AP Mode
- Global 4G LTE CAT4/3G Network
- NXP Processor
- IP30 Protection with Metal Housing
- VPN
Contact Us for More
Video

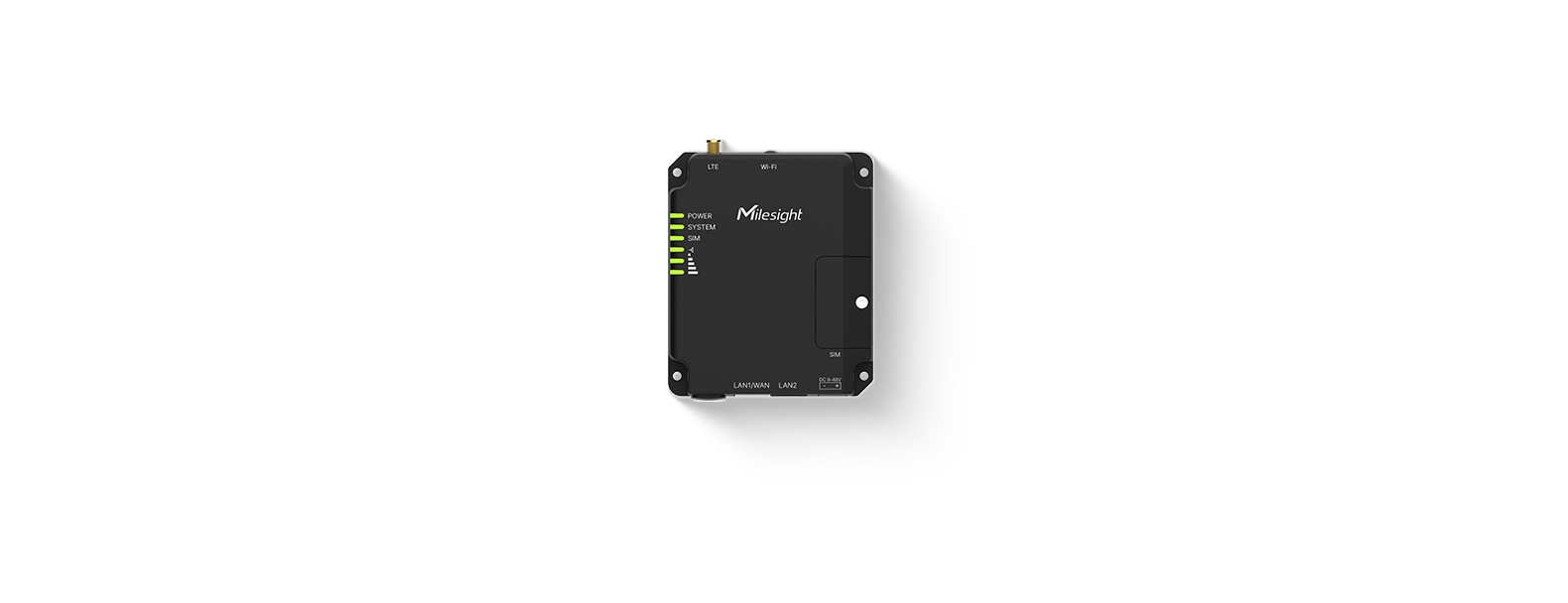

UR32 Accessible Excellence, Your Prime Choice
- Industrial Grade Design for Harsh Environment
- Rugged And Pocket-Sized Design
- Ultra-High Protection System
- Rich Interfaces for Multiple Applications
- Stable Cellular, Ethernet, and Wi-Fi Transmission
- Open VPN Tunnel and Various Protocols
Contact Us for More
Video
Versatile Excellence, All-Purpose Choice
- Industrial Grade Design for Harsh Environment
- Rugged But Exquisite Design
- Ultra-High Protection System
- Rich Interfaces for Multiple Applications
- Stable Cellular, Ethernet and Wi-Fi Transmission
- Open VPN Tunnel and Various Interface
Contact Us for More
Video
Mini
Lite
Special
Pro
Pro
Industrial
5G NR Sub-6 GHz
NSA & SA Modes
2.5 Gbps Downlink Speed
Ultra-reliable Low Latency DeviceHub Remote Management MilesightVPN Remote Access
UR75 5G Industrial Cellular Route
- Ultra-fast Connectivity and Ultra-high Reliability
- Rich Interfaces for Different Applications
- Industrial Grade Design for Harsh Environment
Contact Us for More
Video
UF51 5G CPE
- 5G Ultra Fast Processing Speed
- Ample Memory and Storage Capacity
- Wi-Fi 6 & Dual Band Supported
- Built-in Omnidirectional Antennas
- Highly-Accurate GNSS Positioning
- NSA & SA Modes
- IP67 Rating & UV Resistance
Contact Us for More
Video
Industrial
CPE
To Continue download, Register for Free
4G Routers
5G Routers
Performance | |||||
|---|---|---|---|---|---|
CPU | 528 MHz,ARM Cortex-A7 | 528 MHz,ARM Cortex-A7 | 528 MHz,ARM Cortex-A7 | 528 MHz,ARM Cortex-A7 | 528 MHz,ARM Cortex-A7 |
Storage Technologies | Memory：128 MB DDR3 RAM | Memory：128 MB DDR3 RAM | Memory：128 MB DDR3 RAM | Memory：128 MB DDR3 RAM | Memory：128 MB DDR3 RAM |
Python | NA | NA | NA | √ | √ |
Backhaul | |||||
4G | 1 x SIM Slot | 1 x SIM Slot | 1 x SIM Slot | 2 x SIM Slots | 2 x SIM Slots |
Ethernet | 1 x 10/100 Mbps(LAN) | 2 x 10/100 Mbps | 2 x 10/100 Mbps | 2 x 10/100 Mbps | 5 x 10/100 Mbps |
Wi-Fi | N/A | N/A | 2.4 GHz | 2.4 GHz (Optional) | 2.4 GHz (Optional) |
VRRP | √ | √ | √ | √ | √ |
WAN Fail-over | NA | √ | √ | √ | √ |
Communication Ability | |||||
Network Protocol | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. |
MQTT | √ | √ | NA | √ | √ |
Modbus | √ | NA | NA | √ | √ |
Communication Security & Quality | |||||
QoS | √ | √ | √ | √ | √ |
VPN | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server |
Firewall | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules |
IP Passthrough | √ | √ | √ | √ | √ |
AAA | Radius, TACACS+, LDAP, Local Authentication | Radius, TACACS+, LDAP, Local Authentication | Radius, TACACS+, LDAP, Local Authentication | Radius, TACACS+, LDAP, Local Authentication | Radius, TACACS+, LDAP, Local Authentication |
Multi-interfaces | |||||
Serial Ports | 1 x RS232 or RS485 (Software Switchable) | N/A | N/A | 1 x RS232 or RS485 (Hardware Optiona) | 1 × RS232 + 1 × RS485 (or 2 X RS485 Hardware Optional) |
DI/DO | 1 × DI + 1 × DO | N/A | N/A | 1 × DI + 1 × DO | 1 × DI + 1 × DO |
USB 2.0 | √ | N/A | N/A | N/A | N/A |
GNSS | √ | N/A | N/A | Optional | Optional |
Power | |||||
Power Input | 5-24 VDC or 5V/1A by USB | 9-48 VDC | 9-48 VDC | 9-48 VDC | 9-48 VDC |
PoE PSE | N/A | Optional | Optional | Optional | Optional |
Power Consumption | Idle: 78mA@12V | Typical 1.8 W, Max 2.2 W | Typical 1.8 W, Max 2.2 W | Typical 1.9 W, Max 2.4 W | Typical 3.9 W, Max 4.6 W |
Management | |||||
CLI | √ | √ | √ | √ | √ |
SMS Control | √ | √ | √ | √ | √ |
SNMP | √ | √ | √ | √ | √ |
TR069 | √ | √ | N/A | √ | √ |
DeviceHub | √ | √ | √ | √ | √ |
MilesightVPN | √ | √ | √ | √ | √ |
Strucal Design | |||||
Size | 70 x 55 x 22 mm | 108 x 90 x 26 mm | 108 x 90 x 26 mm | 108 x 90 x 26 mm | 135 x 103x 45 mm |
Protection | IP30 | IP30 | IP30 | IP30 | IP30 |
Application Fearures | |||||
In small embedded and require low power consumption scenario such as solar Powered monitoring,smart street light system, track and retail monitoring... | In small embedded and require low power consumption scenario such as solar Powered monitoring,smart street light system, track and retail monitoring... | In small embedded scenario and compatible to Milesight VMS platform directly | In small embedded and require low power consumption scenario such as solar Powered monitoring,smart street light system, track and retail monitoring... | With more interfaces and stronger performance for the industries and business buildings | |

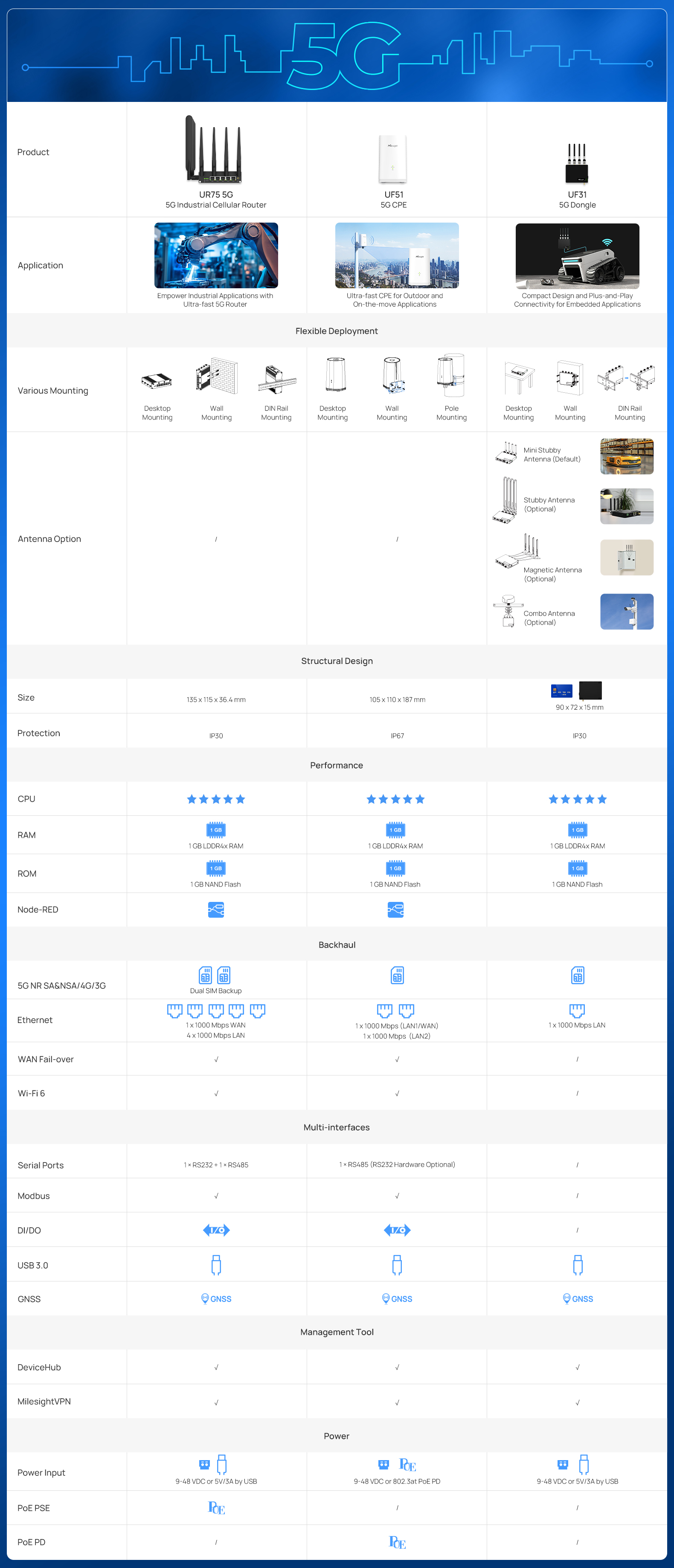

Performance | |||
|---|---|---|---|
CPU | 2GHz, Quad-Core ARM Cortex-A55 | 2GHz, Quad-Core ARM Cortex-A55 | 2GHz, Quad-Core ARM Cortex-A55 |
Storage Technologies | Memory:1 GB LDDR4x RAM Flash:1 GB NAND Flash | Memory:1 GB LDDR4x RAM Flash:1 GB NAND Flash | Memory:1 GB LDDR4x RAM Flash:1 GB NAND Flash |
Second Development | |||
Node Red | √ | √ | N/A |
Backhaul | |||
5G NR SA&NSA/4G/3G | 2 x SIM Slots | 1 x SIM Slots | 1 x SIM Slots |
Ethernet | 10/100/1000 Mbps (1*WAN&4*LAN) | 2 × 10/100/1000 Mbps (1*WAN&1*LAN or 2*LAN) | 10/100/1000 Mbps(1* AN) |
Wi-Fi 6 | √ | √ | Wi-Fi 5 |
Stability Function | |||
VRRP | √ | N/A | N/A |
WAN Fail-over | √ | √ | N/A |
Communication Ability | |||
Network Protocol | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. |
DDNS | √ | √ | N/A |
Modbus | √ | √ | N/A |
Communication Security & Quality | |||
QoS | N/A | ||
VPN | OpenVPN/IPsec/L2TP/PPTP Client, OpenVPN/IPsec Server | OpenVPN/IPsec/L2TP/PPTP Client, OpenVPN/IPsec Server | OpenVPN/IPsec Client, OpenVPN/IPsec Server |
Firewall | Access Control (ACL), DMZ, Port Mapping (DNAT), DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules |
IP Passthrough | √ | √ | N/A |
Multi-interfaces | |||
Serial Ports | 1 × RS232 + 1 × RS485 | 1 × RS485 (RS232 Hardware Optional) | N/A |
DI/DO | 1 × DI + 1 × DO | 1 × DI + 1 × DO | N/A |
USB 3.0 | √ | √ | √ |
GNSS | √ | √ | √ |
Power | |||
Power Input | 9-48 VDC or 5V/3A by USB | 9-48 VDC or 5V/3A by USB | 9-48 VDC or 5V/3A by USB |
PoE PSE | √ | N/A | N/A |
PoE PD | N/A | √ | N/A |
Management | |||
DeviceHub | √ | √ | √ |
MilesightVPN | √ | √ | √ |
SNMP | √ | √ | N/A |
Strucal Design | |||
Size | 135 x 115 x 36.4 mm | 105 x 110 x 218 mm | 90 x 72 x 15 mm |
Protection | IP30 | IP67 | IP30 |
Application Fearures | |||
5G Routers for ultra-fast 5G communication in industrail applications | Fix and ultra-fast connection foroutdoor deployment and moving vehicles | Compact design for embedded scenarios with ultra-fast 5G communication | |
