Experience 360° Views with
Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like Al Video Analytics, People Counting, Heat Map and People Flow Analytics, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.
360° Panoramic View
Offers a panoramic experience equivalent to over 4 regular network cameras but with higher efficiency. It provides a 360° surround view with no blind spots.

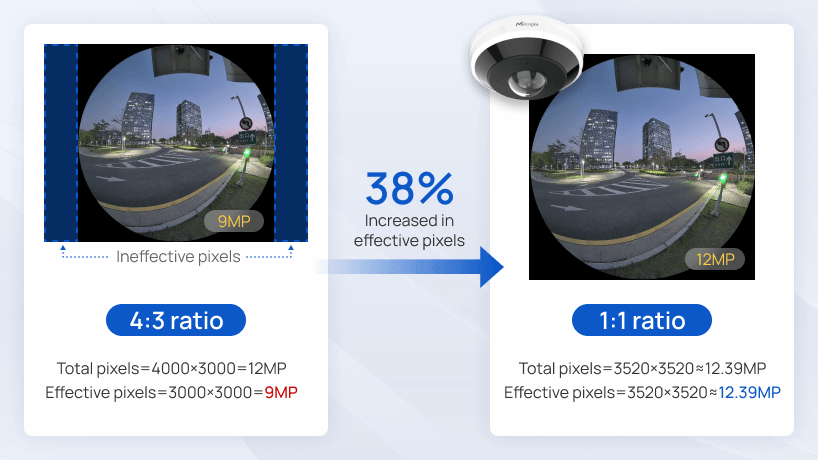

12MP Ultra High Definition
It features with 12MP ultra high definition which better restores the images to guarantee superb image quality. Introducing 360° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.

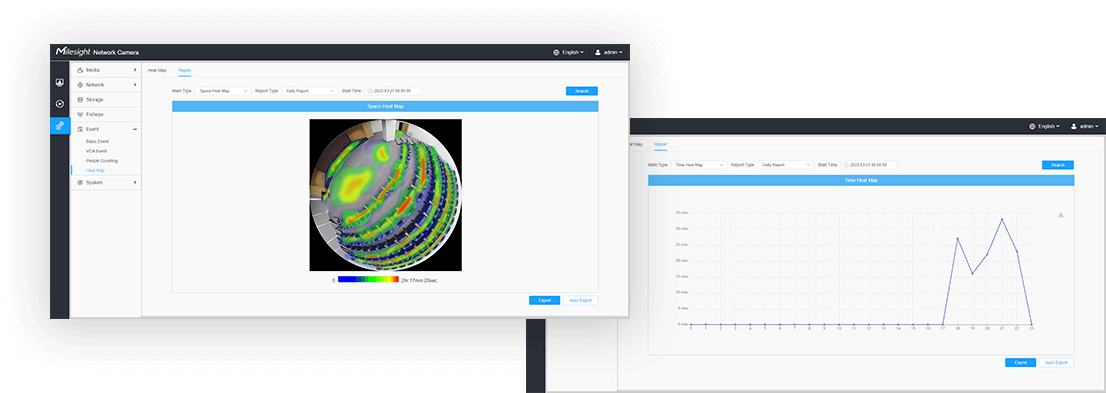

Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

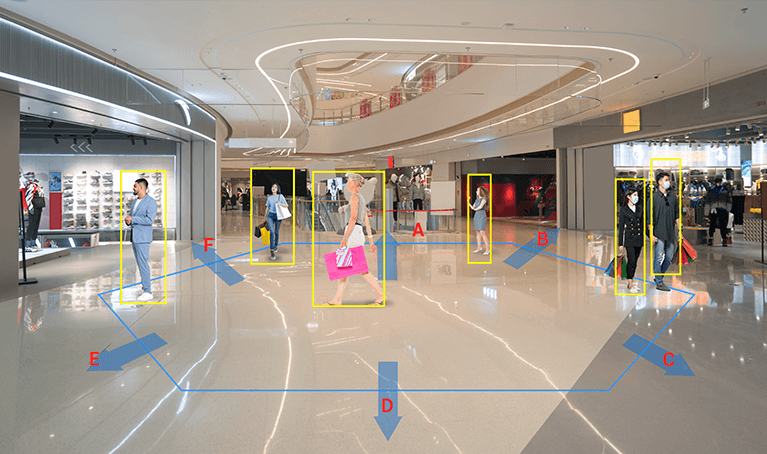

People Flow Analytics
Milesight People Flow Analytics function can analyze up to 6 different directions of people flow based on real-time tracking for space planning and business decisions making.

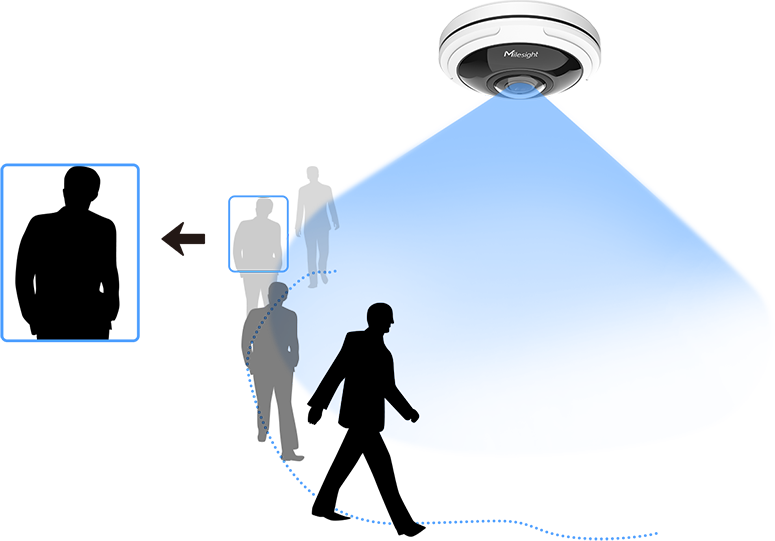

Fisheye Auto Tracking
With Fisheye Auto Tracking, Milesight Fisheye Camera enables automatic tracking of moving objects in the 360° Panoramic View. This ensures comprehensive security by digitally panning, tilting, and zooming within specific areas to avoid missing any details.

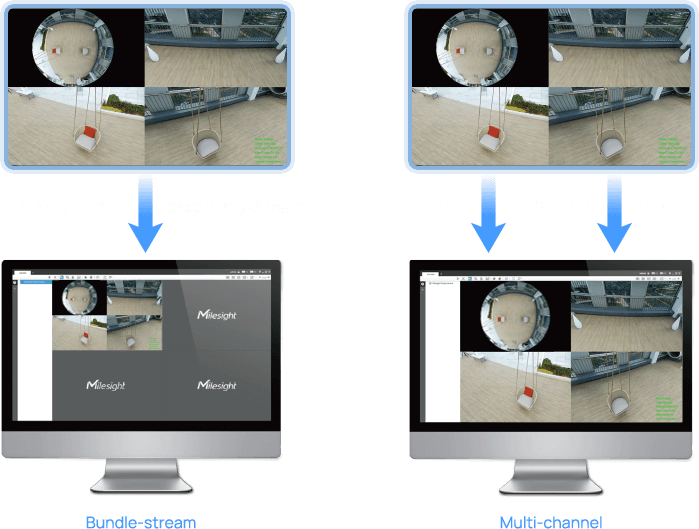

Two Kinds of Compatible
Modes
Bundle-stream Mode combines all channels into one for easy compatibility with NVR or VMS. Multi-channel Mode sends each original channel separately, allowing individual modifications.

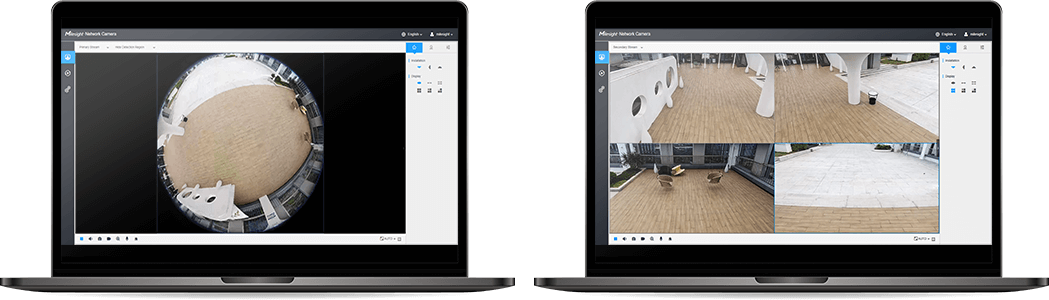

Powerful Decoding Capacity
The AI Fisheye Network Camera has strong decoding capabilities, delivering high performance in each channel. It supports up to 25fps@12MP under 1O and up to 30fps@3MP for each channel under 4R.

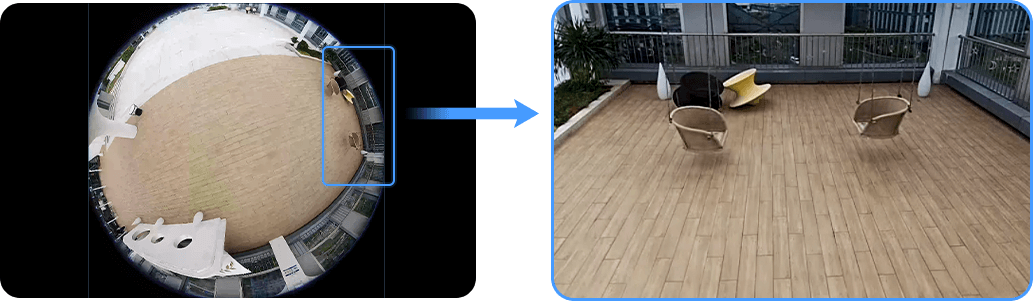

Stunning Dewarping Ability
Utilizes a superior chipset for excellent dewarping capability, which can convert the original Fisheye View into various display modes (1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 9R) to cater to different viewing requirements while maintaining high image quality.
Revolutionary IR Performance
The upgraded Smart IR II Technology extends the viewing range to 15m, using three High Beams and three Low Beams LEDs for improved image clarity. It ensures even IR light distribution in different situations, with adjustable brightness. The IR anti-reflection panel greatly enhances infrared light transmittance.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.009 Lux Ultra Low-light and 120dB Super WDR features make it well-suited for various special circumstances.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

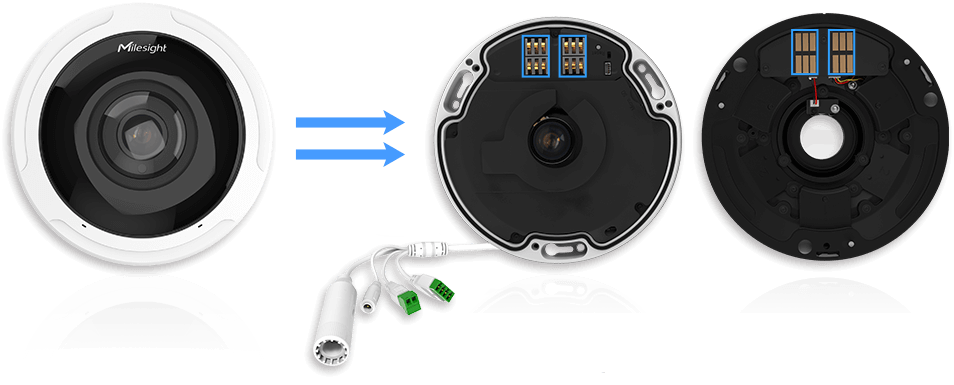

Delicate & Exquisite Design
The screw-free design and multiple-interface cable maintain a tidy appearance. The Power Supply Board replaces traditional cables, freeing up interior space and transforming the camera into a surveillance work of art both internally and externally.

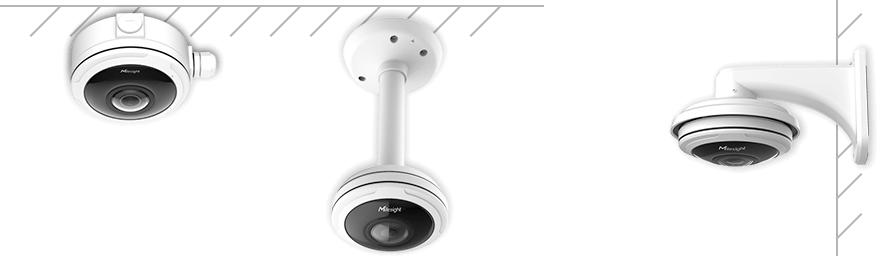

Various Accessories For Easy Installation
The Junction Box (A75) facilitates cable connection and concealment, while the Pendant Mount (A76) is used for ceiling or vertical installation and Wall Mount (A72) is for wall or parapet installations.
A75 Junction Box A76 Pendant Mount A72 Wall Mount
Specifications
NDAA
- MS-C8274-PA
- MS-C9674-PA
| Camera | |
|---|---|
| Name | 8MP NDAA AI 360° Fisheye Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.8, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Mount | M12 |
| Field of View | Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360° |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 15m |
| S/N | >55dB |
| Display | |
| Mount Mode | Ceiling Mount / Wall Mount / Flat Mount |
| Decoding Mode | On-board Dewarping/Client-side Dewarping |
| Display Mode | 11 display modes in total. Client-side Dewarping: Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R Wall Mount: 1O, 1P, 4R, 1O3R, 1P1R, 1P4R Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R On-board Dewarping: Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R Wall Mount: 1O, 1P, 4R, 1O3R, 1P3R, 1O1P3R Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R Note: 1. Only Fisheye in Multi-Channel Mode supports 1O1P3R. 2. The above letters O, P and R are explained as follows: O----Fisheye View; P----180° Fisheye View; 2P----2*180° Panoramic View; R----PTZ |
| Video | |
| Max. Input Resolution | 3840x2160 |
| Primary Stream | Fisheye View: 60Hz: 30fps@(2144x2144, 2048x2048, 1920x1920, 1280x1280) 50Hz: 25fps@(2144x2144, 2048x2048, 1920x1920, 1280x1280) |
| Secondary Stream | Fisheye View: 60Hz: 30fps@(1280x960, 1024x1024, 736x736, 576x576) 50Hz: 25fps@(1280x960, 1024x1024, 736x736, 576x576) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M/1000M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Auto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input(Only for Multi-interface Version), etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output(Only for Multi-interface Version), SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 6W MAX, 8W MAX(With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated metal housing |
| Dimensions | Φ140mmX45.4mm |
| Weight | 700g |
| Warranty | 3/5 Years |
* Naming Convention
P - PoE Supported
A - AI Series
| Camera | |
|---|---|
| Name | 12MP AI 360° Fisheye Network Camera |
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01Lux @F1.2, Color: 0.05Lux @F2.8, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.98mm@F2.8 |
| Mount | M12 |
| Field of View | Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360° |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 15m |
| S/N | >55dB |
| Display | |
| Mount Mode | Ceiling Mount / Wall Mount / Flat Mount |
| Decoding Mode | On-board Dewarping/Client-side Dewarping |
| Display Mode | 11 display modes in total. Client-side Dewarping: Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R Wall Mount: 1O, 1P, 4R, 1O3R, 1P1R, 1P4R Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R On-board Dewarping: Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R Wall Mount: 1O, 1P, 4R, 1O3R, 1P3R, 1O1P3R Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R Note: 1. Only Fisheye in Multi-Channel Mode supports 1O1P3R. 2. The above letters O, P and R are explained as follows: O----Fisheye View; P----180° Fisheye View; 2P----2*180° Panoramic View; R----PTZ |
| Video | |
| Max. Input Resolution | 4000x3000 |
| Primary Stream | Fisheye View: 60Hz: 30fps@(3000x3000, 2560x2560, 1920x1920, 1280x1280) 50Hz: 25fps@(3000x3000, 2560x2560, 1920x1920, 1280x1280) |
| Secondary Stream | Fisheye View: 60Hz: 30fps@(1280x960, 1024x1024, 736x736, 576x576) 50Hz: 25fps@(1280x960, 1024x1024, 736x736, 576x576) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M/1000M Ethernet Port |
| Audio I/O | Built-in Microphone and Audio Input/Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Auto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP upload, SMTP upload, SD card record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 6W MAX, 11W MAX(With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated metal housing |
| Dimensions | Φ140mmX45.4mm |
| Weight | 700g |
| Warranty | 3/5 Years |
* Naming Convention
P - PoE Supported
A - AI Series
A01 Pole Mount
- Weight: 720g
- Dimension: 170*51.5*152.6mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A42-L Extension Lever
- Weight: 330g
- Dimension: Φ 55*255mm
- Installation Environment: Used as extensions for pendant mount
A72 V2 Wall Mount
- Weight: 575g
- Dimension: 145*133*242mm
- Installation Environment: For wall or parapet installations
A75 Junction Box
- Weight: 200g
- Dimension: 145*167*33.5mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
A76 V2 Pendant Mount
- Weight: 620g
- Dimension: Φ 145*L (L is default as 290mm, also can be extended with A42-L)
- Installation Environment: Used to install cameras on a ceiling or horizontal structure
