AI Road Traffic Radar
Pro Bullet Plus Camera
Integrate 3D Radar, AI and LPR into One
3D Radar Real-time Speed Detection for Safer Road
AI Road Traffic Radar
- Real-time Speed Measurement
- Traffic Violation Detection
- Integrated 3D Radar
- Intelligent AI-powered LPR Algorithm
- 4 Lanes Monitoring at Once
- 4X/12X AF Lens
- 1/2'' Sensor & 0.002Lux Starlight
- 90fps High Frame Rate
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Road Traffic Management
- Radar Pro Bullet Plus Camera

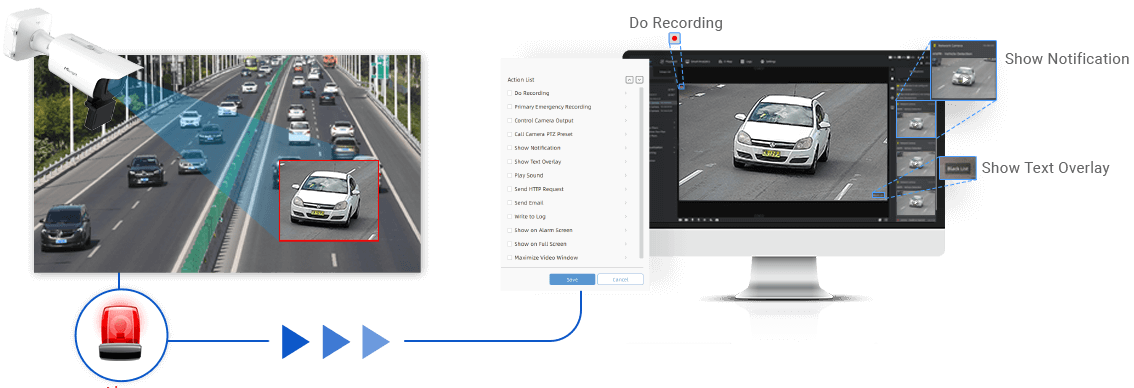

Traffic Violation Detection
Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Speeding Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

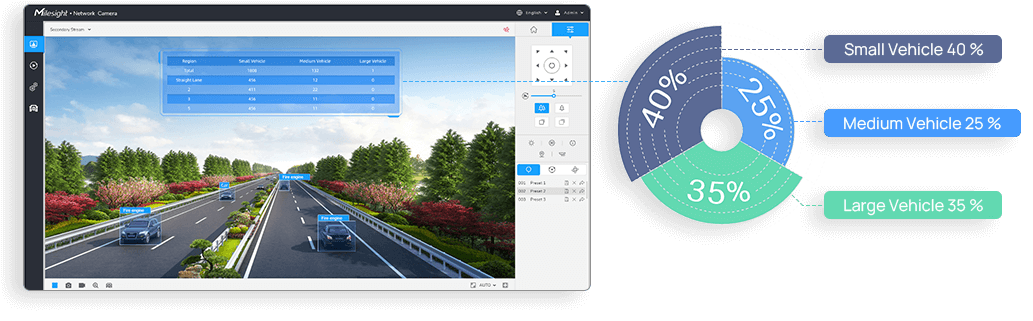

Traffic Flow Statistics
The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

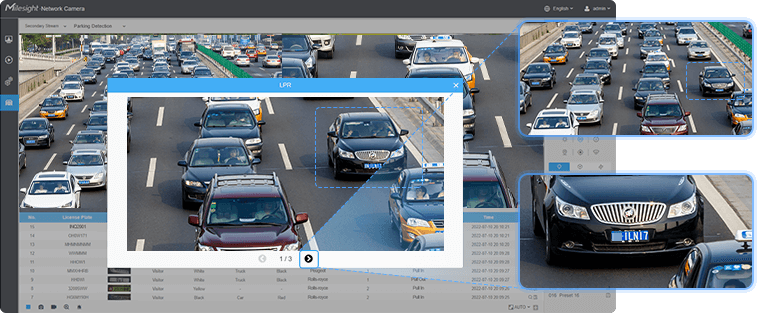

Evidence Camera Linkage
Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.
LPR Smart Search
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle type & color, plate color, plate number, speed, direction and etc., ensuring efficient event investigations and intelligent AI road traffic monitoring. It also supports manual export and auto export for easy management.

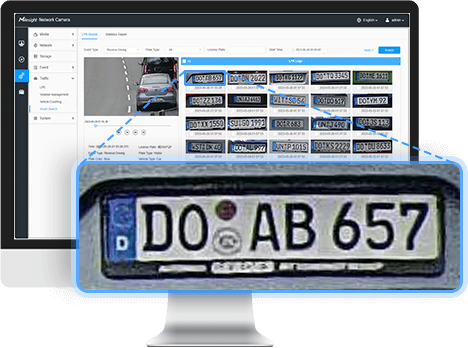

Plate Data Management
A number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems.
On-edge Plate Management
Standalone black/white list management realizes the fast implementation for barrier control.
Milesight Back-ends Integration
Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.
Third-party VMS Integration
Various CGI/APIs and interfaces, protocols like Wiegand, TCP, HTTP make it easy to integrate with all data being pushed to third-party VMS or platforms.

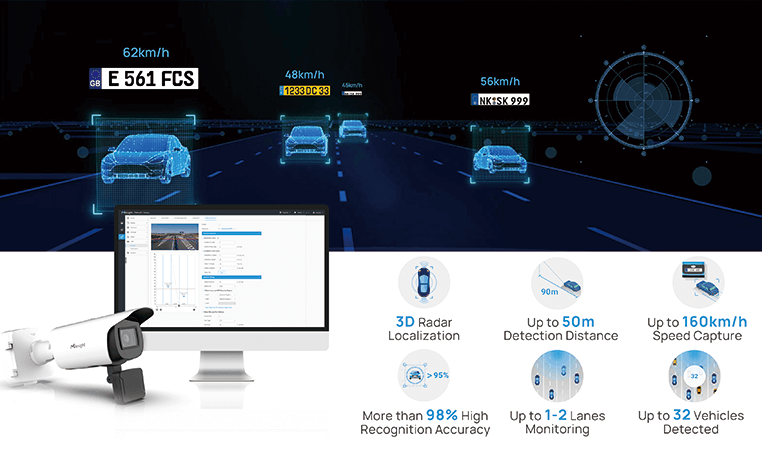

Advanced 3D Radar
Technology
3D Radar, AI and LPR are innovatively combined to one camera that not only enables to identify vehicles and read plates accurately, but also provides extra real-time data of vehicle speed and direction. Additionally, the high environmental adaptability of radar module offers precise detected data in any weather conditions.

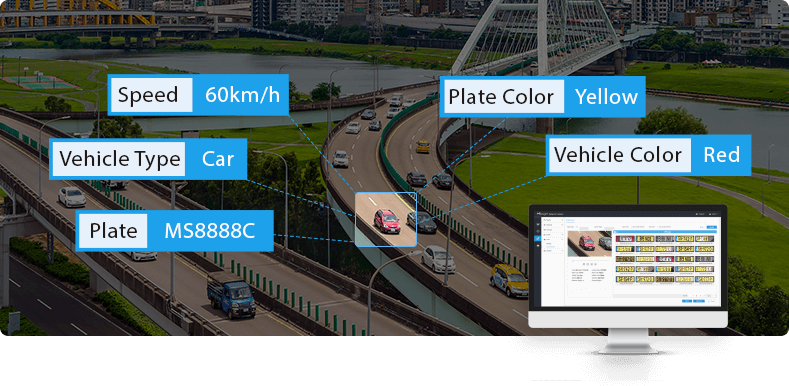

Intelligent AI-powered
LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Radar Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, make, color, etc., generating reliable traffic insights to improve safety and mobility.
Superior Image Quality
Milesight applies Sony's high sensitive 1/2" sensor whose capacity is approximately twice than that of the conventional ones. Its high sensitivity is designed for capturing saturated and sharp images even in pitch dark environment. Milesight AI Road Traffic Radar Pro Bullet Plus Camera is coupled with the 90fps high frame rate that delivers quality images with no latency despite of the high-speed movement.
By Conventional Camera
By Milesight Camera
1/2'' Sensor
90fps High Frame Rate
4K Viewing Experience
Smart IR II

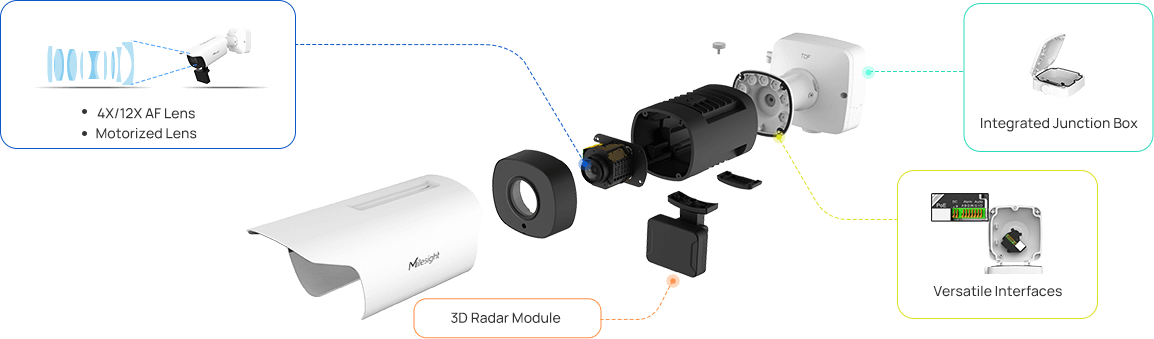

Easy Deployment and Compact Structure
As an all-in-one 3D radar camera, the radar module is directly integrated in the camera, which is easy to deploy for the users. The well-designed integrated junction box and versatile interfaces ensure installation efficiency.
Specifications
NDAA
- TS4466-X4RVPE
- TS5366-X12VPE
- TS2866-X4TVPE
- TS2966-X12TVPE
- TS8266-X4VPE
Non-NDAA
- TS2866-X4TVPC
| Camera | |
|---|---|
| Name | AI Road Traffic Radar Pro Bullet Plus Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 180m |
| S/N | >55dB |
| Lens | |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F1.7 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 95m during the day; Up to 45m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Radar | |
| Working Frequency | 60GHz, 61~62GHz |
| Capture Rate | >99% (Traffic jam >95%) |
| Lane Coverage | 1~4 Lanes (Recognition ≥95% individually） |
| Tracking Target | Up to 32 |
| Speed Detection Range | ±5km/h~±120km/h |
| Speed Detection Accuracy | ±0.36km/h |
| Detection Distance | Up to 90m |
| Distance Detection Accuracy | ±0.4m |
| Angle Measurement Accuracy | ±0.5° |
| Installation Height | 2~7m |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 5~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 9W MAX 16W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance |
| Surge Protection | 4KV |
| Weight | 1623g |
| Dimensions | 320mmX134mmX171mm |
| Warranty | 3/5 Years |
* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | AI Road Traffic Radar Pro Bullet Plus Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 180m |
| S/N | >55dB |
| Lens | |
| Lens | 5.3~64mm, 12X Optical Zoom |
| Field of View | H57°~H4°/D69°~D5°/V44°~V1° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 150m during the day; Up to 80m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Radar | |
| Working Frequency | 60GHz, 61~62GHz |
| Capture Rate | >99% (Traffic jam >95%) |
| Lane Coverage | 1~4 Lanes (Recognition ≥95% individually） |
| Tracking Target | Up to 32 |
| Speed Detection Range | ±5km/h~±120km/h |
| Speed Detection Accuracy | ±0.36km/h |
| Detection Distance | Up to 90m |
| Distance Detection Accuracy | ±0.4m |
| Angle Measurement Accuracy | ±0.5° |
| Installation Height | 2~7m |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 5~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 9W MAX 15W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance |
| Surge Protection | 4KV |
| Weight | 1623g |
| Dimensions | 320mmX134mmX171mm |
| Warranty | 3/5 Years |
* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | AI Road Traffic Radar Pro Bullet Plus Camera |
| Image Sensor | 1/2″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 180m |
| S/N | >55dB |
| Lens | |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F1.7 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 95m during the day; Up to 45m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Radar | |
| Working Frequency | 60GHz, 61~62GHz |
| Capture Rate | >99% (Traffic jam >95%) |
| Lane Coverage | 1~4 Lanes (Recognition ≥95% individually） |
| Tracking Target | Up to 32 |
| Speed Detection Range | ±5km/h~±120km/h |
| Speed Detection Accuracy | ±0.36km/h |
| Detection Distance | Up to 90m |
| Distance Detection Accuracy | ±0.4m |
| Angle Measurement Accuracy | ±0.5° |
| Installation Height | 2~7m |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 5∼95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 9W MAX, 16W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance |
| Surge Protection | 4KV |
| Weight | 1623g |
| Dimensions | 320mmX134mmX171mm |
| Warranty | 3/5 Years |
* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | AI Road Traffic Radar Pro Bullet Plus Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 180m |
| S/N | >55dB |
| Lens | |
| Lens | 5.3~64mm, 12X Optical Zoom |
| Field of View | H61°~H5°/D69°~D5°/V36°~V2° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 110m during the day; Up to 55m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Radar | |
| Working Frequency | 60GHz, 61~62GHz |
| Capture Rate | >99% (Traffic jam >95%) |
| Lane Coverage | 1~4 Lanes (Recognition ≥95% individually） |
| Tracking Target | Up to 32 |
| Speed Detection Range | ±5km/h~±120km/h |
| Speed Detection Accuracy | ±0.36km/h |
| Detection Distance | Up to 90m |
| Distance Detection Accuracy | ±0.4m |
| Angle Measurement Accuracy | ±0.5° |
| Installation Height | 2~7m |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 5∼95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 9W MAX, 16W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance |
| Surge Protection | 4KV |
| Weight | 1623g |
| Dimensions | 320mmX134mmX171mm |
| Warranty | 3/5 Years |
* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | AI Road Traffic Radar Pro Bullet Plus Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 180m |
| S/N | >55dB |
| Lens | |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F1.7 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 130m during the day; Up to 60m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Radar | |
| Working Frequency | 60GHz, 61~62GHz |
| Capture Rate | >99% (Traffic jam >95%) |
| Lane Coverage | 1~4 Lanes (Recognition ≥95% individually） |
| Tracking Target | Up to 32 |
| Speed Detection Range | ±5km/h~±120km/h |
| Speed Detection Accuracy | ±0.36km/h |
| Detection Distance | Up to 90m |
| Distance Detection Accuracy | ±0.4m |
| Angle Measurement Accuracy | ±0.5° |
| Installation Height | 2~7m |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 5∼95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 9W MAX, 15W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance |
| Surge Protection | 4KV |
| Weight | 1623g |
| Dimensions | 320mmX134mmX171mm |
| Warranty | 3/5 Years |
* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Model | TS2866-X4TVPC{Non-NDAA,EOL} |
| Name | AI Road Traffic Radar Pro Bullet Plus Camera |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR Pro |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6-F1.7 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| Illumination Distance | Up to 70m during the day; Up to 35m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection |
| Smart Traffic Function | Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management |
| White/Black List | Up to 1,000 records inside the camera |
| LPR Smart Search | Support |
| Radar | |
| Working Frequency | 60GHz, 61~62GHz |
| Capture Rate | >99% (Traffic jam >95%) |
| Lane Coverage | 1~4 Lanes (Recognition ≥95% individually） |
| Tracking Target | Up to 32 |
| Speed Detection Range | ±5km/h~±120km/h |
| Speed Detection Accuracy | ±0.36km/h |
| Detection Distance | Up to 90m |
| Distance Detection Accuracy | ±0.4m |
| Angle Measurement Accuracy | ±0.5° |
| Installation Height | 2~7m |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Frame Rate | 60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 5∼90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 8W MAX 14W MAX (With IR on) |
| Surge Protection | 4KV |
| Weather Proof | Up to IP67-rated for weather-resistant performance |
| Housing | Vandal-proof IK10-rated Metal Housing(Without Radar Module) |
| Dimensions | 320mmX134mmX171mm |
| Weight | 1623g |
| Warranty | 3/5 Years |
* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series
A01 Pole Mount
- Weight: 720g
- Dimension: 170*51.5*152.6mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A62 Junction Box
- Weight: 510g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
