NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

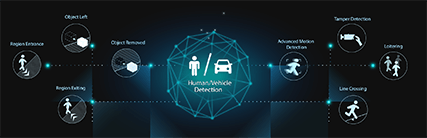

AI Video Analytics
Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.

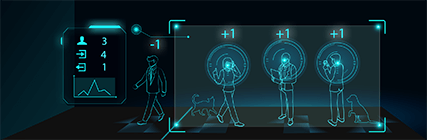

People Counting
Milesight People Counting Technology provides high accuracy and real-time data based on AI algorithm, with statistic reports for further analysis. It is a reliable and efficient way to understand the flow movement and make fast decision on security management. By analyzing the data and trend, you can also identify the peak of occupancy and increase the operational efficiency of the business.
Leading-edge H.265+ Compression

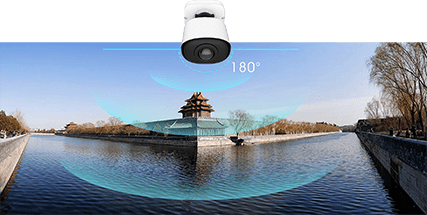

180° Panoramic View
The NDAA AI 180° Panoramic Mini Bullet Network Camera is perfect for whole picture viewing experience. It catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the bullet model.

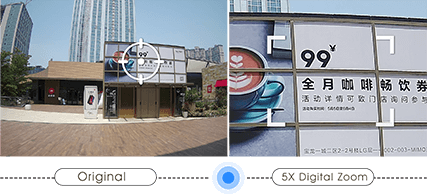

4K Ultra High Definition
The NDAA AI 180° Panoramic Mini Bullet Network Camera features with 4K ultra high definition which better restores the images to guarantee superb image quality of 3840x2160. The camera is a special model which produces spherical image and will have the dewarp process to adjust the original images to offer presented images. Therefore, the high resolution is vital for the model.

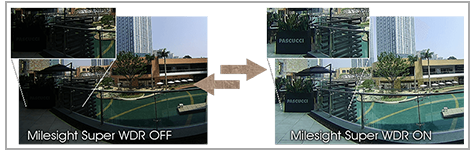

120dB Super WDR
Milesight's sensor-based WDR technology allows the NDAA AI 180° Panoramic Mini Bullet Network Camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

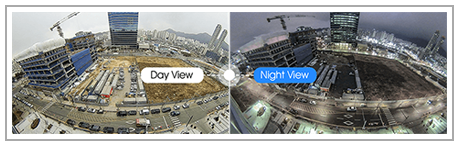

0.005Lux Ultra Low-light
The NDAA AI 180° Panoramic Mini Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

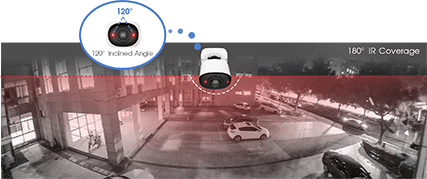

Revolutionary IR Performance
To maximize the IR performance, the NDAA AI 180° Panoramic Mini Bullet Network Camera innovated both in the structure and technology. With two IR LEDs which has angles to truly realize the 180° IR coverage, the IR design also features adjustable illumination intensity IR LEDs to guarantee IR performance. And the IR reflection is ably avoided by the separated IR LEDs and Lens, achieving the best effect.

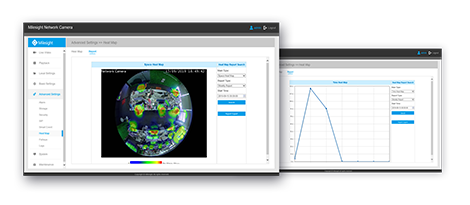

Advanced Heat Map
With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

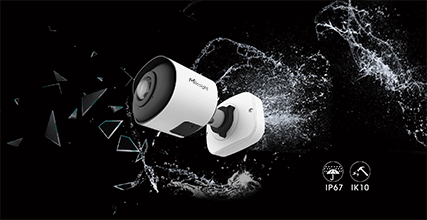

IP67 & IK10
Supporting IP67-rated weather proofing and IK10-rated vandal proofing which are the leading level of the industry, the NDAA AI 180° Panoramic Mini Bullet Network Camera is well protected against adverse impacts to ensure the robust performance.

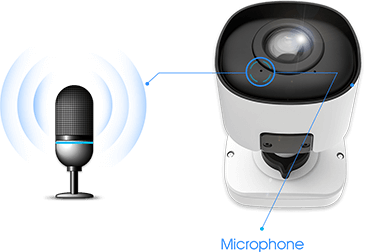

Advanced Built-in Microphone
With the built-in microphone which adopts the advanced codec, the NDAA AI 180° Panoramic Mini Bullet Network Camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance.

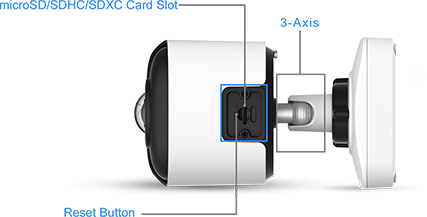

Exquisite Design
With ultra mini size of 95.8mmX74mmX158.5mm, the NDAA AI 180° Panoramic Mini Bullet Network Camera is a truly mini bullet with no compromise on the functionality. The considerate structure and the 3-axis mechanical design make sure of the network camera's best ease of use, realizing the greatest user experience.

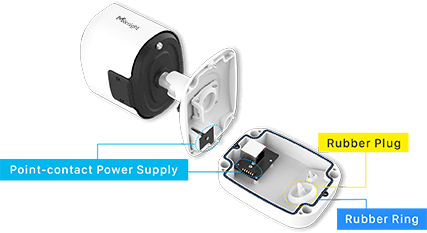

Integrated Junction Box
The well-designed Integrated Junction Box ensures efficient and simple installation. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of unique IP67-rated weather-proof design and pioneering Point-contact Power Supply, the Integrated Junction Box is able to offer stable operation and supreme user-experience.
- MS-C5365-PE
- MS-C8165-PE
- MS-C5365-PA
- MS-C8165-PA
| Camera | Name | 5MP AI 180° Panoramic Mini Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.008Lux@F2.0, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | 1.68mm @F2.0 | |
| Mount | M12 | |
| Field of View | H180°/V95° | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 15m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 2592x1944(Original) |
| Primary Stream | 60HZ:30fps@(2560x1440, 1920x1080, 1280x720) 50HZ:25fps@(2560x1440, 1920x1080, 1280x720) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | N/A | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap. | |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0~95%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 7W MAX, 9W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Weight | 630g | |
| Dimensions | 95.8mmX74mmX158.5mm | |
| Warranty | 3/5 Years |
| Camera | Name | 4K AI 180° Panoramic Mini Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.012Lux@F2.0, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | 1.68mm @F2.0 | |
| Mount | M12 | |
| Field of View | H180°/V86° | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 15m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 25fps@(3840x2160,3440x1936,3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) | |
| Secondary Stream | 60Hz/50Hz:25fps@(704x576, 640x480, 640x360) | |
| Tertiary Stream | 60Hz/50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | N/A | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap. | |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0~95%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 7W MAX, 9W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Weight | 630g | |
| Dimensions | 95.8mmX74mmX158.5mm | |
| Warranty | 3/5 Years |
| Camera | Name | 5MP NDAA AI 180° Panoramic Mini Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.005Lux @F1.2, Color: 0.008Lux @F2.0, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | 1.68mm @F2.0 | |
| Mount | M12 | |
| Field of View | H180°/V95° | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | 180° IR Illumination Up to 15m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 2592x1944(Original) |
| Primary Stream | 60Hz: 30fps@(2592x1944)(Original), 30fps@(2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(2592x1944)(Original), 25fps@(2560x1440, 1920x1080, 1280x720) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 8 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | N/A | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 5W MAX, 8W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Dimensions | 95.8mmX74mmX158.5mm | |
| Weight | 630g | |
| Warranty | 3/5 Years |
| Camera | Name | 4K NDAA AI 180° Panoramic Mini Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.01Lux @F1.2, Color: 0.012Lux @F2.0, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | 1.68mm @F2.0 | |
| Mount | M12 | |
| Field of View | H180°/V86° | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | 180° IR Illumination Up to 15m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 25fps@(3840x2160), 30fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(3840x2160), 25fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 8 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | N/A | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 6W MAX, 9W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Dimensions | 95.8mmX74mmX158.5mm | |
| Weight | 630g | |
| Warranty | 3/5 Years |
- * Naming Convention
- P - PoE Supported
- A/E - AI Series
