NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

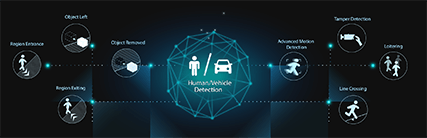

AI Video Analytics
Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.

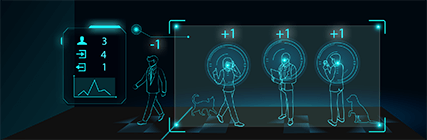

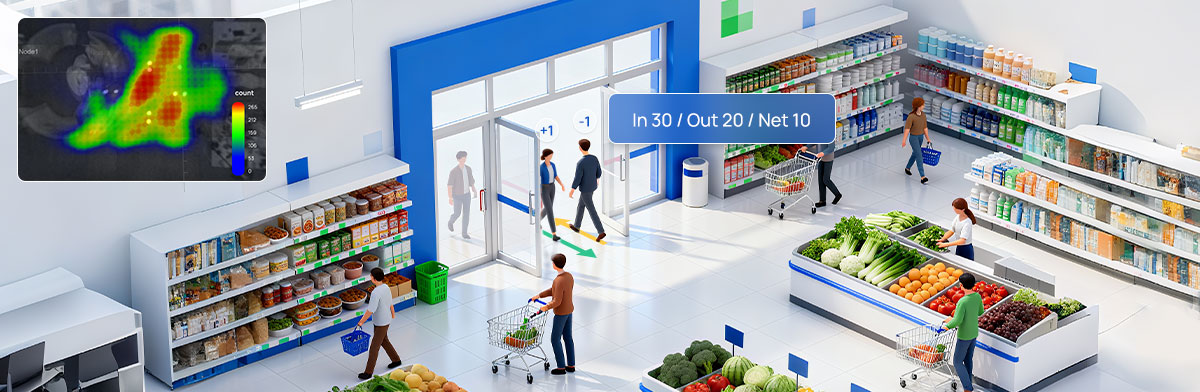

People Counting
Milesight People Counting Technology provides high accuracy and real-time data based on AI algorithm, with statistic reports for further analysis. It is a reliable and efficient way to understand the flow movement and make fast decision on security management. By analyzing the data and trend, you can also identify the peak of occupancy and increase the operational efficiency of the business.
Leading-edge H.265+ Compression

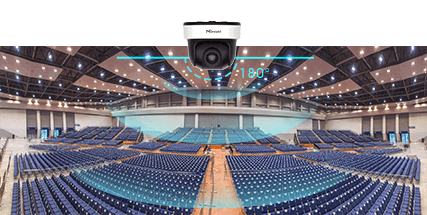

180° Panoramic View
As a dome-shaped camera, Milesight NDAA AI 180° Panoramic Mini Dome Network Camera is perfect for ultra-wide area monitoring, especially because it can great merge itself into surroundings. It catches 180° horizontal and 95° vertical coverage, achieving extra wide angle viewing with only one single sensor.
4K Ultra High Definition
The NDAA AI 180° Panoramic Mini Dome Network Camera features 4K ultra high resolution to guarantee superb image quality of 3840x2160. Introducing 180° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.

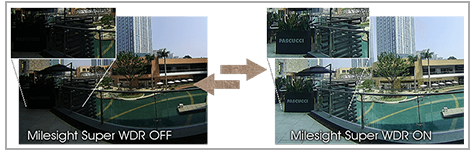

120dB Super WDR
Milesight's sensor-based WDR technology allows the NDAA AI 180° Panoramic Mini Dome Network Camera to record greater scene details with true color reproduction even under the extreme backlight and high contrast conditions. The ratio that the brightest light signal values to the darkest light signal values is up to 120dB.

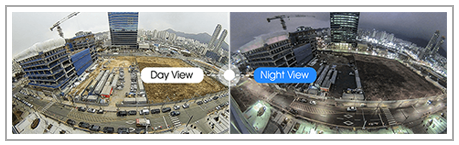

0.005Lux Ultra Low-light
The NDAA AI 180° Panoramic Mini Dome Network Camera is able to deliver high detailed color images even in extremely low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

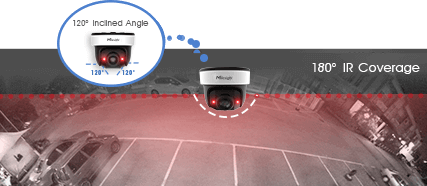

New Generation Panoramic IR Technology
Tailored for Milesight panoramic network camera, the new generation panoramic IR technology adopts the original structure design to achieve the best IR anti-reflection effect. With the adjustable illumination intensity, two well-designed IR LEDs truly realize the 180° IR coverage.

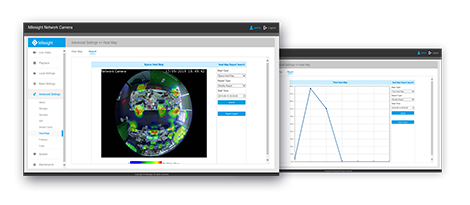

Advanced Heat Map
The built-in Milesight Advanced Heat Map analyzes customers' behavior to reveal insights for better business management. Supporting scenario-adaptable and flexible configurations, it can automatically export the intuitive statistical reports in time or space pattern as needed.

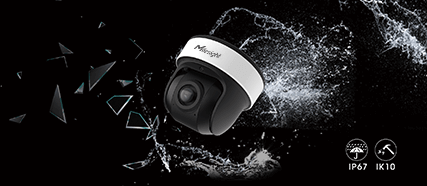

IP67 & IK10
Supporting IP67-rated weather proofing and IK10-rated vandal proofing which are the leading level of the industry, the AI 180° Panoramic Mini Dome Network Camera is well protected against adverse impacts to ensure the robust performance.

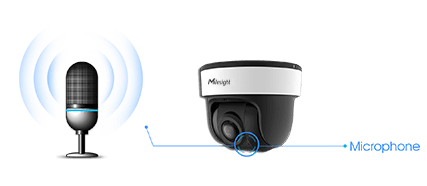

Advanced Built-in Microphone
Adopting the advanced codec in microphone, the NDAA AI 180° Panoramic Mini Dome Network Camera is able to provide a clearer voice. It's worth mentioning that Milesight uses PTFE Membrane to protect the built-in mic, ensuring IP67-rated weather-proof capability for reliable performance.

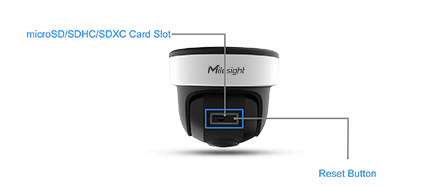

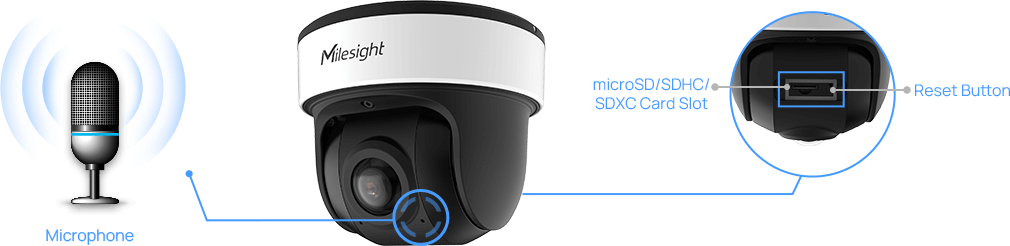

Exquisite Design
The inherited Milesight style makes the NDAA AI 180° Panoramic Mini Dome Network Camera a piece of art. The dome shape design offers a wide range of surveillance and blends well in any environment. The considerate structure ensures the network camera's best ease of use, realizing the greatest user experience.

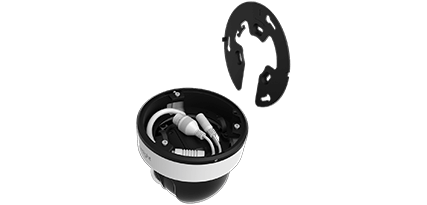

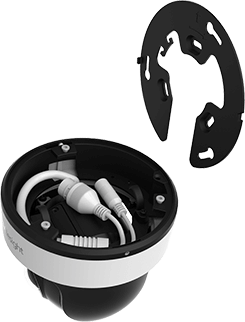

Integrated Junction Box
Coming with the concealed cable winding design, the integrated junction box not only ensures the NDAA AI 180° Panoramic Mini Dome Network Camera a simplified installation with better aesthetics and professional look of the video surveillance system, but also provides higher operation stability.
- MS-C5376-PE
- MS-C8176-PE
- MS-C5376-PA
- MS-C8176-PA
| Camera | Name | 5MP AI 180° Panoramic Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.008Lux@F2.0, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | 1.68mm @F2.0 | |
| Mount | M12 | |
| Field of View | H180°/V95° | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 15m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 2592x1944(Original) |
| Primary Stream | 60HZ:30fps@(2560x1440, 1920x1080, 1280x720) 50HZ:25fps@(2560x1440, 1920x1080, 1280x720) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | N/A | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap. | |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |

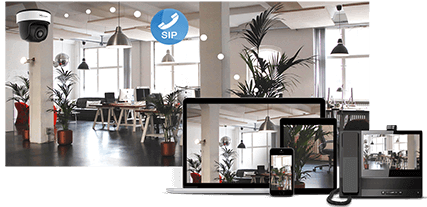

| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0~95%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 7W MAX, 10W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Dimensions | Φ127mmX107mm | |
| Weight | 853g | |
| Warranty | 3/5 Years |
| Camera | Name | 4K AI 180° Panoramic Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.012Lux@F2.0, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | 1.68mm @F2.0 | |
| Mount | M12 | |
| Field of View | H180°/V86° | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 15m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 25fps@(3840x2160,3440x1936,3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) | |
| Secondary Stream | 60Hz/50Hz:25fps@(704x576, 640x480, 640x360） | |
| Tertiary Stream | 60Hz/50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | N/A | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap. | |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0~95%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 7W MAX, 10W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Dimensions | Φ127mmX107mm | |
| Weight | 853g | |
| Warranty | 3/5 Years |
| Camera | Name | 5MP NDAA AI 180° Panoramic Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.005Lux @F1.2, Color: 0.008Lux @F2.0, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | 1.68mm @F2.0 | |
| Mount | M12 | |
| Field of View | H180°/V95° | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | 180° IR Illumination Up to 15m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 2592x1944(Original) |
| Primary Stream | 60Hz: 30fps@(2592x1944)(Original), 30fps@(2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(2592x1944)(Original), 25fps@(2560x1440, 1920x1080, 1280x720) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 8 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | N/A | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 5W MAX, 8W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Dimensions | Φ127mmX107mm | |
| Weight | 853g | |
| Warranty | 3/5 Years |
| Camera | Name | 4K NDAA AI 180° Panoramic Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.01Lux @F1.2, Color: 0.012Lux @F2.0, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | 1.68mm @F2.0 | |
| Mount | M12 | |
| Field of View | H180°/V86° | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | 180° IR Illumination Up to 15m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 25fps@(3840x2160), 30fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(3840x2160), 25fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 8 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | N/A | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 6W MAX, 9W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Dimensions | Φ127mmX107mm | |
| Weight | 853g | |
| Warranty | 3/5 Years |
- * Naming Convention
- P - PoE Supported
- A/E - AI Series
