AI 36X/42X Speed Dome
Network Camera
Big Sensor, High Speed, Far Vision
Capture Every Detail at Lightning Speed
AI 36X/42X Speed Dome
- 4/5/8 MP
- AI Deep Learning
- Flexible Pan, Tilt and Zoom Tasks
- Smart Rain-sensing Wiper(Optional)
- PTZ Auto Tracking
- 1/1.8" Sony Sensor
- 36X/42X Optical Zoom
- 300m IR Distance
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- PTZ Series
- AI 36X/42X Speed Dome Camera
AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.
Flexible Pan, Tilt and Zoom Tasks
Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 95° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.
Smart Rain-Sensing Wiper (Optional)
The rain sensor is used to detect the rain, realizing a smarter control of the wiper function. The speed and frequency of the wiper are intelligently adjusted according to the rain. By smart rain-sensing wiper, the camera can clear rainwater automatically, providing sharp images even in rainy days.
36X/42X Optical Zoom
The 36X/42X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.
PTZ Auto Tracking
Creating a 3D model within the monitoring range, Milesight PTZ cameras mark and track the object after target detection and selection to ensure that the object maintains a fixed proportion for superb tracking views by automatically controlling the direction and zoom-level.

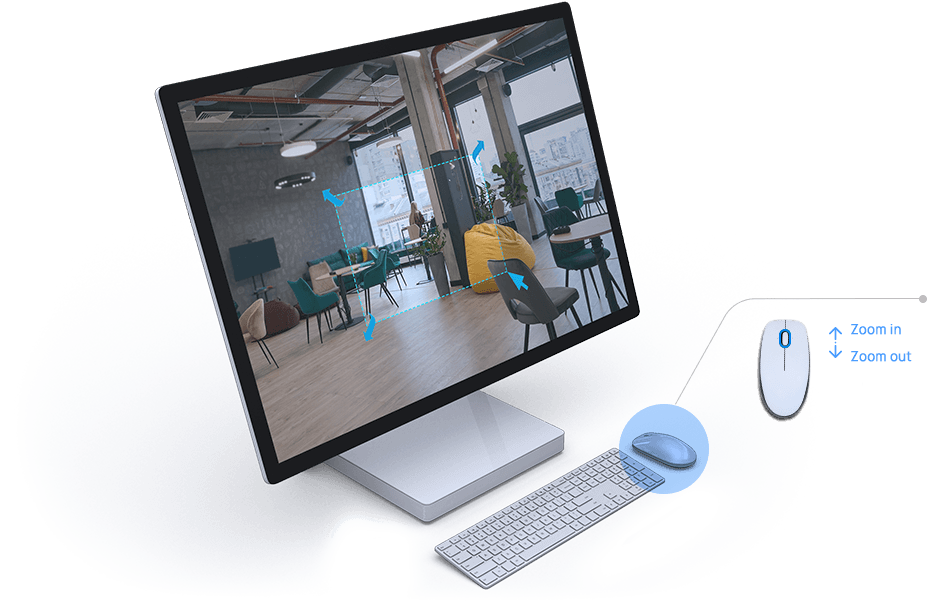

3D Positioning
With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

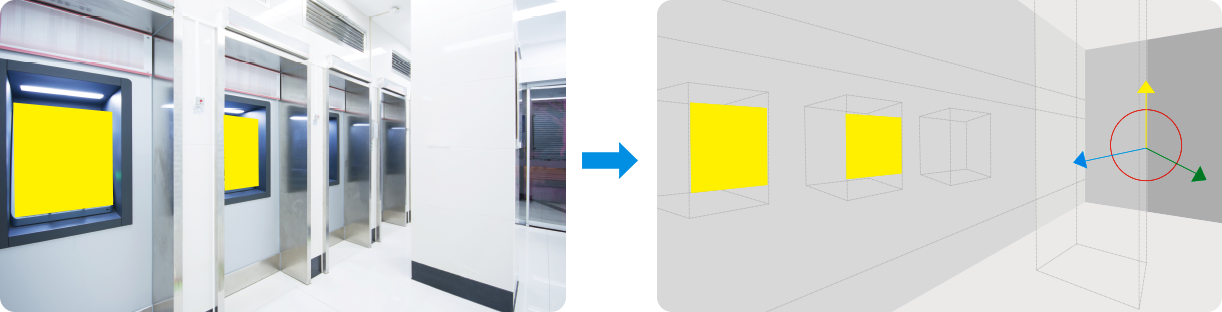

PTZ Privacy Mask
Adopting anonymization and limitation functionality for further privacy protection, Milesight supports 3D Privacy Mask in all Al PTZ cameras with their coordinate system, which keeps the specified area masked from monitoring through manual operations no matter how cameras pan/tilt/zoom.
Superior Image Quality
With advanced image processing algorithms and 1/1.8" SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, up to 4K High Resolution, and 90fps High Frame Rate features make it well-suited for various special circumstances.
IP66 & IK10 (Optional for IK10)
Equipped with industry-leading IP66-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
*lK10 is optional for non-wiper versions.
Easy Deployment and Compact Structure
To meet different needs of customers, AI 36X/42X Speed Dome Camera provides a wide selection of auto-focus lenses. Furthermore, the smart rain-sensing wiper and built-in fan ensure its rugged performance, while the integrated junction box makes it easy to install, even in complex environments.

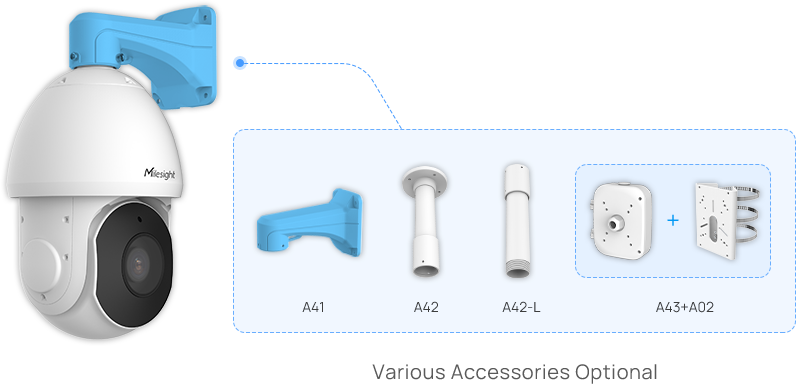

Various Accessories Optional
Various accessories are available to fulfill different installation needs, such as Pendant Mount or Wall Mount, achieving the hassle-free installation for traffic projects.
Specifications
NDAA
- MS-C4441-X36RPE
- MS-C2941-X42R(T)PE
- MS-C5341-X42PE
- MS-C8241-X36PE
- MS-C2841-X36TPA
- MS-C2941-X42TPA
- MS-C8241-X36PA
Non-NDAA
- MS-C2841-X36TPC
- MS-C2941-X42R(T)PC
- MS-C5341-X42PC
- MS-C8241-X36PC
| Camera | |
|---|---|
| Name | 4MP 36X AI Speed Dome Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.7~205.3mm, 36X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H63°∼H3°/D69°∼D3°/V38°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1500/1500mm (Wide/Tele) |
| Aperture | F1.55∼F4.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 13W MAX/ 27W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 42X AI Speed Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.8, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 7∼300mm, 42X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H45°∼H2°/D50°∼D2°/V27°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1200/1500mm (Wide/Tele) |
| Aperture | F1.8∼F6.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080) (Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080) (Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 11W MAX/ 26W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 5MP 42X AI Speed Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.8, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 7~300mm, 42X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H43°~H2°/D53°~D2°/ V33°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1200/1500mm (Wide/Tele) |
| Aperture | F1.8~F6.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 12W MAX/ 28W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 4K 36X AI Speed Dome Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux @F1.55, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.7∼205.2mm, 36X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H65°~H2.5°/D72°~D2.9°/ V40°~V1.4° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1500/1500mm (Wide/Tele) |
| Aperture | F1.55∼F4.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 13W MAX/ 28W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 36X AI Speed Dome Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.55, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR Pro |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.7∼205.2mm, 36X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H63°∼H3°/D69°∼D3°/V38°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1500/1500mm (Wide/Tele) |
| Aperture | F1.55∼F4.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 13W MAX/ 23W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 42X AI Speed Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.8, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 7∼300mm, 42X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H45°∼H2°/D50°∼D2°/V27°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1200/1500mm (Wide/Tele) |
| Aperture | F1.8∼F6.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 12W MAX/ 23W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 5MP 42X AI Speed Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.8, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 7∼300mm, 42X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H43°∼H2°/D53°∼D2°/V33°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1200/1500mm (Wide/Tele) |
| Aperture | F1.8∼F6.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 12W MAX/ 25W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Reset Button | Support |
| MTBF | 6.25 Years |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 4K 36X AI Speed Dome Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.55, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.7∼205.2mm, 36X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H66°∼H3°/D72°∼D3°/V41°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1500/1500mm (Wide/Tele) |
| Aperture | F1.55∼F4.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 13W MAX/ 25W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 36X AI Speed Dome Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.55, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.7∼205.2mm, 36X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H63°∼H3°/D69°∼D3°/V38°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1500/1500mm (Wide/Tele) |
| Aperture | F1.55∼F4.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 13W MAX/ 24W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 42X AI Speed Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.8, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 7∼300mm, 42X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H45°∼H2°/D50°∼D2°/V27°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1200/1500mm (Wide/Tele) |
| Aperture | F1.8∼F6.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 12W MAX/ 23W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 4K 36X AI Speed Dome Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.55, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.7∼205.2mm, 36X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H66°∼H3°/D72°∼D3°/V41°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1500/1500mm (Wide/Tele) |
| Aperture | F1.55∼F4.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 4/2 |
| RS485 | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 12W MAX/ 23W MAX(With IR on) |
| Weather Proof/Housing | Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional) |
| Heater | Support |
| Wiper (Optional) | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX308mm/4Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
A01 Pole Mount
- Weight: 720g
- Dimension: 170*51.5*152.6mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A41 Wall Mount
- Weight: 400g
- Dimension: 200*129*100mm
- Installation Environment: For wall or parapet installations
A42 Pendant Mount
- Weight: 650g
- Dimension: Φ 116.5*255mm
- Installation Environment: Used to install cameras on a ceiling or vertical structure
A42-L Extension Lever
- Weight: 330g
- Dimension: Φ 55*255mm
- Installation Environment: Used as extensions for pendant mount
A43 Junction Box
- Weight: 1000g
- Dimension: 195*164*80mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
Documents
Milesight AI 25X/30X/36X/42X Speed Dome Network Camera Datasheet Project Based-en Milesight AI 25X/30X/36X/42X Speed Dome Network Camera Datasheet-en Milesight AI 23X/30X/36X/42X Speed Dome Network Camera Datasheet-NDAA-A-en Milesight AI 23X/30X/36X/42X Speed Dome Network Camera Datasheet-en Milesight Network Camera User Manual AI Series Milesight Network Camera Quick Start Guide
