64/128-CH Video Surveillance Appliance
Lower Deployment Cost for Large-scale Project Management
Power up Your VMS Performance
- Pre-loaded with Milesight VMS Enterprise
- High-performance & High Reliability
- Dell Hardware Technology
- Hot-swappable HDD Bays
- Up to 12*20TB Hard Disk Storage
- RAID 0/1/5/6/10/50/60
- N+M Failover
- Global After-sale Service
- FEATURES
- MODELS
- DOWNLOAD
- Home
- Video Management System
- Video Surveillance Appliance

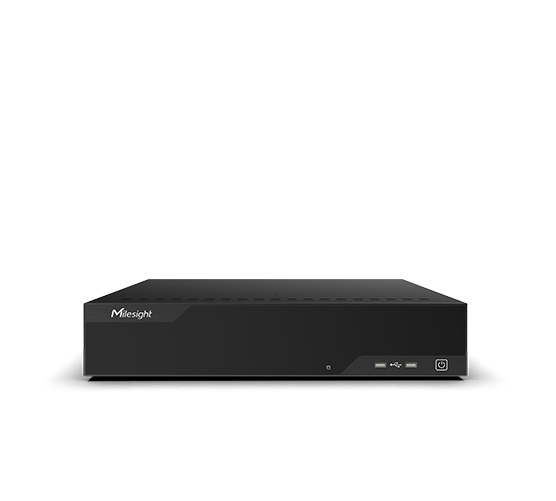

Pre-loaded with Latest Milesight VMS Enterprise
Milesight VMS Surveillance Appliance is a pre-loaded server with latest Milesight VMS Enterprise, which optimizes the recording storage option. It only takes a few minutes to setup and you won't have to spend time picking out the hardware.
Designed for Your
Growing Needs
Milesight Video Surveillance Appliance is designed for mid-to-large projects and has the ability to expand with your growing needs with up to 2000-ch connectivity, ensuring that it can fit your needs now and in the future.
Powering Through
Complex Workloads
With an Intel processor — a leading provider of microprocessors for computers and network servers – our product offers increased processing power. With its robust features, it ensures reliable system operation, including up to 700 Mbps playback rate, HDD hot-swappable, and so on.
Robust Hardware You
Can Trust
Milesight Video Surveillance Appliance is engineered with durability and reliability in mind. Our product makes it easy for you to carry out your daily operations thanks to the robust housing, industrial-grade motherboard, redundant power design and built-in recovery partition.
Lifetime License
Included
Milesight Video Surveillance Appliance comes with a 64/128-ch camera access license, providing a hassle-free solution to connect cameras, without any additional expenses or recurring fees.
Up to 12*20TB of Capacity
Storage with a high capacity is feasible. Offer up to 12*20TB of capacity in cost-effective storage, which is appropriate for medium-to-large-scale projects. (Hard disk is not included.)

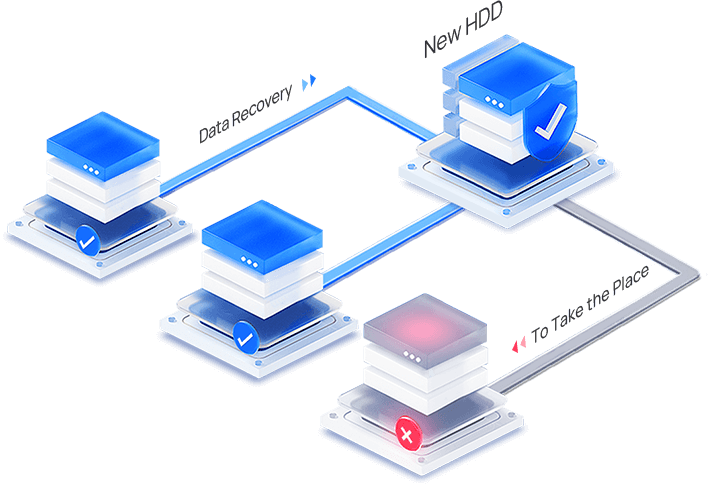

RAID 0/1/5/6/10/50/60
Industry-leading RAID 0/1/5/6/10/50/60 could be configured at the beginning of setup based on the specific redundancy and performance requirements, which enables multiple data security protection.

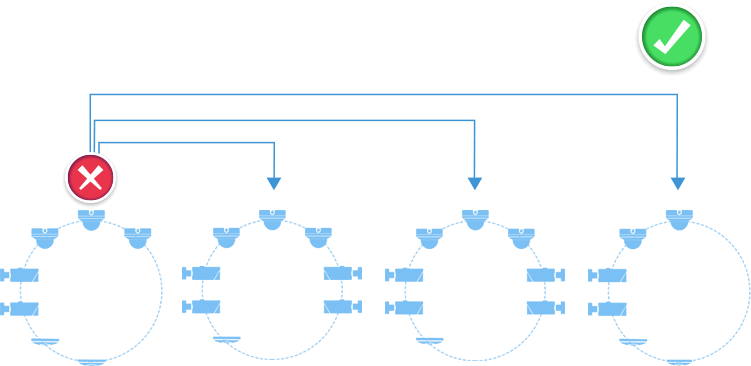

N+M Failover
In case of a server failure, other servers with N+M Failover function will take over the cameras and ensure continuous recording and boosting risk resistance. Moreover, licenses can be shared within the system in case of a failed server, providing extra assurance and guarantee of successful failover.

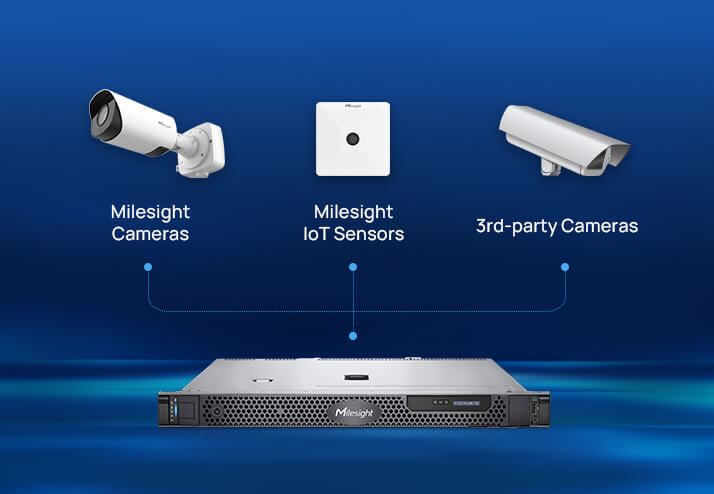

High Compatibility
Up to 128 channels of video stream per server is supported for Milesight VMS Surveillance Appliance, and it is fully compatible with Milesight network cameras, Milesight IoT sensors and 3rd party network cameras.
Dell Hardware Technology
Through the partnership with Dell, we leverage Dell's expertise in hardware technology to ensure that users can rely on reliable and high-performance equipment and global service to run smoothly and efficiently.
Service Guarantee
Milesight VMS Surveillance Appliance comes with a 3-year warranty to guarantee after-sales service, and on-site support and next-business-day service to maximize experience of the product.
Versatile Interfaces
A whole array of ports provides all necessary features of effective surveillance.
Related Products
Specifications
- VE0404-S
- VE1208-S
| Devices | |
|---|---|
| Included Cameras Access License | 64 |
| Recording | |
| Recording Schedule | 64 |
| Playback Rate (Multiple Connections) | Up to 700 Mbps |
| Recording Rate (Multiple Connections) | Up to 600 Mbps |
| Event & Alarm | |
| Event and Alarm Rules | 1000 |
| Users & Roles | |
| Concurrent Accesses via Clients, App Clients | 100 |
| Users | 1000 |
| Roles | 100 |
| Local Viewing | |
| Local Viewing | Not Supported |
| System | |
| Main Processor | 1*Quad-Core Intel® Xeon® Processor |
| Memory | 8GB UDIMM 3200MT/s ECC parity. Extendable up to 128GB |
| Network Interface | 1 GbE RJ-45 ports *2 |
| RAID Support | Not Supported |
| Operating System | Microsoft Windows 10 IoT Enterprise 64bit |
| Out-of-band Management | iDRAC 9 Enterprise |
| Auxiliary Interface | |
| HDD Drives(Video Data) | 4*3.5" SAS or SATA hot-swappable |
| SSD Drive(Operating System) | 240GB*1 M.2 SSD |
| Capacity | Up to 20TB capacity for each disk |
| Recording Storage Capacity | Up to 80TB raw; 40TB effective(RAID 1) |
| USB Interface | Front panel: 1*USB 2.0 Rear panel: 1*USB 2.0, 1*USB 3.0 |
| Video Output | VGA*1 |
| GPU Options | Not Supported |
| PCIe Support | 1*8 Gen4 (x16 connector) low profile, half length 1*8 Gen4 (x8 connector) low profile, half length 1*4 Gen4 (x8 connector) for dedicated PERC only |
| General | |
| Power Input | 100 to 240 VAC, 50/60 Hz, auto-switching |
| Power Supply | Single 600W Mixed Mode |
| Consumption | ≤140 W (without HDD) |
| Working Temperature | 5°C to 45°C (41°F to 113°F); |
| Working Humidity | 8% to 90% RH (no freezing and no condensation) |
| Chassis | 1U rack server |
| Dimension (W x D x H) | Height - 42.8mm(1.69 inches) Width - 482mm(18.97 inches) Depth - 585.3mm(23.04 inches) - without bezel 598.94mm(23.58 inches) - with bezel |
| Weight | Max13.14 kg (28.96 lbs.) |
| Warranty | 3-year NBD (Next Business Day) with onsite parts delivery service. |
*Naming Convention
VE - VMS Enterprise
S - Server
| Devices | |
|---|---|
| Included Cameras Access License | 128 |
| Recording | |
| Recording Schedule | 128 |
| Playback Rate (Multiple Connections) | Up to 700 Mbps |
| Recording Rate (Multiple Connections) | Up to 600 Mbps |
| Event & Alarm | |
| Event and Alarm Rules | 1000 |
| Users & Roles | |
| Concurrent Accesses via Clients, App Clients | 100 |
| Users | 1000 |
| Roles | 100 |
| Local Viewing | |
| Local Viewing | Not Supported |
| System | |
| Main Processor | 1*Octa-Core Intel® Xeon® Silver Processor |
| Memory | 16GB (1*16GB) UDIMM 3200MT/s ECC parity. Extendable up to 1TB |
| Network Interface | 1 GbE RJ-45 ports *2 |
| RAID Support | RAID 0/1/5/6/10/50/60 |
| Operating System | Microsoft Windows 10 IoT Enterprise 64bit |
| Out-of-band Management | iDRAC 9 Enterprise |
| Auxiliary Interface | |
| HDD Drives(Video Data) | 12*3.5" SAS or SATA hot-swappable |
| SSD Drive(Operating System) | 240GB*2 M.2 SSD, RAID1 |
| Capacity | Up to 20TB capacity for each disk |
| Recording Storage Capacity | Up to 240TB raw; 160TB effective(RAID 60) |
| USB Interface | Front panel: 1*USB 2.0 Rear panel: 1*USB 2.0, 1*USB 3.0 |
| Video Output | VGA*2 |
| GPU Options | Not Supported |
| PCIe Support | 3*16 Gen4 (x16 connector) full height, half length 1*4 Gen3 (x8 connector) full height, half length |
| General | |
| Power Input | 100 to 240 VAC, 50/60 Hz, auto-switching |
| Power Supply | Dual 800W Mixed Mode |
| Consumption | ≤140 W (without HDD) |
| Working Temperature | 5°C to 45°C (41°F to 113°F); |
| Working Humidity | 8% to 90% RH (no freezing and no condensation) |
| Chassis | 2U rack server |
| Dimension (W x D x H) | Height - 86.8mm(3.41 inches) Width - 482mm(18.97 inches) Depth - 707.78mm(27.85 inches) - without bezel 721.62mm(28.4 inches) - with bezel |
| Weight | Max28.76 kg (63.40 lbs.) |
| Warranty | 3-year NBD (Next Business Day) with onsite parts delivery service. |
*Naming Convention
VE - VMS Enterprise
S - Server
